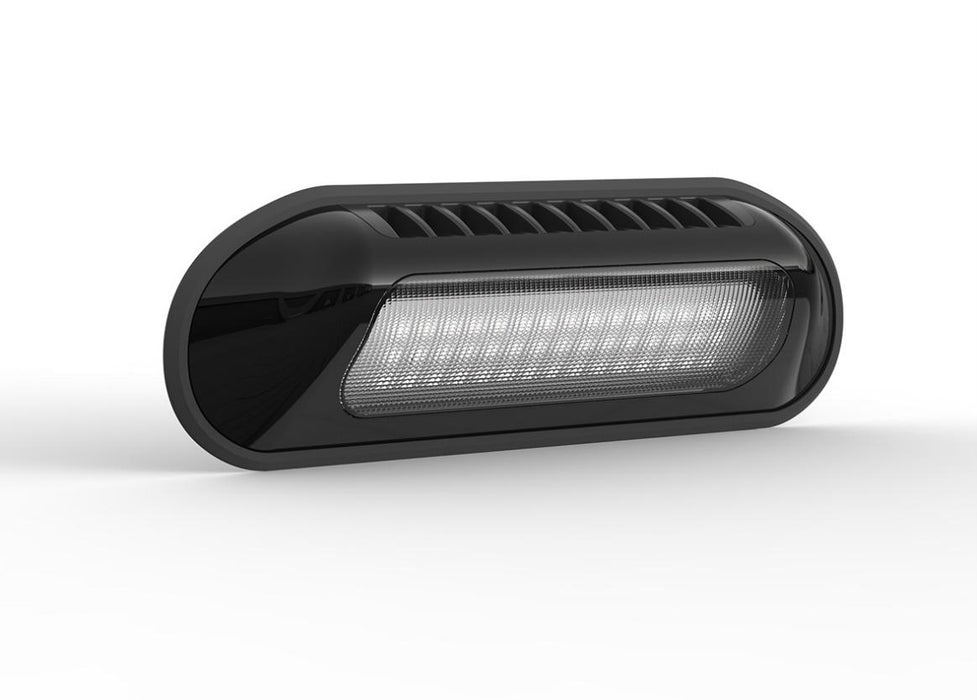

ORACLE Lighting 9.2" Scene Light + Reversing Light
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
2-in-1 scene light with dual-brightness function: 100% brightness for scene work light (4500LM raw / 3030LM effective), 40% dim for reversing/backup light (1800LM raw / 1046LM effective). A+ EU energy efficiency class. CISPR 25 Class 4. Patent certified design.
Part Number: ORA-SL1-3
57W 4500 LM Raw 3030 LM Effective Dim Function A+ Energy Class IP67 / IP69K 5 Year Warranty Scene / Work Lights
Product Features
- 2-in-1: Scene light (100% brightness) + Reversing light (40% brightness) in one unit.

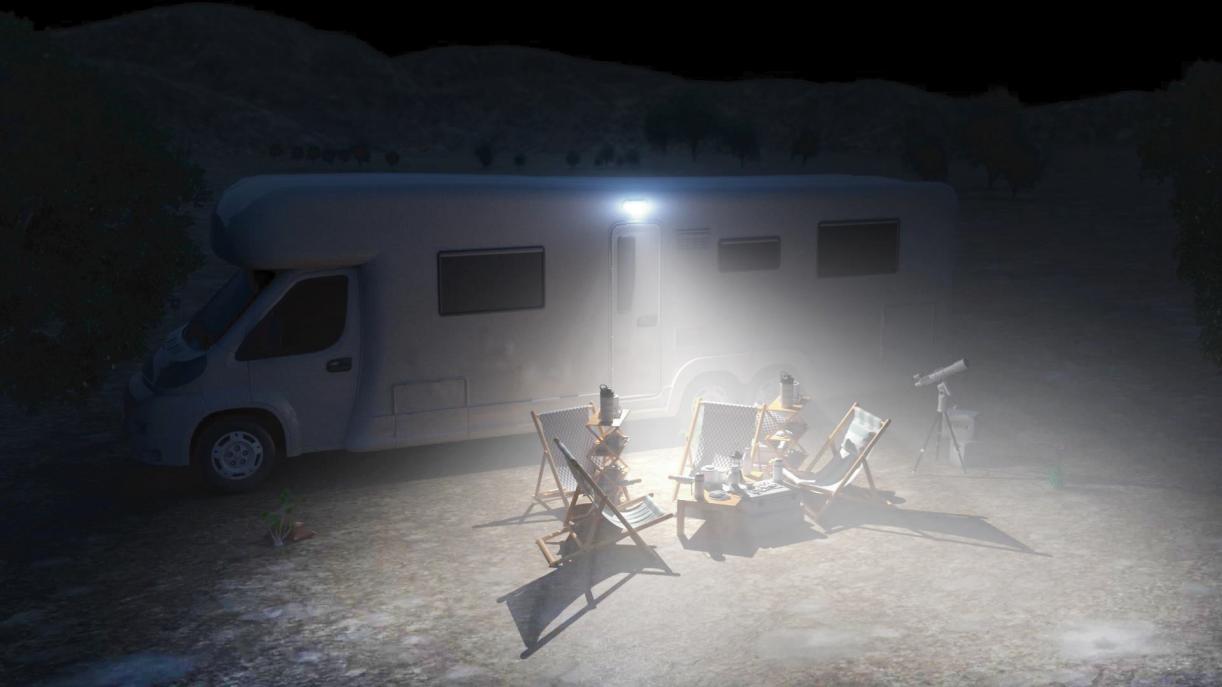

- Scene light: 4500LM raw / 3030LM effective at 100% brightness, angled down 45°.

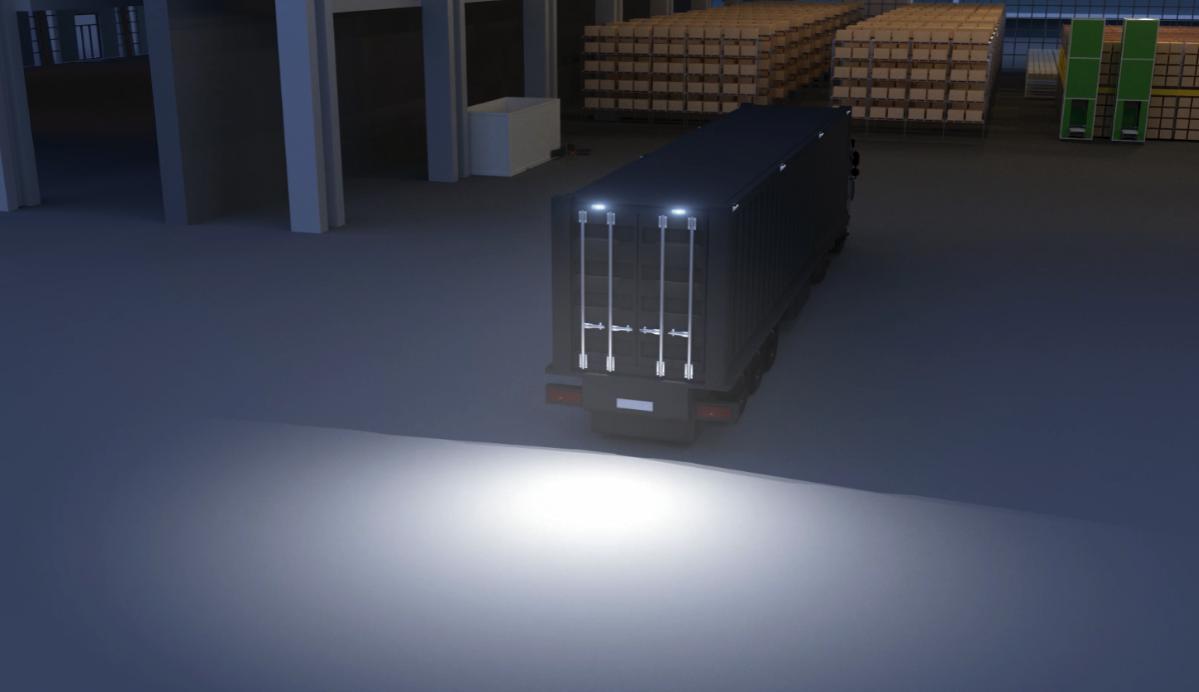

- Reversing light: 1800LM raw / 1046LM effective at 40% brightness.
- A+ EU energy efficiency class (EU 874-2012). 123.66 LM/W efficiency. 6216K color temperature.
- Rubber gasket seal. 0.3M cable. Screw mount.
- Patent certified - utility model and appearance design patents.
Patent Certificates:
Utility Model Patent: ZL202222770017.8
Appearance Design Patent: ZL202230609387.6
Utility Model Patent: ZL202222770017.8
Appearance Design Patent: ZL202230609387.6
Brightness Performance
| Metric | Value |
|---|---|
| Raw Lumen | 4500LM (scene) | 1800LM (reversing/dim) |
| Effective Lumen | 3030LM (scene) | 1046LM (reversing/dim) |
| Efficiency | 123.66 LM/W |
| Energy Efficiency Class | A+ (EU 874-2012) |
| Color Temperature | 6216K |
Wiring Guide - 2 Functions in 1 Light
| Function | Wire Color | Brightness |
|---|---|---|
| Scene Light Positive | Red | 100% Brightness (4500LM raw) |
| Reversing Light Positive | Yellow | 40% Brightness (1800LM raw) |
| Negative Ground | Black | — |

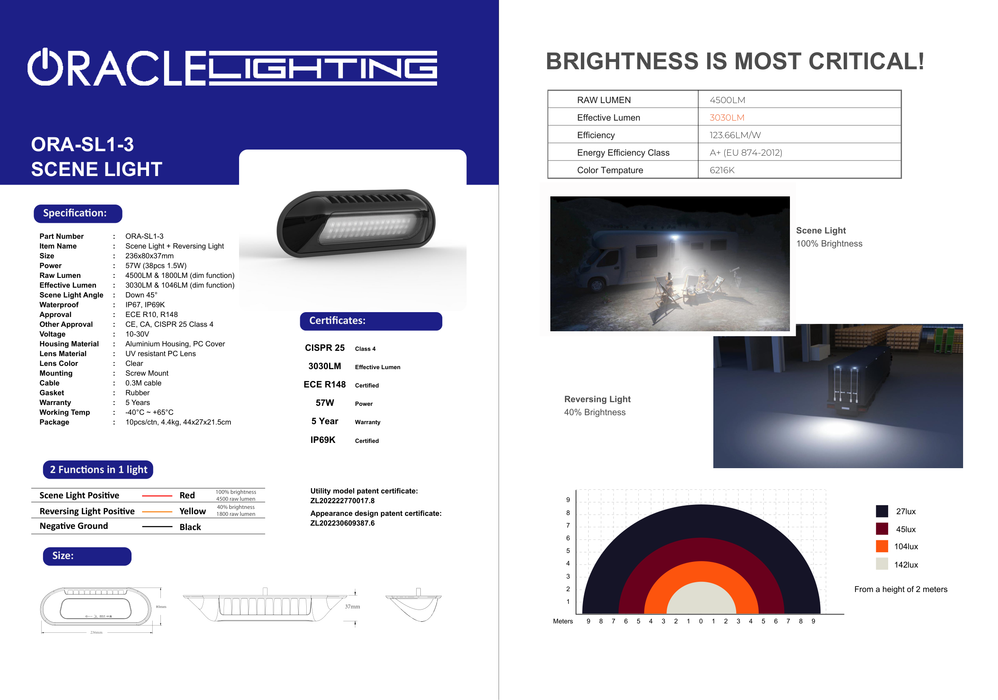

Specifications
Part NumberORA-SL1-3
Item NameScene Light + Reversing Light
Size / Dimensions236 x 80 x 37 mm
Power / Wattage57W (38pcs 1.5W)
Raw Lumen4500LM (scene) | 1800LM (dim function)
Effective Lumen3030LM (scene) | 1046LM (dim function)
Scene Light AngleDown 45°
Waterproof RatingIP67, IP69K
Voltage Range10-30V
Housing MaterialAluminium Housing, PC Cover
Lens MaterialUV Resistant PC Lens
Lens ColorClear
MountingScrew Mount
Cable0.3M Cable
GasketRubber
Working Temp-40°C to +65°C
Warranty5 Years
Package Qty10 pcs/ctn
Package Weight4.4 kg
Carton Size44 x 27 x 21.5 cm
Approvals & Compliance
- ECE R10, ECE R148
- CE, CA, CISPR 25 Class 4
- IP69K Certified
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
