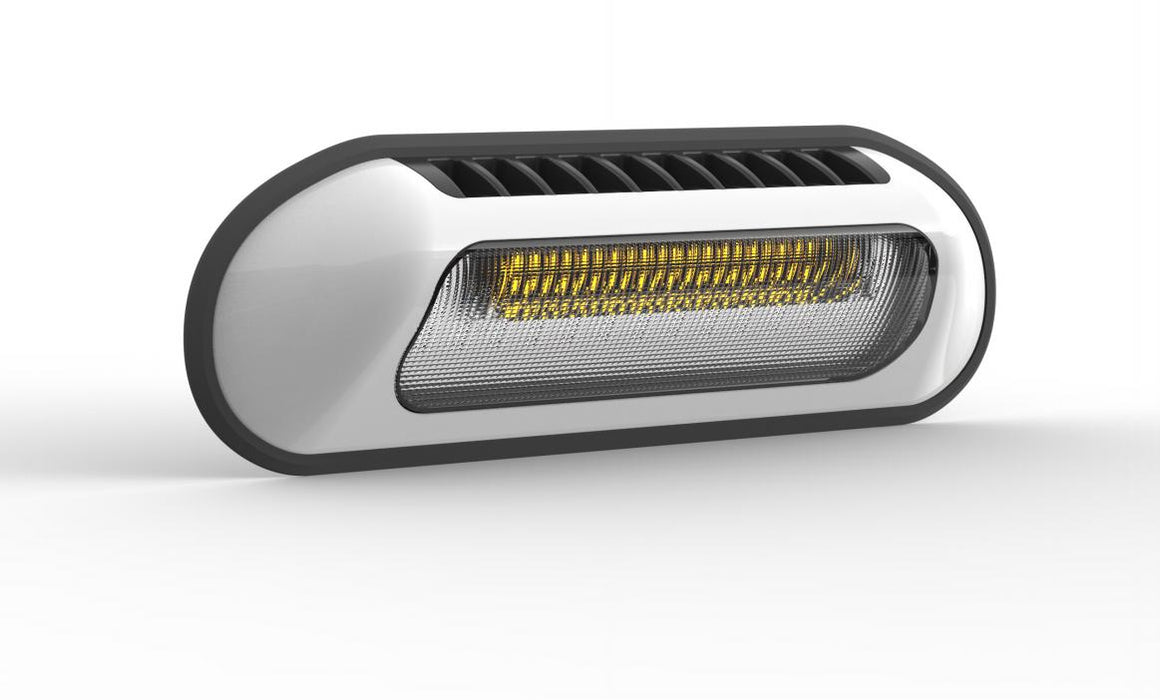

ORACLE Lighting 9.2" Scene Light w/ Warning Light
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
2-in-1 scene light with integrated amber or blue flashing warning light. 48W scene (3500LM raw / 2053LM effective) angled down 45°. 18W warning light covers horizontal 180° with 13 flash patterns. ECE R65 TA1/TB2 certified. For service vehicles, loading docks, and utility trucks. Patent certified design.
Part Number: ORA-SL1-1
48W Scene + 18W Warning 3500 LM Raw 13 Flash Patterns ECE R65 TA1/TB2 IP67 / IP69K 10-30V 5 Year Warranty Scene / Work Lights
Product Features
- 2-in-1: Scene light (48W, 32pcs 1.5W) angled down 45° + Warning light (18W, 12pcs 1.5W) horizontal 180°.
- Scene light: 3500LM raw / 2053LM effective output.
- Warning light: 13 flash patterns, Amber (TA1) or Blue (TB2) color option.
- Synchronization via green wire. Asynchronous via white wire.
- Rubber gasket seal. 0.3M cable. Screw mount.
- Patent certified — utility model and appearance design patents.
Patent Certificates:
Utility Model Patent: ZL202222770017.8
Appearance Design Patent: ZL202230609387.6
Utility Model Patent: ZL202222770017.8
Appearance Design Patent: ZL202230609387.6
Wiring Guide
| Function | Wire Color |
|---|---|
| Synchronization | Green Wire |
| Asynchronous | White Wire |
Specifications
Part NumberORA-SL1-1
Item NameScene Light with Warning Light
Size / Dimensions236 x 80 x 37 mm
Scene Light Power48W (32pcs 1.5W)
Warning Light Power18W (12pcs 1.5W)
Raw Lumen3500 LM
Effective Lumen2053 LM
Scene Light AngleDown 45°
Warning Light AngleHorizontal 180°
Flashing Patterns13 Patterns
SynchronizationGreen Wire (Sync) / White Wire (Async)
Waterproof RatingIP67, IP69K
Voltage Range10-30V
Housing MaterialAluminium Housing, PC Cover
Lens MaterialUV Resistant PC Lens
Lens ColorClear
MountingScrew Mount
Cable0.3M Cable
GasketRubber
Working Temp-45°C to +65°C
Warranty5 Years
Package Qty10 pcs/ctn
Package Weight4.4 kg
Carton Size44 x 27 x 21.5 cm
Approvals & Compliance
- ECE R65 TA1 TB2, ECE R10, ECE R148
- CE, UKCA
- IP69K Certified
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
