ORACLE Lighting Light Head 12-LED w/ Alley Light
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00

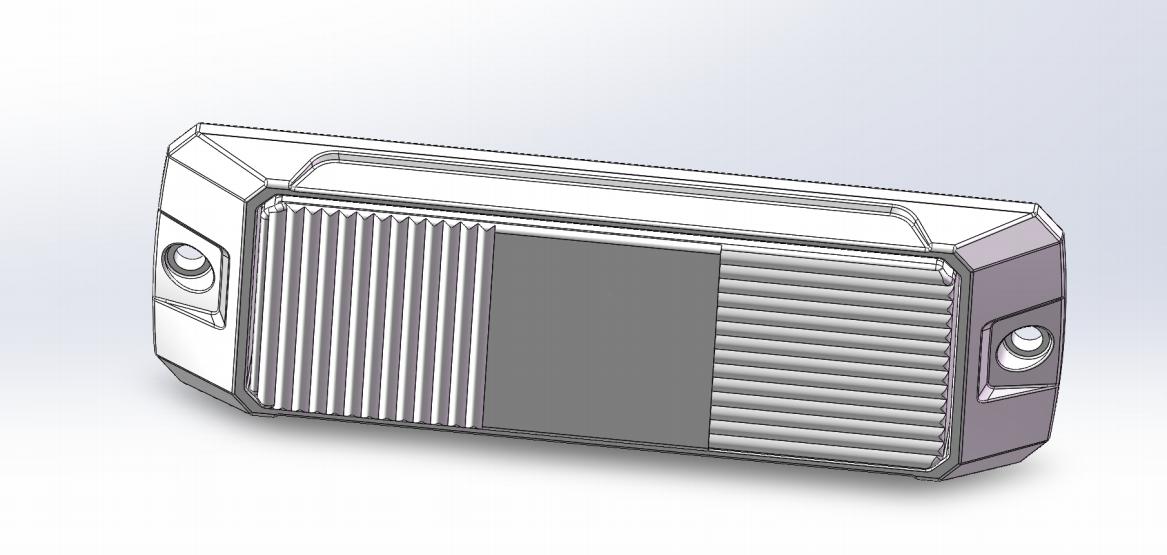

Compact 12-LED warning lighthead with integrated 12W alley light. Screw-mount design for surface installation on service trucks, utility vehicles, and emergency equipment. Available in single and dual color configurations.
Part Number: LH1-12
24W Warning + 12W Alley IP67 / IP69K 12–24V 5-Year Warranty 13 Flash Patterns ECE R65 Class 2 SAE J595 Class 1
Product Features
- Dual function: 24W warning output + dedicated 12W alley light (white) in a single unit.
- ECE R65 Class 2 & ECE R10 approved; SAE J595 Class 1 rated; UKCA & CE certified.
- 13 selectable flash patterns with SYNC (yellow wire) and ASYNC (green wire) control.
- Available in Single Color (amber, blue, red, green, white) and Dual Color configurations.
- EVA foam gasket seal for a weatherproof surface mount.
- UV-resistant clear PC lens with aluminium housing.
- 0.3M cable - screw mount only.
Color Options
Wiring Guide
| Function | Wire Color |
|---|---|
| Positive VDC | Red |
| Negative Ground | Black |
| Flash Pattern & SYNC | Yellow |
| Asynchronous | Green |
| Alley Light | White |

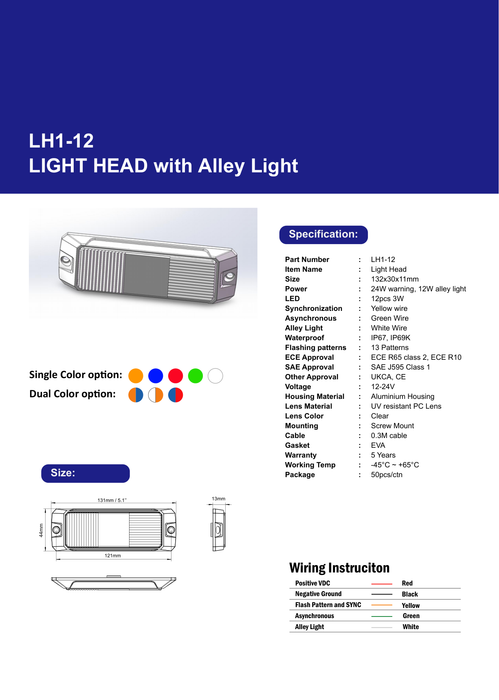

Specifications
Part NumberLH1-12
Size / Dimensions132 × 30 × 11 mm (121mm inner)
Overall Width131mm / 5.1" — Height: 44mm
Power / Wattage24W Warning + 12W Alley Light
LED Count / Type12 × 3W LED
Flashing Patterns13 Patterns
SynchronizationYellow wire (SYNC) / Green wire (ASYNC)
Alley Light ControlWhite wire
Waterproof RatingIP67, IP69K
Voltage Range12–24V
Housing MaterialAluminium
Lens MaterialUV-Resistant PC Lens
Lens ColorClear
MountingScrew Mount
Cable0.3M
GasketEVA
Working Temp-45°C ~ +65°C
Warranty5 Years
Package Qty50 pcs/ctn
Approvals & Compliance
- ECE R65 Class 2, ECE R10
- SAE J595 Class 1
- UKCA, CE
- IP69K Protection
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
