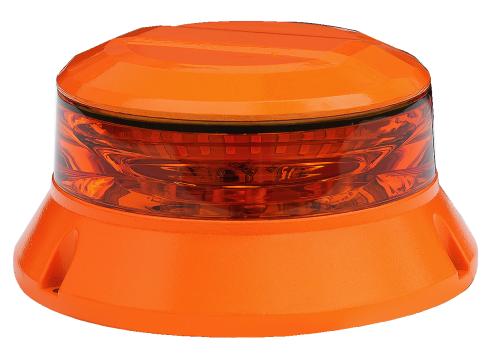

ORACLE Lighting Low Profile Beacon - Screw or Magnet Mount
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Compact, low-profile amber warning beacon with robust aluminium housing and 60G anti-shock rating. Ideal for utility trucks, construction equipment, and municipal service vehicles where a slim profile is required.
Part Number: ORA-B5 (Screw Mount) / ORA-B5-1 (Magnet Mount)
36W IP67 / IP69K 10–30V 5-Year Warranty 12 Flash Patterns ECE R65 Class 1 SAE J845 Class 1
ECE R65 Class 1 - Night-Use Rated
The ORA-B5 / B5-1 is certified to ECE R65 Class 1, which provides a single optimized brightness level for nighttime use. For a beacon with dual day/night brightness levels (ECE R65 Class 2) that can be used legally during the day, see the ORA-B6 or ORA-B7 series.
Product Features
- Low-profile single-layer design - slim footprint for space-constrained installations.
- ECE R65 Class 1 & ECE R10 approved; SAE J845 Class 1 rated.
- 60G anti-shock rating for extreme-duty applications.
- HAVE SYNC & ASYNC synchronization - sync multiple units together.
- UV-resistant PC lens - amber or clear available.
- Robust aluminium housing for maximum durability.
- Patent No.: ZL 2022 3 0666681.0
Mount Options
- ORA-B5 (Screw/Bolt Mount): 0.4M cable with lead wire. Package: 12 pcs/ctn, 5.8 kg, 28.5×28.5×27.5 cm.
- ORA-B5-1 (Magnet Mount): 3M cable with double-switch cigarette lighter plug. Package: 12 pcs/ctn, 9.1 kg, 36.5×34.5×27.5 cm.

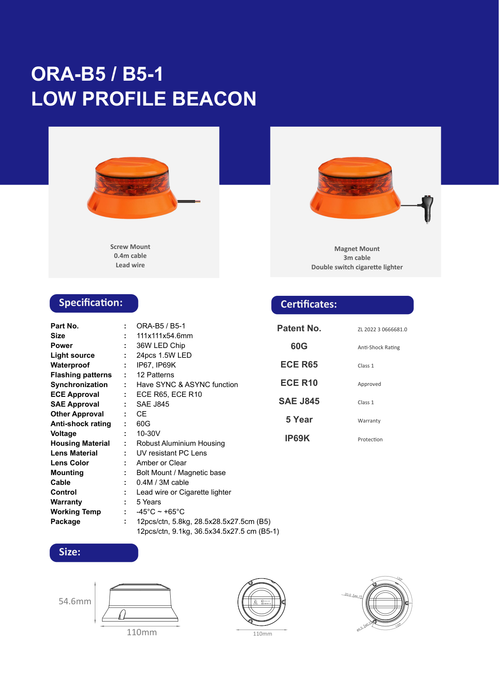

Specifications
Part NumberORA-B5 / ORA-B5-1
Size / Dimensions111 × 111 × 54.6 mm
Power / Wattage36W
Light Source24 × 1.5W LED Chip
Flashing Patterns12 Patterns
SynchronizationHAVE SYNC & ASYNC
Waterproof RatingIP67, IP69K
Voltage Range10–30V
Housing MaterialRobust Aluminium
Lens MaterialUV-Resistant PC Lens
Lens ColorAmber or Clear
MountingBolt/Screw Mount (B5) or Magnetic Base (B5-1)
Cable0.4M lead wire (B5) / 3M cigarette lighter (B5-1)
Anti-Shock Rating60G
Working Temp-45°C ~ +65°C
Warranty5 Years
Approvals & Compliance
- ECE R65 Class 1, ECE R10
- SAE J845 Class 1
- CE
- 60G Anti-Shock Rating
- IP69K Protection
- 5-Year Warranty
- Patent No.: ZL 2022 3 0666681.0
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
