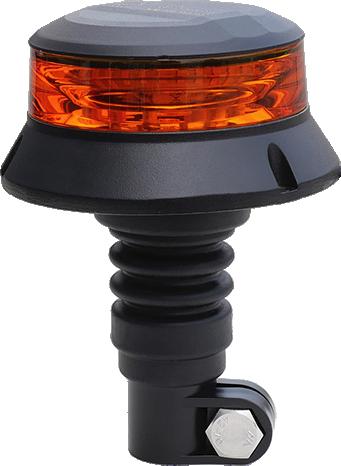

ORACLE Lighting Low Profile DIN Mount Beacon
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Low-profile beacon designed for permanent DIN pole/pipe mounting. 36W LED Chip (24pcs 1.5W), 12 flash patterns. IP67 and IP69K rated. Robust aluminium housing with PMMA lens. Orange or Black housing. Amber or Clear lens. ECE R65 Amber Class 2 approved.
Part Number: ORA-B5-2
36W LED Chip 24pcs 1.5W LED 12 Patterns DIN Mount IP67 / IP69K 10-30V ECE R65 Class 2 5 Year Warranty
Color Variants
| Option | Housing Color | Lens Color |
|---|---|---|
| Variant 1 | Orange | Amber |
| Variant 2 | Black | Clear |
Product Features
- DIN pole/pipe mount - designed for permanent vehicle installations.
- 36W LED Chip (24pcs 1.5W LED), 12 flash patterns.
- Robust aluminium housing with PMMA lens.
- IP67 and IP69K waterproof certified.
- Orange or Black housing. Amber or Clear lens options.
- ECE R65 Amber Class 2, SAE J845 Class 1 approved.

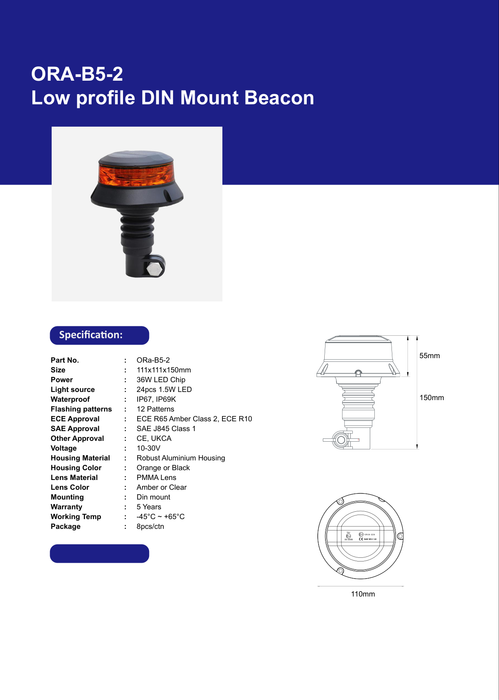

Specifications
Part NumberORA-B5-2
Item NameLow Profile DIN Mount Beacon
Size111 x 111 x 150 mm (incl. DIN mount)
Power36W LED Chip
Light Source24pcs 1.5W LED
Flashing Patterns12 Patterns
Waterproof RatingIP67, IP69K
Voltage10-30V
Housing MaterialRobust Aluminium Housing
Lens MaterialPMMA Lens
Housing ColorOrange or Black
Lens ColorAmber or Clear
MountingDIN Mount
Warranty5 Years
Working Temp-45°C to +65°C
Package8pcs/ctn
Approvals & Compliance
- ECE R65 Amber Class 2, ECE R10
- SAE J845 Class 1
- CE, UKCA
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
