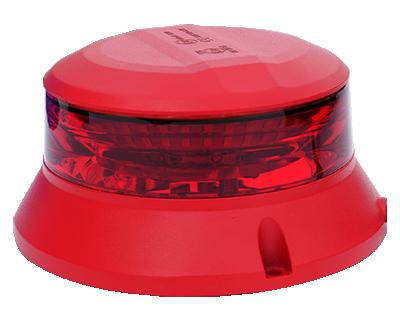

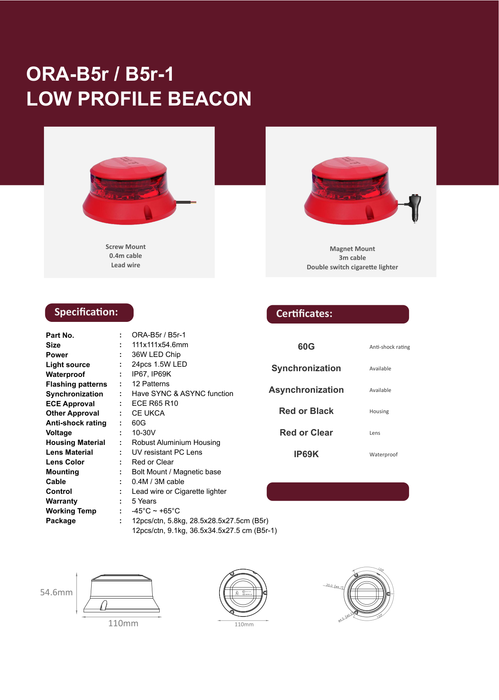

ORA-B5r / B5r-1 — Low Profile Red Beacon
Low-profile red warning beacon with robust aluminium housing. 36W LED Chip (24pcs 1.5W), 12 flash patterns, SYNC & ASYNC function. 60G anti-shock rated. Available in two variants: B5r (screw mount, 0.4M lead wire) and B5r-1 (magnetic base, 3M cable with double switch cigarette lighter). Red or Black housing. Red or Clear lens.
Part Number: ORA-B5r / B5r-1
36W LED Chip 24pcs 1.5W LED 12 Patterns 60G Anti-Shock SYNC & ASYNC IP67 / IP69K 10-30V 5 Year Warranty
60GAnti-Shock Rating
IP69KWaterproof
Sync & AsyncSynchronization Available
Red or ClearLens Color Options
B5r vs B5r-1 — Variant Comparison
| Feature | ORA-B5r | ORA-B5r-1 |
|---|---|---|
| Mounting | Bolt / Screw Mount | Magnetic Base |
| Cable | 0.4M Cable | 3M Cable |
| Control | Lead Wire | Double Switch Cigarette Lighter |
| Package Weight | 5.8 kg / 12pcs ctn | 9.1 kg / 12pcs ctn |
| Carton Size | 28.5 x 28.5 x 27.5 cm | 36.5 x 34.5 x 27.5 cm |
Product Features
- Low-profile design - 111 x 111 x 54.6mm compact footprint.
- 36W LED Chip (24pcs 1.5W), 12 flash patterns.
- SYNC & ASYNC function for multi-unit coordination.
- 60G anti-shock rated - robust aluminium housing.
- IP67 and IP69K waterproof certified.
- Red or Black housing. Red or Clear lens options.
Specifications
Part NumberORA-B5r / B5r-1
Item NameLow Profile Beacon
Size111 x 111 x 54.6 mm
Power36W LED Chip
Light Source24pcs 1.5W LED
Flashing Patterns12 Patterns
Waterproof RatingIP67, IP69K
SynchronizationSYNC & ASYNC Function
Anti-Shock Rating60G
Voltage10-30V
Housing MaterialRobust Aluminium Housing
Lens MaterialUV Resistant PC Lens
Housing ColorRed or Black
Lens ColorRed or Clear
MountingBolt Mount (B5r) / Magnetic Base (B5r-1)
Cable0.4M (B5r) / 3M (B5r-1)
ControlLead Wire (B5r) / Double Switch Cigarette Lighter (B5r-1)
Warranty5 Years
Working Temp-45°C to +65°C
Package12pcs/ctn, 5.8kg (B5r) | 12pcs/ctn, 9.1kg (B5r-1)
Approvals & Compliance
- ECE R65, ECE R10
- CE, UKCA
- IP69K Certified
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
