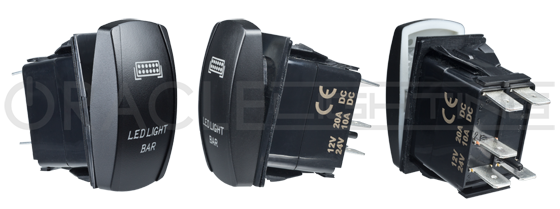

ORACLE LED Light Bar Deluxe Rocker Switch

  • $26.00




ORACLE Part # 2070-504

Control your ORACLE Off-Road LED Lights with a simple click! This rocker switch is designed for severe and demanding applications found in off-road vehicles, industrial equipment, heavy equipment, and marine-craft. The lower text illuminates when deactivated, and upper text illuminates when activated. The ORACLE LED Light Bar Deluxe Rocker Switch mounts into industry standard panel cutouts and includes rubber mounting gasket.

Product Features:
• Single Pole / Single Throw (SPST) ON/OFF
• Watertight Sealed
• Five 1/4" Male Contact Terminals - use Mating 1/4"
• Female Push ON Connector: CFP-164
• Switch Mounting Cutout: 0.830" by 1.45"
• Optimal Panel Thickness: 0.125" (0.030" min. - 0.187" max.)
• Current Rating: 20A @ 12V

Package Includes:
1 x ORACLE LED Light Bar Deluxe Rocker Switch
