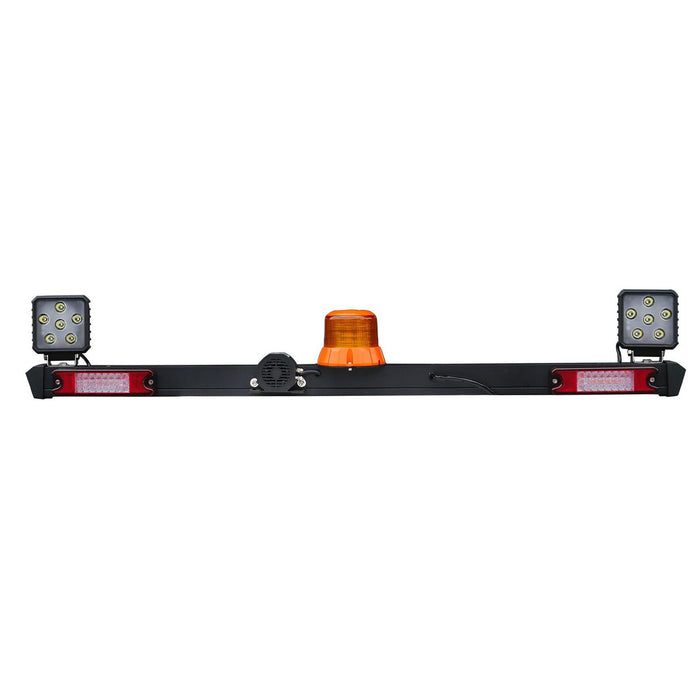

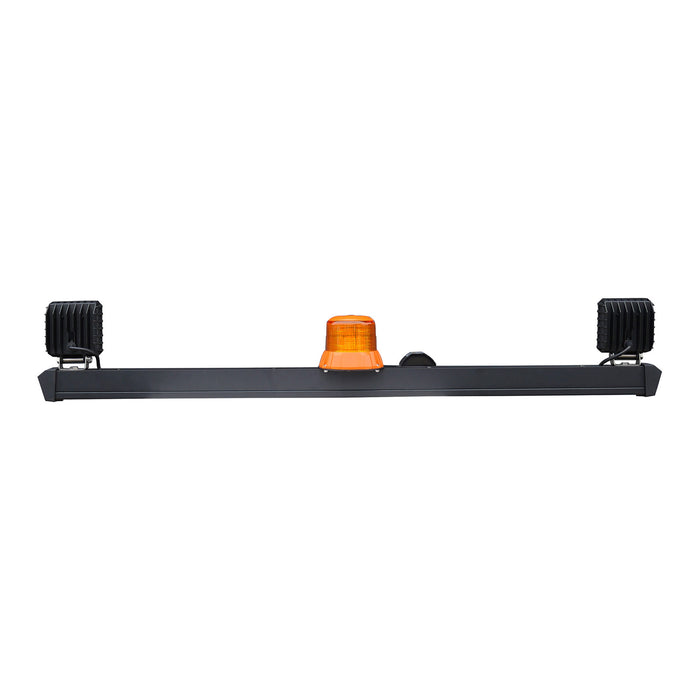

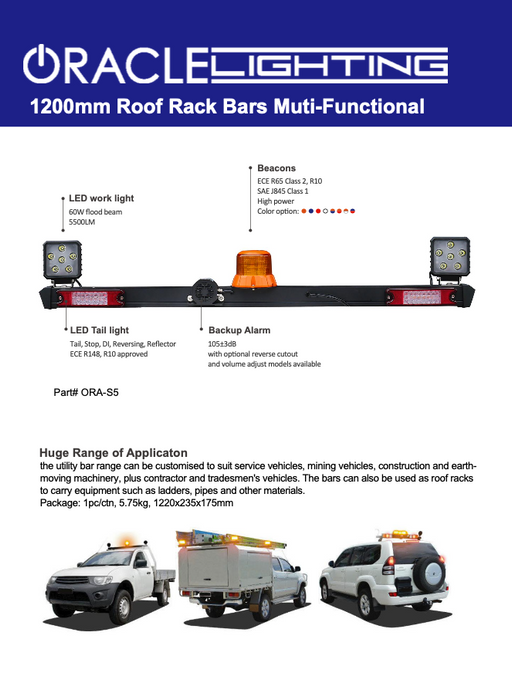

ORACLE Lighting 1200mm Roof Rack Bar Multi-Functional - ORA-S5
All-in-one 1200mm utility bar integrating LED work lights, an amber warning beacon, LED tail lights, and a backup alarm. Purpose-built for service vehicles, mining, construction, earth-moving machinery, and contractor/tradesman vehicles. Functions as a roof rack to carry ladders, pipes, and equipment.
Part Number: ORA-S5 • Package: 1 pc/ctn, 5.75kg, 1220×235×175mm
60W LED Work Lights 5500LM Flood Beam Amber Beacon ECE R65 Class 2 SAE J845 Class 1 LED Tail Lights ECE R148 / R10 105dB Backup Alarm Multi-Color Beacon 5-Year Warranty

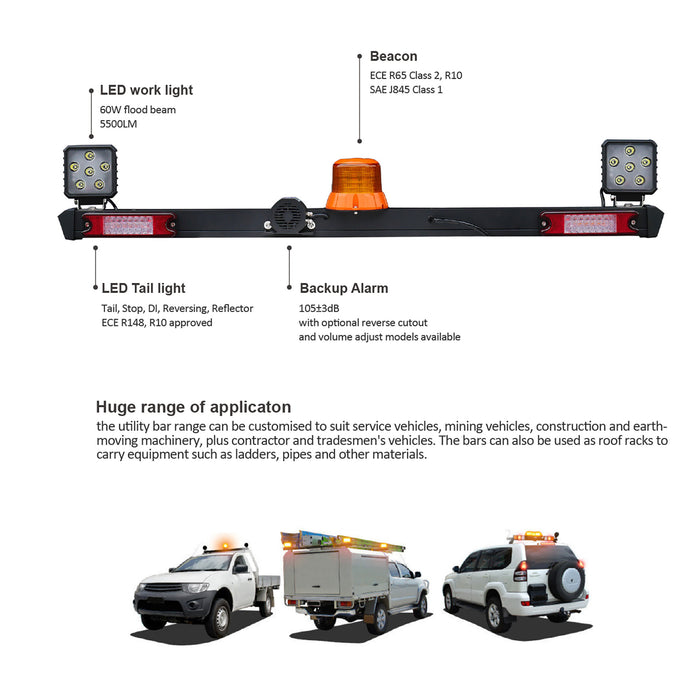

Integrated Components
LED Work Lights
- 60W flood beam
- 5500LM output
- Dual lights (left & right)
- High-power LEDs

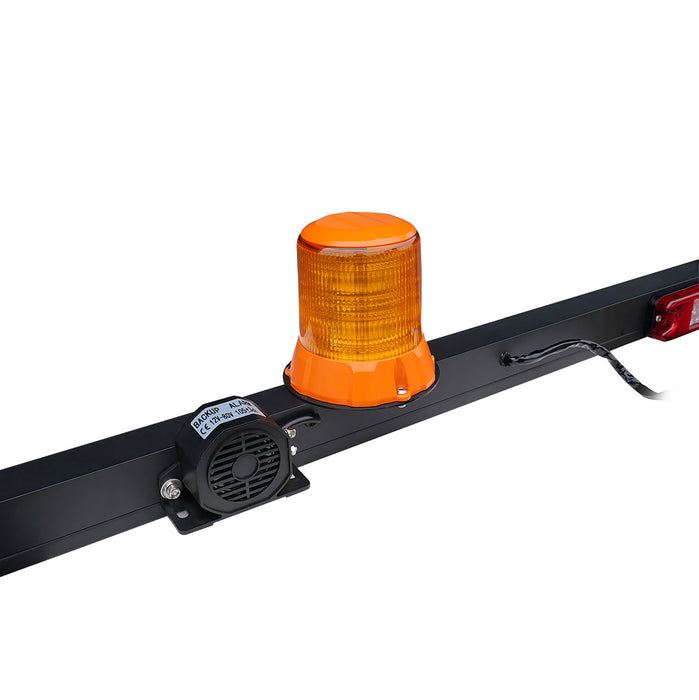

Warning Beacon
- High power amber beacon
- ECE R65 Class 2, R10
- SAE J845 Class 1
- Multi-color options available
LED Tail Lights
- Tail, Stop, DI, Reversing
- Reflector function
- ECE R148 approved
- ECE R10 approved
Backup Alarm
- 105 ±3dB output
- Optional reverse cutout
- Volume adjust models available

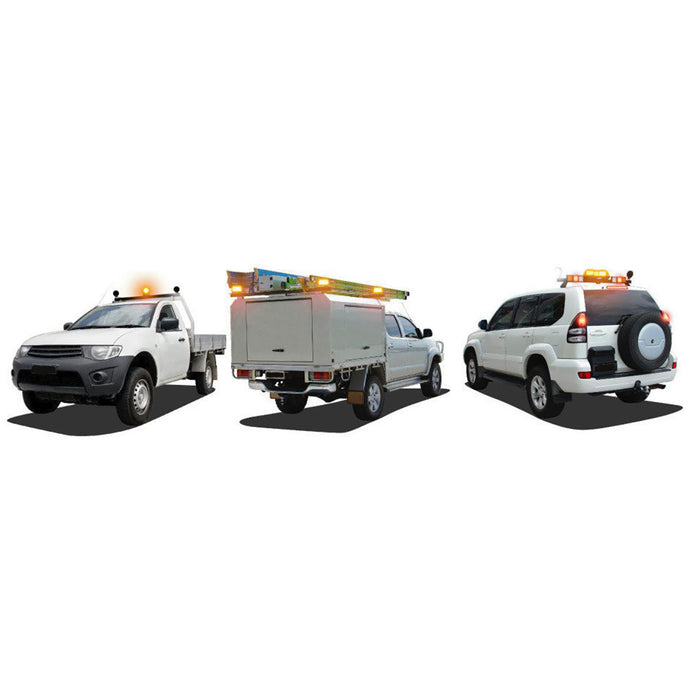

Applications
The ORA-S5 utility bar range can be customized to suit a wide range of professional vehicle applications:
Service VehiclesFleet and utility service trucks
Mining VehiclesUnderground and surface mining
ConstructionSite vehicles and machinery
ContractorsTradesman and contractor vehicles
Roof RackCarry ladders, pipes & materials
Key Certifications
ECE R65
Amber Class 2 beacon
SAE J845
Class 1 beacon
ECE R148
LED tail lights
ECE R10
EMC approval
1200mm
Bar length
5500LM
Work light output
Product Features
- 1200mm all-in-one utility bar - replaces multiple separate accessories.
- Dual 60W LED flood work lights with 5500LM output per side.
- Integrated high-power amber beacon - ECE R65 Class 2, SAE J845 Class 1, ECE R10.
- Multi-color beacon options available (amber, blue, red, green, and combinations).
- Full LED tail light cluster: tail, stop, direction indicator, reversing, and reflector.
- 105 ±3dB backup alarm with optional reverse cutout and volume adjustment.
- Dual-purpose: warning/lighting system and roof rack for equipment transport.
- Suitable for 12V and 24V vehicle systems.
- 5-year warranty.
Specifications
Part NumberORA-S5
Bar Length1200mm
Package Dimensions1220 × 235 × 175mm
Package Weight5.75kg
Packaging1 pc/ctn
Work Light Power60W (per side)
Work Light Output5500LM flood beam
Beacon TypeHigh power amber, multi-color options
Beacon ApprovalECE R65 Class 2, SAE J845 Class 1, ECE R10
Tail Light FunctionsTail, Stop, DI, Reversing, Reflector
Tail Light ApprovalECE R148, ECE R10
Backup Alarm105 ±3dB
Warranty5 Years
Approvals & Compliance
- ECE R65 Amber Class 2 (Beacon)
- SAE J845 Class 1 (Beacon)
- ECE R148 (LED Tail Lights)
- ECE R10 (EMC)
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Beacon Color | Part Number |
|---|---|
| Amber | ORA-S5-A |
| Blue | ORA-S5-B |
| Red | ORA-S5-R |
| White | ORA-S5-W |
| Amber / Blue | ORA-S5-AB |
| Amber / Red | ORA-S5-AR |
| Amber / White | ORA-S5-AW |
| Red / Blue | ORA-S5-RB |
