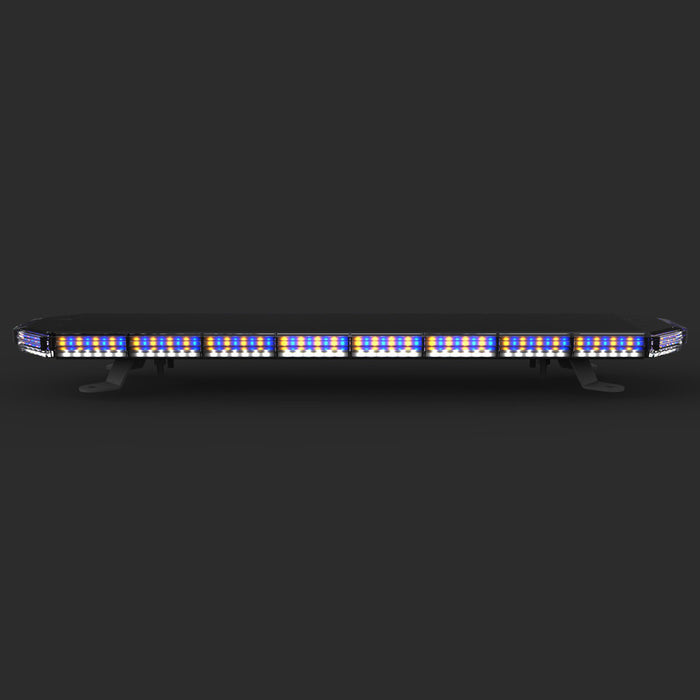

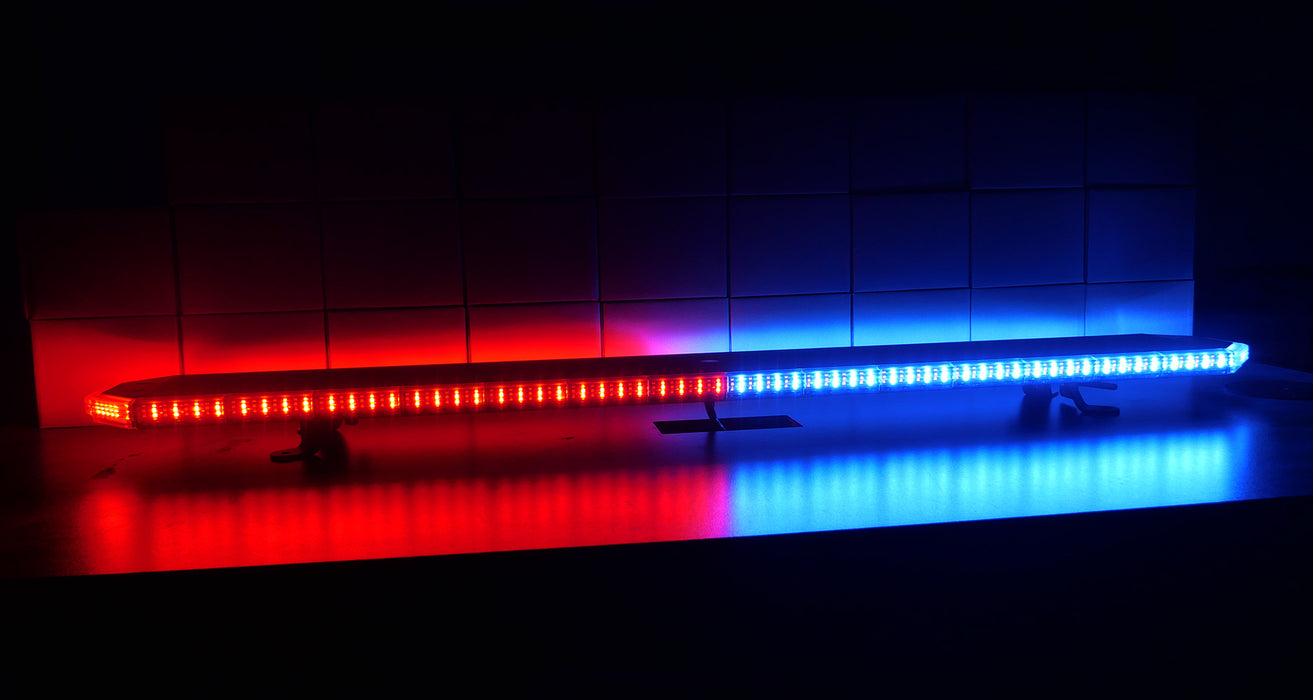

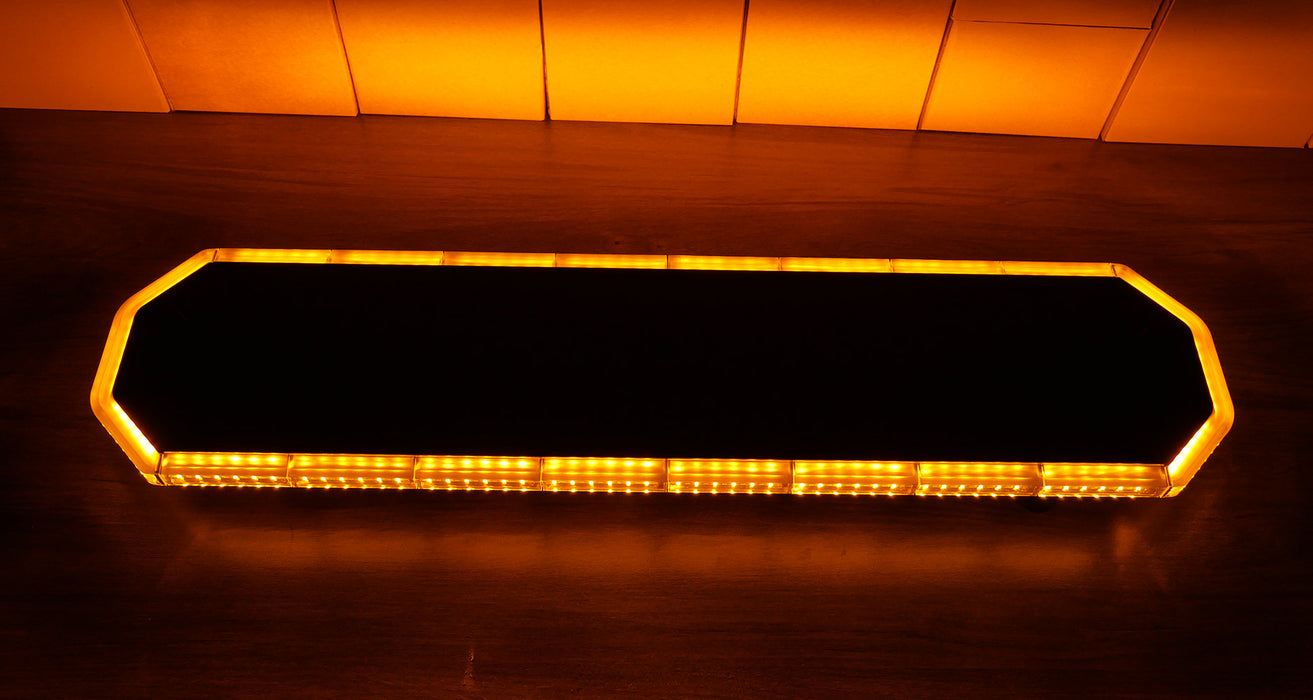

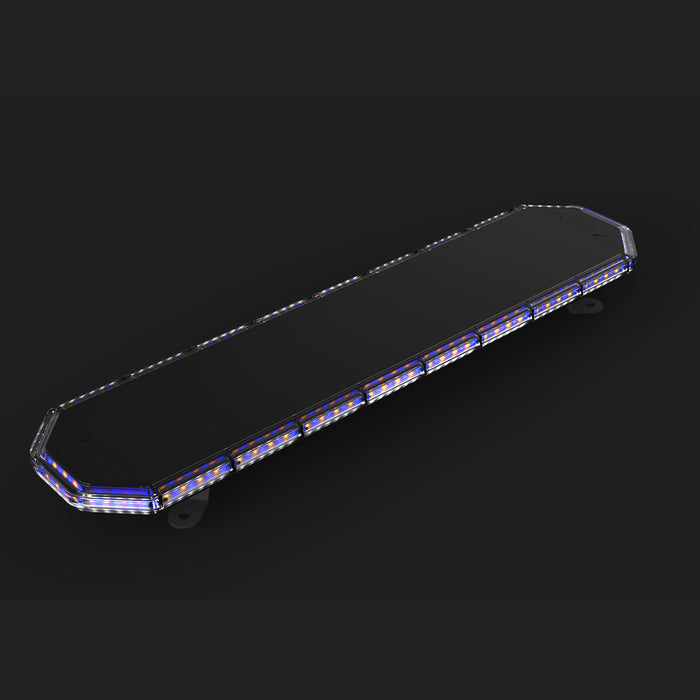

ORACLE Lighting 49" Warning Lightbar
14-module, 1240mm (49") dual-level warning lightbar with 4 colors in 1. First level: 3-color warning (Amber, Blue, Red or mixed). Second level: 50W white beam scene light, alley light, and take-down light. Replaceable color modules. Intelligent wireless or wired controller included.
Part Number: ORA-L3-1240 • Single, Dual, or Tri Color available
Two-Level Design - 4 Colors in 1

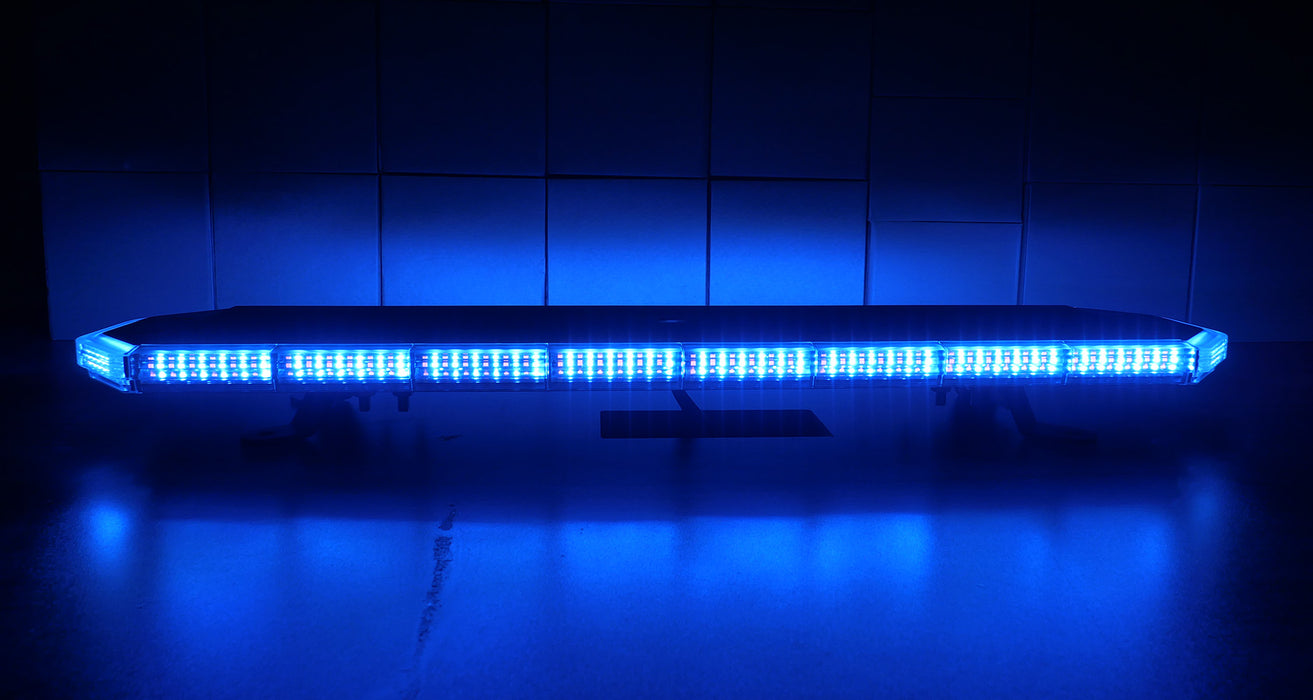

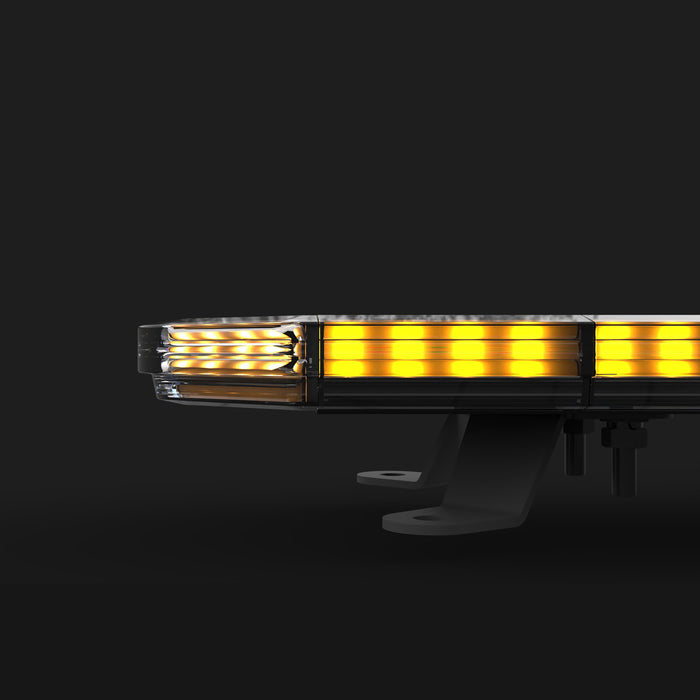

First Level - Warning Lights
3 colors: Amber, Blue, Red - single color or mixed. Replaceable modules - easy to swap to other colors.

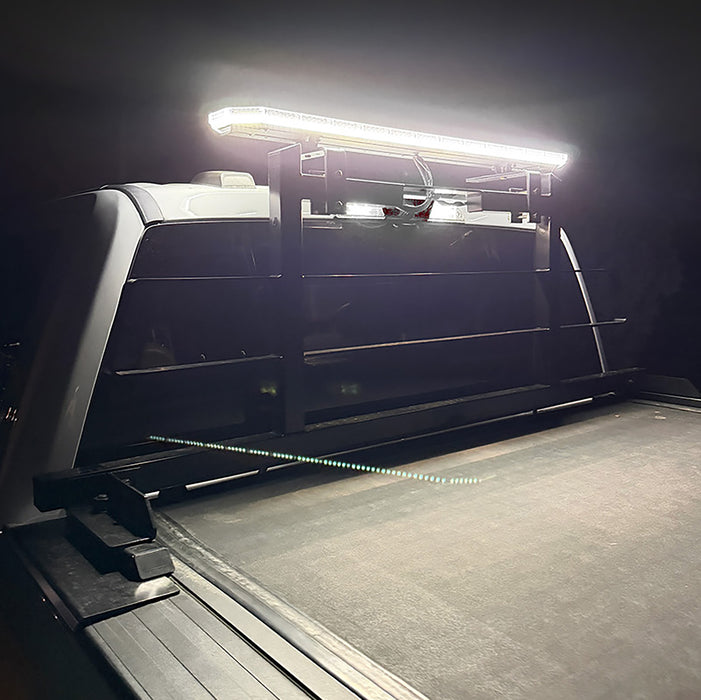

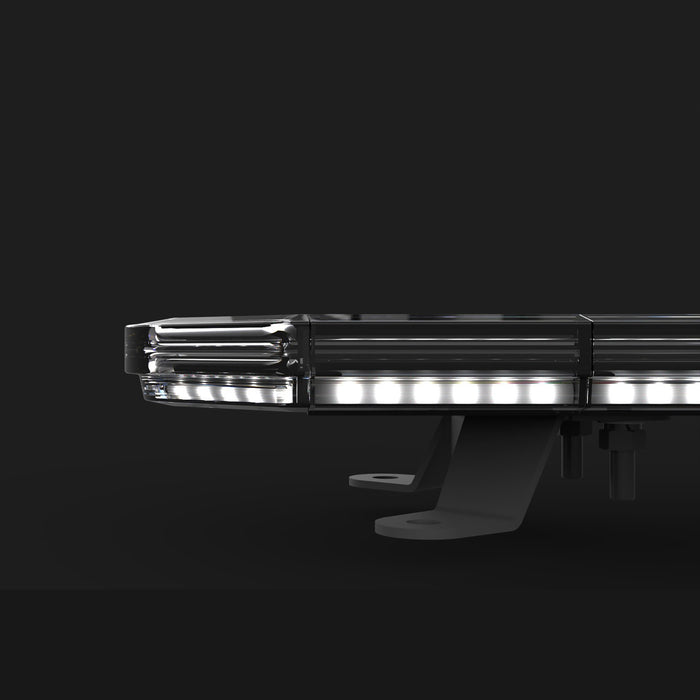

Second Level - Scene / Work Light
50W white beam. Functions as scene light, alley light, and take-down light. Independently controlled.
Replaceable Module: Color modules are individually replaceable - easy to change to other colors without replacing the entire bar.

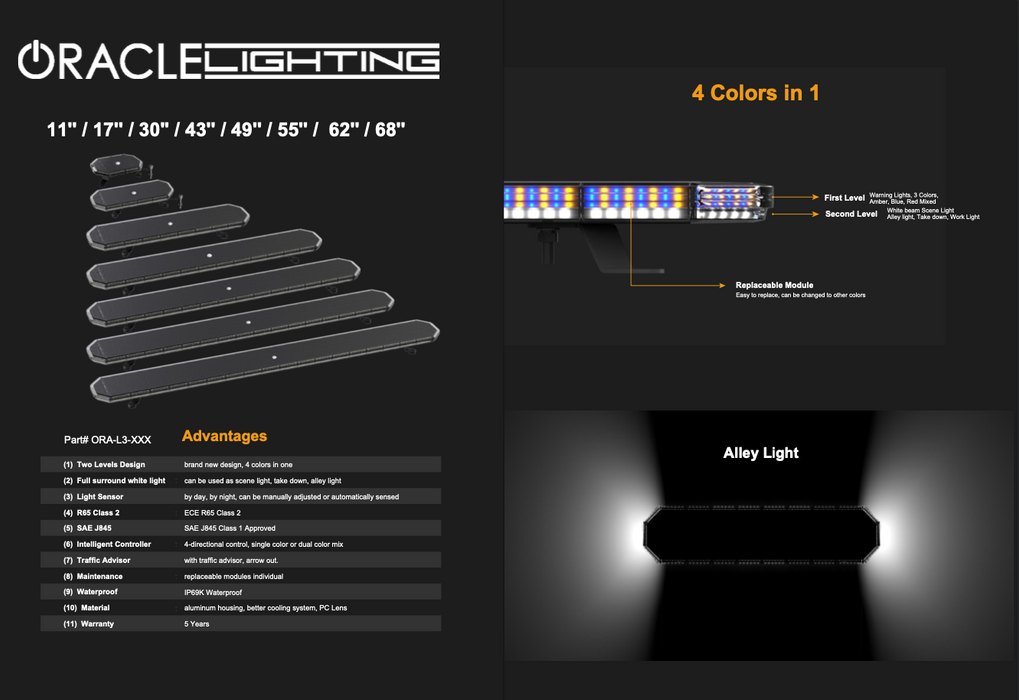

Key Advantages
Two Levels Design
Brand new design, 4 colors in one unit.

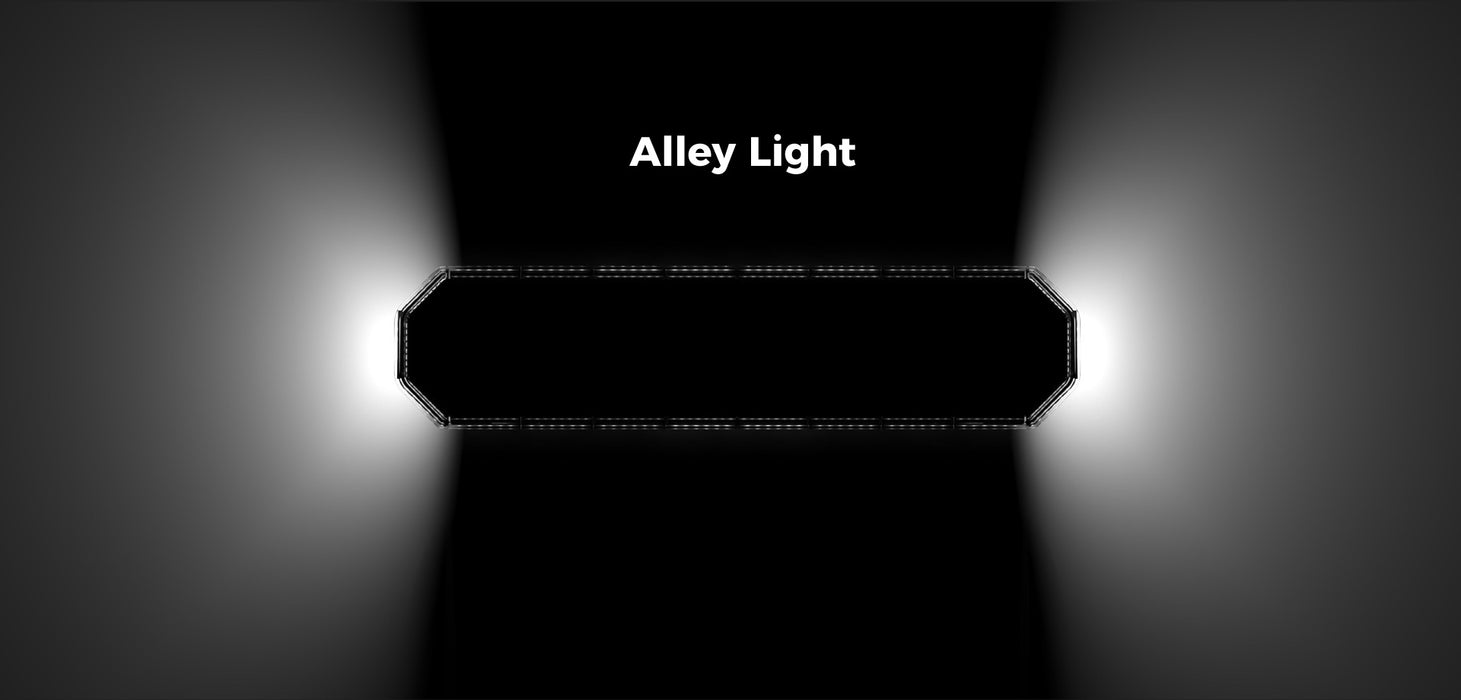

Full Surround White Light
Can be used as scene light, take down, or alley light.

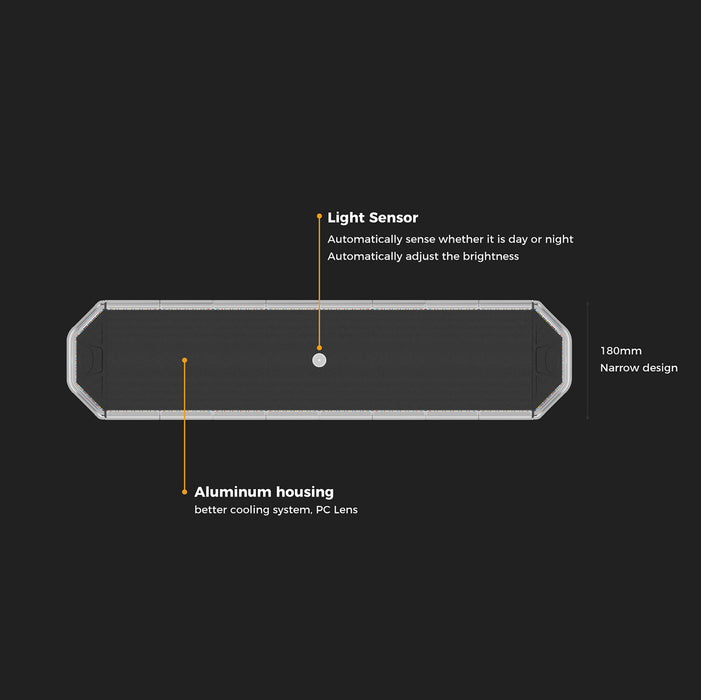

Light Sensor
By day, by night - manually adjusted or automatically sensed.
ECE R65 Class 2
Legal for day and night use.
SAE J845 Class 1
SAE J845 Class 1 approved.
Intelligent Controller
4-directional control, single color or dual color mix. Wireless or wired.
Traffic Advisor
Built-in traffic advisor with arrow out - directs vehicles left, right, or both sides.
Replaceable Modules
Individual modules replaceable - change colors without replacing the full bar.
IP69K Waterproof
Rated for high-pressure wash-down environments.
Material
Aluminum housing with better cooling system and PC lens.
Warranty
5-year warranty backed by ORACLE Lighting.
Intelligent Controller - Wireless or Wired
An intelligent controller (wireless rechargeable or wired) — sold separately as ORA-L3-C (wired) / ORA-L3-WC (wireless) — provides full 4-directional zone control and the following functions:
| Button / Function | Description |
|---|---|
| Front / Back / Left / Right / ALL | Control warning lights in 4 individual directions or all at once. |
| Left White / Right White | Control alley/take-down white light in 4 directions. |
| Color 1 ON/OFF & Color 2 ON/OFF | Toggle individual warning light colors on/off. |
| Traffic Advisor | Arrow out - directs vehicles to left, right, or both sides. |
| Last Pattern / Next Pattern | Cycle through the 15 available flash patterns. |
| Random | All flashing patterns mixed together and continuously changing. |
| Favorite Pattern | Save and recall your most commonly used pattern. |
| Cruise Light | Keeps warning lights in steady burn mode. |
| Indicator | Turns off the screen display. |
| 50% | Adjusts brightness to 50%. |
| Auto Sensor | Automatically senses day or night - 100% brightness by day, 50% at night. |
Specifications
Approvals & Compliance
- ECE R65 Class 2, ECE R10
- SAE J845 Class 1
- IP69K Waterproof
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Color | Controller | Part Number |
|---|---|---|
| Amber | Wired | ORA-L3-1240-A-W |
| Amber | Wireless | ORA-L3-1240-A-WS |
| Amber+Blue | Wired | ORA-L3-1240-AB-W |
| Amber+Blue | Wireless | ORA-L3-1240-AB-WS |
| Blue+Red | Wired | ORA-L3-1240-BR-W |
| Blue+Red | Wireless | ORA-L3-1240-BR-WS |
| Tri Color | Wired | ORA-L3-1240-TR-W |
| Tri Color | Wireless | ORA-L3-1240-TR-WS |
| Amber+White | Wired | ORA-L3-1240-AW-W |
| Amber+White | Wireless | ORA-L3-1240-AW-WS |
