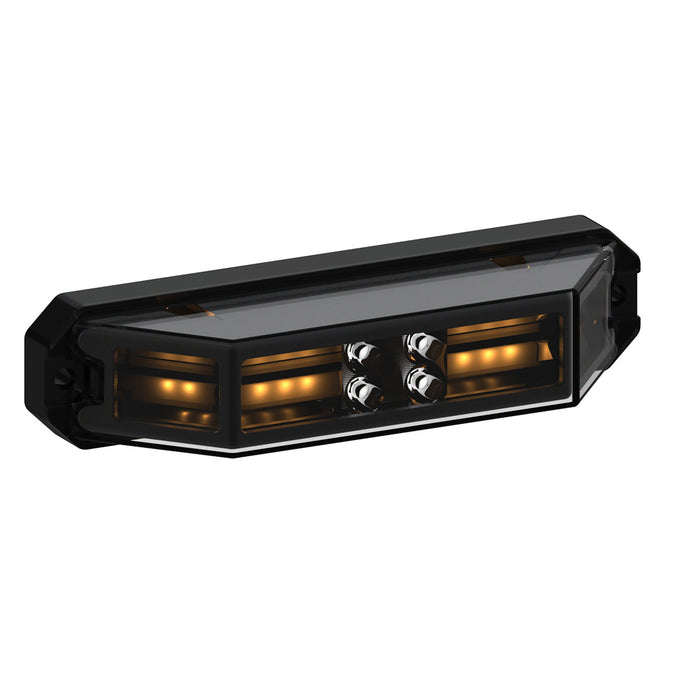

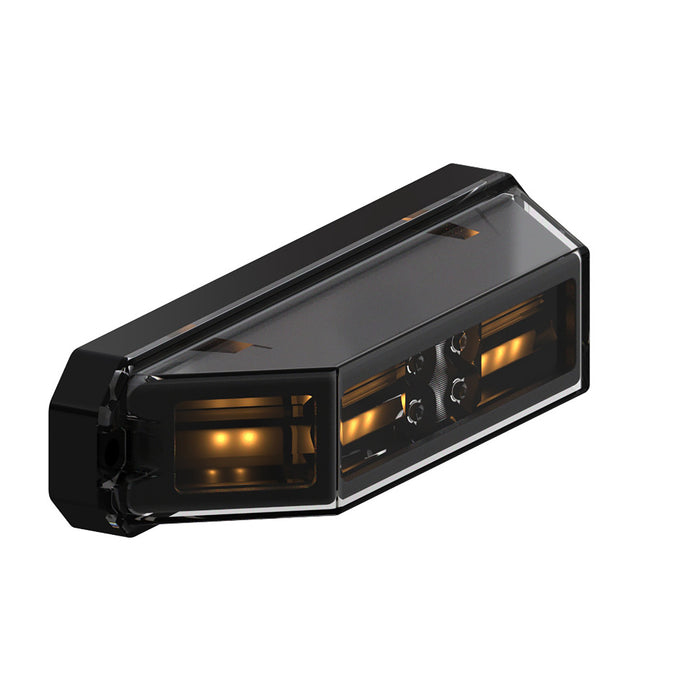

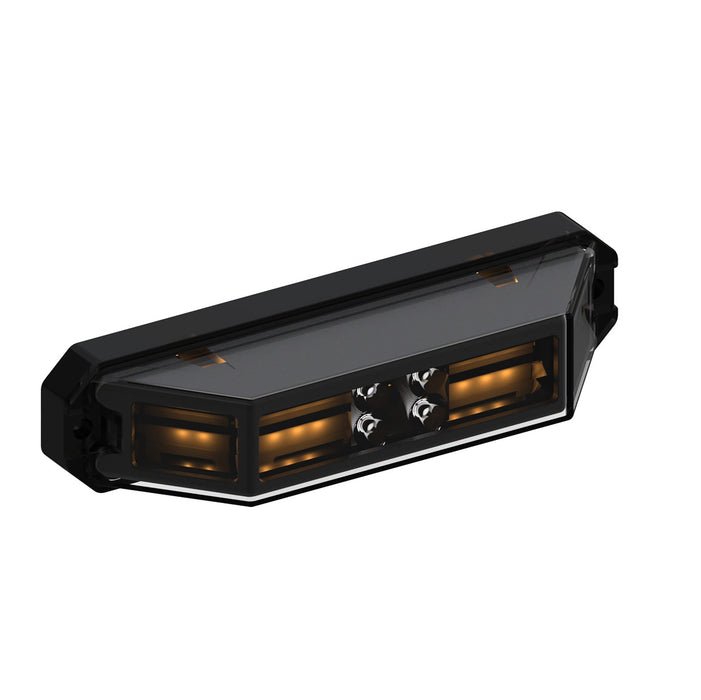

ORACLE Lighting 5" Warning Light w/ Scene & Puddle Light
Compact 130mm (5") 3-in-1 warning lighthead combining amber warning, white alley/scene light, and white ground puddle light in a single unit. Four mounting orientations unlock different use modes: 180° warning, alley light to side, puddle light to ground, or sky warning (airport). IP67/IP69K rated.
Part Number: LH2
3-in-1 LED Breakdown
Warning Light
12 × 3W Amber LED
13 flash patterns
SYNC & ASYNC
Alley / Scene Light
4 × 3W White LED
Side illumination
Independent control
Puddle Light
2 × 1W White LED
Ground illumination
Independent control

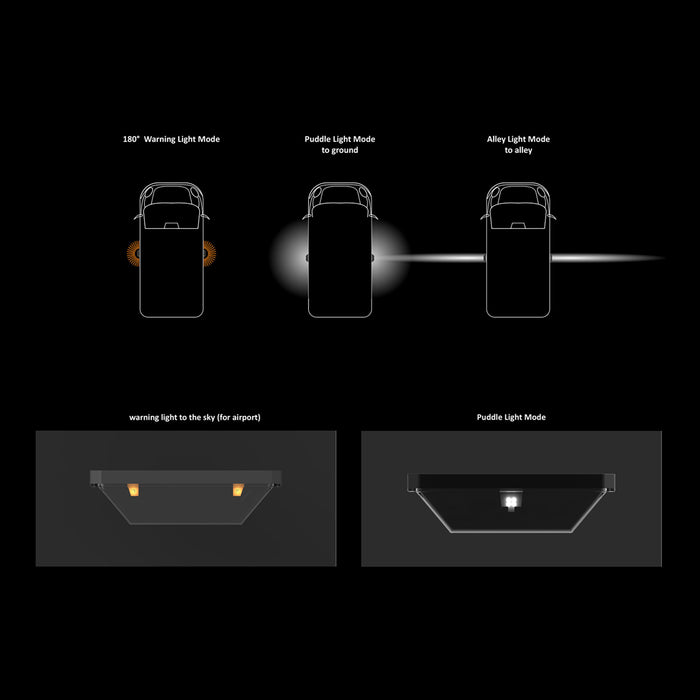

Mounting Orientations & Use Modes
180° Warning Mode
Standard surface mount. Amber warning light faces forward/outward for 180° zone coverage.
Puddle Light Mode
Rotated to face ground. White puddle LEDs illuminate the area directly below the vehicle door or step.
Alley Light Mode
Rotated to face side. White alley LEDs project a wide beam to the side of the vehicle.

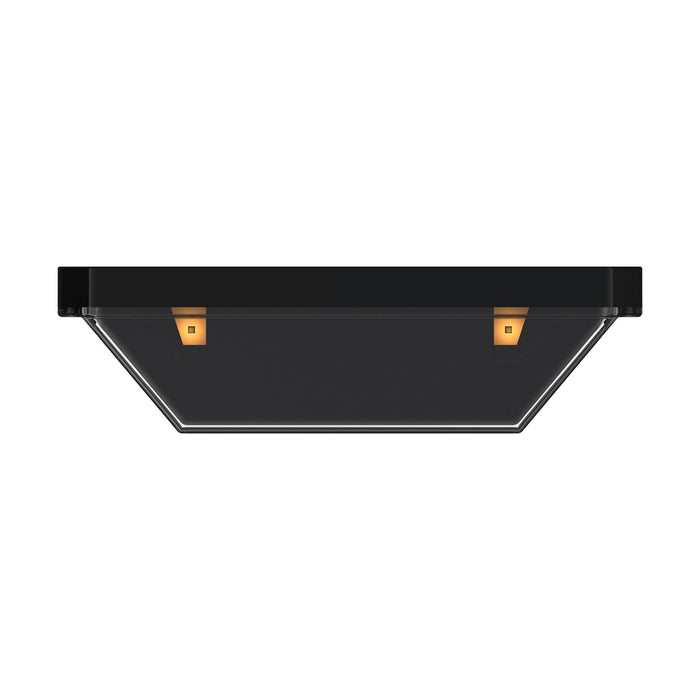

Sky Warning Mode
Rotated to face upward. Amber warning light projects skyward - designed for airport ground vehicles.
Product Features
- 3-in-1: Amber warning + white alley/scene light + white puddle light in one compact unit.
- 4 mounting orientations unlock different use modes: 180° warning, alley, puddle, or sky (airport).
- ECE R65 & ECE R10 approved; SAE J845 Class 1; UKCA & CE certified.
- 13 selectable flash patterns with SYNC (yellow wire) and ASYNC (green wire) control.
- Warning, alley, and puddle lights independently controlled via separate wires.
- Screw mount or bracket mount - 0.25M cable.
- UV-resistant clear PC lens with aluminium housing.
- IP67 / IP69K waterproof.
- 5-year warranty.
Wiring Guide
| Function | Wire Color |
|---|---|
| Warning Light (+) | Red |
| Puddle Light (+) | Blue |
| Alley Light (+) | White |
| Flash Pattern & SYNC (+) | Yellow |
| Asynchronous (+) | Green |
| Negative Ground (−) | Black |

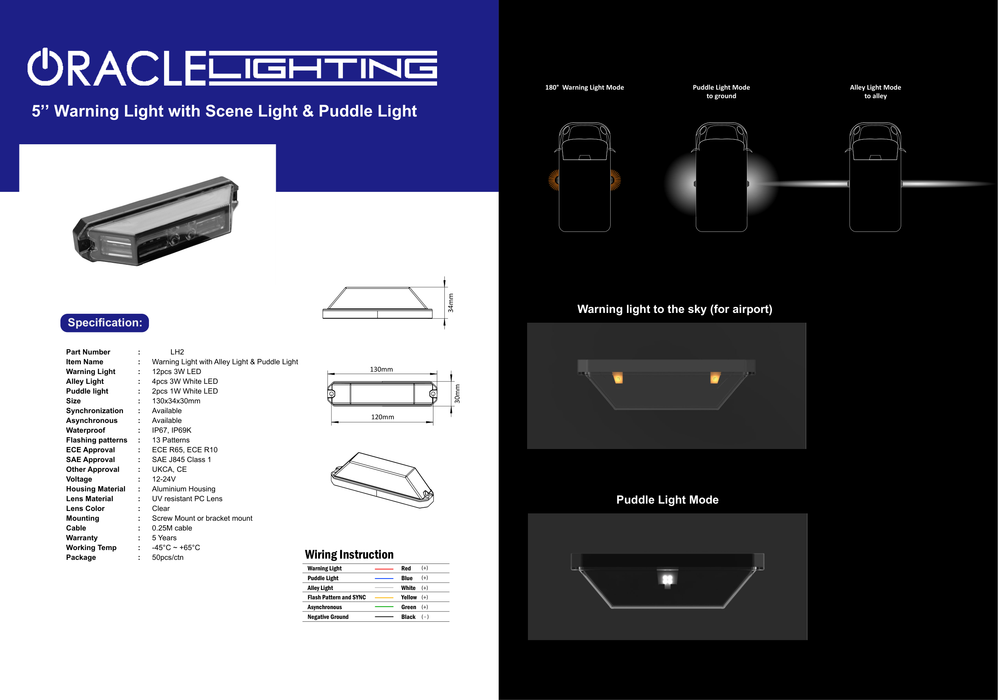

Specifications
Approvals & Compliance
- ECE R65, ECE R10
- SAE J845 Class 1
- UKCA, CE
- IP69K Protection
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Color | Part Number |
|---|---|
| Amber | ORA-LH2 |
| White | ORA-LH2-W |
| Blue | ORA-LH2-B |
| Green | ORA-LH2-G |
| Red | ORA-LH2-R |
| Amber/White | ORA-LH2-AW |
| Amber/Blue | ORA-LH2-AB |
| Blue/Red | ORA-LH2-BR |
