ORACLE Lighting 9.2" Scene Light w/ Tail, Position & Brake
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00

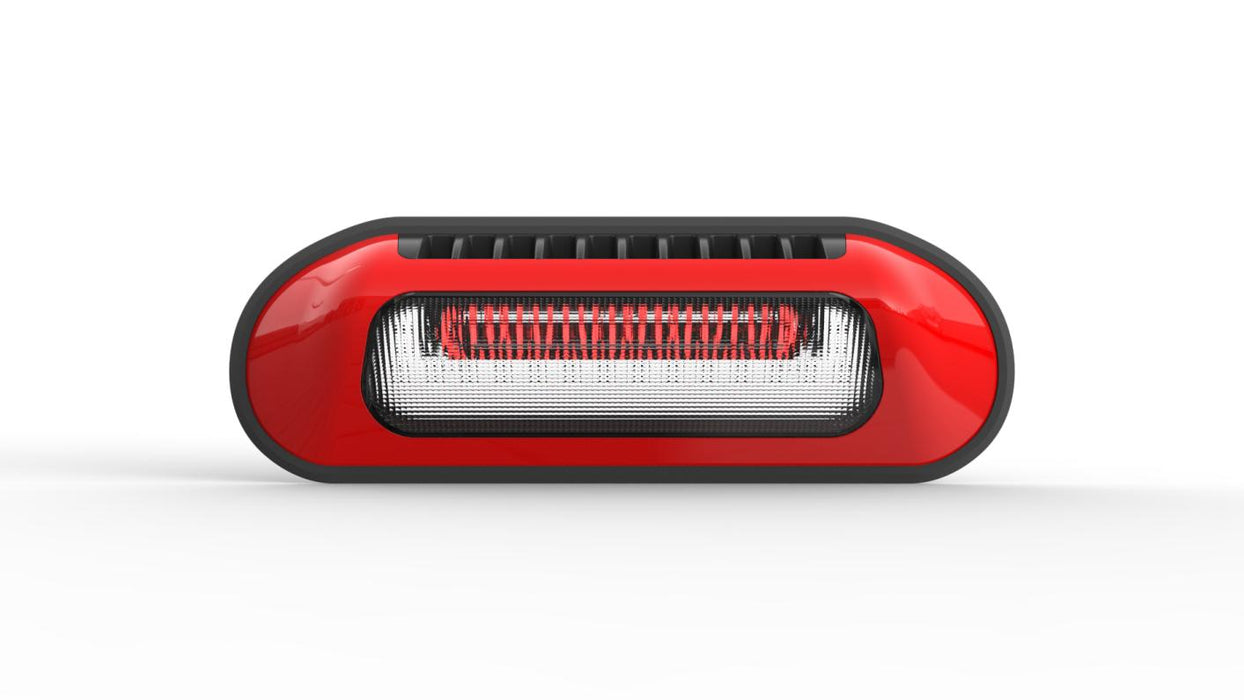

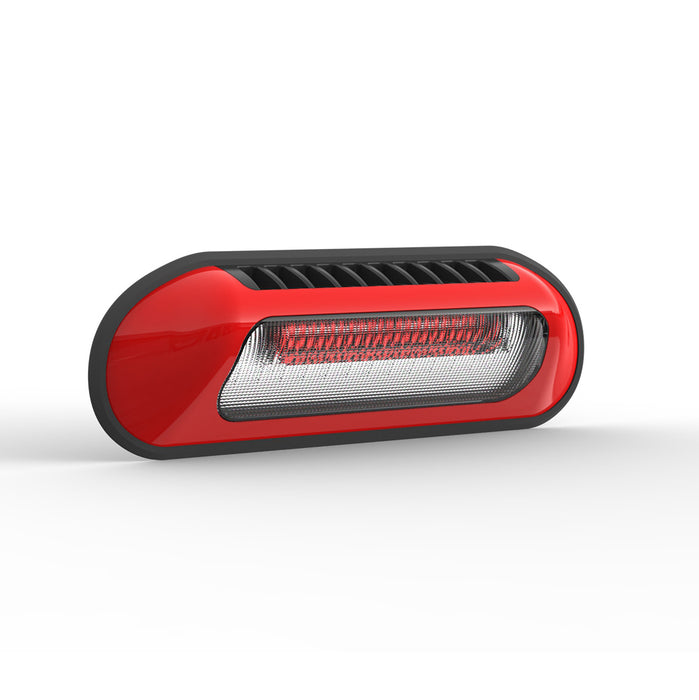

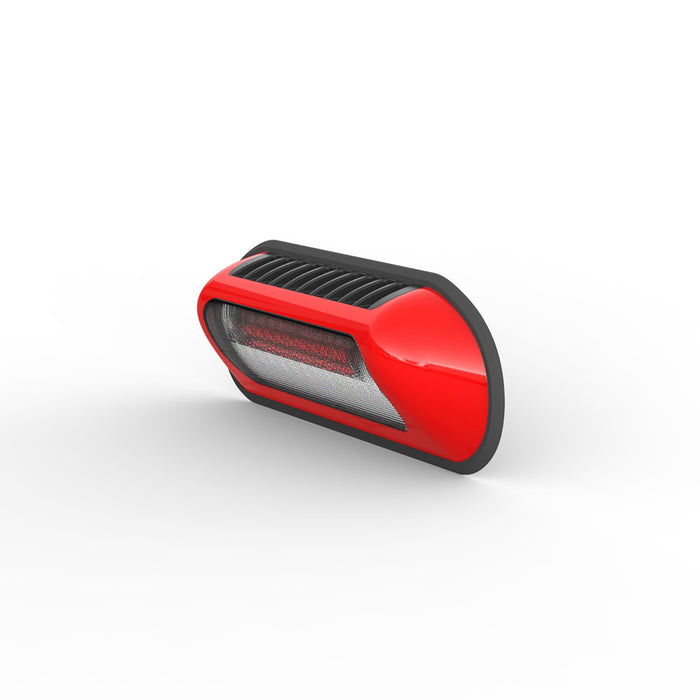

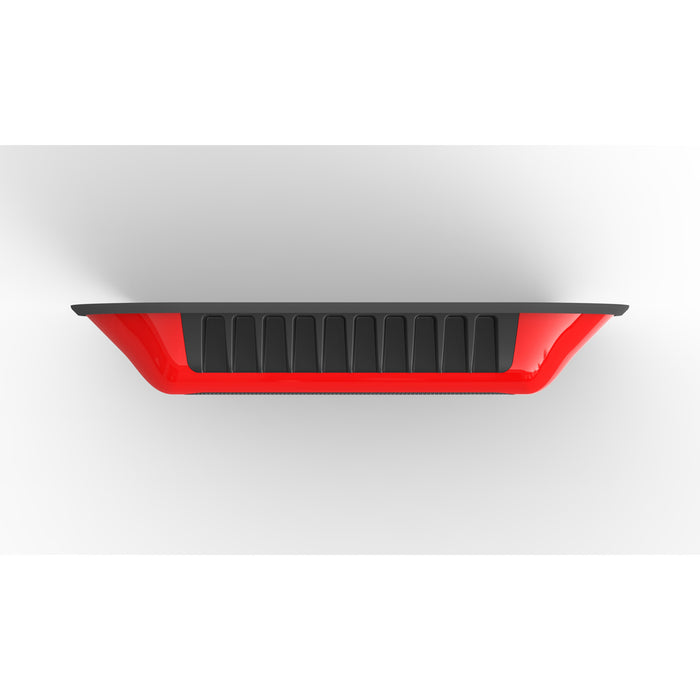

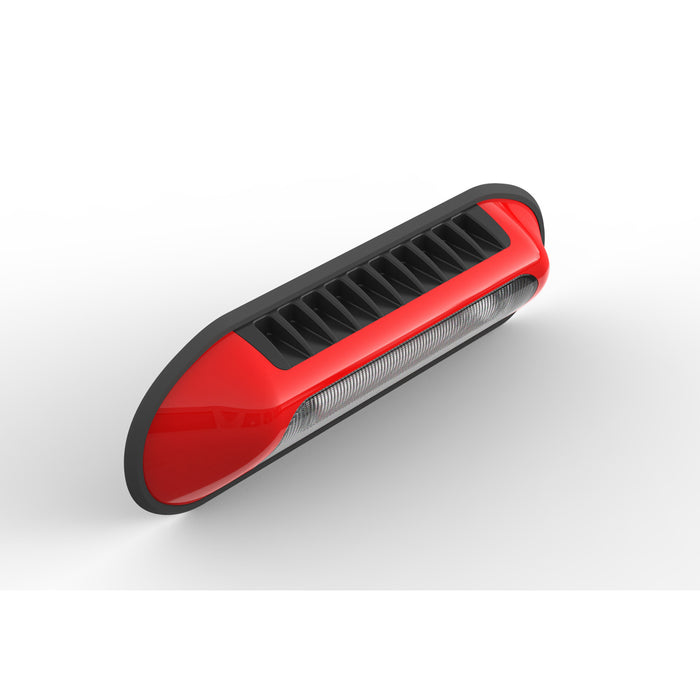

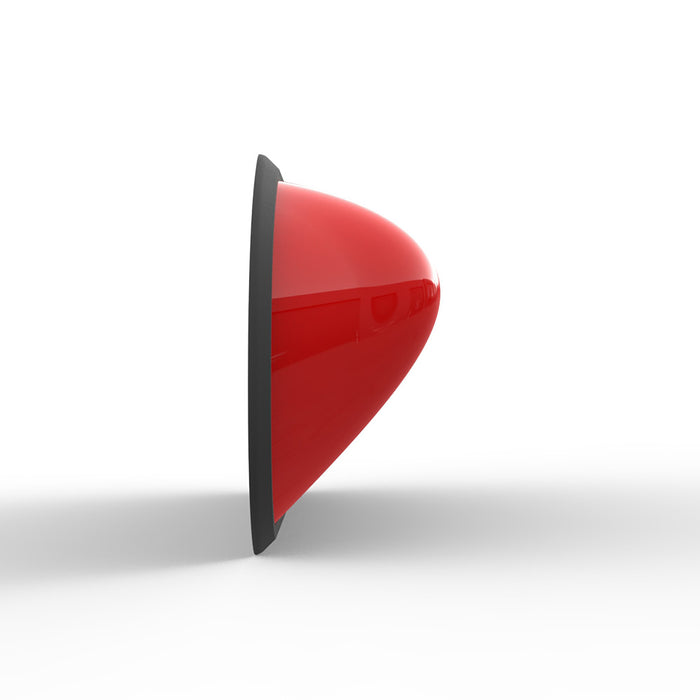

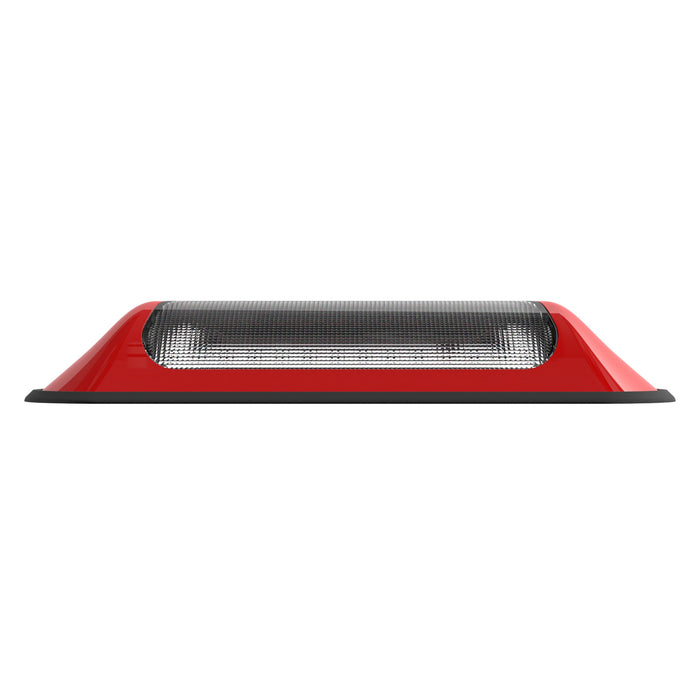

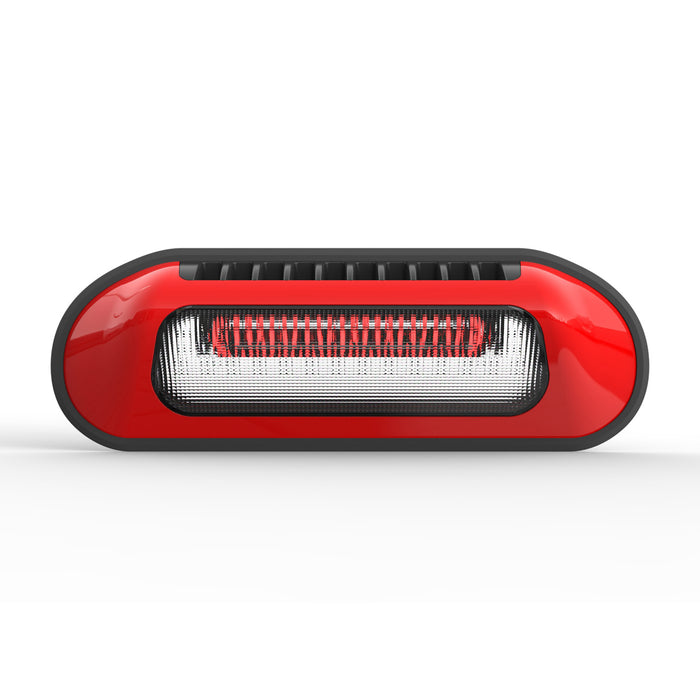

Multi-function scene light with fully integrated tail position and stop/brake light. 48W scene (3500LM raw / 2053LM effective), angled down 45°. Signal light covers horizontal 180°. Eliminates the need for a separate tail light on trailers and service bodies. Patent certified design.
Part Number: ORA-SL1-4
48W Scene + 12W Tail/Stop 3500 LM Raw IP67 / IP69K 10-30V 5 Year Warranty ECE R148 Certified Scene / Work Lights
Product Features
- 3-in-1: Scene light + Tail position light + Brake/stop light in one unit.
- Scene light: 48W (32pcs 1.5W), angled down 45° - 3500LM raw / 2053LM effective.
- Tail & stop: 12W (12pcs 1W), horizontal 180° signal coverage.
- Eliminates need for a separate tail light on trailers and service bodies.

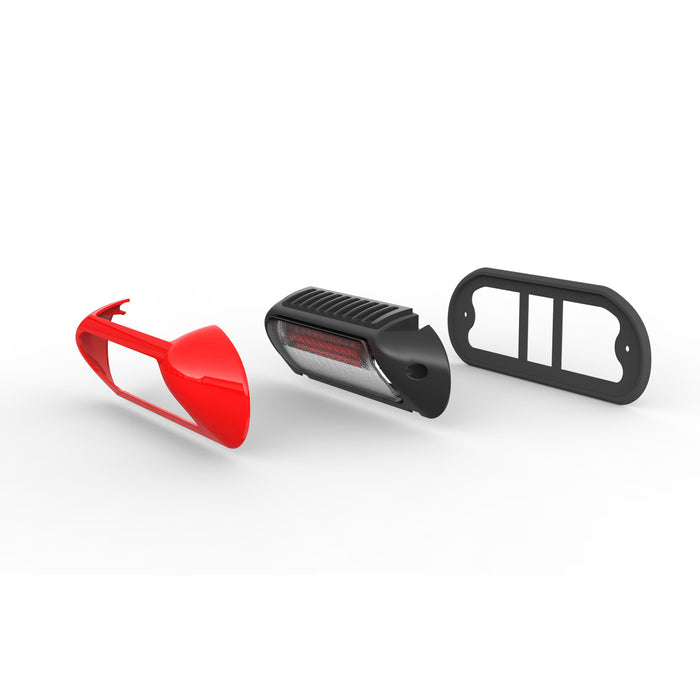

- Rubber gasket seal. 0.3M cable. Screw mount.
- Patent certified - utility model and appearance design patents.
Patent Certificates:
Utility Model Patent: ZL202222770017.8
Appearance Design Patent: ZL202230609387.6
Utility Model Patent: ZL202222770017.8
Appearance Design Patent: ZL202230609387.6
Specifications
Part NumberORA-SL1-4
Item NameScene Light with Tail and Stop
Size / Dimensions236 x 80 x 37 mm
Scene Light Power48W (32pcs 1.5W)
Tail and Stop Power12W (12pcs 1W)
Raw Lumen3500 LM
Effective Lumen2053 LM
Scene Light AngleDown 45°
Signal Light AngleHorizontal 180°
Waterproof RatingIP67, IP69K
Voltage Range10-30V
Housing MaterialAluminium Housing, PC Cover
Lens MaterialUV Resistant PC Lens
Lens ColorClear
MountingScrew Mount
Cable0.3M Cable
GasketRubber
Working Temp-45°C to +65°C
Warranty5 Years
Package Qty10 pcs/ctn
Package Weight4.4 kg
Carton Size44 x 27 x 21.5 cm
Approvals & Compliance
- ECE R10, ECE R148
- CE, CA
- IP6K9K Certified
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
