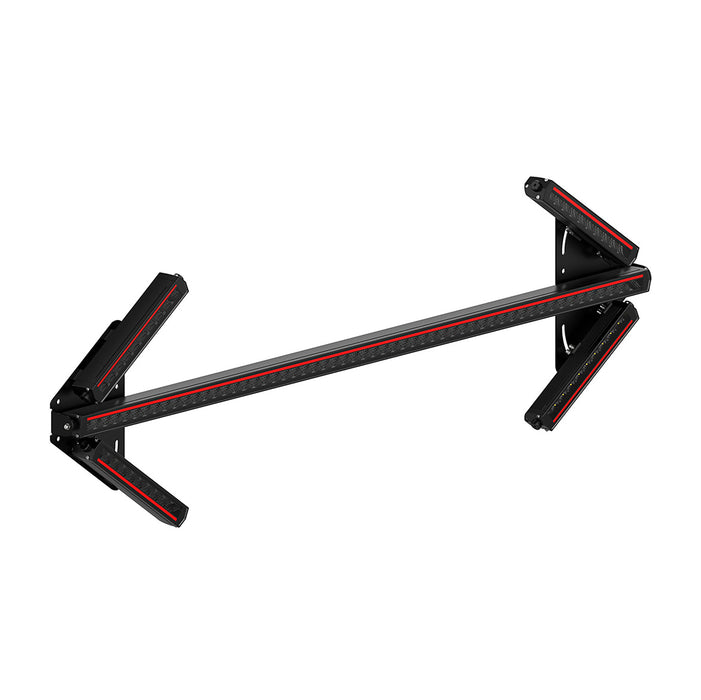

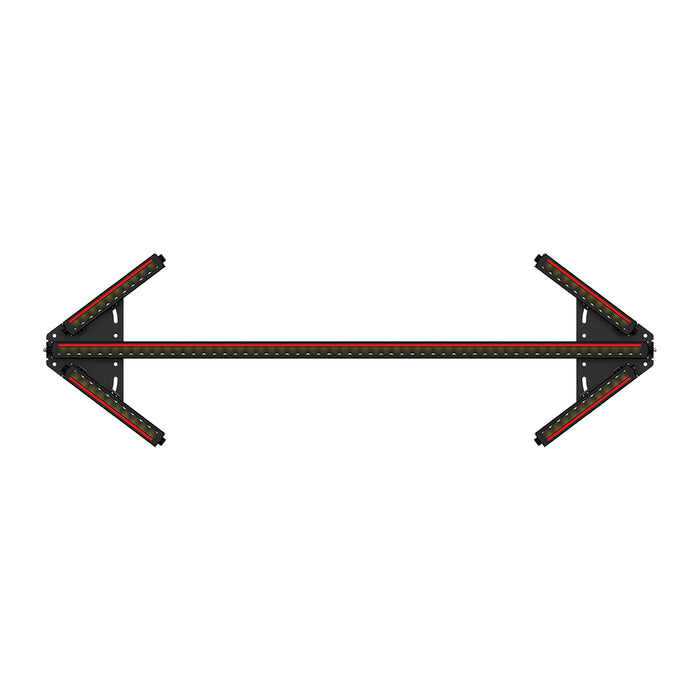

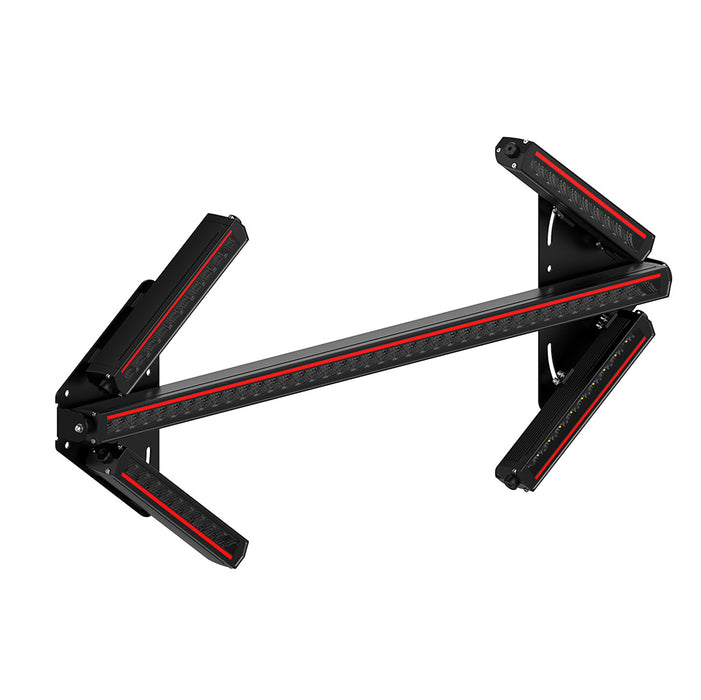

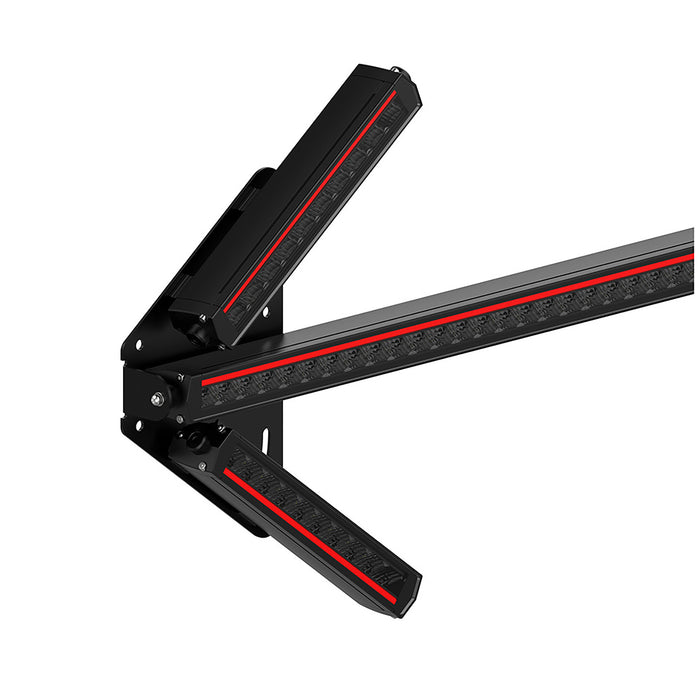

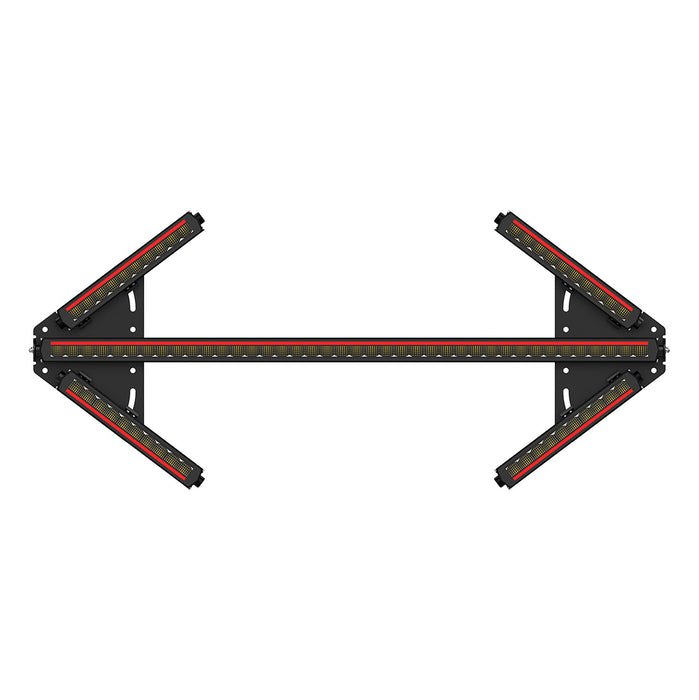

ORACLE Lighting Arrow Warning Lightbar - L6 Series
V-shaped arrow warning lightbar with integrated 12W red rear position light. Rear-mount design for maximum directional visibility. Arrow Out, Left/Right Turn, Cruise Light, and Position Light modes. Available in 43" and 56" sizes. 8-core cable for full individual function control.
Part Numbers: L6-40 (43") • L6-56 (56")
Model Comparison - Both Sizes
L6-40
- Size: 43" / 1080mm
- Warning Power: 240W
- Position Light: 12W Red LED
- Patterns: 14
- Package: 4 pcs/ctn
L6-56
- Size: 56" / 1430mm
- Warning Power: 288W
- Position Light: 12W Red LED
- Patterns: 14
- Package: 4 pcs/ctn
Both models share the same V-shape design, wiring, compliance ratings, and mounting hardware. Select your size in the variant selector above.
Operating Modes
Arrow Out
Both sides flash outward simultaneously. When both Blue + Green connect to positive = Arrow Out.
Left Turn
Sequential arrow pattern directing traffic to the left.
Right Turn
Sequential arrow pattern directing traffic to the right.
Cruise Light
Steady burn amber warning mode for continuous visibility.
Red Position Light
12W rear red LED - always-on for vehicle presence indication.
Product Features
- Distinctive V-shape arrow design for maximum rear directional visibility.
- Integrated 12W red LED rear position light.
- 14 flash patterns - Warning, Left/Right Turn, Arrow Out, Cruise Light.
- ECE R65 XT2 & ECE R10 approved; SAE J595 Class 1 rated.
- 8-core cable (1 meter) for full individual function control.

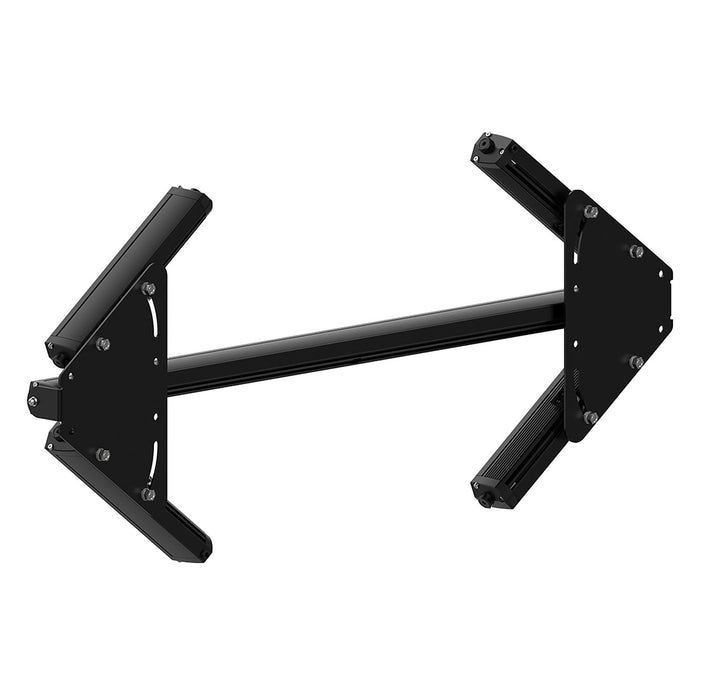

- Side bracket + middle bracket mounting included.
- Aluminum alloy housing with PC lens.
- IP67 waterproof - suitable for all-weather rear-of-vehicle installation.
- 5-year warranty.

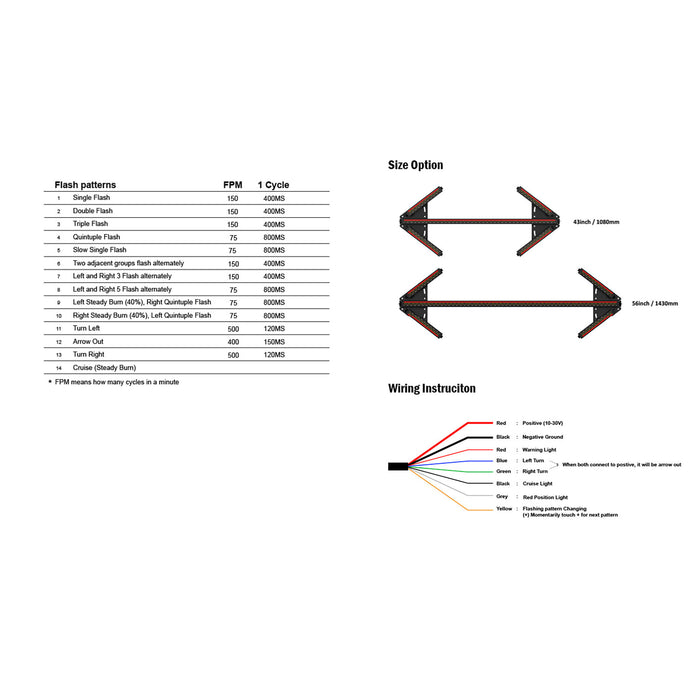

Wiring Guide - 8-Core Cable
Note: When both Blue (Left Turn) and Green (Right Turn) wires connect to positive simultaneously, the unit activates Arrow Out mode.
| Function | Wire Color |
|---|---|
| Positive (10–30V) | Red |
| Negative Ground | Black |
| Warning Light | Red (2nd) |
| Left Turn (+ Arrow Out trigger) | Blue |
| Right Turn (+ Arrow Out trigger) | Green |
| Cruise Light | Black (2nd) |
| Red Position Light | Grey |
| Flashing Pattern Changing (+momentary touch = next pattern) | Yellow |

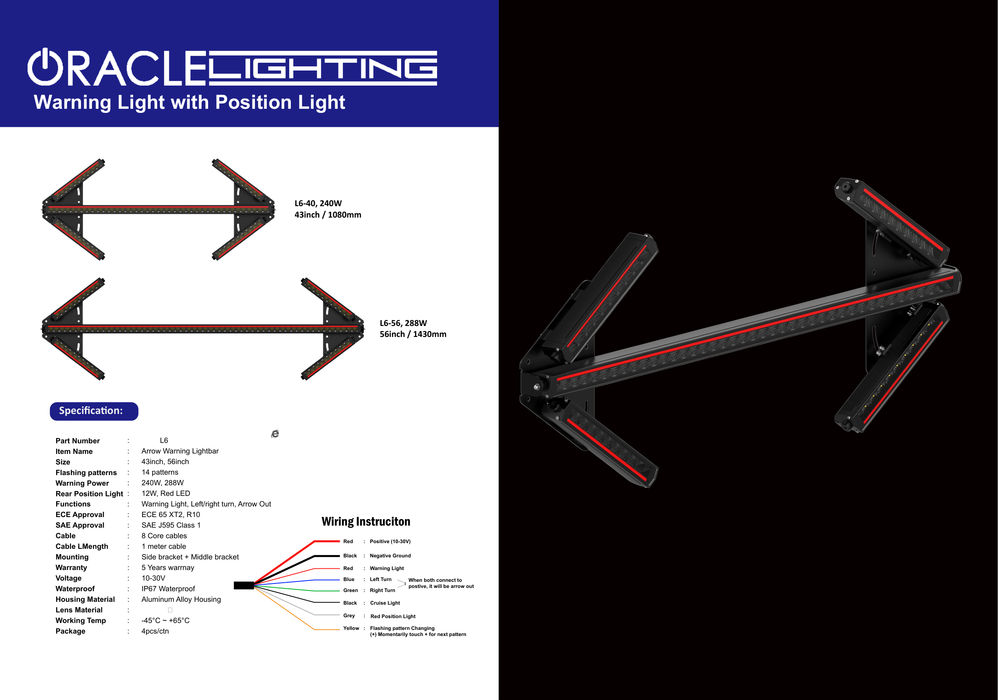

Specifications (Shared)
Approvals & Compliance
- ECE R65 XT2, ECE R10
- SAE J595 Class 1
- IP67 Waterproof
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Size | Part Number |
|---|---|
| L6-40 | ORA-L6-40 |
| L6-56 | ORA-L6-56 |
