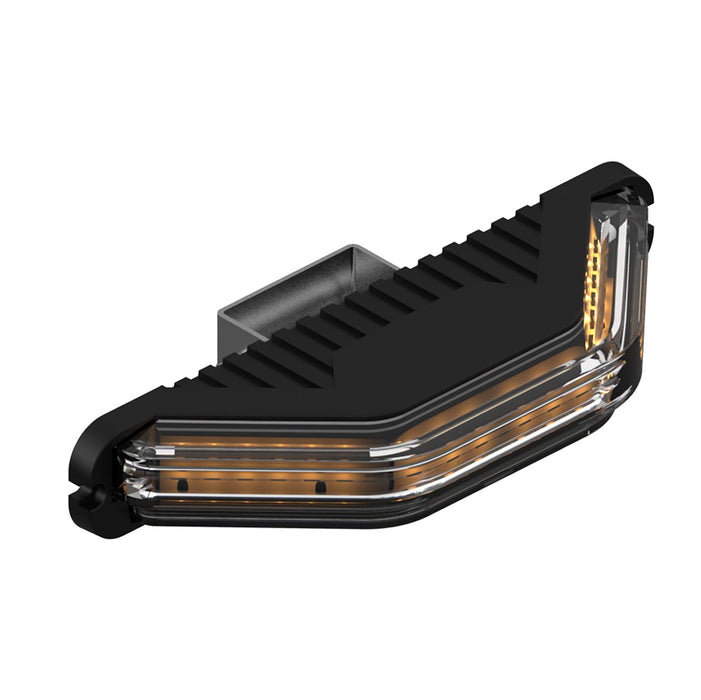

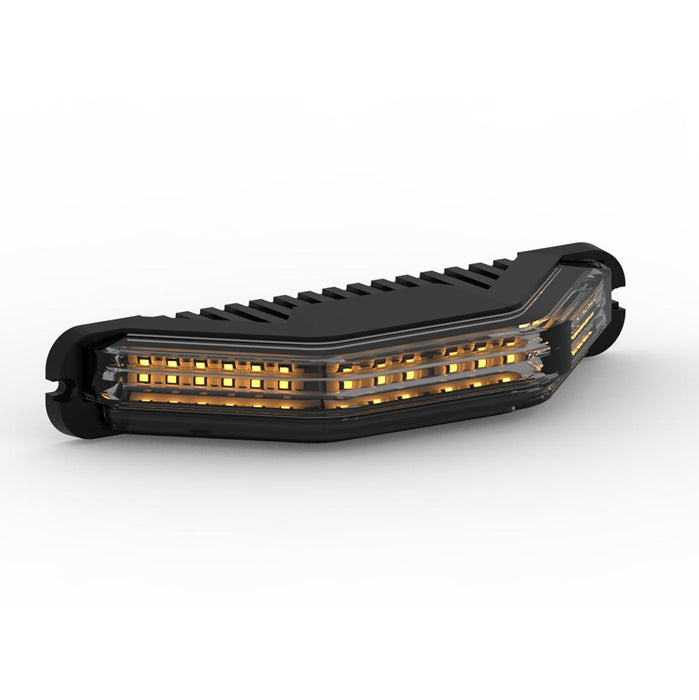

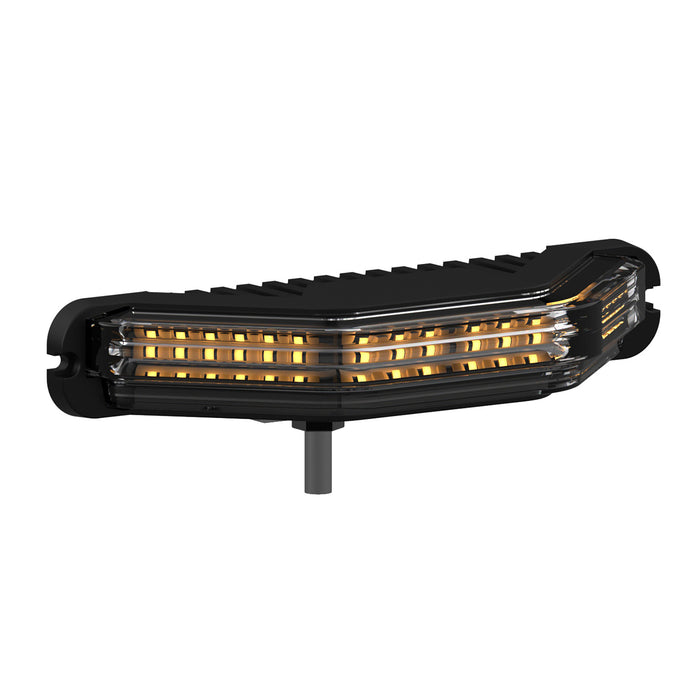

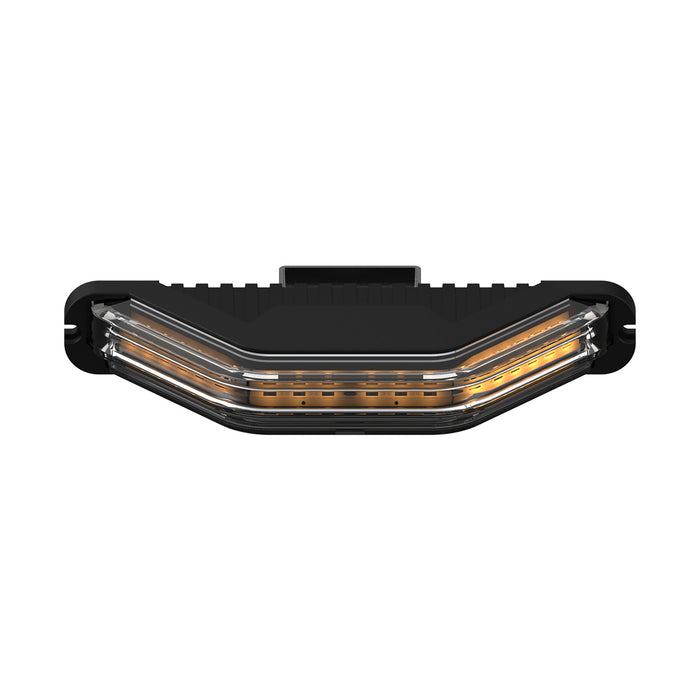

ORACLE Lighting Corner Warning Light w/ Turn Signal - L3-180 Series
Slim corner-mount warning light combining 36W warning strobe output with a 9W / 800LM white scene light. Mounts at vehicle corners for 360° (T Mode) or 270° (HT Mode) coverage with integrated turn signal. Available in 6 color configurations.
Part Number: ORA-L3-180 • L3-180a • L3-180b • L3-180r • L3-180aw • L3-180ab • L3-180rb

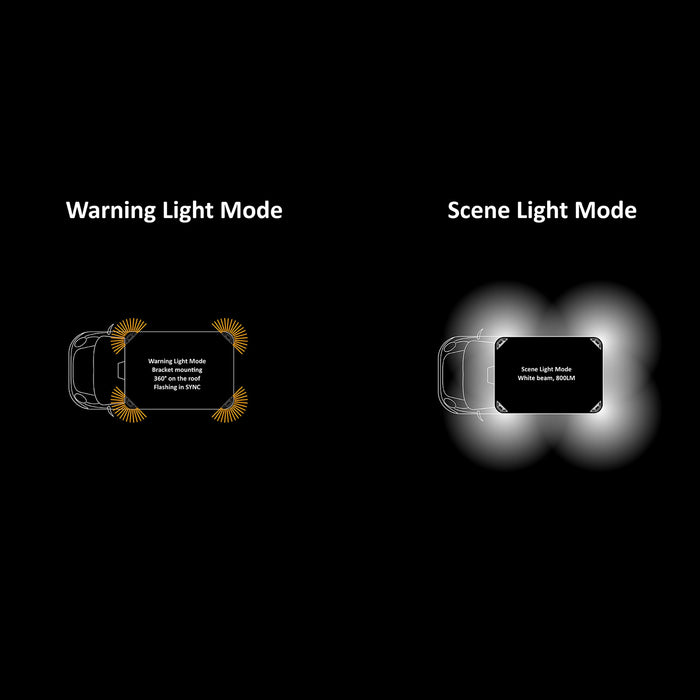

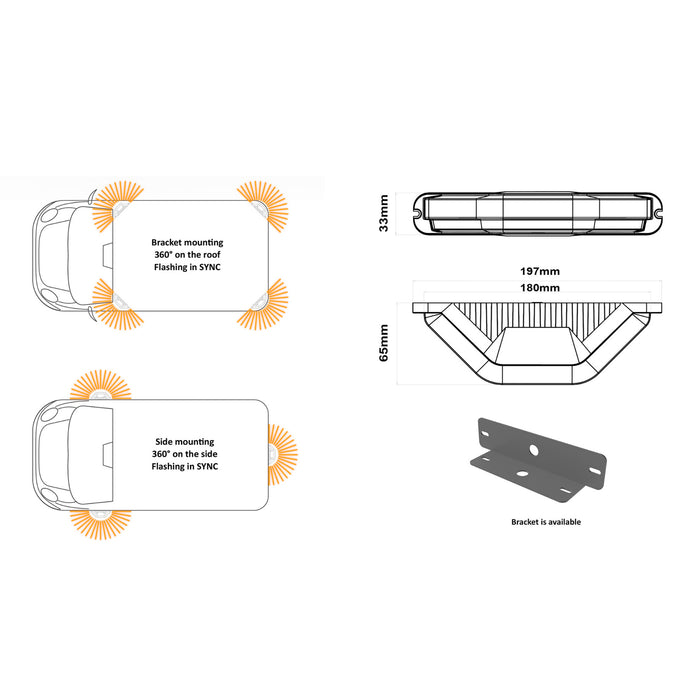

Operating Modes
T Mode - 360° Warning
Full 360° warning coverage. SYNC & Alternately flash modes. Ideal for all-around visibility in open environments.
HT Mode - 270° Warning + Turn Signal
270° warning coverage with integrated turn signal light. SYNC & Alternately flash modes. Designed for corner-mount installations on trucks and SUVs.
Scene Light Mode: White beam, 800LM - activated independently via white wire for work area illumination.
Part Number & Color Configurations
| Part Number | First Level (Warning Strobe) | Second Level (Scene Light) |
|---|---|---|
| L3-180a | Amber Strobe | White Beam Scene Light |
| L3-180b | Blue Strobe | White Beam Scene Light |
| L3-180r | Red Strobe | White Beam Scene Light |
| L3-180aw | Amber + White Strobe | White Beam Scene Light |
| L3-180ab | Amber + Blue Strobe | White Beam Scene Light |
| L3-180rb | Red + Blue Strobe | White Beam Scene Light |
All configurations include a white beam scene light on the second level. Select your strobe color in the variant selector above.
Product Features
- Dual-function: 36W warning strobe + 9W / 800LM white scene light in one unit.
- T Mode (360°) and HT Mode (270° + turn signal) - selectable operating modes.
- ECE R65 TA2 HT2, R149, R10 approved; SAE J845 Class 1; UKCA & CE certified.
- 13 selectable flash patterns with SYNC (yellow wire) and ASYNC (green wire) control.
- Scene light independently controlled via white wire.
- Available in 3 single-color and 3 dual-color strobe configurations.

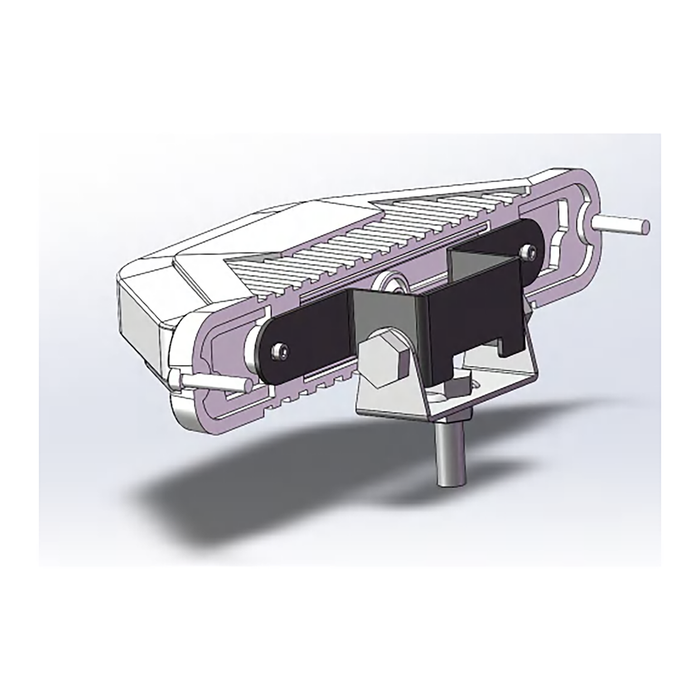

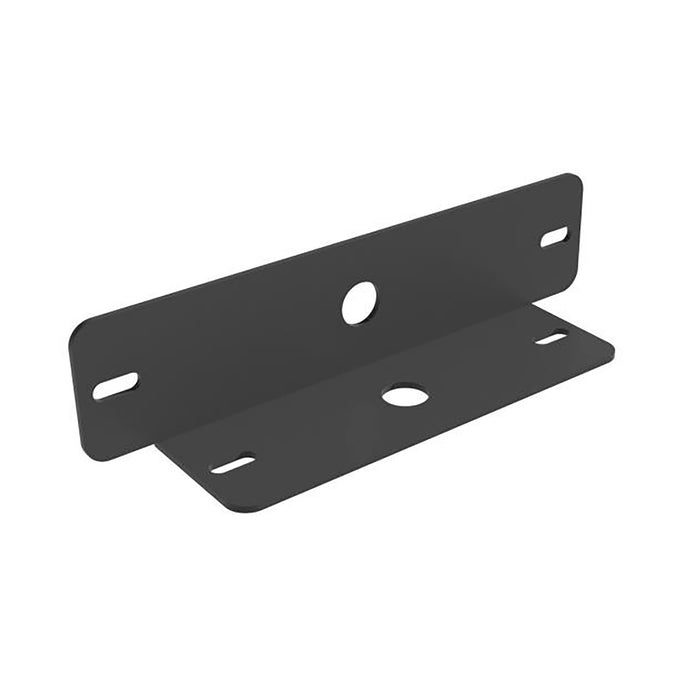

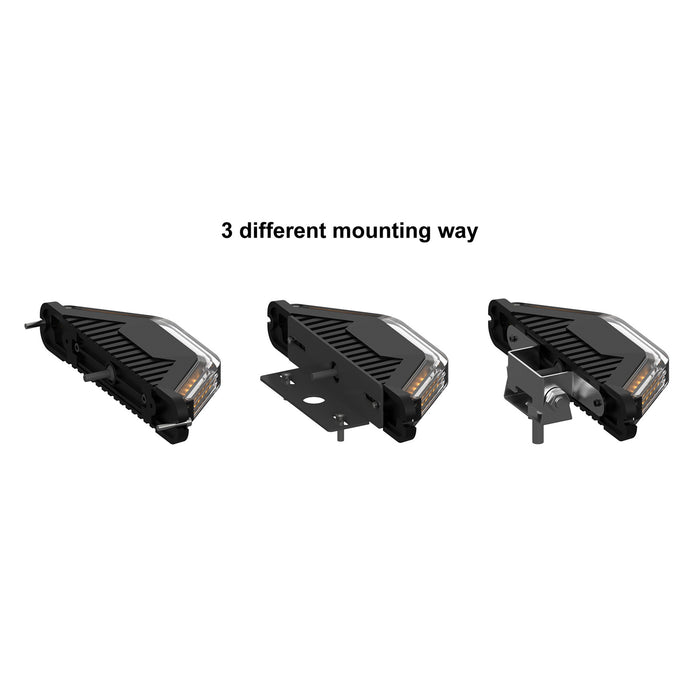

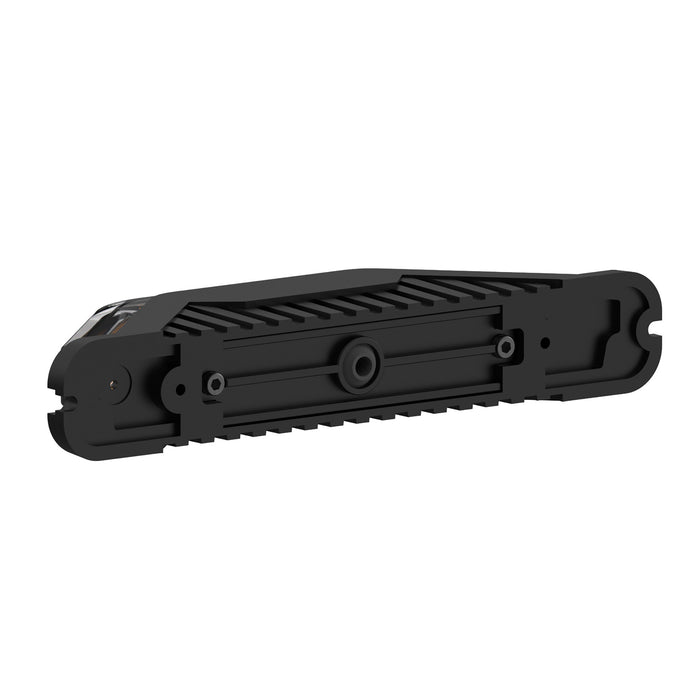

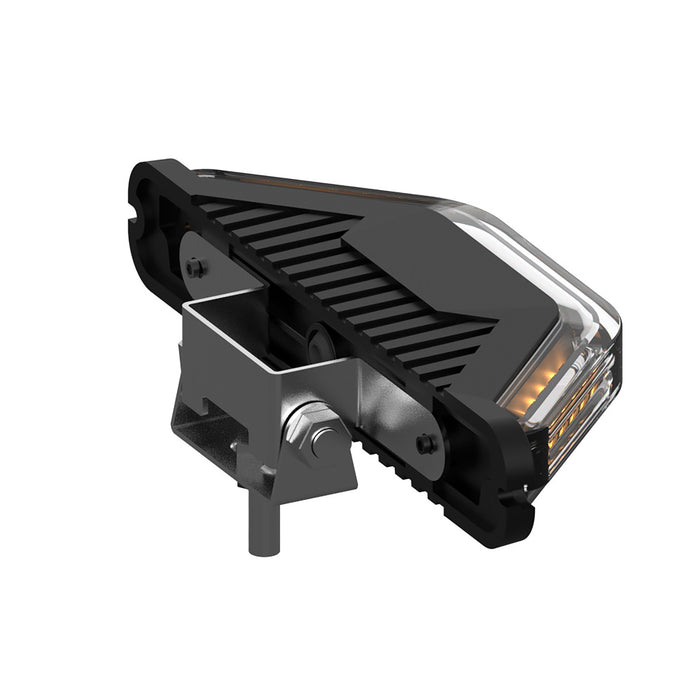

- Screw mount or L/U bracket mount - brackets available separately.
- UV-resistant clear PC lens with aluminium housing.
- 0.25M cable, IP67 / IP69K waterproof.
Wiring Guide
| Function | Wire Color |
|---|---|
| Positive VDC | Red |
| Negative Ground | Black |
| Flash Pattern & SYNC | Yellow |
| Asynchronous | Green |
| Scene Light (White Beam) | White |

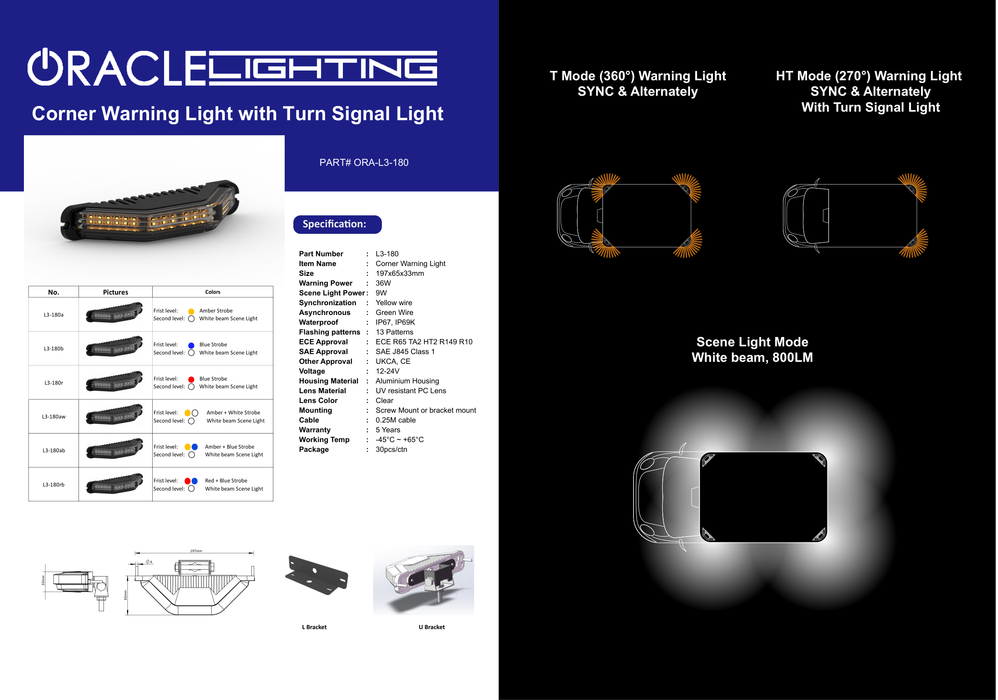

Specifications
Approvals & Compliance
- ECE R65 TA2 HT2, R149, R10
- SAE J845 Class 1
- UKCA, CE
- IP69K Protection
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Warning Strobe Color | Part Number |
|---|---|
| Amber | ORA-L3-180a |
| Blue | ORA-L3-180b |
| Red | ORA-L3-180r |
| Amber/White | ORA-L3-180aw |
| Amber/Blue | ORA-L3-180ab |
| Red/Blue | ORA-L3-180rb |
