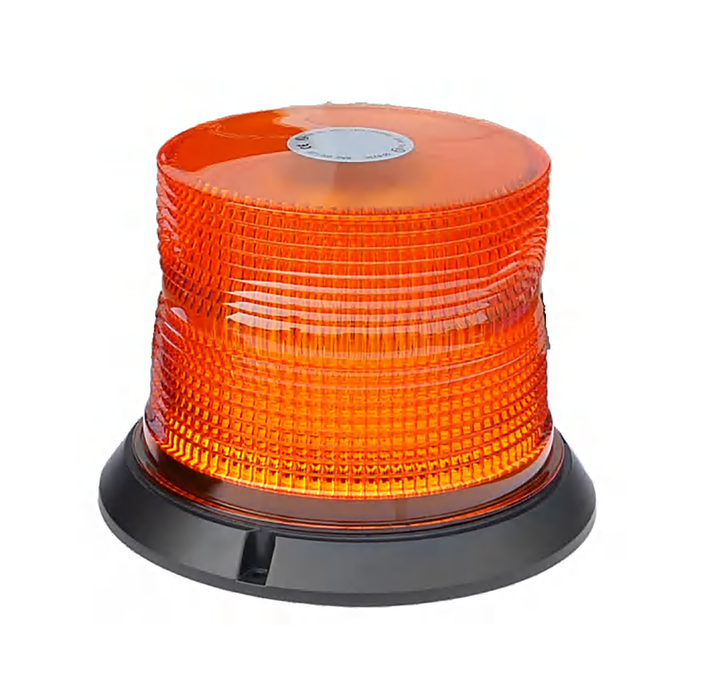

ORACLE Lighting Economic Beacon 6.4"
Economy-grade 6.4" beacon with ABS housing and PC lens. 32W (32pcs 1W LED), 12 flash patterns, SYNC function. IP68 rated. Available in Amber, Blue, Red, and Green. Three mounting variants: B3 (bolt mount), B3-1 (magnet mount), B3-2 (DIN mount).
Part Number: ORA-B3
32W 32pcs 1W LED 12 Patterns SYNC Function IP68 10-30V Amber / Blue / Red / Green 5 Year Warranty
B3 / B3-1 / B3-2 — Variant Comparison
| Feature | B3 | B3-1 | B3-2 |
|---|---|---|---|
| Mounting | Bolt Mount | Magnet Mount | DIN Mount |
| Cable | 0.4M | 3M | — |
| Control | Lead Wire | Cigarette Lighter | — |
Product Features
- 32W output (32pcs 1W LED) - 6.4" diameter for high visibility.
- 12 flash patterns. SYNC function for multi-unit coordination.
- ABS housing with PC lens - IP68 submersion rated.
- Available in Amber, Blue, Red, and Green.
- Three mounting options: Bolt (B3), Magnet (B3-1), DIN (B3-2).
Specifications
Part NumberORA-B3
Item NameEconomic Beacon
Size162 x 162 x 120 mm (6.4")
Power32W
Light Source32pcs 1W LED
Flashing Patterns12 Patterns
Waterproof RatingIP68
SynchronizationSYNC Function Available
Voltage10-30V
MaterialABS Housing, PC Lens
Color OptionAmber, Blue, Red, Green
MountingBolt Mount / Magnet Mount / DIN Mount
Cable0.4M (B3) / 3M (B3-1)
ControlLead Wire (B3) / Cigarette Lighter (B3-1)
Warranty5 Years
Working Temp-45°C to +65°C
Approvals & Compliance
- ECE R65 Class 1, ECE R10
- SAE J845
- CE
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
Available Part Numbers
| Mount Type | Color | Part Number |
|---|---|---|
| Bolt Mount | Blue | ORA-B3-B |
| Bolt Mount | Red | ORA-B3-R |
| Bolt Mount | Green | ORA-B3-G |
| Bolt Mount | Amber | ORA-B3-A |
| Magnet Mount | Blue | ORA-B3-1-B |
| Magnet Mount | Red | ORA-B3-1-R |
| Magnet Mount | Green | ORA-B3-1-G |
| Magnet Mount | Amber | ORA-B3-1-A |
| Din Mount | Blue | ORA-B3-2-B |
| Din Mount | Red | ORA-B3-2-R |
| Din Mount | Green | ORA-B3-2-G |
| Din Mount | Amber | ORA-B3-2-A |
