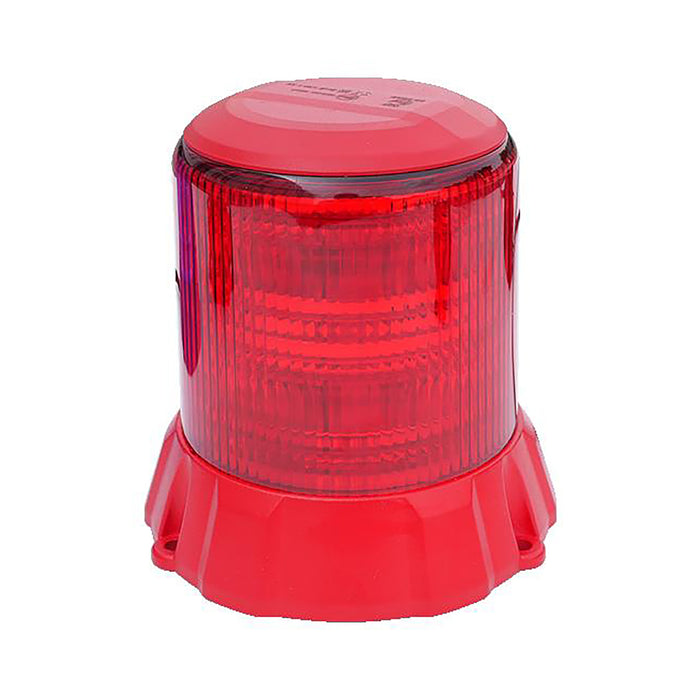

ORACLE Lighting High Profile Beacon - Red, 2 Layers
2-layer high profile red beacon with 96pcs 1W LEDs, 60G anti-shock rating, and IP67/IP69K waterproof protection. Available in red or black housing with red or clear lens. Screw mount (B7r) or magnetic mount (B7r-1). SYNC & ASYNC capable. ECE R65 TR2 certified.
Part Numbers: ORA-B7r (Screw Mount) • ORA-B7r-1 (Magnet Mount)
Model Comparison - B7r vs B7r-1
ORA-B7r
- Mounting: Screw / Bolt Mount
- Cable: 0.4M lead wire
- Control: Lead wire
- Package: 8 pcs/ctn, 7.48kg
- Carton: 34×34×35cm
ORA-B7r-1
- Mounting: Magnetic Base
- Cable: 3M cable
- Control: Double switch cigarette lighter
- Package: 8 pcs/ctn, 9.88kg
- Carton: 38×38×35cm
Both models share the same LED output, flash patterns, and compliance ratings. Select your mounting preference above.
Housing & Lens Options
Housing Color
Red Housing
Red aluminium housing. Classic high-visibility red beacon appearance.
Black Housing
Black aluminium housing. Stealth mounting with red warning output.
Lens Color
🔴 Red Lens
Red PC lens — traditional red beacon appearance.
◯ Clear Lens
Clear PC lens — maximum light output, modern look.
Select your housing and lens combination in the variant selector above.
Key Certifications
High Profile
2 Layers
60G
Anti-shock rating
ECE R65 TR2
Warning beacon approval
SYNC
Synchronization available
ASYNC
Asynchronization available
IP69K
High-pressure waterproof
Product Features
- 2-layer high profile design for maximum vertical visibility.
- 96W output - 96pcs 1W LED red light source.
- Available in red or black housing with red or clear lens.

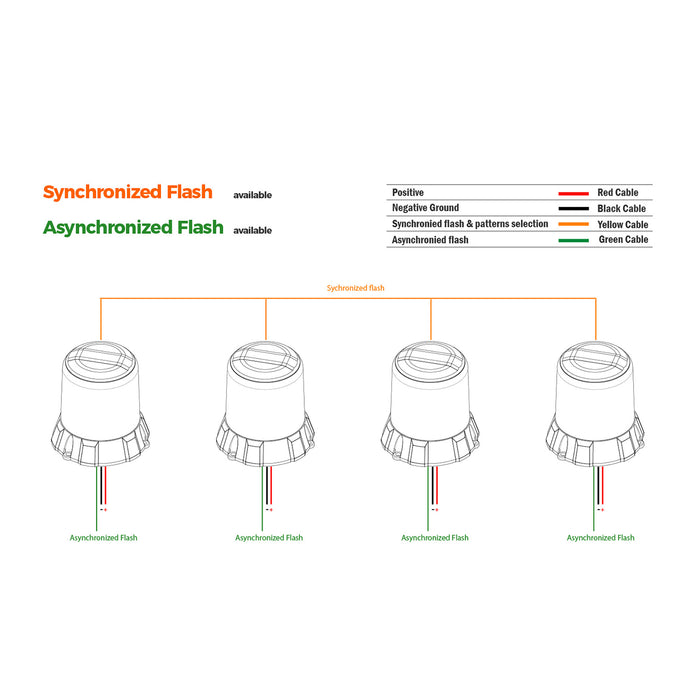

- 12 selectable flash patterns with SYNC & ASYNC capability.

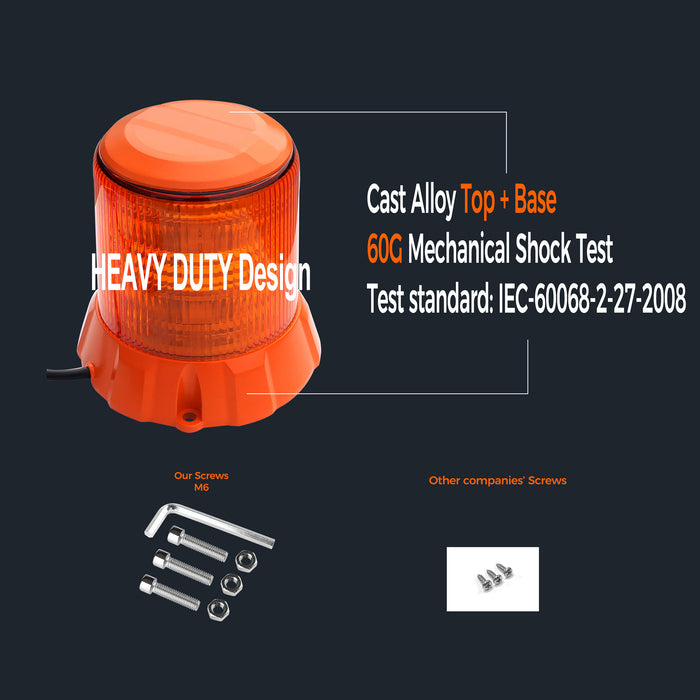

- 60G anti-shock rating - built for rugged vehicle and industrial environments.
- IP67 & IP69K waterproof - high-pressure wash-down rated.
- ECE R65 TR2, ECE R10, CE, UKCA certified.
- B7r: Bolt/screw mount, 0.4M lead wire.
- B7r-1: Magnetic base, 3M cable with double switch cigarette lighter.
- 5-year warranty.

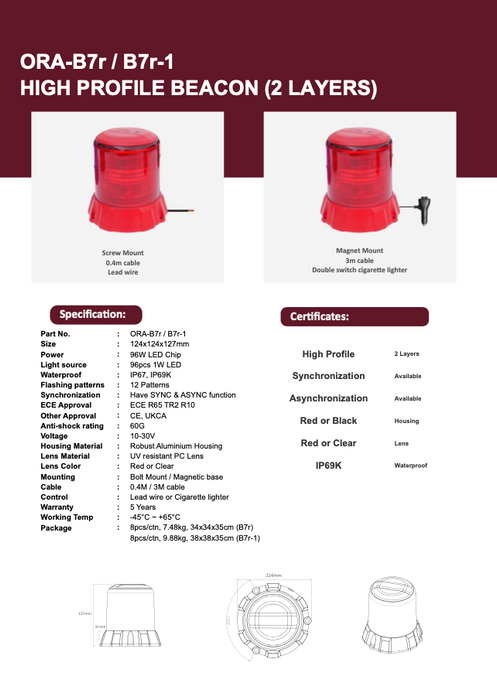

Specifications
Approvals & Compliance
- ECE R65 TR2, ECE R10
- CE, UKCA
- IP69K Waterproof
- 60G Anti-Shock
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Mounting | Housing Color | Part Number |
|---|---|---|
| Screw Mount - 0.4m Lead Wire | Red Housing | ORA-B7r-RR |
| Screw Mount - 0.4m Lead Wire | Red Housing | ORA-B7r-RC |
| Screw Mount - 0.4m Lead Wire | Black Housing | ORA-B7r-BR |
| Screw Mount - 0.4m Lead Wire | Black Housing | ORA-B7r-BC |
| Magnet Mount - 3m Cable with Cigarette Lighter | Red Housing | ORA-B7r-1-RR |
| Magnet Mount - 3m Cable with Cigarette Lighter | Red Housing | ORA-B7r-1-RC |
| Magnet Mount - 3m Cable with Cigarette Lighter | Black Housing | ORA-B7r-1-BR |
| Magnet Mount - 3m Cable with Cigarette Lighter | Black Housing | ORA-B7r-1-BC |
