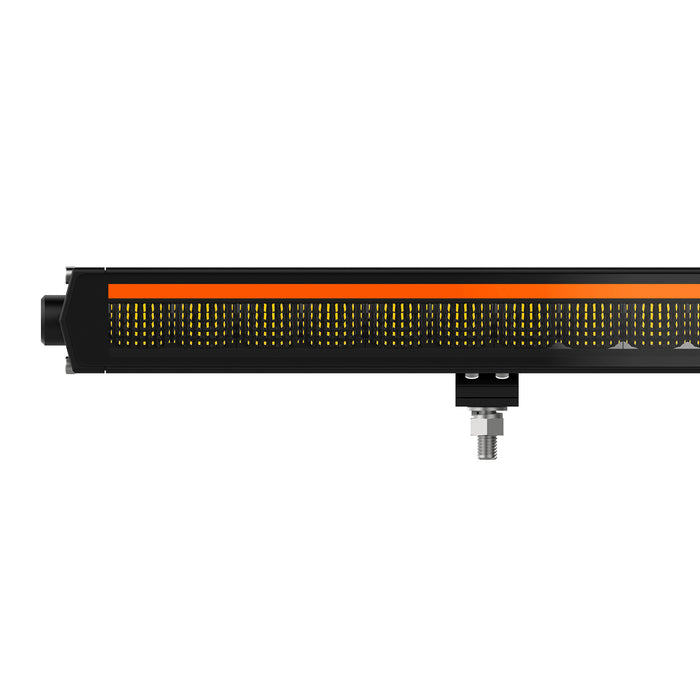

ORACLE Lighting LED Light Bar Driving Light with Position Light - WS Series
High-performance LED light bar range featuring white driving light output with integrated amber/white position light. Built with 6W OSRAM LED chips for maximum intensity and reliability. Available in 7 sizes from 200mm to 1430mm. Spot, flood, or mixed beam options. Front-mount driving light with ECE R112 road-legal approval.
Part Numbers: WS-6 • WS-12 • WS-20 • WS-30 • WS-40 • WS-48 • WS-56

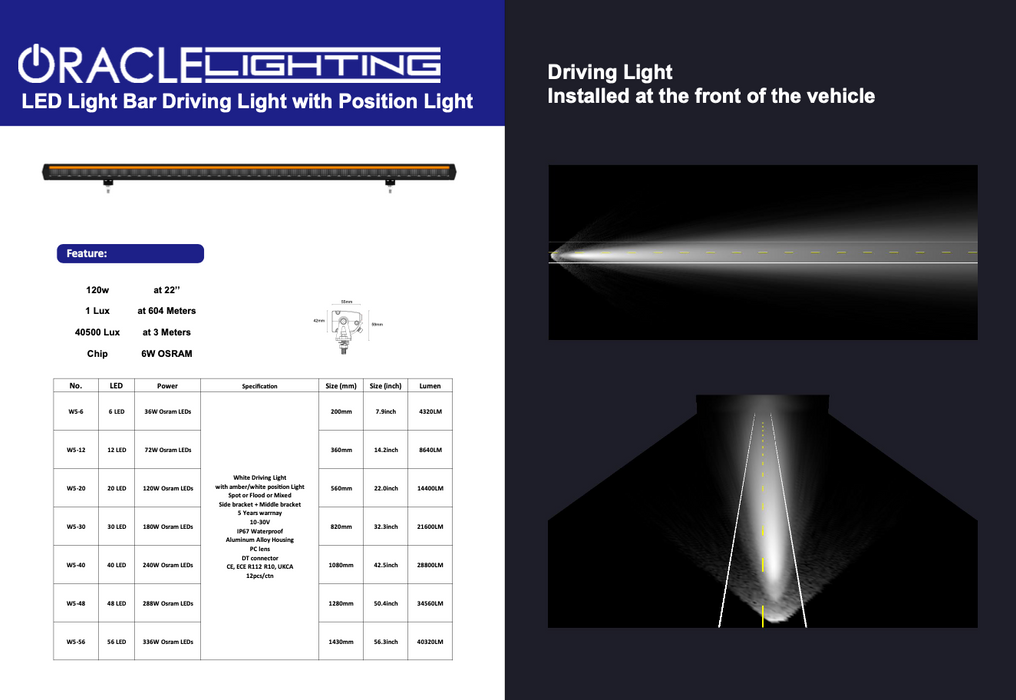

Size & Power Reference - All WS Models
| Model | LEDs | Power | Size (mm) | Size (inch) | Lumen |
|---|---|---|---|---|---|
| WS-6 | 6 LED | 36W OSRAM | 200mm | 7.9” | 4,320 LM |
| WS-12 | 12 LED | 72W OSRAM | 360mm | 14.2” | 8,640 LM |
| WS-20 | 20 LED | 120W OSRAM | 560mm | 22.0” | 14,400 LM |
| WS-30 | 30 LED | 180W OSRAM | 820mm | 32.3” | 21,600 LM |
| WS-40 | 40 LED | 240W OSRAM | 1080mm | 42.5” | 28,800 LM |
| WS-48 | 48 LED | 288W OSRAM | 1280mm | 50.4” | 34,560 LM |
| WS-56 | 56 LED | 336W OSRAM | 1430mm | 56.3” | 40,320 LM |
Select your size in the variant selector above. All models share the same beam options, certifications, and features.

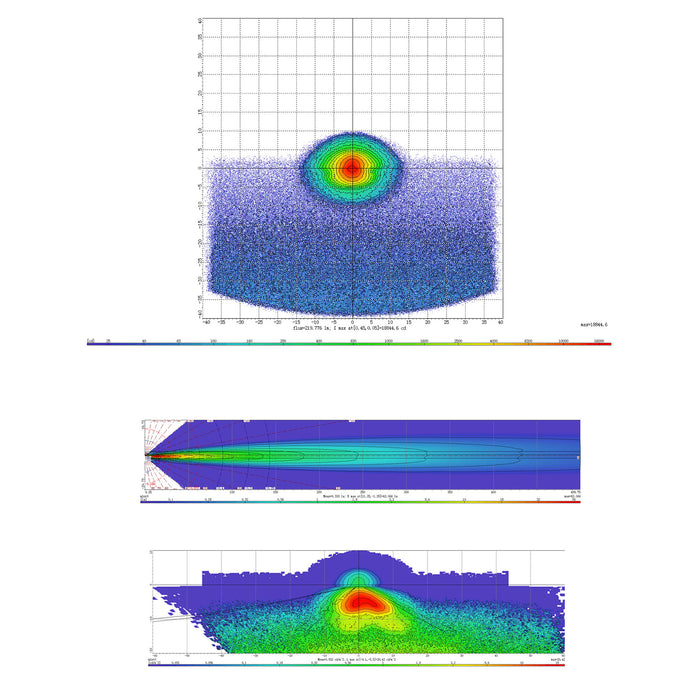

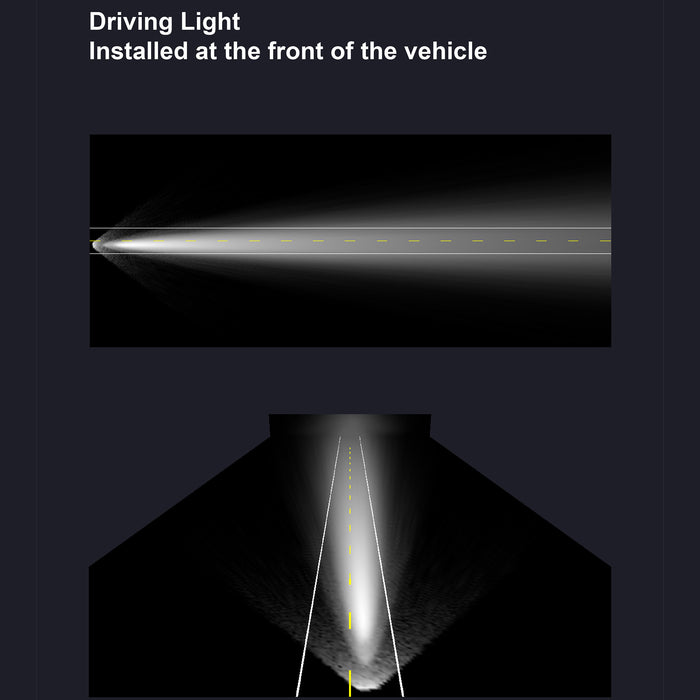

Beam Pattern Options
Spot Beam
Maximum throw distance. Ideal for high-speed off-road and highway driving.
Flood Beam
Wide-angle illumination. Ideal for slow-speed work and close-range visibility.
Mixed Beam
Combines spot and flood. Versatile all-round driving and work light performance.
Select your beam pattern in the variant selector above.
Key Certifications
ECE R112
Road-legal driving light
ECE R10
EMC approval
CE / UKCA
Market compliance
IP67
Waterproof rated
6W OSRAM
Premium LED chip
1 Lux @ 604M
Extreme throw distance
Product Features

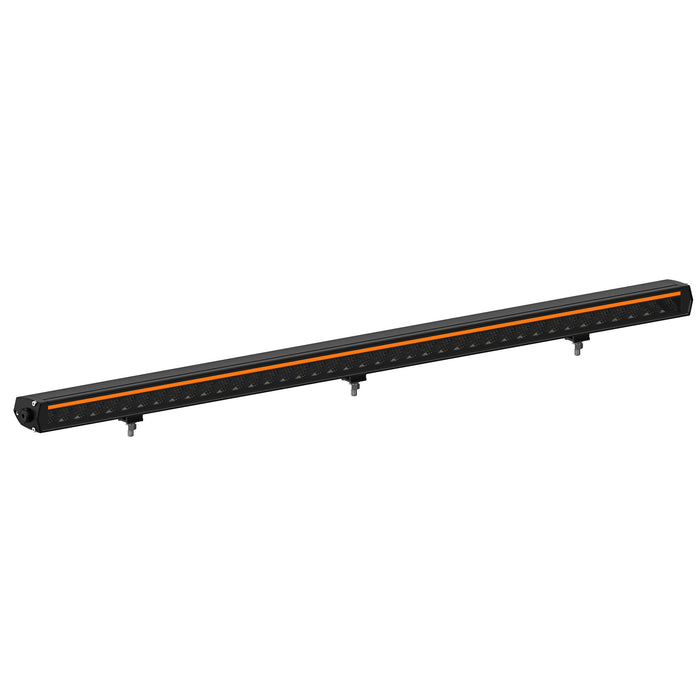

- White driving light with integrated amber/white position light strip.
- 6W OSRAM LED chips -1 Lux at 604 metres, 40,500 Lux at 3 metres (120W WS-20).
- Available in spot, flood, or mixed beam configurations.

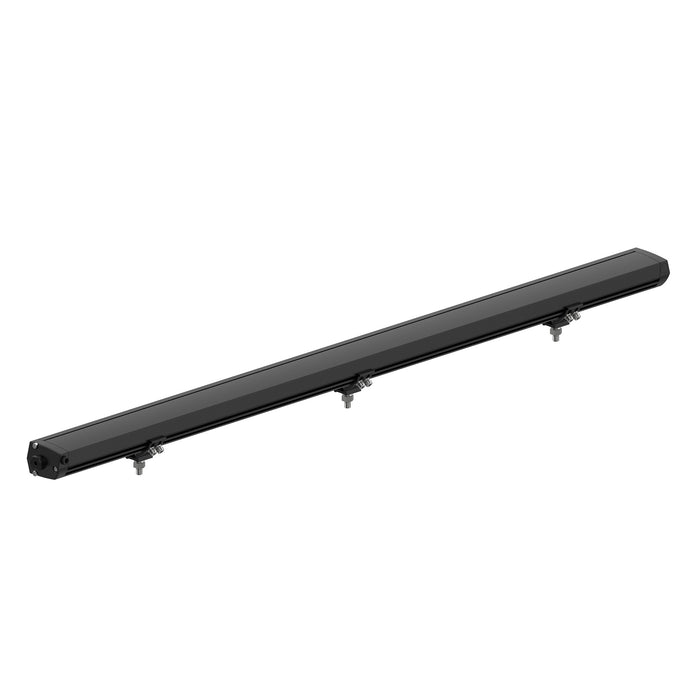

- Side bracket + middle bracket mounting included.
- DT connector for reliable weatherproof wiring.
- IP67 waterproof - aluminium alloy housing with PC lens.
- ECE R112, ECE R10, CE, UKCA certified - road legal.
- 10–30V operating voltage — 12V and 24V compatible.
- 12 pcs/ctn packaging.
- 5-year warranty.
Specifications
Approvals & Compliance
- CE, ECE R112, ECE R10, UKCA
- IP67 Waterproof
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Size | Beam Pattern | Part Number |
|---|---|---|
| 7.9 in / 200mm - 6 LED / 36W / 4320LM | Spot Beam | ORA-W5-6-S |
| 7.9 in / 200mm - 6 LED / 36W / 4320LM | Flood Beam | ORA-W5-6-F |
| 7.9 in / 200mm - 6 LED / 36W / 4320LM | Mixed Beam | ORA-W5-6-M |
| 14.2 in / 360mm - 12 LED / 72W / 8640LM | Spot Beam | ORA-W5-12-S |
| 14.2 in / 360mm - 12 LED / 72W / 8640LM | Flood Beam | ORA-W5-12-F |
| 14.2 in / 360mm - 12 LED / 72W / 8640LM | Mixed Beam | ORA-W5-12-M |
| 22.0 in / 560mm - 20 LED / 120W / 14400LM | Spot Beam | ORA-W5-20-S |
| 22.0 in / 560mm - 20 LED / 120W / 14400LM | Flood Beam | ORA-W5-20-F |
| 22.0 in / 560mm - 20 LED / 120W / 14400LM | Mixed Beam | ORA-W5-20-M |
| 32.3 in / 820mm - 30 LED / 180W / 21600LM | Spot Beam | ORA-W5-30-S |
| 32.3 in / 820mm - 30 LED / 180W / 21600LM | Flood Beam | ORA-W5-30-F |
| 32.3 in / 820mm - 30 LED / 180W / 21600LM | Mixed Beam | ORA-W5-30-M |
| 42.5 in / 1080mm - 40 LED / 240W / 28800LM | Spot Beam | ORA-W5-40-S |
| 42.5 in / 1080mm - 40 LED / 240W / 28800LM | Flood Beam | ORA-W5-40-F |
| 42.5 in / 1080mm - 40 LED / 240W / 28800LM | Mixed Beam | ORA-W5-40-M |
| 50.4 in / 1280mm - 48 LED / 288W / 34560LM | Spot Beam | ORA-W5-48-S |
| 50.4 in / 1280mm - 48 LED / 288W / 34560LM | Flood Beam | ORA-W5-48-F |
| 50.4 in / 1280mm - 48 LED / 288W / 34560LM | Mixed Beam | ORA-W5-48-M |
| 56.3 in / 1430mm - 56 LED / 336W / 40320LM | Spot Beam | ORA-W5-56-S |
| 56.3 in / 1430mm - 56 LED / 336W / 40320LM | Flood Beam | ORA-W5-56-F |
| 56.3 in / 1430mm - 56 LED / 336W / 40320LM | Mixed Beam | ORA-W5-56-M |
