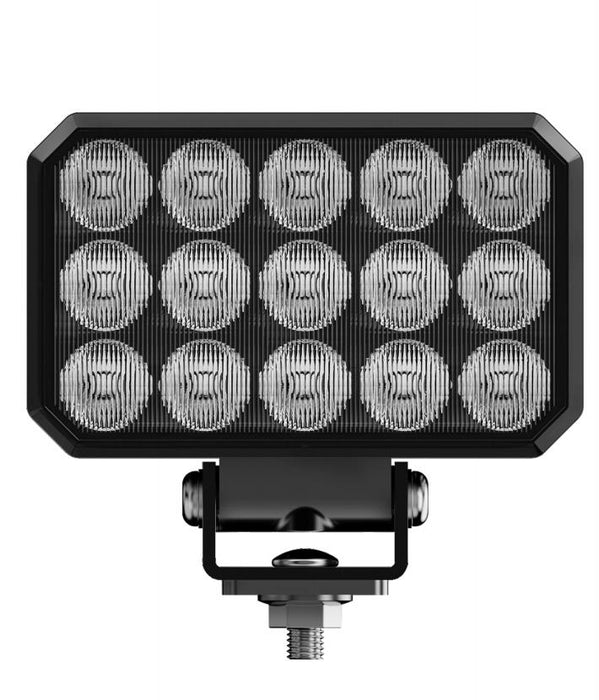

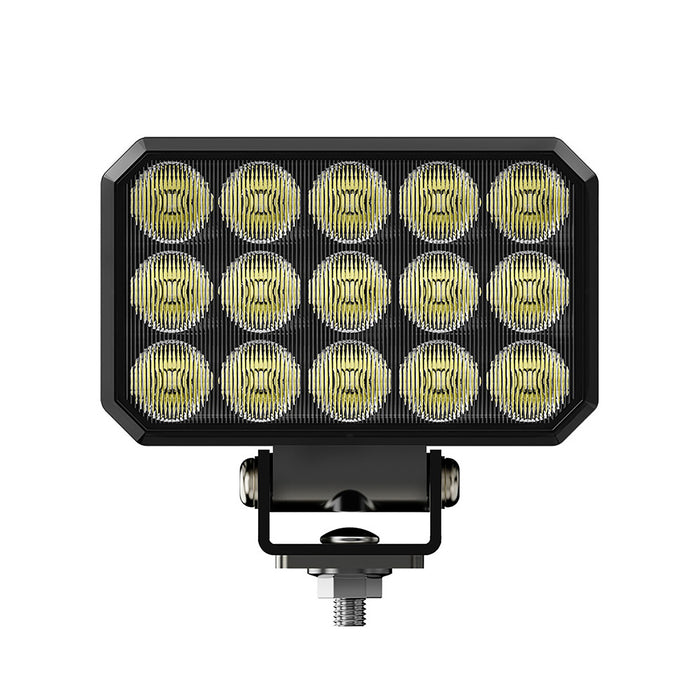

ORACLE Lighting LED Work Light - WL64 Series
90W wide flood work light with 100° wide, non-glaring light beam for maximum coverage without blinding operators or bystanders. Multi-mount with removable bracket - install vertically or horizontally. 5605 real lumens. IP67/IP69K. CISPR 25 Class 4.
Part Number: ORA-WL64-15
90W 5605 LM Real 100° Wide Flood Non-Glaring IP67 / IP69K 10-30V 5 Year Warranty Work / Driving Lights
Product Features
- 100° wide flood beam - non-glaring light beam for safe use around operators and bystanders.
- 5605 real lumens (not theoretical) - genuine measured output.

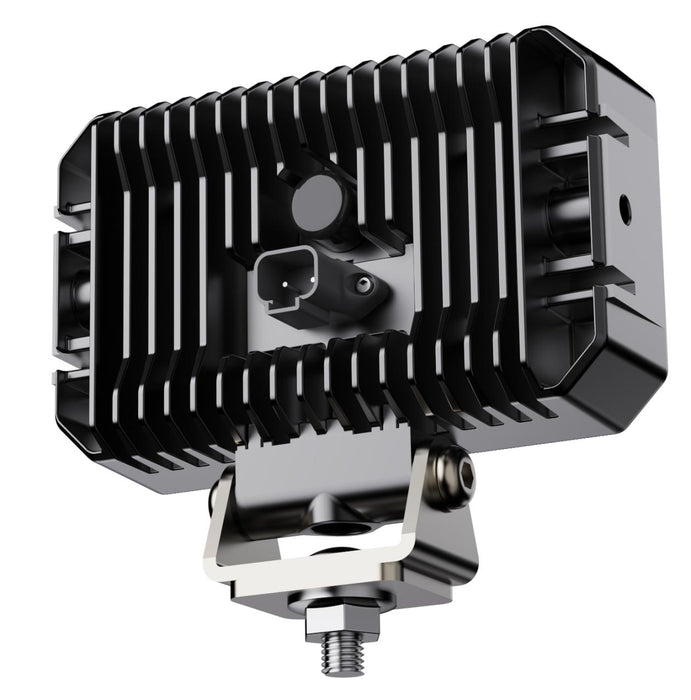

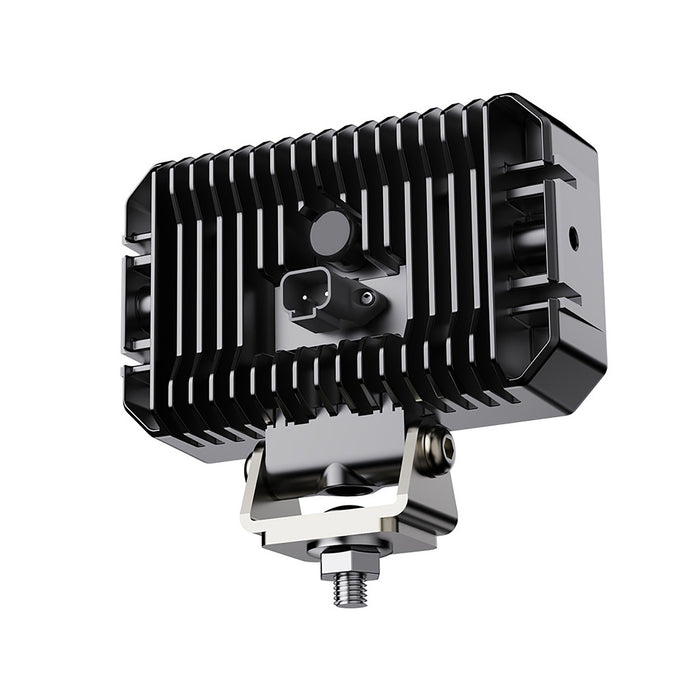

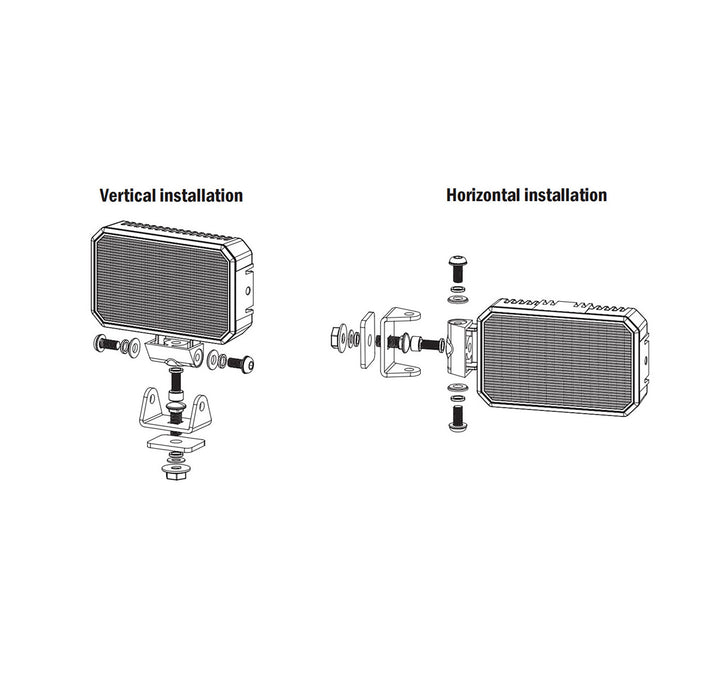

- Multi-mount with removable bracket - install vertically or horizontally.
- Robust aluminium housing with UV resistant PC lens.
- Built-in connector.
- IP67 and IP69K waterproof rated.
- ECE R10, SAE, CE, CISPR 25 Class 4 approved.
💡 Not Glaring Light beam: The 100° wide flood beam is specifically engineered to eliminate glare - providing broad, even illumination without blinding operators, pedestrians, or other drivers.
Specifications
Part NumberORA-WL64-15
Size / Dimensions150 x 93 x 130 mm (6" x 3.7" x 5.1")
Real Power90W
Current Draw12V @ 4.58A | 24V @ 2.3A
Lumen Output5605 LM (real lumen)

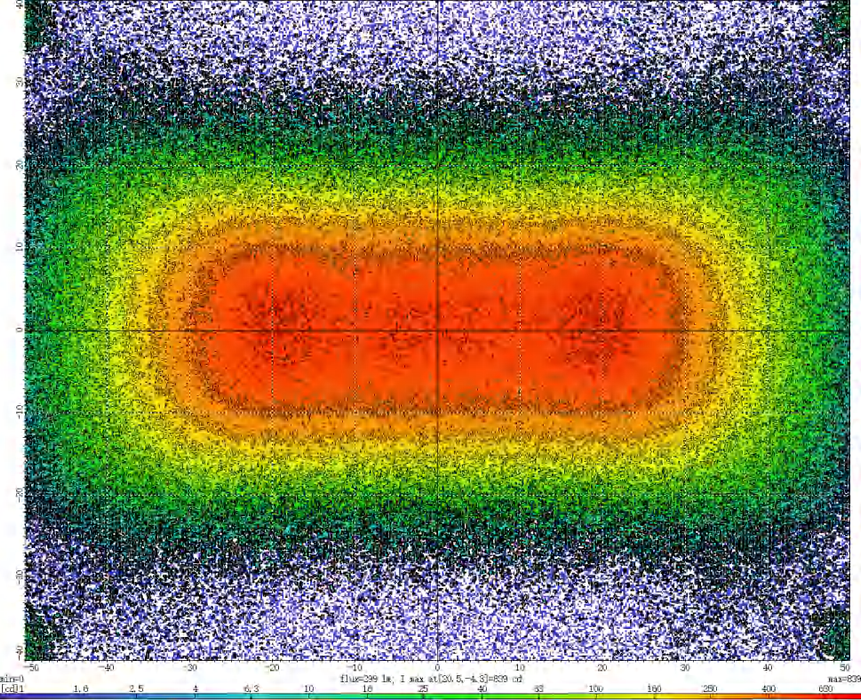

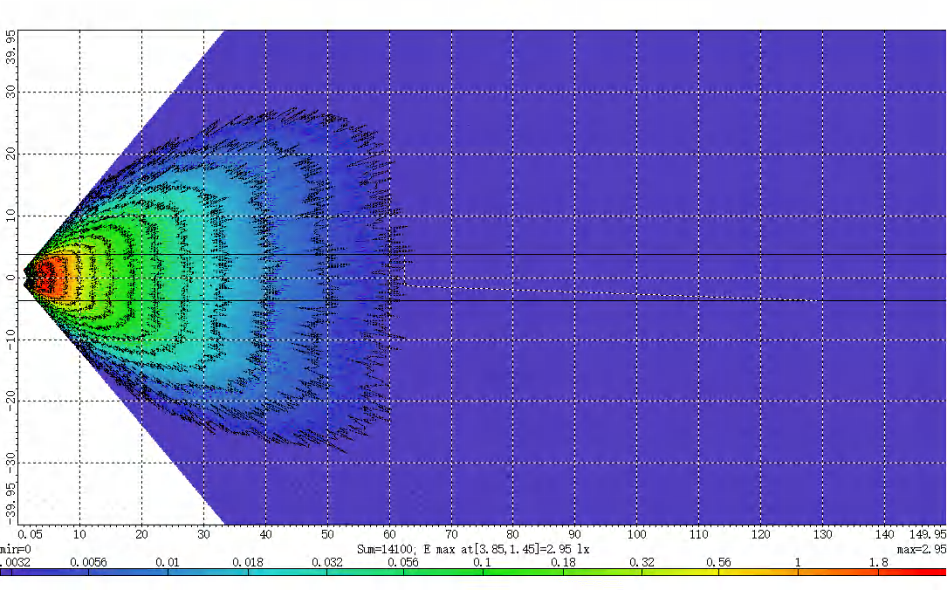

Beam Type100° Wide Flood Beam (non-glaring)
Waterproof RatingIP67, IP69K
Voltage Range10-30V
Housing MaterialRobust Aluminium Housing
Lens MaterialUV Resistant PC Lens
Lens ColorClear
MountingVertical or Horizontal (removable bracket)

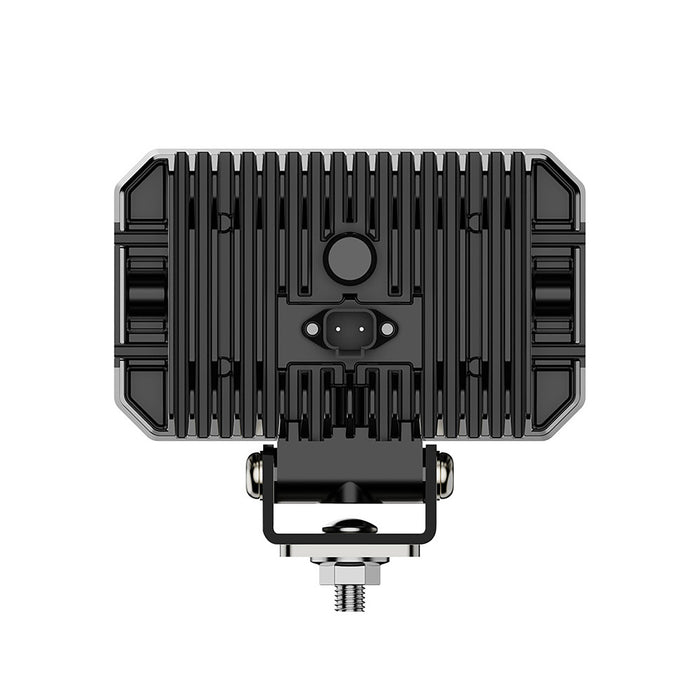

ConnectorBuilt-in Connector
Working Temp-45°C to +65°C
Warranty5 Years
Package Qty20 pcs/ctn
Package Weight18 kg
Carton Size460 x 250 x 390 mm
Approvals & Compliance
- ECE R10
- SAE
- CE, CISPR 25 Class 4
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
Available Part Numbers
| Model | Part Number |
|---|---|
| 6"x3.7" / 90W (WL64-15) | ORA-WL64-15 |
| 3.1"x3.1" / 28W Round (WL64-4R) | ORA-WL64-4R |
| 2.8"x2.8" / 28W Square (WL64-4S) | ORA-WL64-4S |
| 4"x2.8" / 42W (WL64-6) | ORA-WL64-6 |
| 4"x4" / 56W (WL64-9) | ORA-WL64-9 |
| 5"x5" / 112W (WL64-16) | ORA-WL64-16 |
