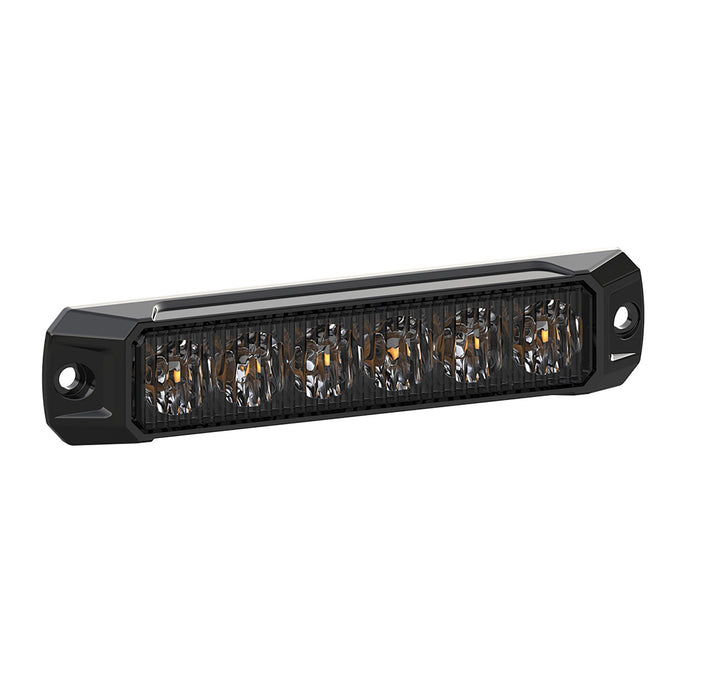

ORACLE Lighting Light Head - LH1-3 / LH1-4 / LH1-6
Slim, surface-mount warning lightheads available in 3-LED, 4-LED, and 6-LED configurations. Screw-mount with optional bracket. Single and dual color options. Cruise light function. Ideal for grille, bumper, and body surface installations on emergency and service vehicles.
Part Numbers: LH1-3 • LH1-4 • LH1-6
15W / 20W / 18W IP67 / IP69K 12–24V 5-Year Warranty 13 Flash Patterns ECE R65 XA1/XA2 SAE J595 Class 1
Model Comparison

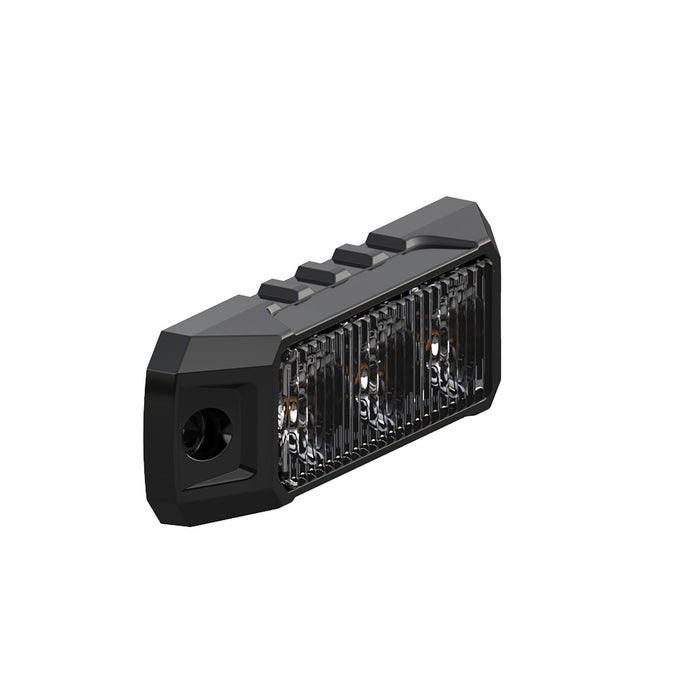

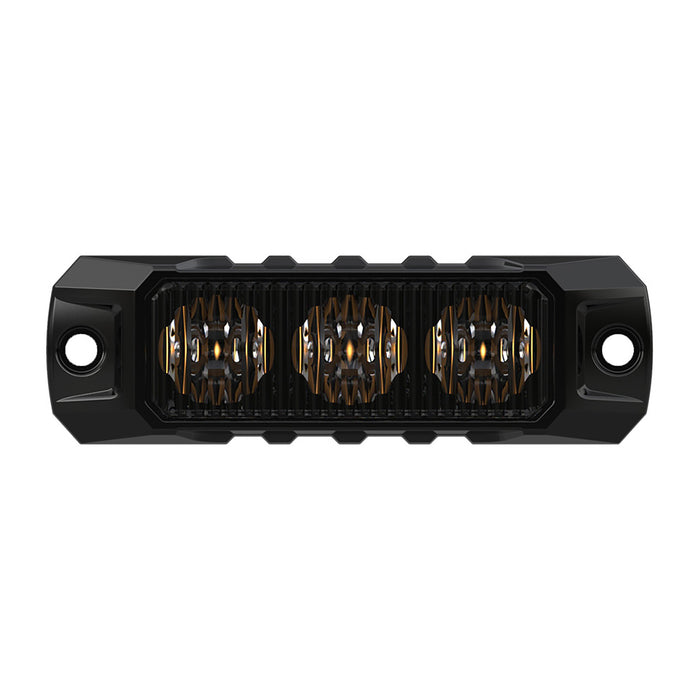

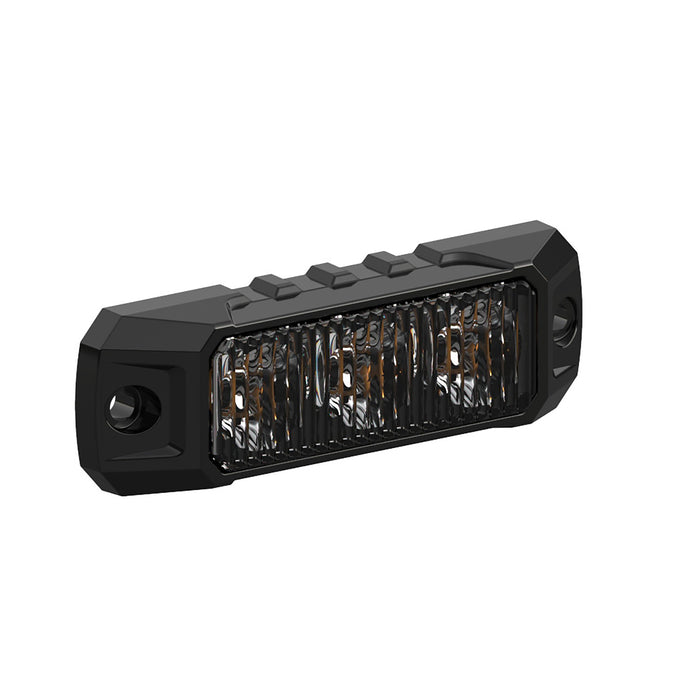

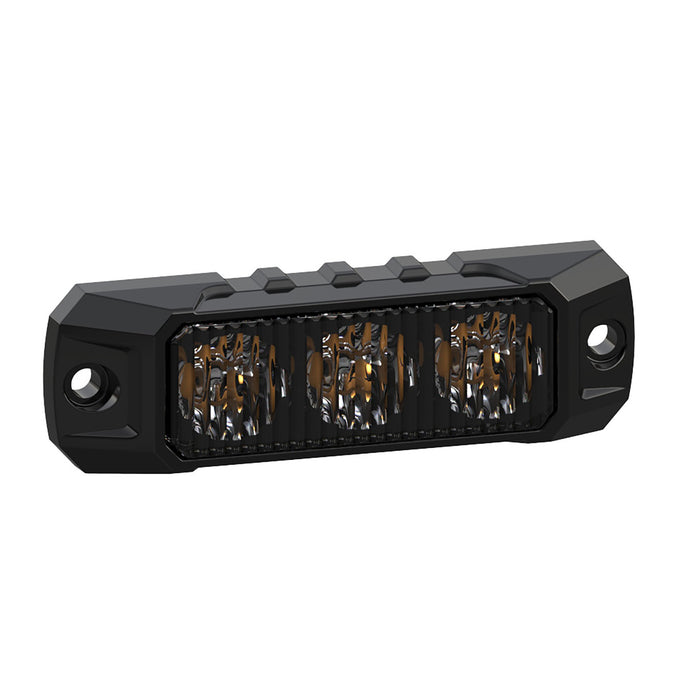

LH1-3
- 3 LED
- 15W
- Width: 91mm
- Depth: 13.5mm
- Height: 28mm

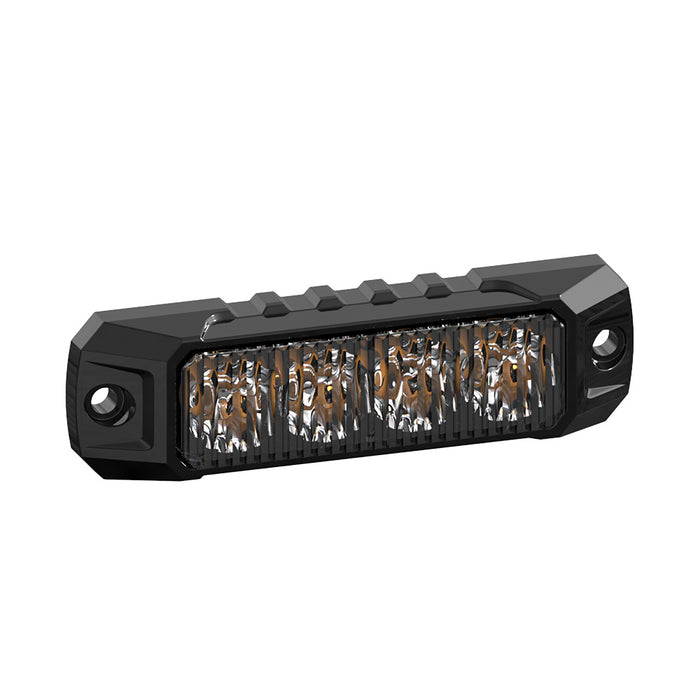

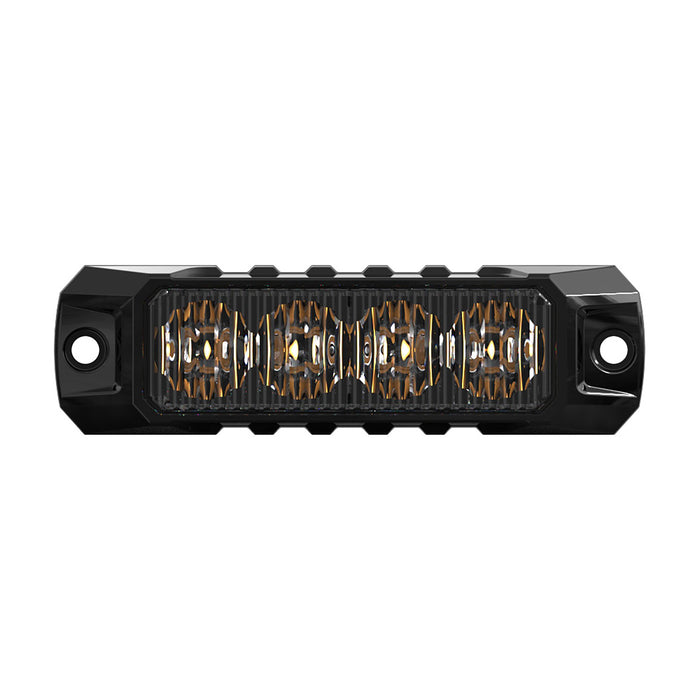

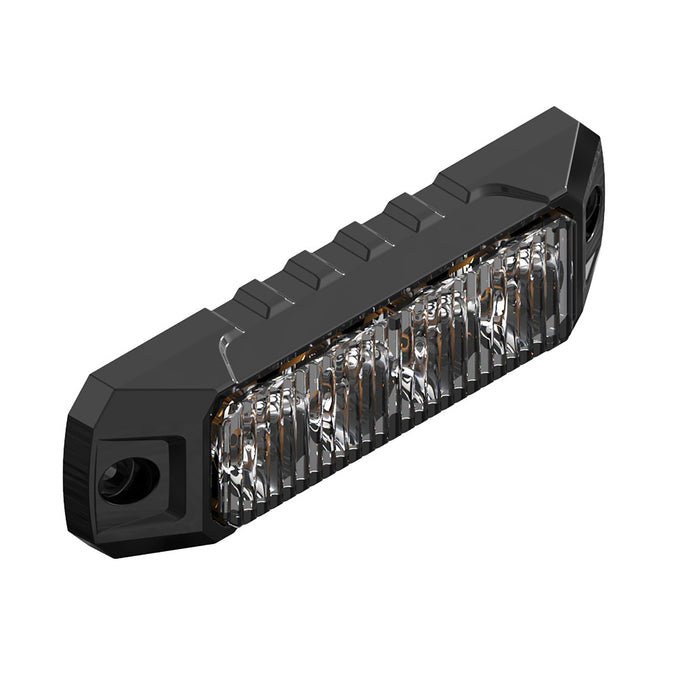

LH1-4
- 4 LED
- 20W
- Width: 98mm
- Depth: 13.5mm
- Height: 28mm

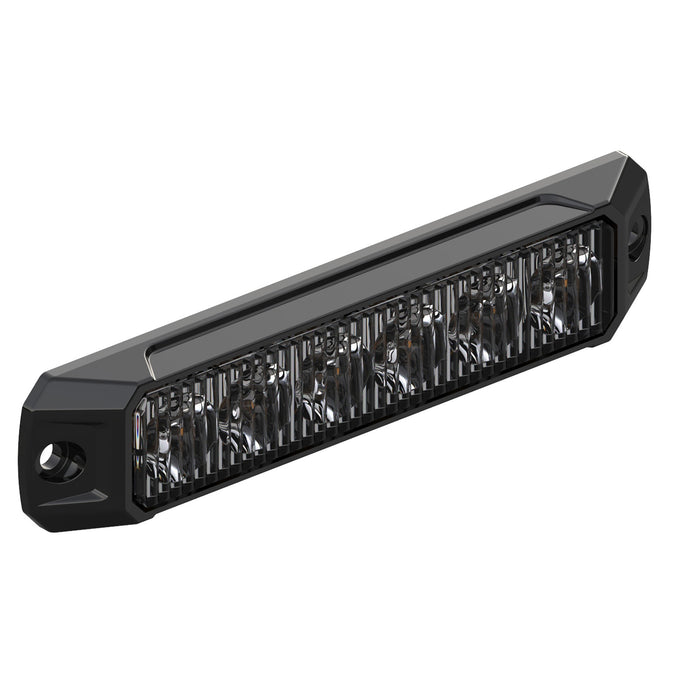

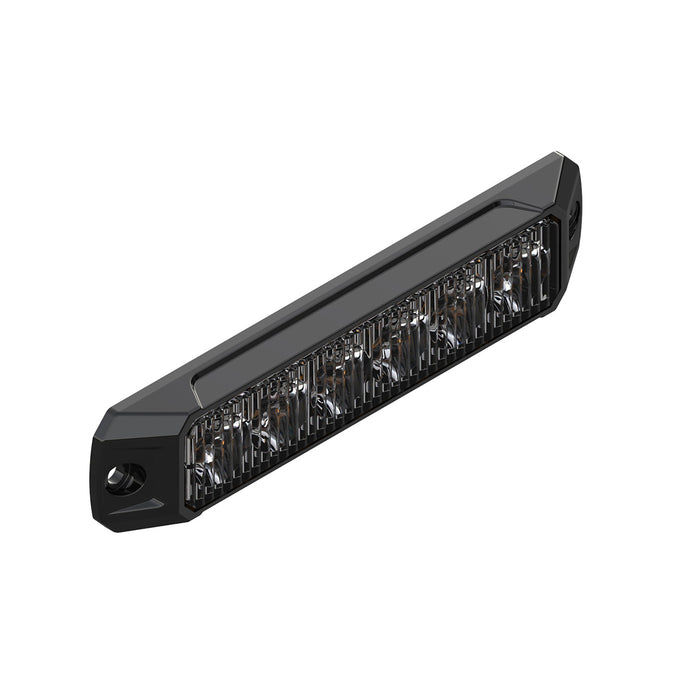

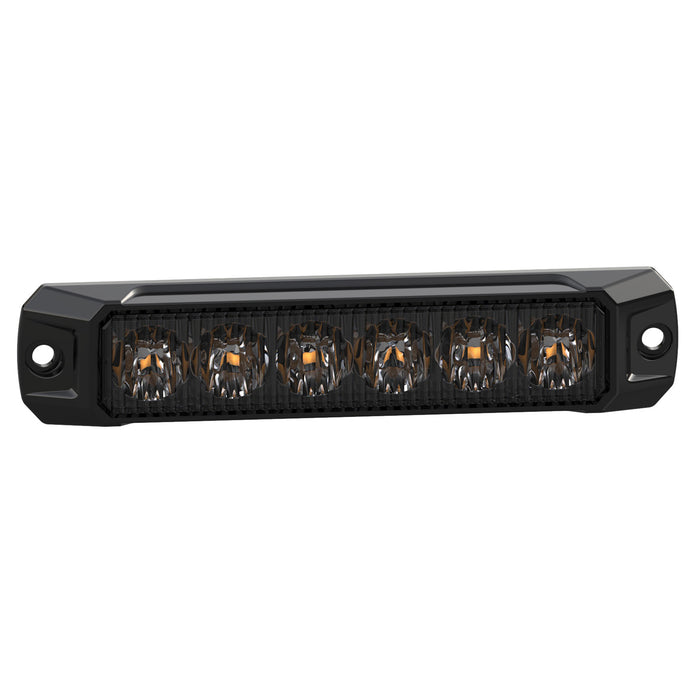

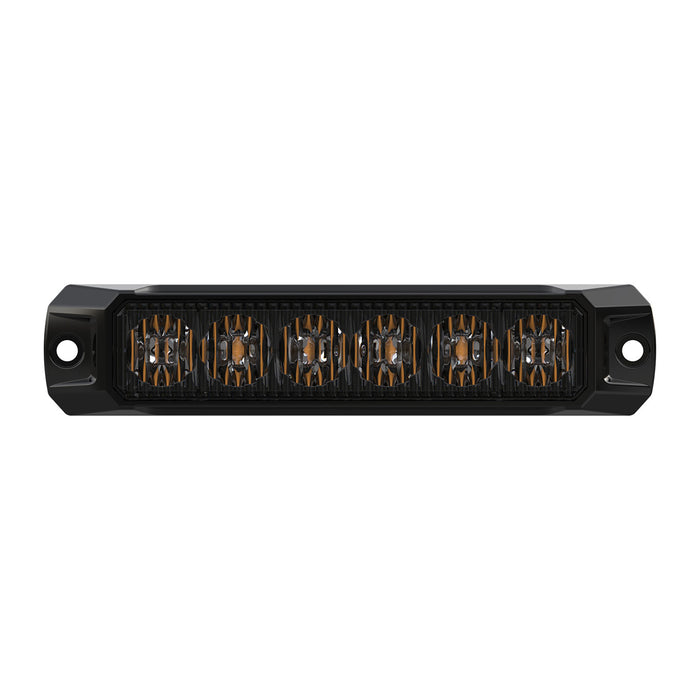

LH1-6
- 6 LED
- 18W
- Width: 132mm
- Depth: 11mm
- Height: 28mm
Product Features

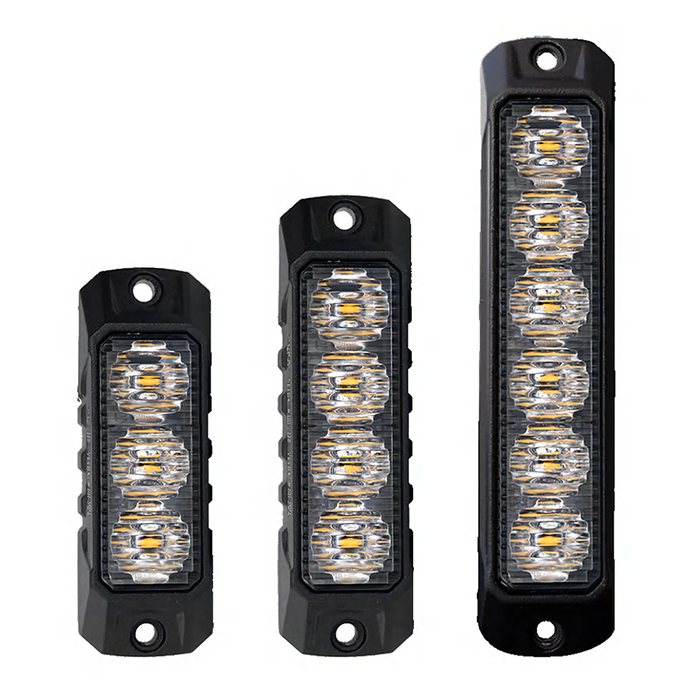

- Available in 3-LED (LH1-3), 4-LED (LH1-4), and 6-LED (LH1-6) configurations.
- ECE R65 XA1, XA2 & ECE R10 approved; SAE J595 Class 1 rated; UKCA & CE certified.
- 13 selectable flash patterns with SYNC (yellow wire) and ASYNC (green wire) control.
- Cruise light function via white wire.
- Available in Single Color (amber, blue, red, green, white) and Dual Color configurations.
- EVA foam gasket seal for weatherproof surface mount.
- UV-resistant clear PC lens with aluminium housing.

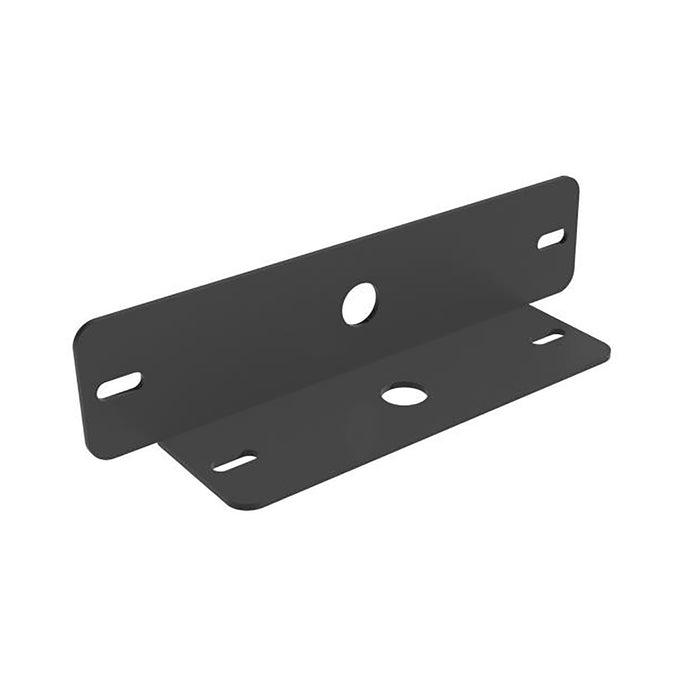

- 0.3M cable - screw mount; optional bracket available.
Color Options

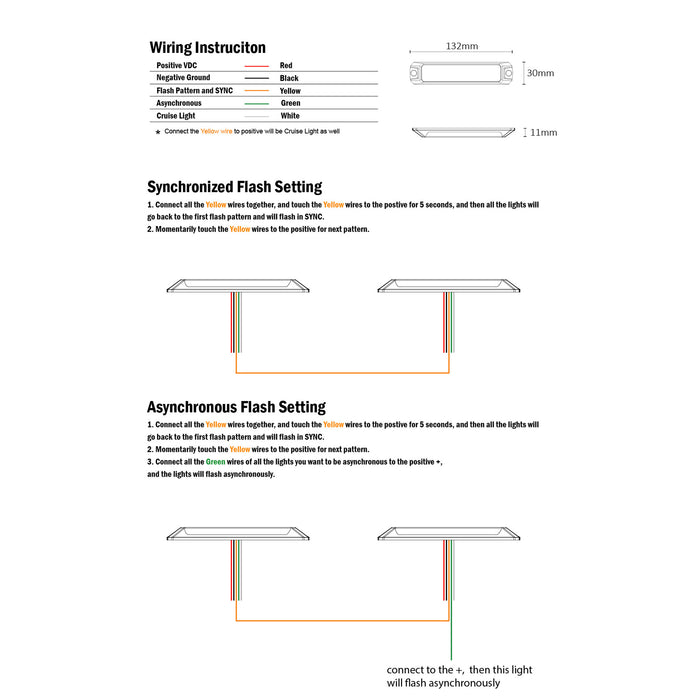

Wiring Guide
| Function | Wire Color |
|---|---|
| Positive VDC | Red |
| Negative Ground | Black |
| Flash Pattern & SYNC | Yellow |
| Asynchronous | Green |
| Cruise Light | White |
Specifications (Shared)
Part NumbersLH1-3 • LH1-4 • LH1-6
PowerLH1-3: 15W • LH1-4: 20W • LH1-6: 18W
LED CountLH1-3: 3 LED • LH1-4: 4 LED • LH1-6: 6 LED

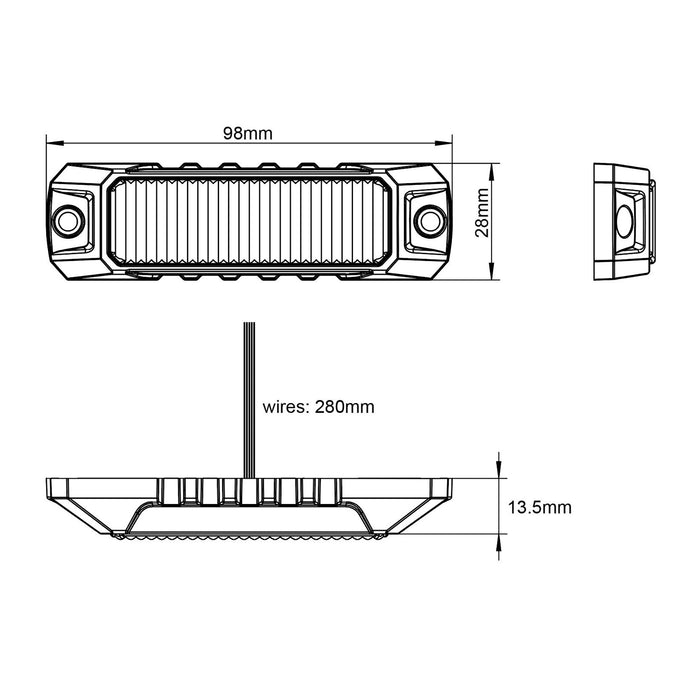

WidthLH1-3: 91mm • LH1-4: 98mm • LH1-6: 132mm
Height28mm (all models)
DepthLH1-3 & LH1-4: 13.5mm • LH1-6: 11mm
Flashing Patterns13 Patterns
SynchronizationYellow wire (SYNC) / Green wire (ASYNC)
Cruise LightWhite wire
Waterproof RatingIP67, IP69K
Voltage Range12–24V
Housing MaterialAluminium
Lens MaterialUV-Resistant PC Lens
Lens ColorClear
MountingScrew Mount (bracket available)
Cable0.3M
GasketEVA
Working Temp-45°C ~ +65°C
Warranty5 Years
Package Qty100 pcs/ctn
Approvals & Compliance
- ECE R65 XA1, XA2, ECE R10
- SAE J595 Class 1
- UKCA, CE
- IP69K Protection
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Style | Color | Part Number |
|---|---|---|
| 3 | White | ORA-LH1-3-W |
| 3 | Blue | ORA-LH1-3-B |
| 3 | Red | ORA-LH1-3-R |
| 3 | Green | ORA-LH1-3-G |
| 3 | Amber | ORA-LH1-3-A |
| 3 | Amber/Blue | ORA-LH1-3-AB |
| 3 | Amber/White | ORA-LH1-3-AW |
| 3 | Blue/Red | ORA-LH1-3-BR |
| 4 | White | ORA-LH1-4-W |
| 4 | Blue | ORA-LH1-4-B |
| 4 | Red | ORA-LH1-4-R |
| 4 | Green | ORA-LH1-4-G |
| 4 | Amber | ORA-LH1-4-A |
| 4 | Amber/Blue | ORA-LH1-4-AB |
| 4 | Amber/White | ORA-LH1-4-AW |
| 4 | Blue/Red | ORA-LH1-4-BR |
| 6 | White | ORA-LH1-6-W |
| 6 | Blue | ORA-LH1-6-B |
| 6 | Red | ORA-LH1-6-R |
| 6 | Green | ORA-LH1-6-G |
| 6 | Amber | ORA-LH1-6-A |
| 6 | Amber/Blue | ORA-LH1-6-AB |
| 6 | Amber/White | ORA-LH1-6-AW |
| 6 | Blue/Red | ORA-LH1-6-BR |
