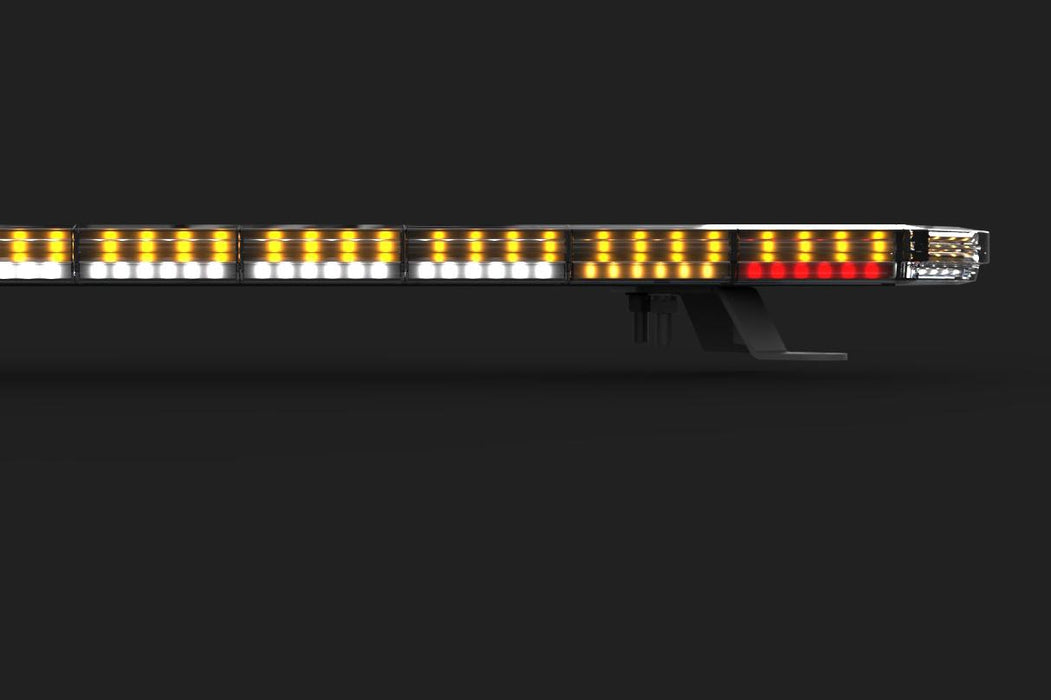

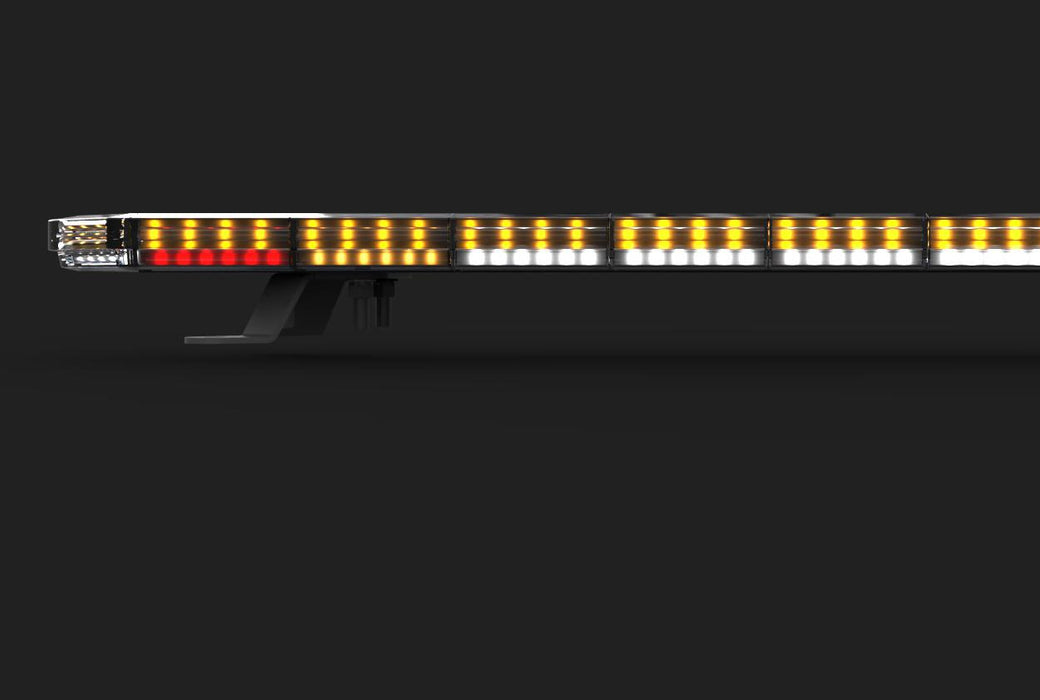

ORACLE Lighting Lightbar with Signal Lights

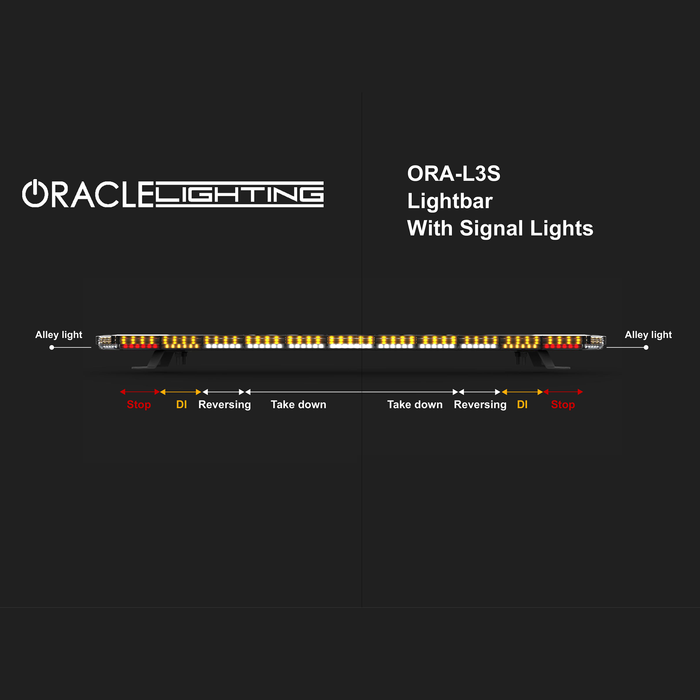

Full-size warning lightbar with integrated signal light functions: Stop, Left/Right Turn Signal, and Reversing. Available in 6 wiring/control versions to suit any installation. Wireless or wired controller options. Logo bracket and multiple mounting bracket styles available.
Part Number: ORA-L3S - Select version at checkout

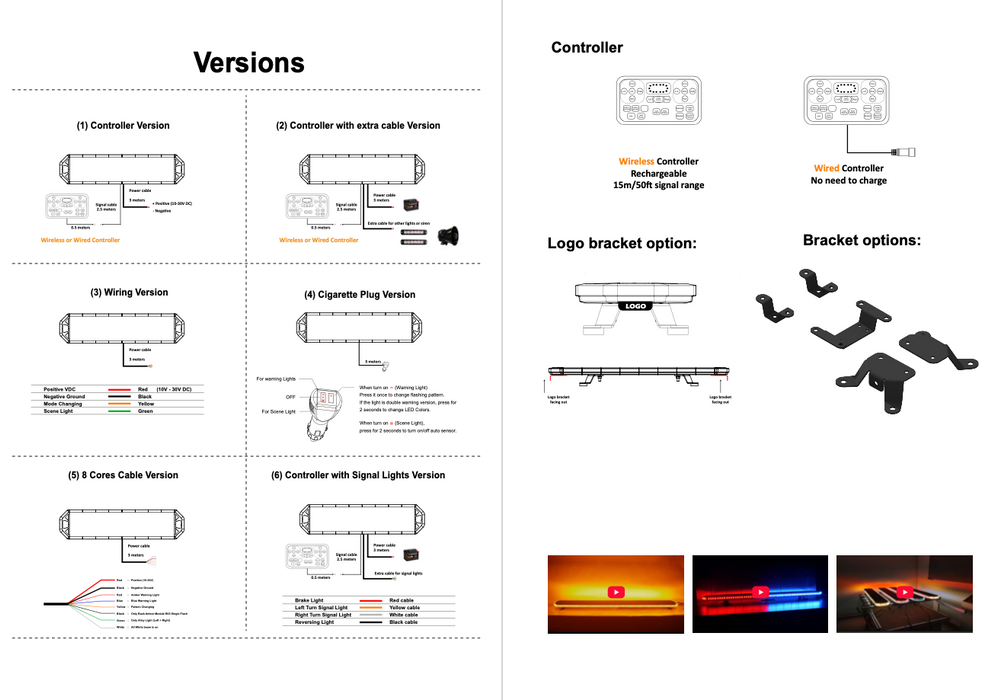

Available Versions - Choose Your Configuration
Version 1 - Controller Version
Includes wireless or wired controller. Power cable (3m) + signal cable (0.5m). Standard setup for most installations.
Version 2 - Controller + Extra Cable
Includes wireless or wired controller + extra cable for other lights or sirens. Power cable (3m) + signal cable (0.5m) + extra cable (0.5m).
Version 3 - Wiring Version
Direct wiring, no controller. Power cable (3m). Wired via: Red (Positive VDC, 10V–30V DC), Black (Negative Ground), Yellow (Mode Changing), Green (Scene Light).
Version 4 - Cigarette Plug Version
Plug-and-play cigarette lighter connection (3m cable). Warning lights: turn on/off via plug. Scene lights: turn on/off via plug. Press 4× to change flash pattern; press 2s to change LED color; press 2s to turn on/off auto sensor.
Version 5 - 8-Core Cable Version
8-core cable (3m) for full individual wire control. Wires: Red (Positive VDC), Black (Negative Ground), Yellow (Flash Pattern & SYNC), Orange (Async), Blue (Warning Light Right), White (Warning Light Left), Green (Scene Light Right), Purple (Scene Light Left).
Version 6 - Controller + Signal Lights
Includes controller + extra cable for signal lights (0.5m). Signal light wiring: Red (Brake Light), Yellow (Left Turn Signal), White (Right Turn Signal), Black (Reversing Light). Power cable (3m) + signal cable (0.5m).
Controller Options
Wireless Controller
Rechargeable battery. 15m / 50ft signal range. No wired connection to dash required.
Wired Controller
Hardwired to vehicle power. No charging required. Reliable permanent installation.
Signal Light Wiring (Version 6)
Version 6 includes an extra 0.5m cable for signal light integration:
| Function | Wire Color |
|---|---|
| Brake Light | Red |
| Left Turn Signal Light | Yellow |
| Right Turn Signal Light | White |
| Reversing Light | Black |
Direct Wiring Guide (Version 3 & 8-Core)
Version 3 (4-wire) standard wiring:
| Function | Wire Color |
|---|---|
| Positive VDC (10V–30V DC) | Red |
| Negative Ground | Black |
| Mode Changing | Yellow |
| Scene Light | Green |
Version 5 (8-core) full wiring:
| Function | Wire Color |
|---|---|
| Positive VDC | Red |
| Negative Ground | Black |
| Flash Pattern & SYNC | Yellow |
| Asynchronous | Orange |
| Warning Light Right | Blue |
| Warning Light Left | White |
| Scene Light Right | Green |
| Scene Light Left | Purple |
Mounting & Bracket Options
- Standard L Bracket - flat surface / roof mount.
- Standard U Bracket - rail or tube mount.
- Logo Bracket - custom logo bracket option available (logo facing out or facing in orientation).
Product Features
- Integrated Stop, Left/Right Turn Signal, and Reversing light functions (Version 6).
- Full perimeter warning coverage front, back, and sides.
- Choice of wireless (rechargeable, 15m range) or wired controller.
- 6 wiring/control versions to match any vehicle installation requirement.
- Logo bracket option for branded fleet vehicles.
- L and U bracket mounting options included/available.
- 10-30V input voltage range.
- 5-year warranty.
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Type | Part Number |
|---|---|
| Version 1 - Wired Controller | ORA-L3S-1 |
| Version 1 - Wireless Controller | ORA-L3S-1-Wireless |
| Version 2 - Wired Controller | ORA-L3S-2 |
| Version 2 - Wireless Controller | ORA-L3S-2-Wireless |
| Version 3 | ORA-L3S-3 |
| Version 4 | ORA-L3S-4 |
| Version 5 | ORA-L3S-5 |
| Version 6 | ORA-L3S-6 |
