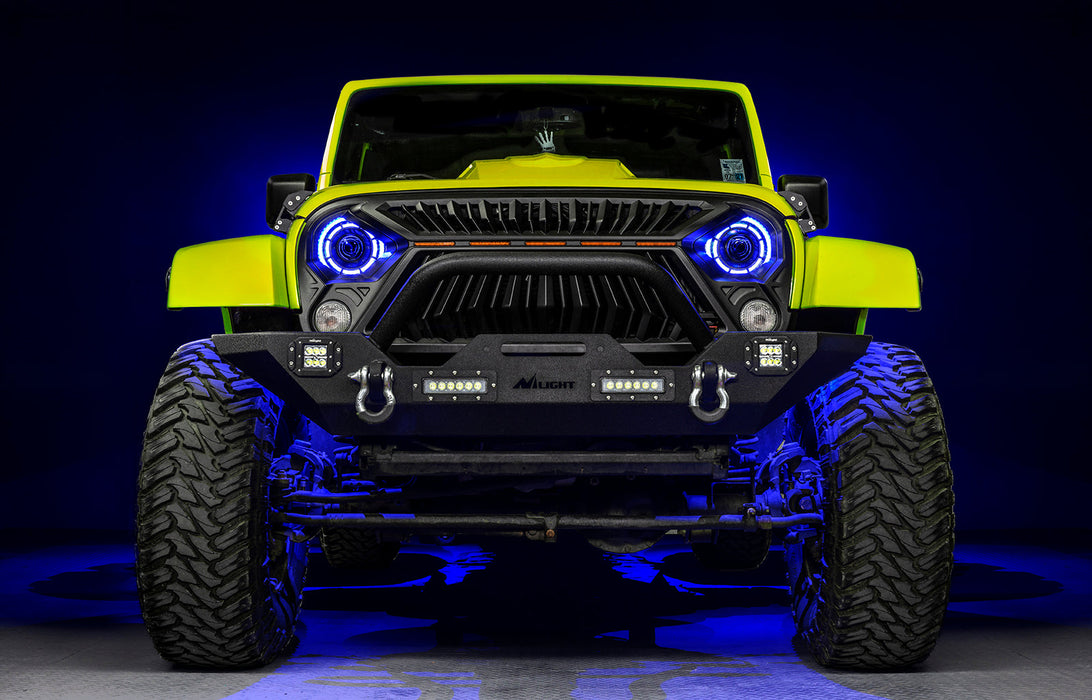

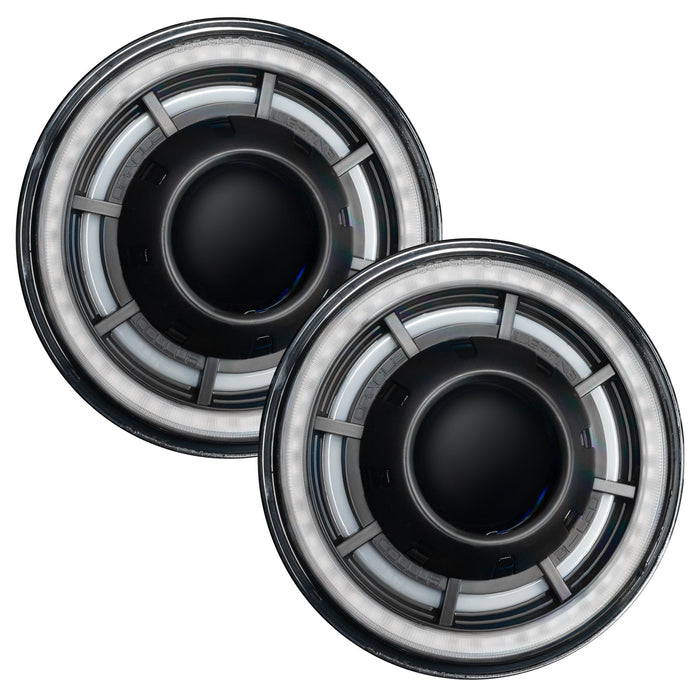

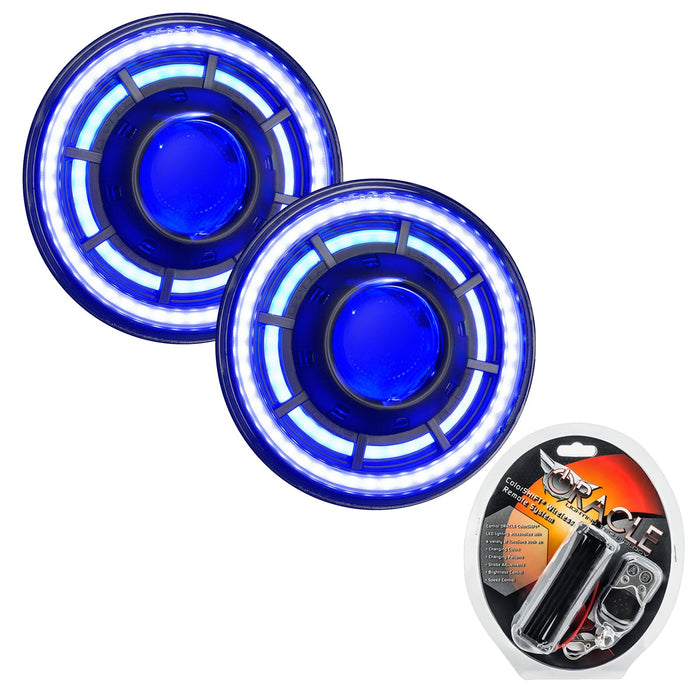

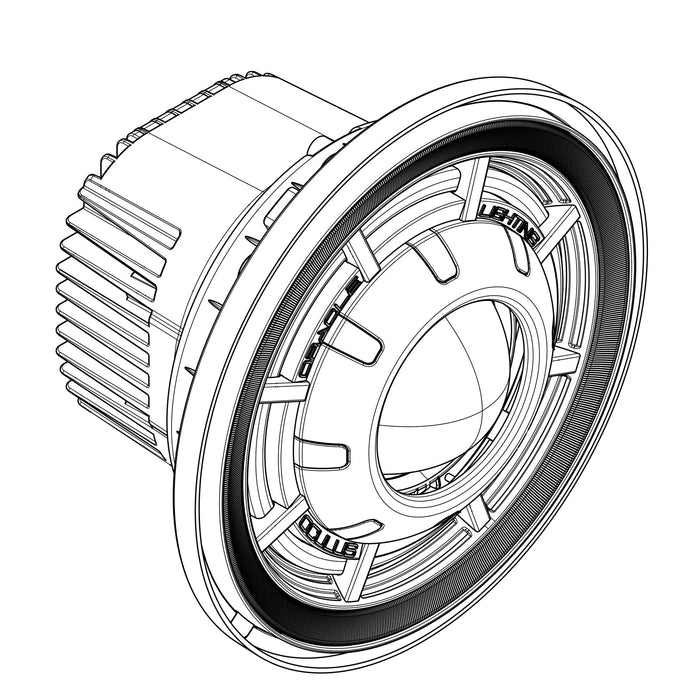

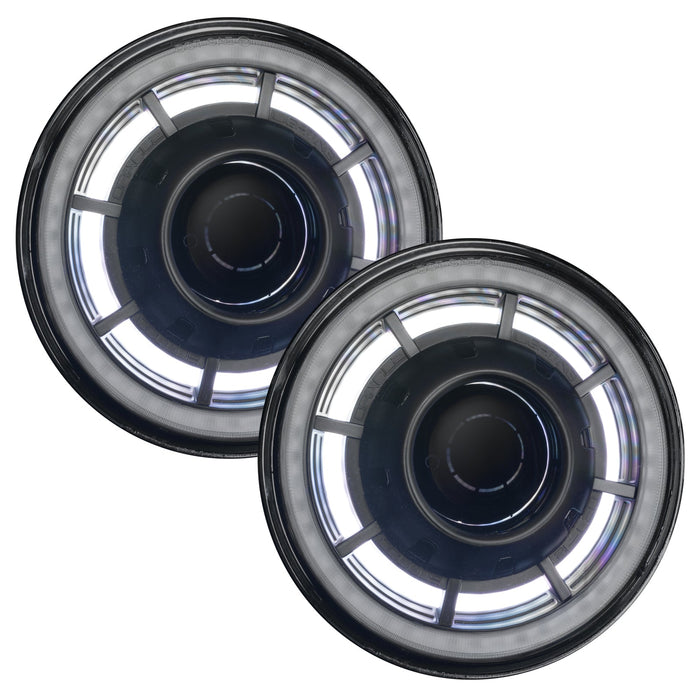

ORACLE Lighting Oculus™ 7" ColorSHIFT® Bi-LED Projector Headlights for Jeep Wrangler JK
- 2007-2018 Jeep Wrangler JK (Halogen ONLY)
- Will Fit 2007-2018 LED Equipped Wrangler JK if Halogen Headlamp Brackets & Trim Rings Are Used
Will also Fit:
- 1997-2006 Jeep Wrangler TJ (With H4 Wiring Adapter and some modification)
- Classic Cars/Trucks (With H4 Wiring Adapter and some
Introducing the all-new Oculus™ Bi-LED Headlamp system by ORACLE Lighting. Now available in a ColorSHIFT® RGB+W color-changing version! Featuring advanced LED projection with 5,200 Lumens of high-quality illumination for enhanced driver visibility in all weather conditions. The LED light source has lower power demands compared to the factory lamps while providing more light output.

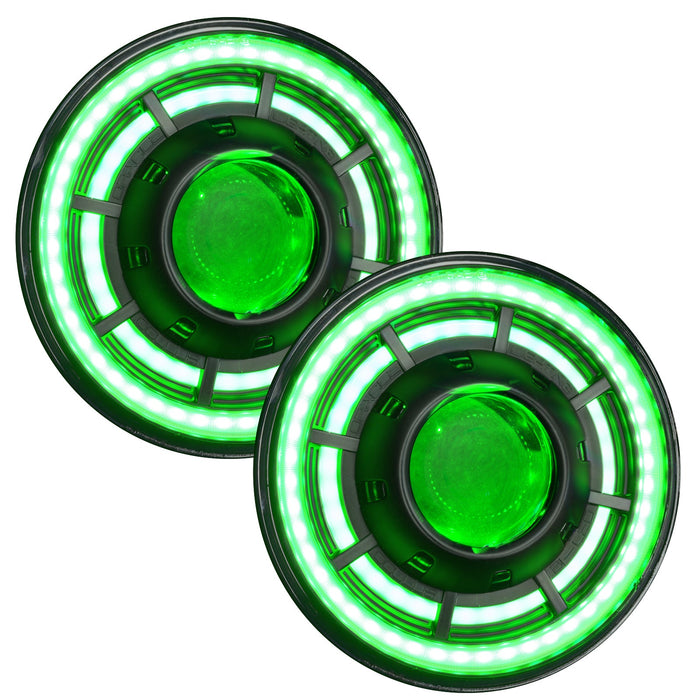

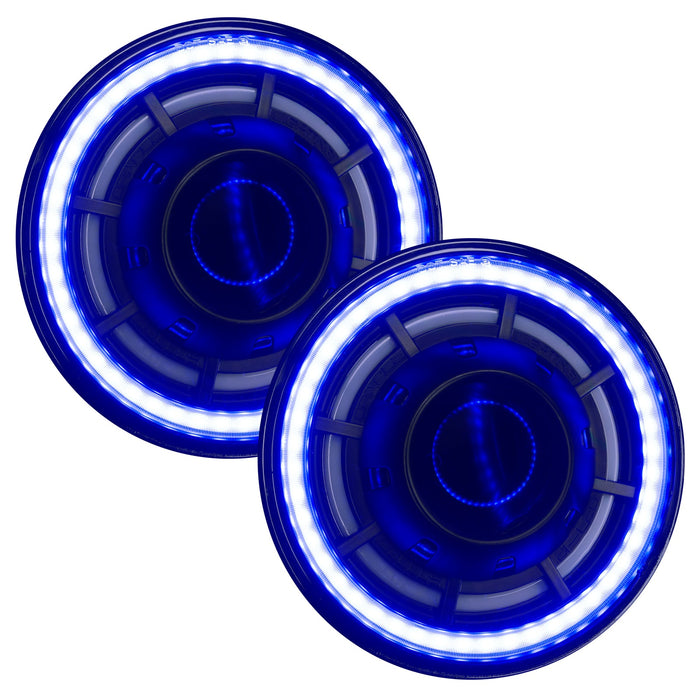

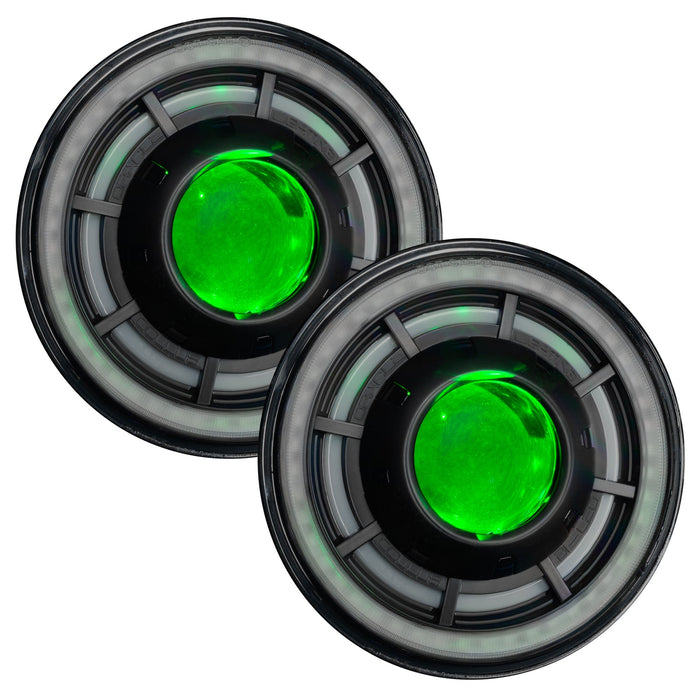

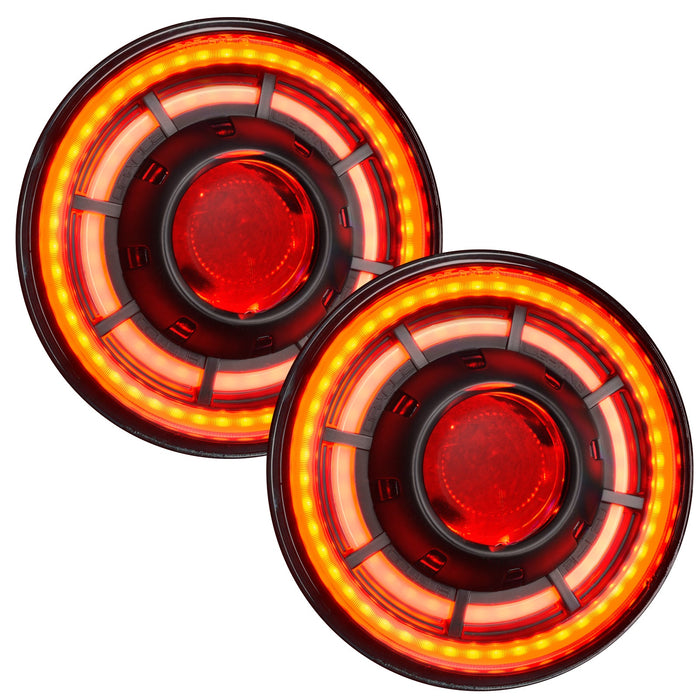

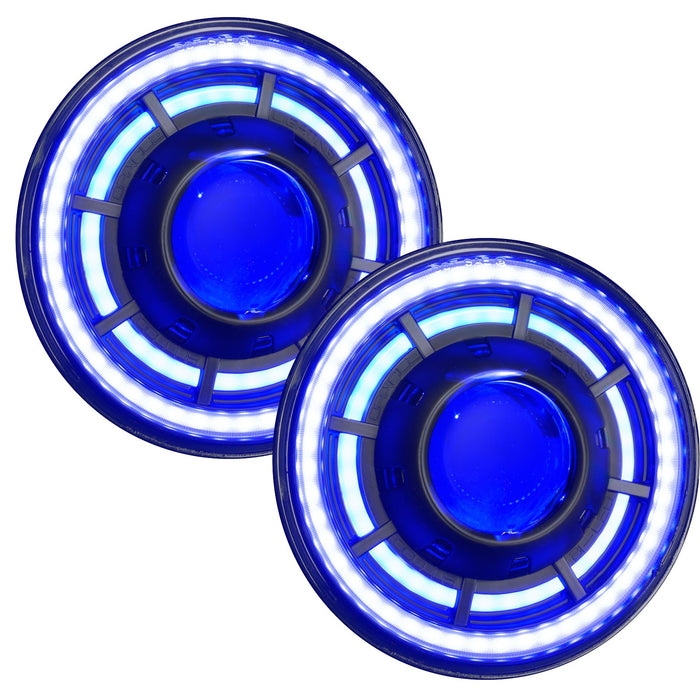

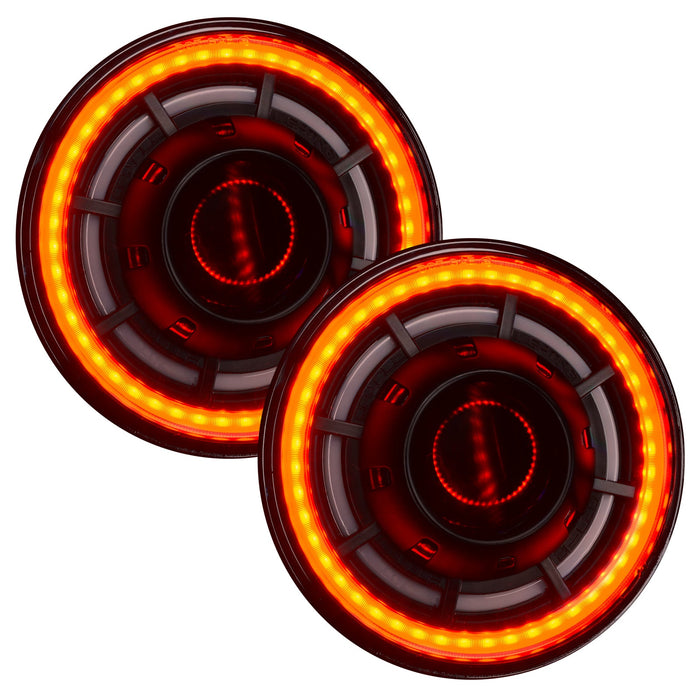

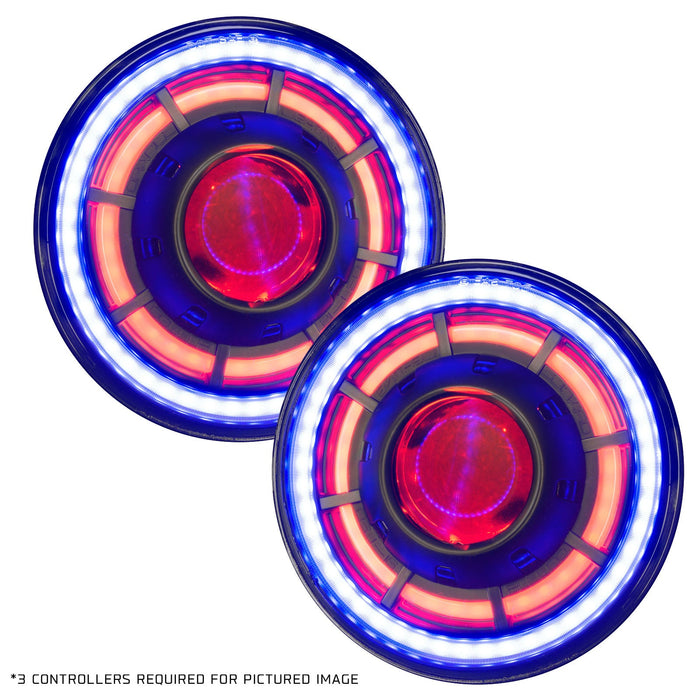

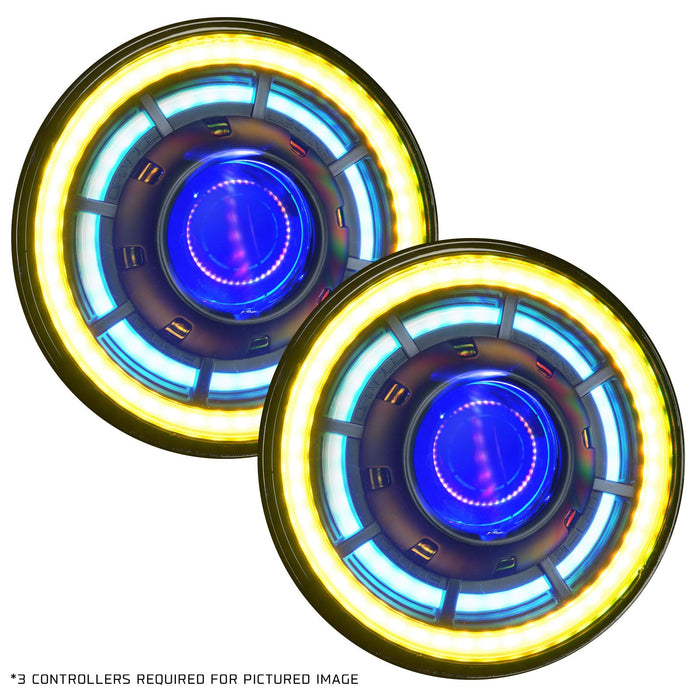

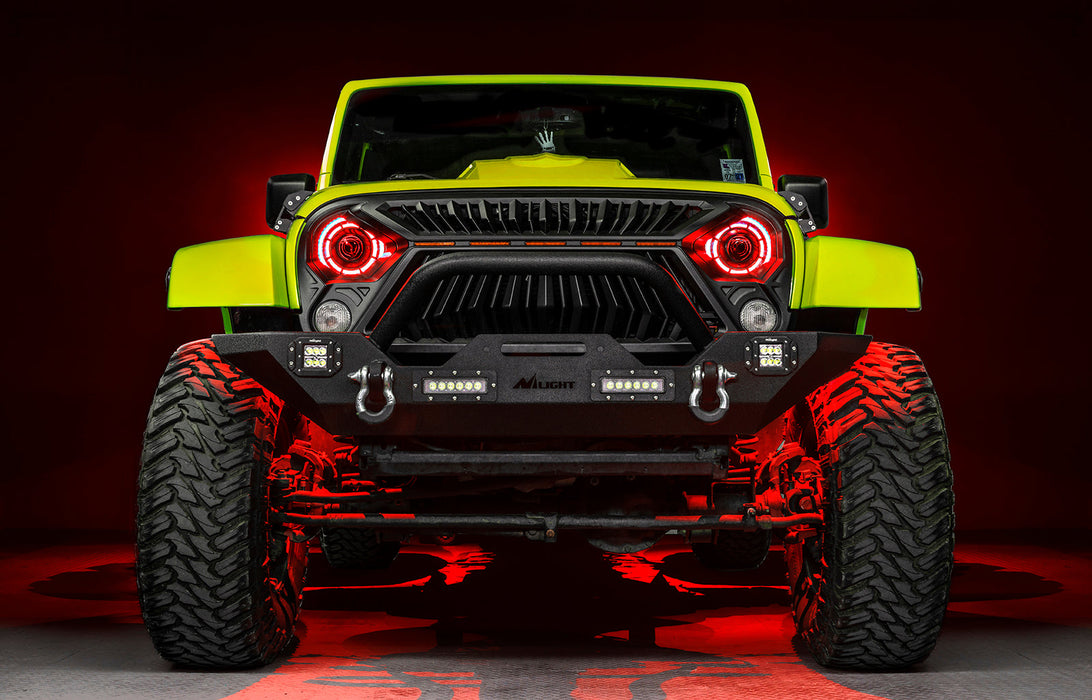

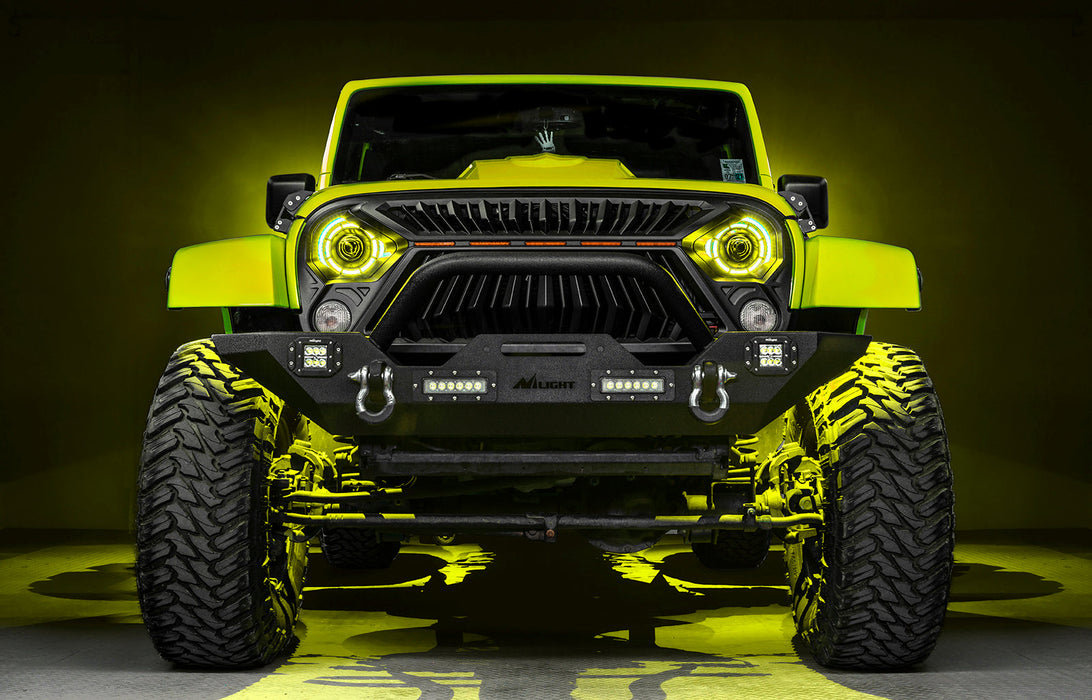

ColorSHIFT® Oculus™ Headlights feature 3-Tiered RGB features in the lamps:

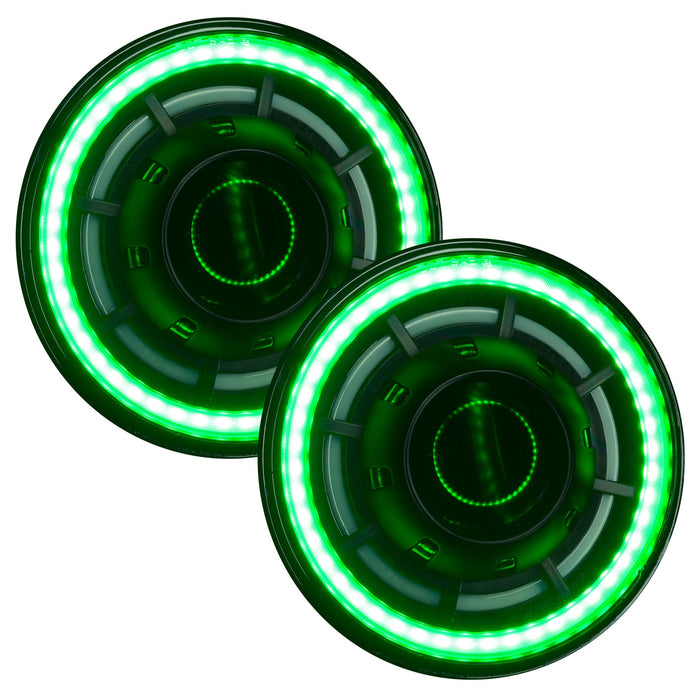

• Outer Halo Ring (RGB+W)

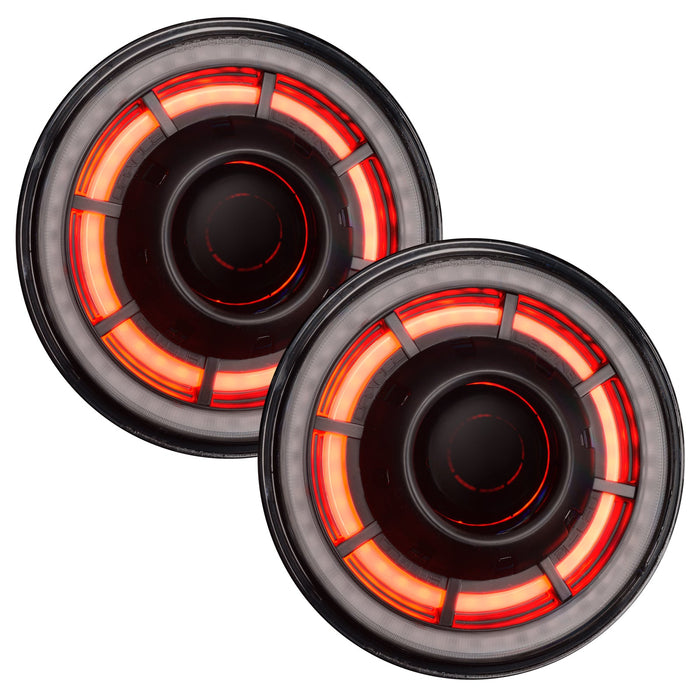

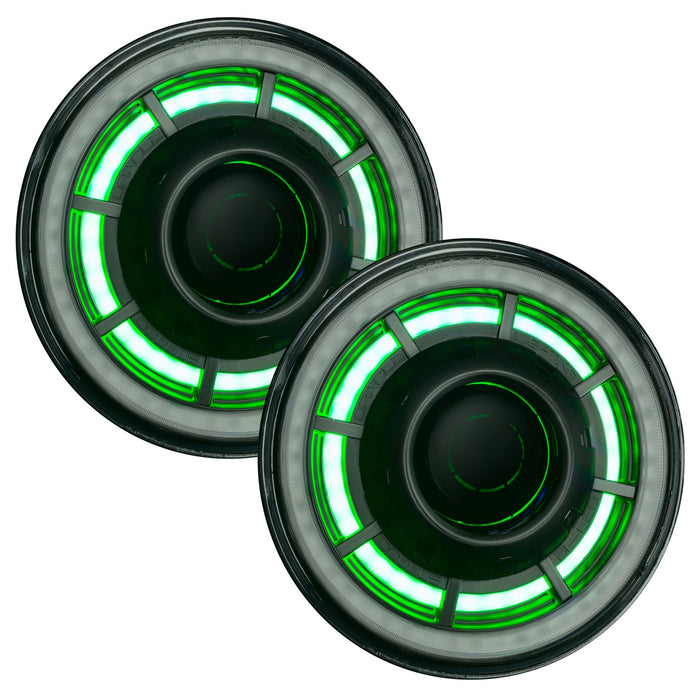

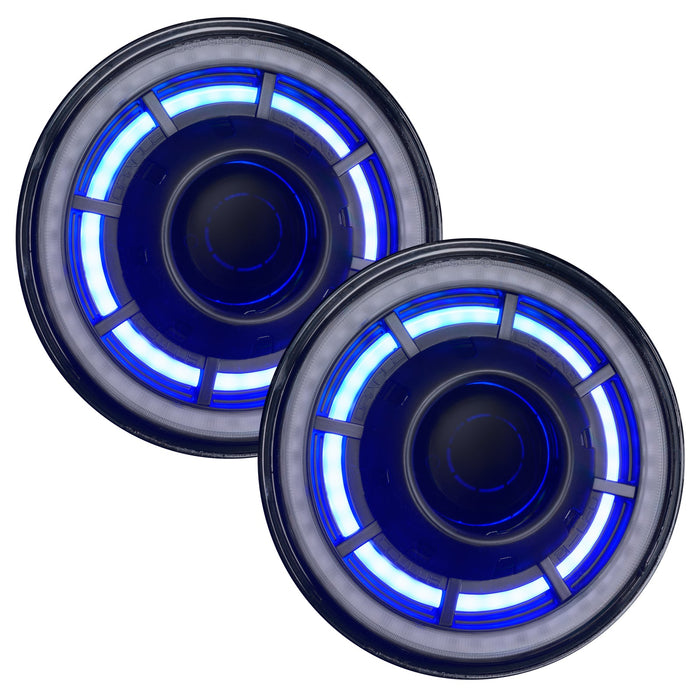

• Inner Halo Ring (RGB)

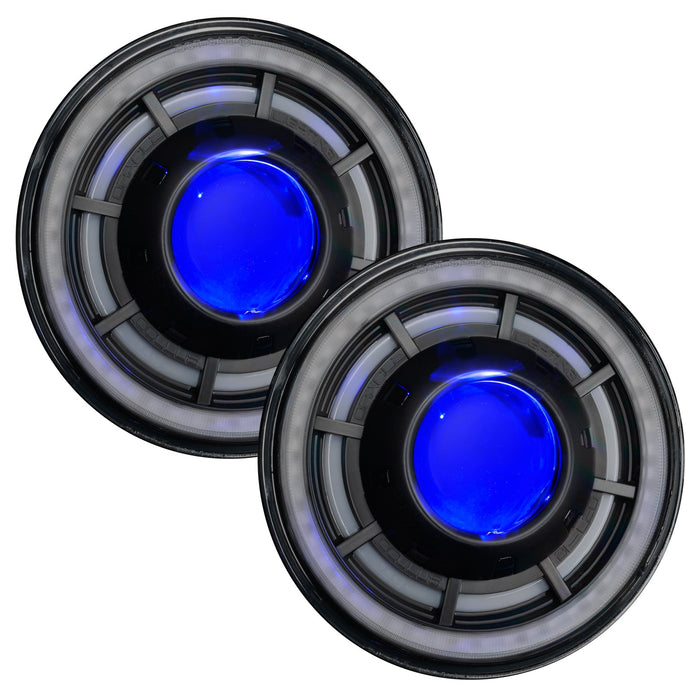

• Projector Demon Eye (RGB)
Each LED feature has a separate cable output and can be connected together so all 3 create the same color or are set up as 3 separate Channels or “zones” depending on the user preference and the ColorSHIFT® controller selected. Check out our Y-Splitter Adapters for the easiest control using our BC1 ColorSHIFT® Controller.
Please note that these features are intended for off-road “show” use only and are not compliant for street use.

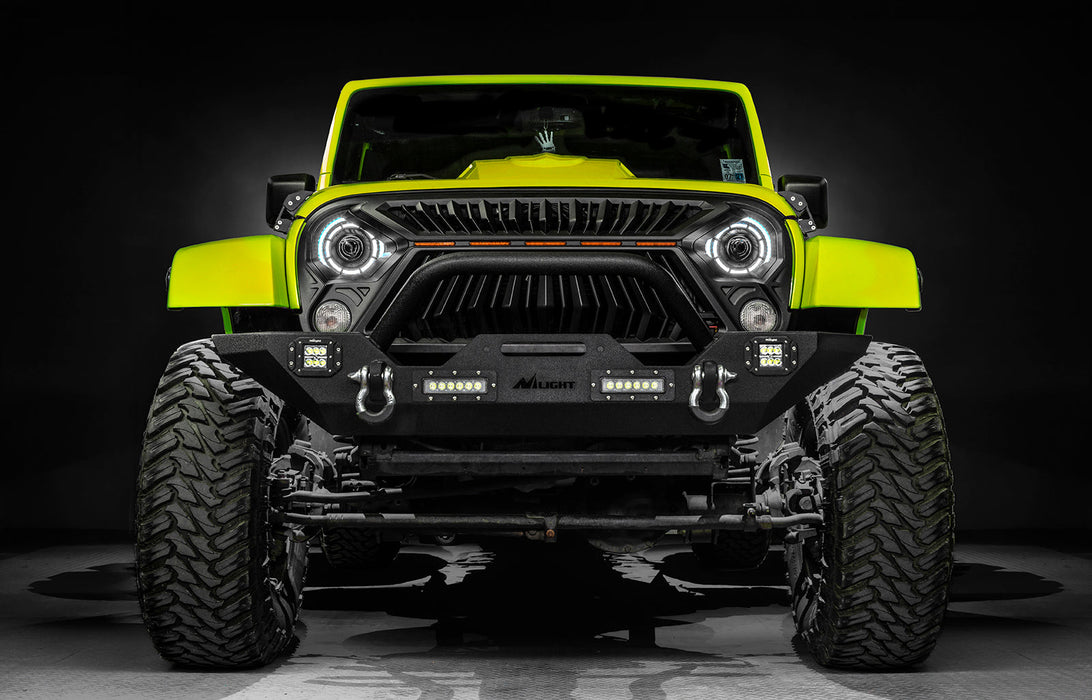

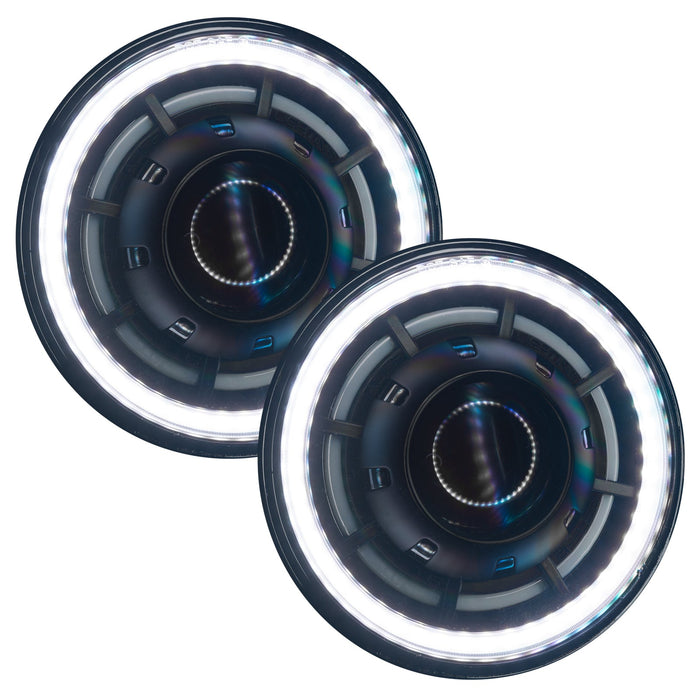

The Pure-White DRL has its own wiring harness (same as the original Oculus) that connects to the fuse box with an add-a-circuit for easy and safe integration. The DRL will come on when the engine is running or can be connected to a switch (including the factory Aux switches) for additional user control.
|ORACLE PART#||CONTROLLER OPTION|
|5876-334||ColorSHIFT® - w/No Controller|

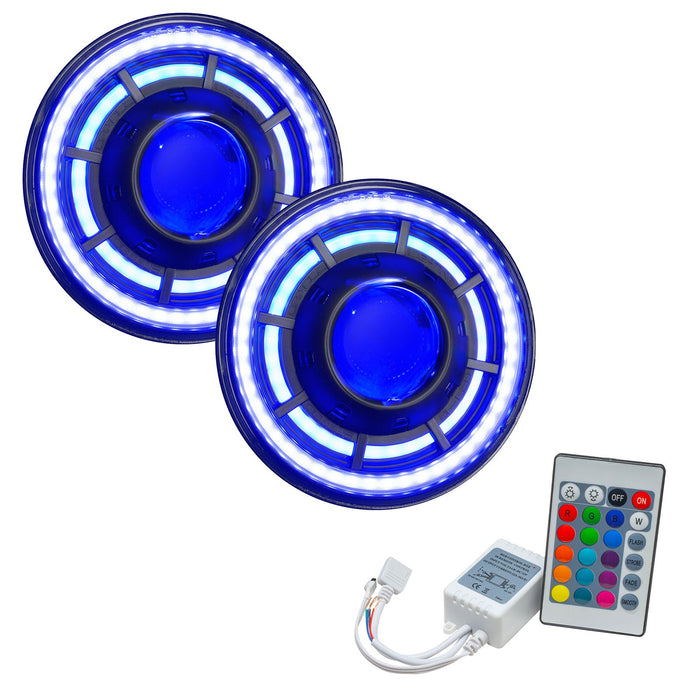

|5876-504||ColorSHIFT® - w/Simple Controller|
|5876-330||ColorSHIFT® - w/RF Controller|

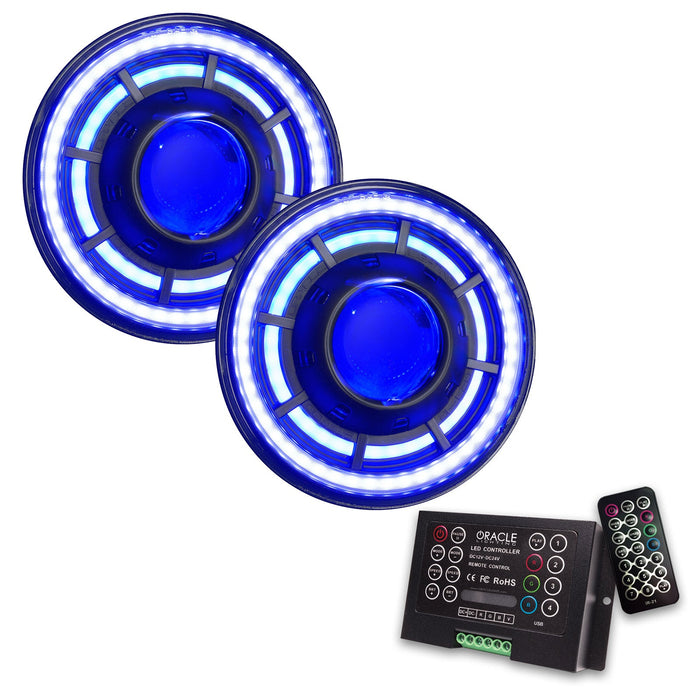

|5876-333||ColorSHIFT® - w/2.0 Controller|

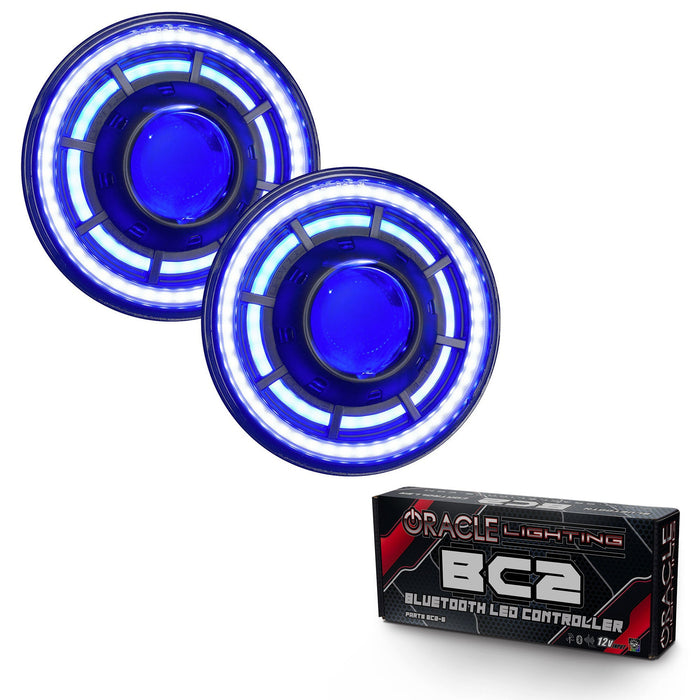

|5876-335||ColorSHIFT® - w/BC1 Controller|
• Wattage: 36W Each
• Total Raw Lumens: 5,200LM
• Color Temp: 5500K
• Certification: DOT SAE HL VOR 1
• Warranty Period: 2 Years
• Multi-National Patented Design
• ORACLE Lighting Oculus™ 7" ColorSHIFT® Bi-LED Projector Headlights

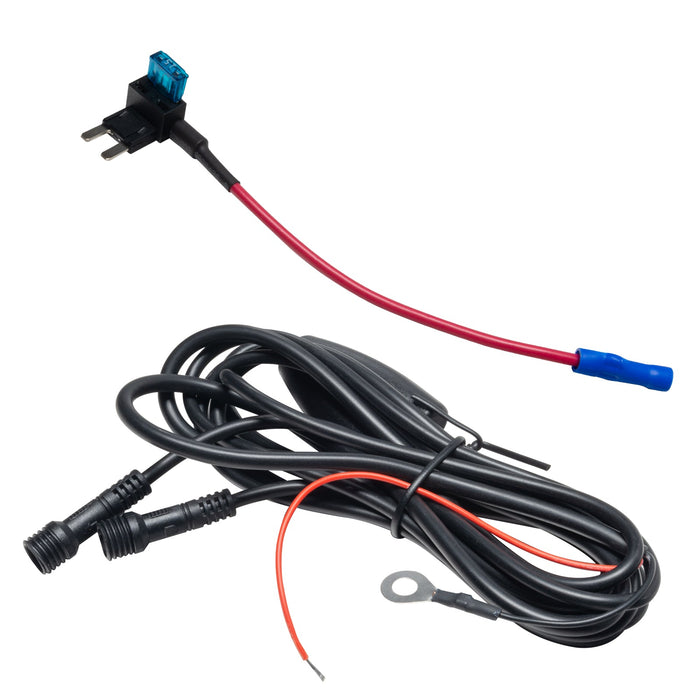

• DRL Wiring Harness
• Add-A-Circuit Fuse Adapter

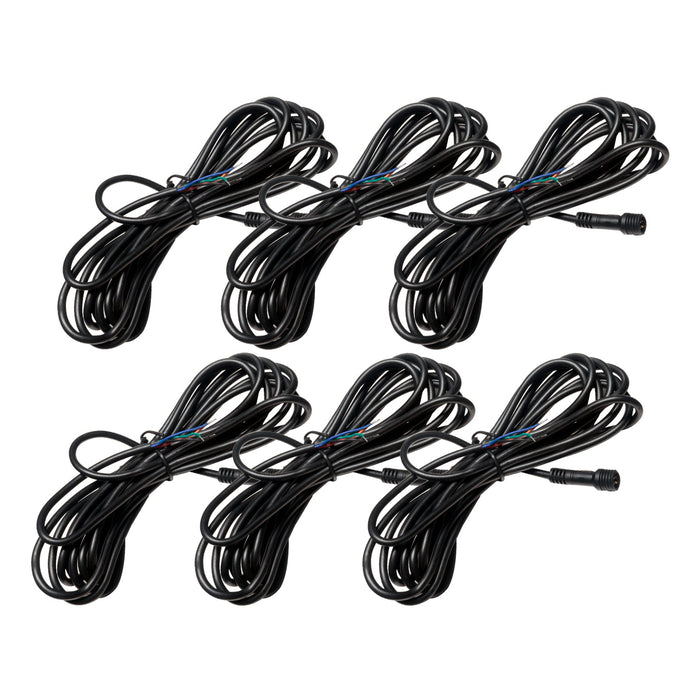

• 6x RGB Wiring Extensions
• (RGB Controller included if selected from options)

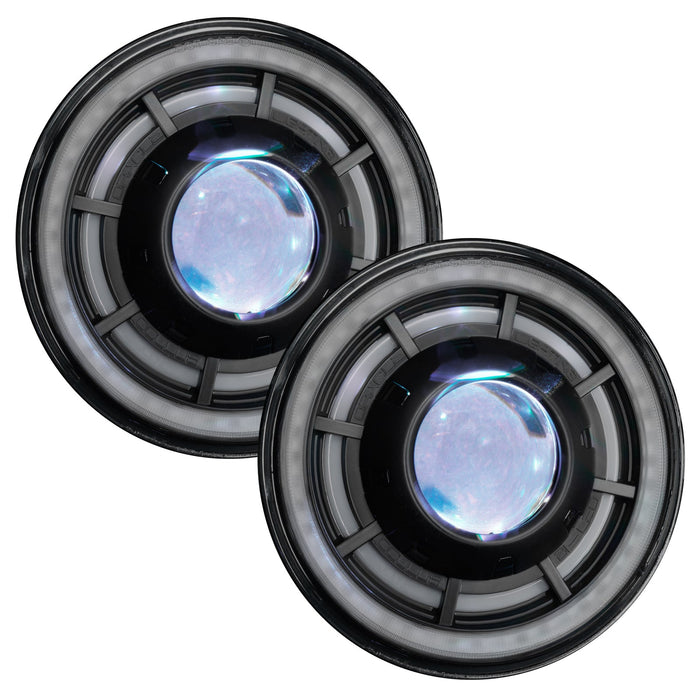

Precision LED lighting projector for optimum light distribution and beam angle. Installs using original mounting hardware and headlight wiring is Plug & Play into the factory connector without additional relays or harnesses. Halo DRL features over 200 bright white LEDs for a vivid lighting impact.
These all-new headlamps provide enhanced driver visibility with increased and focused LED light output. Complete headlight replacement, better light focus than a simple bulb upgrade. Uses original factory beam angle adjust-ability for proper light focus on lifted Jeeps.
Light focus is very important for not only driver safety but others on the road who can potentially have their vision obstructed by glare. This is especially significant on lifted vehicles where the light source is raised and in a position to interfere with the field of vision of other drivers. These new Oculus™ headlights feature a very sharp cut-off line and focus light with precision specifically to avoid such issues.

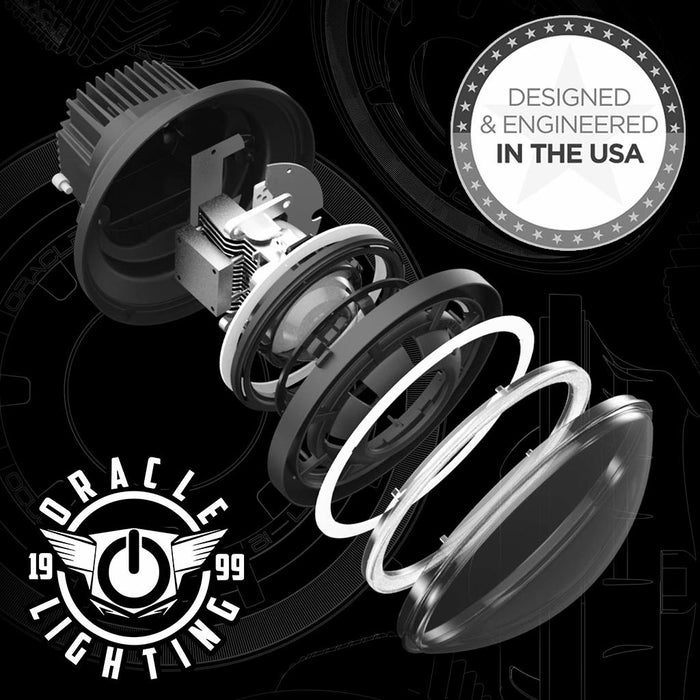

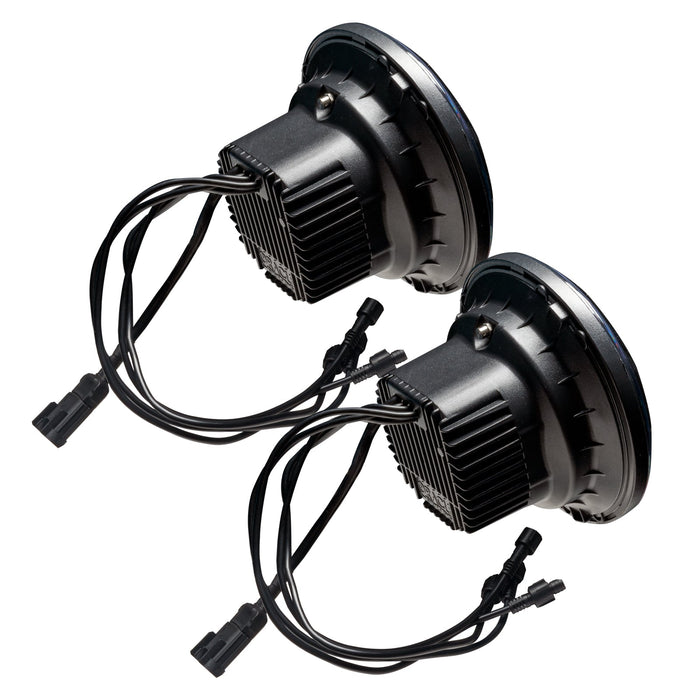

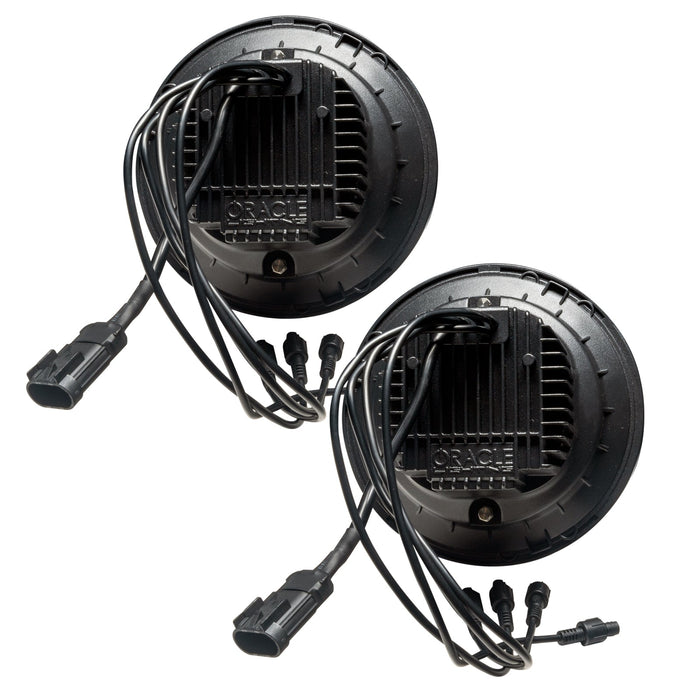

It is undeniably important to implement proper thermal management tools for high-performance LEDs to operate with reliability in various environments. Oculus™ utilizes both active and passive cooling methods to sustain low LED temperatures. Remote mounted heat sinks and an internal cooling fan work in conjunction to ensure proper temperature control and longevity of the LEDs.
