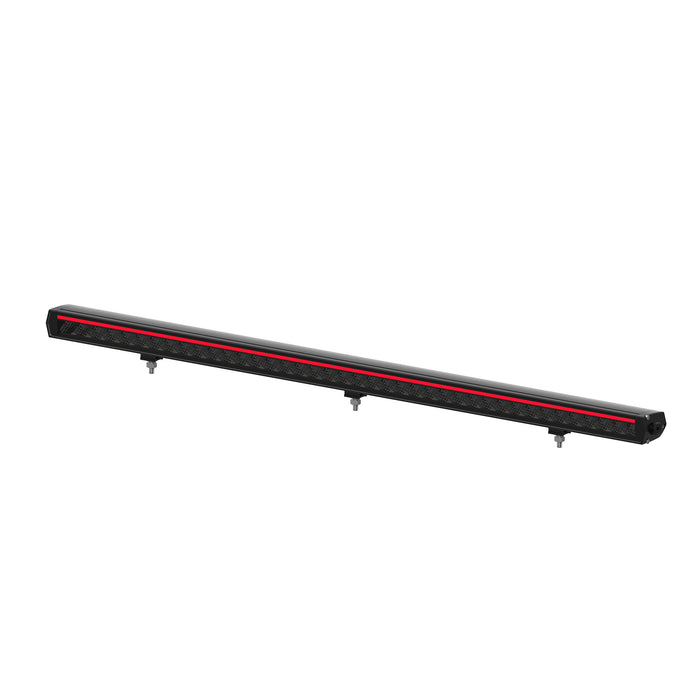

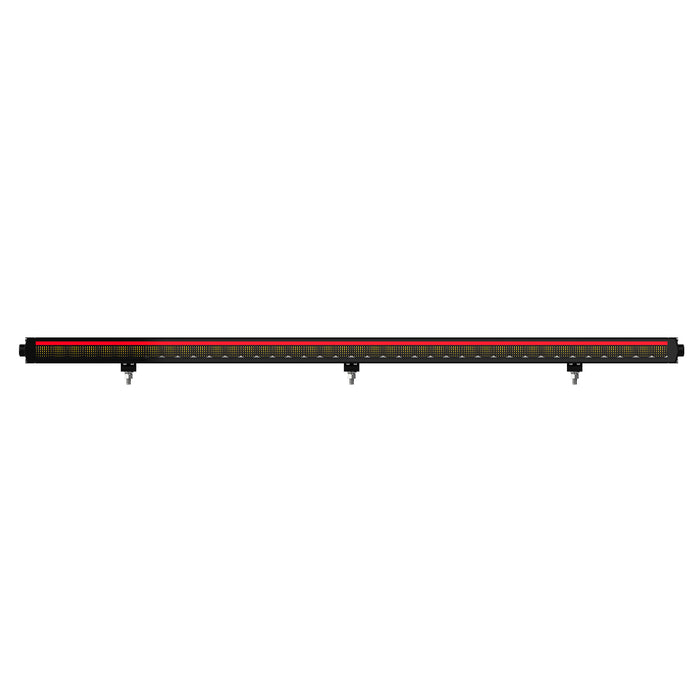

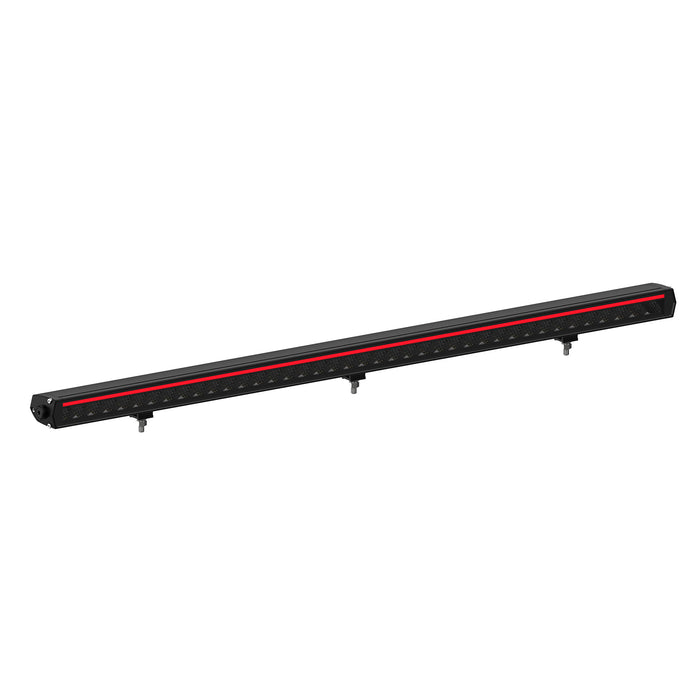

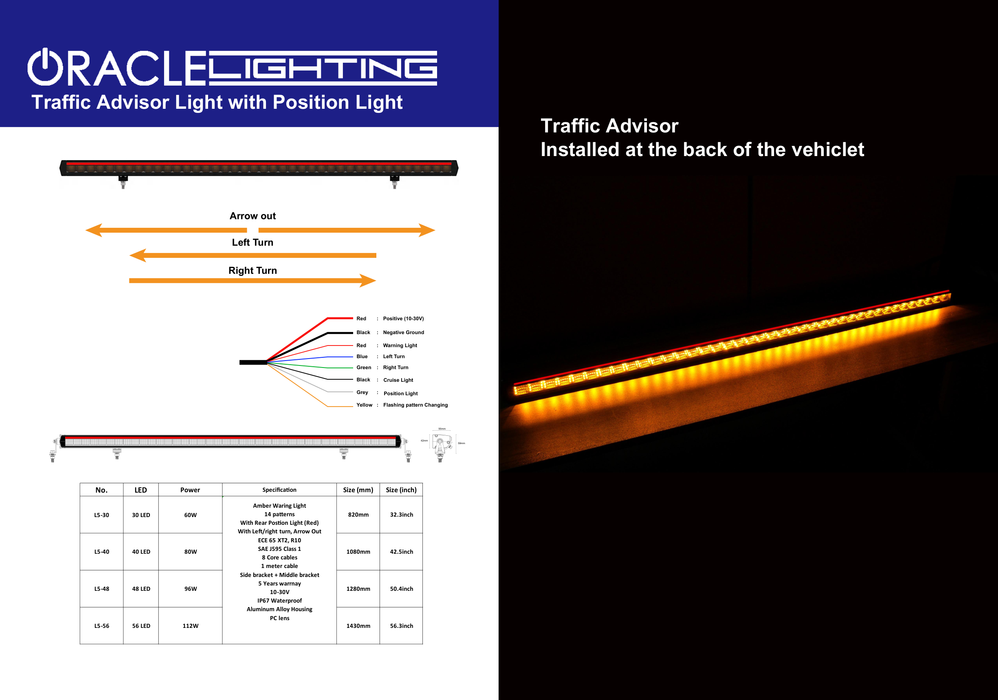

ORACLE Lighting Traffic Advisor Lightbar - L5 Series
Rear-mount amber traffic advisor lightbar with integrated red position light. Available in 4 sizes: 32.3", 42.5", 56.4", and 56.3". Arrow Out, Left/Right Turn, Cruise Light, and Position Light modes. 8-core cable for full individual function control. Designed to mount at the back of the vehicle.
Part Numbers: L5-30 • L5-40 • L5-48 • L5-56
Model Comparison - All 4 Sizes
| Part # | LED Count | Power | Length (mm) | Length (inch) |
|---|---|---|---|---|
| L5-30 | 30 LED | 60W | 820mm | 32.3" |
| L5-40 | 40 LED | 80W | 1080mm | 42.5" |
| L5-48 | 48 LED | 96W | 1280mm | 56.4" |
| L5-56 | 56 LED | 112W | 1430mm | 56.3" |
All models share the same features, wiring, compliance ratings, and mounting hardware. Select your size in the variant selector above.

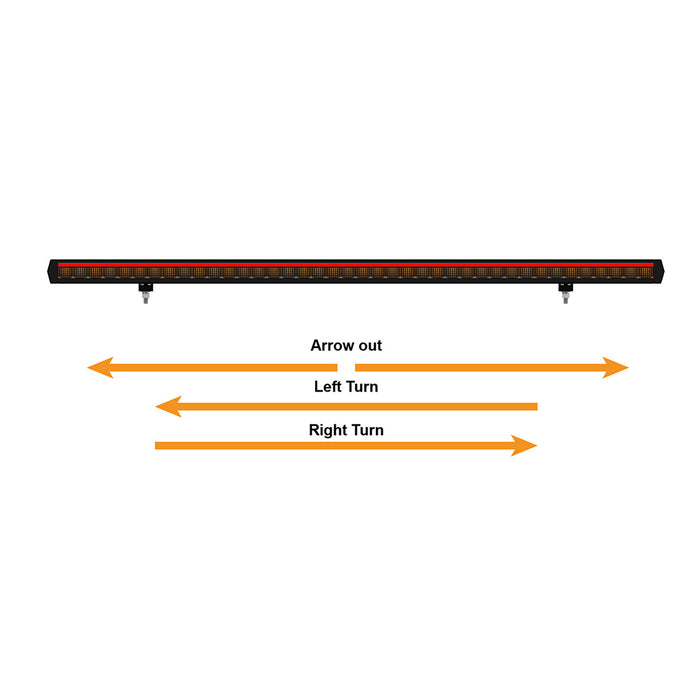

Traffic Advisor Modes
Arrow Out
Both sides flash outward simultaneously - maximum visibility warning.
Left Turn
Sequential arrow pattern directing traffic to the left.
Right Turn
Sequential arrow pattern directing traffic to the right.
Cruise Light

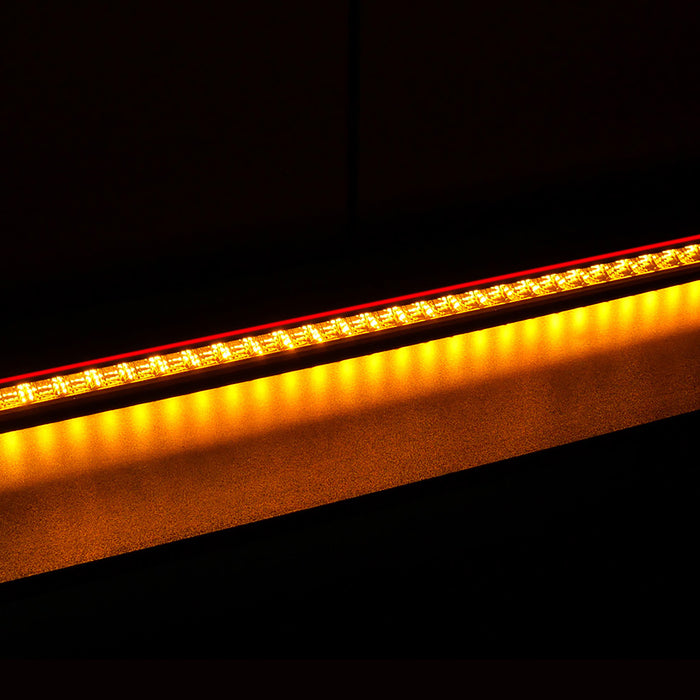

Steady burn amber warning mode for continuous visibility.
Position Light
Rear red position light - always-on for vehicle presence indication.
Product Features

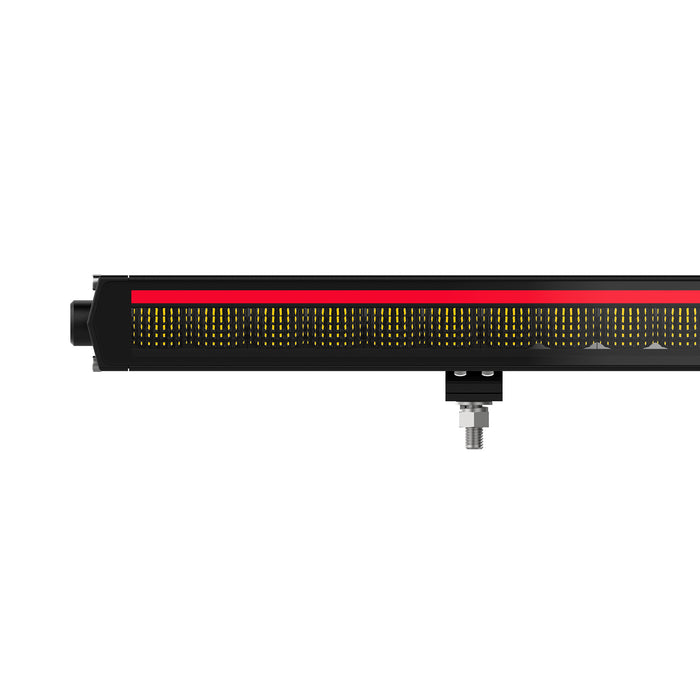

- Amber warning light with integrated rear red position light.
- 14 flash patterns - Arrow Out, Left Turn, Right Turn, Cruise Light, and more.
- ECE R65 XT2 & ECE R10 approved; SAE J595 Class 1 rated.
- 8-core cable (1 meter) for full individual function control.

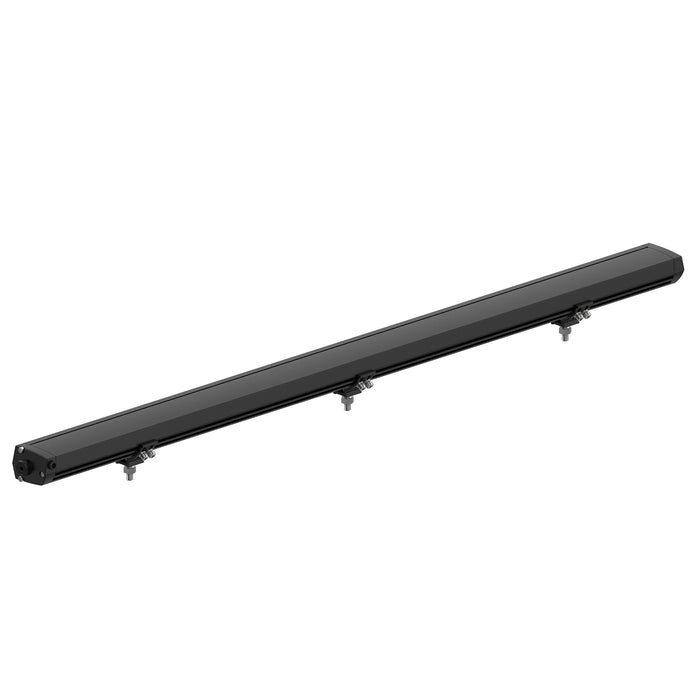

- Side bracket + middle bracket mounting included.
- Aluminum alloy housing with PC lens.
- IP67 waterproof - suitable for all-weather rear-of-vehicle installation.
- 5-year warranty.
Wiring Guide - 8-Core Cable
| Function | Wire Color |
|---|---|
| Positive (10–30V) | Red |
| Negative Ground | Black |
| Warning Light | Red (2nd) |
| Left Turn | Blue |
| Right Turn | Green |
| Cruise Light | Black (2nd) |
| Position Light | Grey |
| Flashing Pattern Changing | Yellow |
Specifications (Shared)
Approvals & Compliance
- ECE R65 XT2, ECE R10
- SAE J595 Class 1
- IP67 Waterproof
- 5-Year Warranty
Warranty, Shipping & Returns
Backed by ORACLE Lighting's 5-year warranty and quality standards. Review current shipping and return policies before purchase.
Available Part Numbers
| Size | Part Number |
|---|---|
| 32.3" | ORA-L5-30 |
| 42.5" | ORA-L5-40 |
| 56.4" | ORA-L5-48 |
| 56.3" | ORA-L5-56 |
