TRIGGER 6 SHOOTER Controller Jeep JL-JT Combo Kit

Part Number: 3001JL

TRIGGER 6 SHOOTER Jeep JL-JT Combo Kit

*Does not work with JL/JT 3Ltr Eco Diesel*

The TRIGGER 6 SHOOTER Jeep JL-JT Combo Kit pairs our critically acclaimed TRIGGER 6 SHOOTER Wireless Controller with two essential installation accessories: Our Wheel-Well Controller Mounting Bracket and the Overhead RF Remote Mount!

Please note: the Overhead remote mount will NOT fit on vehicles equipped with the Adaptive Cruise Control option.

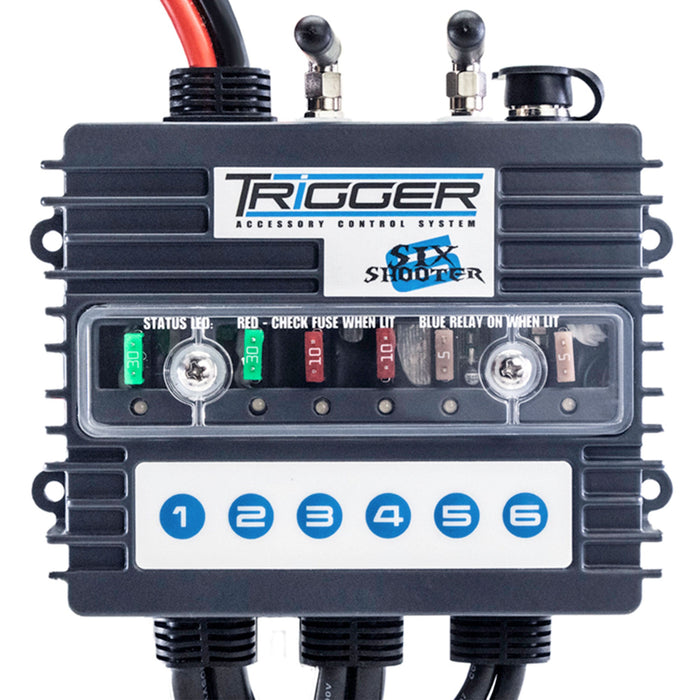

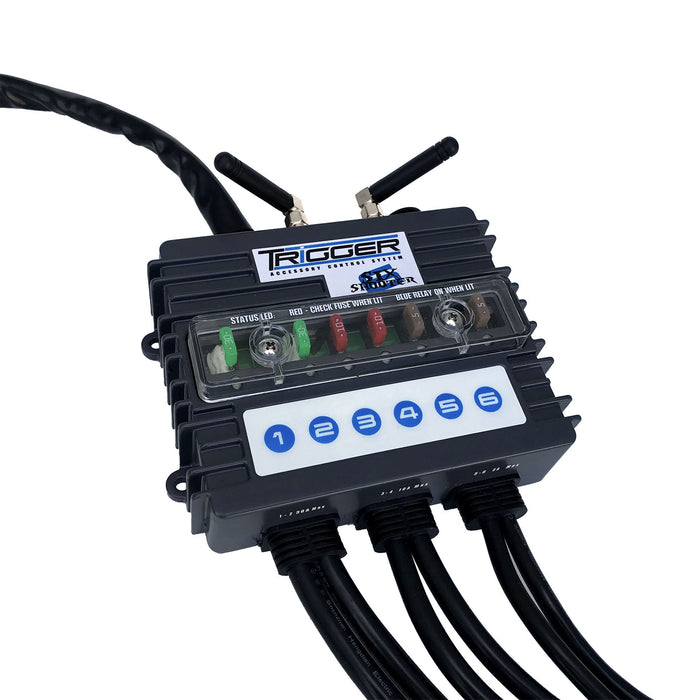

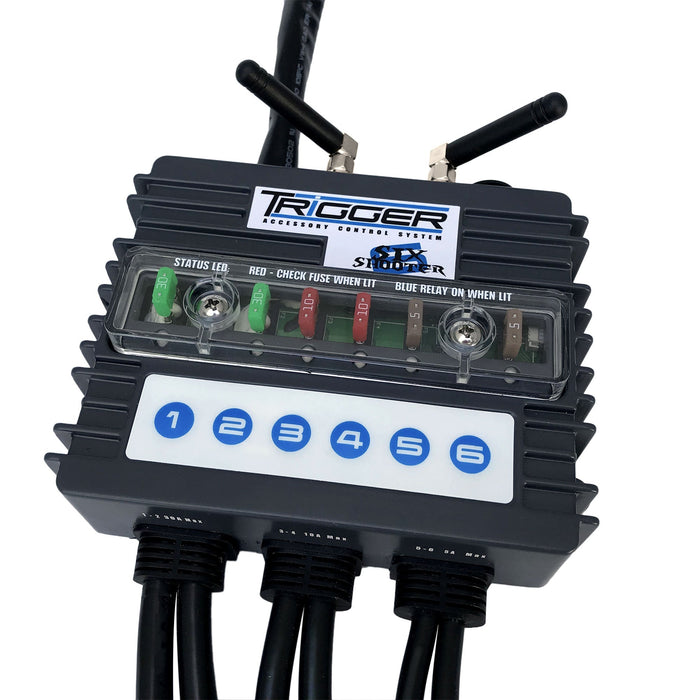

The TRIGGER 6 SHOOTER Wireless Accessory Controller

Save installation time of your electronic accessories! Eliminate the need to run wires under the dash or through the firewall of a vehicle when wiring accessories. Add functionality such as an RF remote control for activating installed accessories from outside the vehicle. In addition, fused circuits with LED indicators notify you of circuit status or blown fuses.

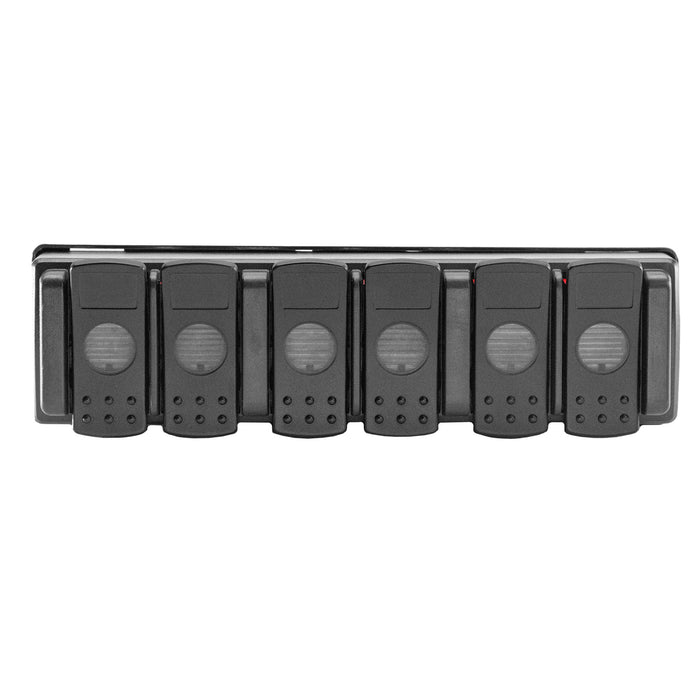

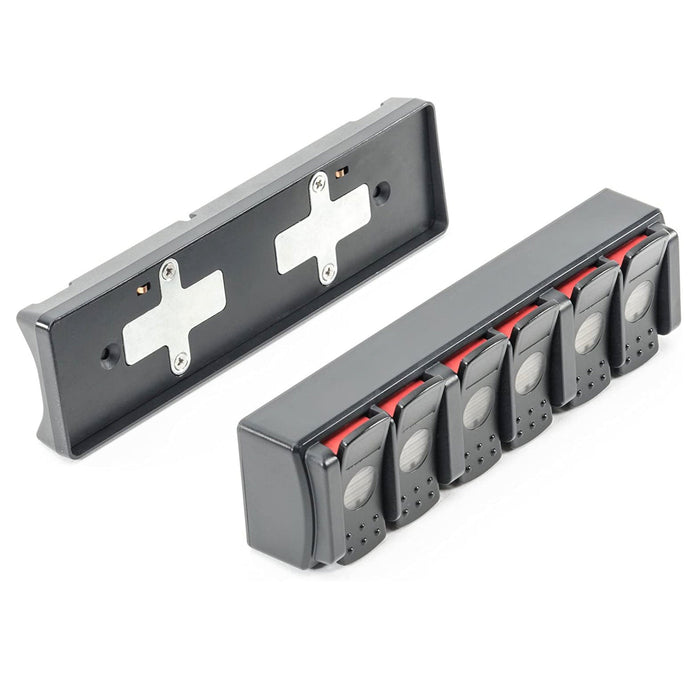

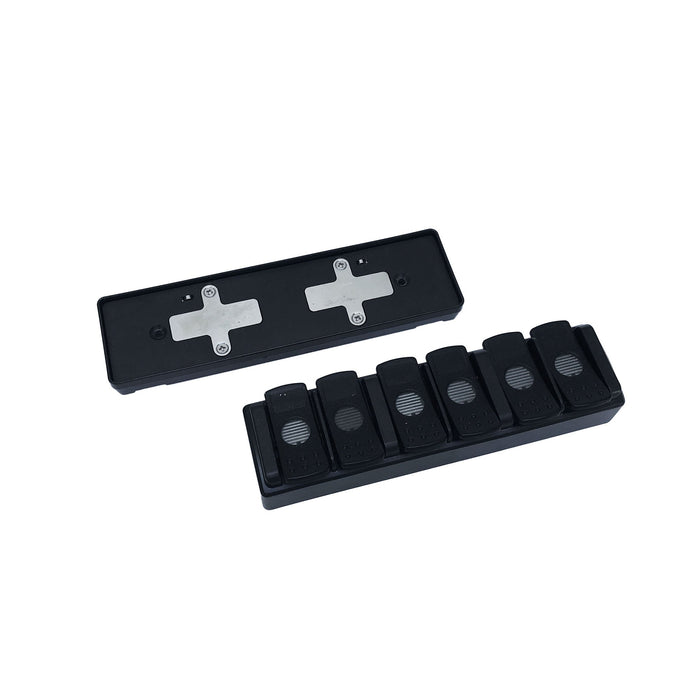

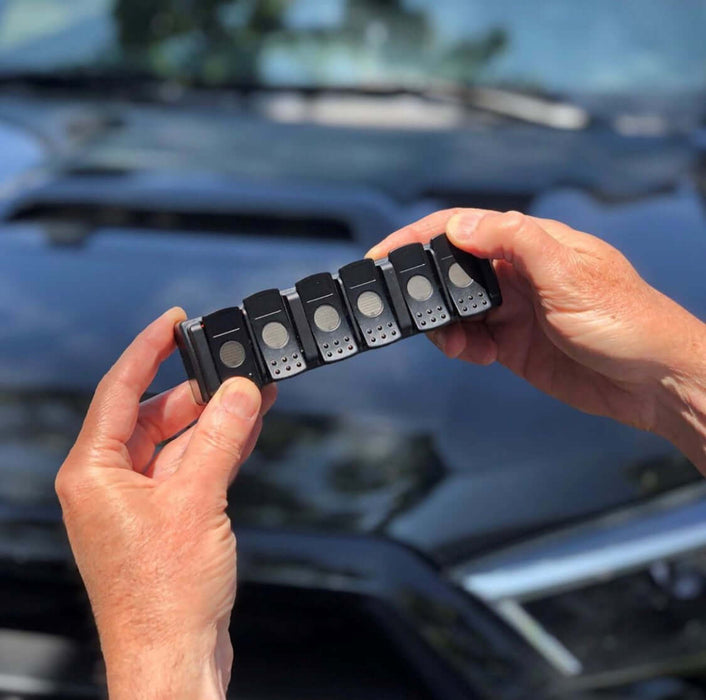

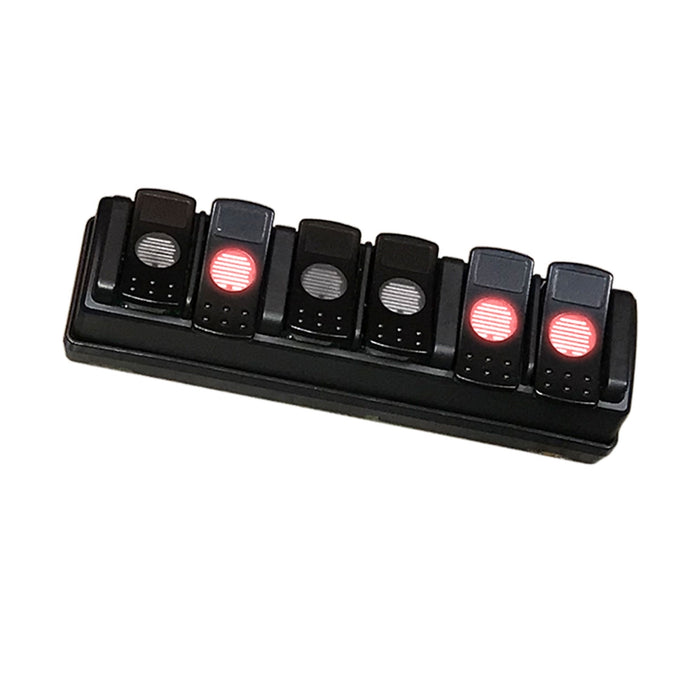

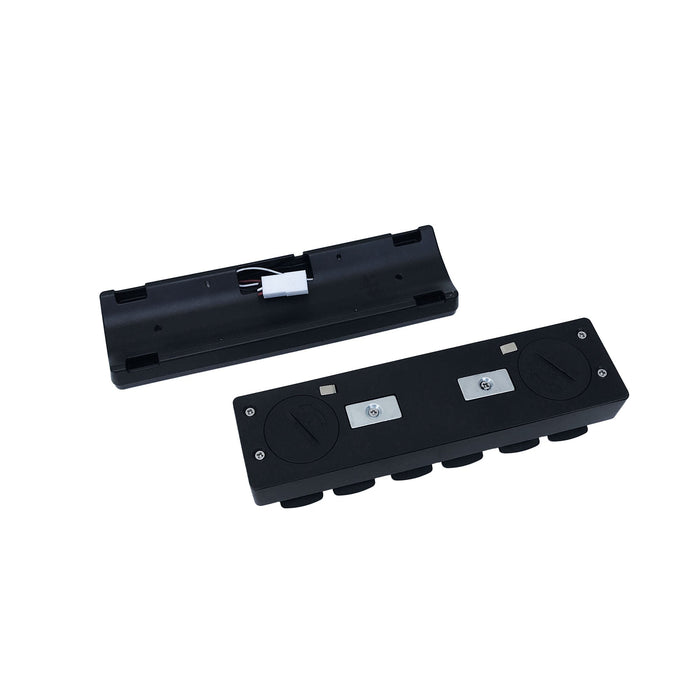

The included battery-powered RF remote utilizes a universal mounting system that will accommodate round as well as flat surfaces. Its buttons are back-lit and it is programmable for security or use with additional remote’s. Several TRIGGER control boxes and remotes can be used together to control up to 24 accessories. When mounted to a UTV roll bar, the buttons on the remote are more easily accessible than dash switches. No straining against seat belts to reach the dash, just a quick reach up to flip a switch.

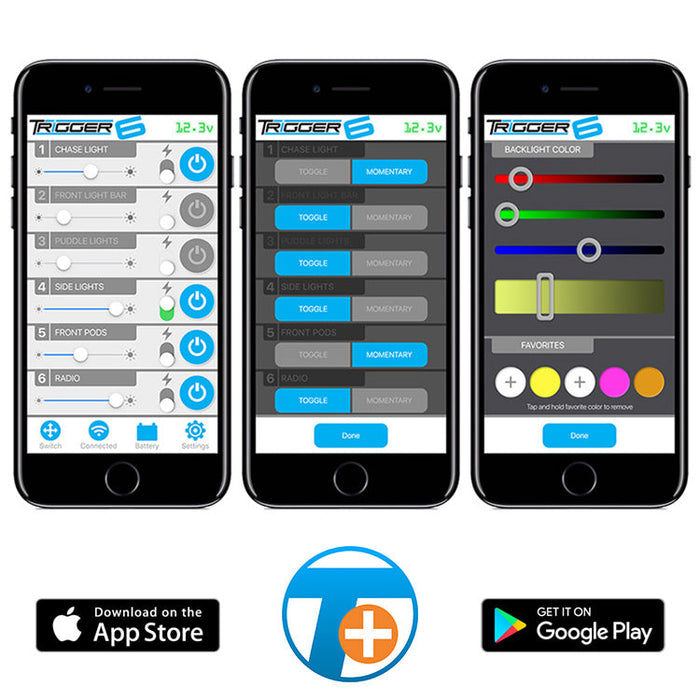

The Bluetooth App will control on/off and dimming functions as well as flashing when used with LED or conventional lighting. It is simple to set up and allows for user customization. Use the app to “TRIGGER” lights from outside the vehicle whenever you might need to activate an accessory on demand.

A few notable features:

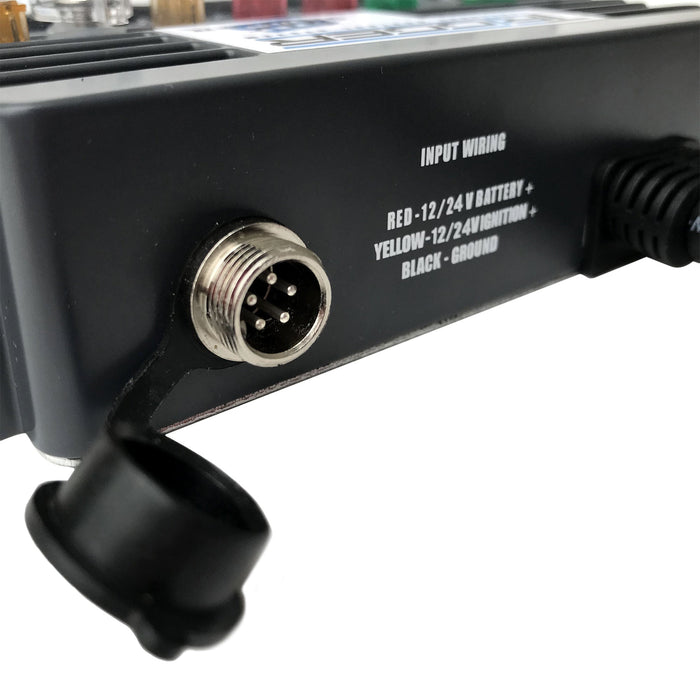

• • Accepts 12-24 Volt input
  • Two 30 amp fused circuits w/12-24 Volt output
  • Two 10 amp fused circuits w/12-24 Volt output
  • Two 5 amp fused circuits w/12-24 Volt output

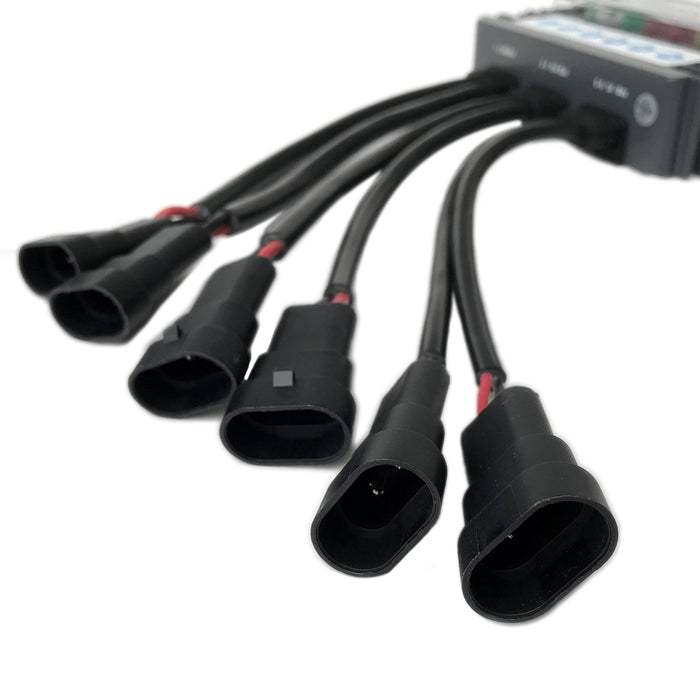

  • Includes 6 wire harnesses with waterproof connectors
  • Wireless back-lit RF remote rocker switch module
  • Backlit switches when optionally connected to 12 Volt power via an 8' long, thin 28 gauge harness
  • You can control it from your mobile device with our free TRIGGER ACS PLUS App for iOS/Android!
  • Comes with switch labels too!
  • Free 3-year warranty that covers manufacturing defects

Now featured in 'THE SHOP' Magazine! Click to check out the article!

Need a longer wire run? Additional TRIGGER Wiring Harnesses are also available, click here to shop.

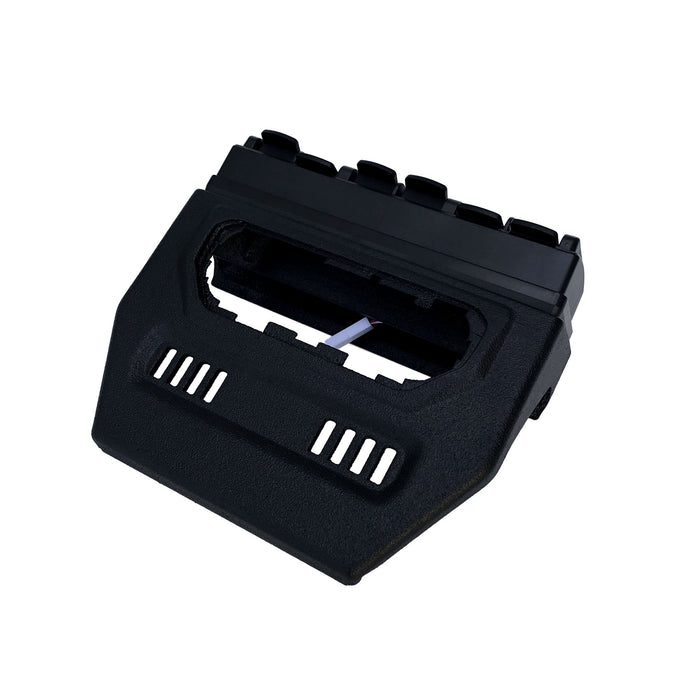

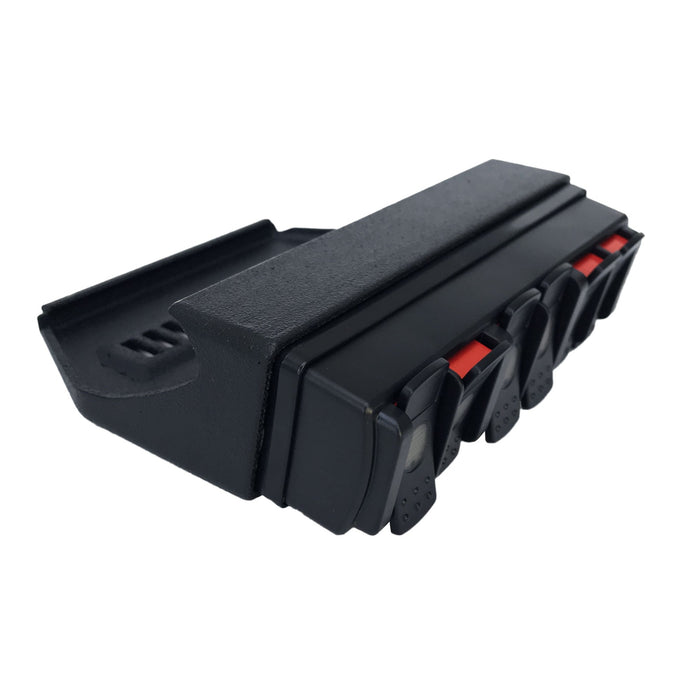

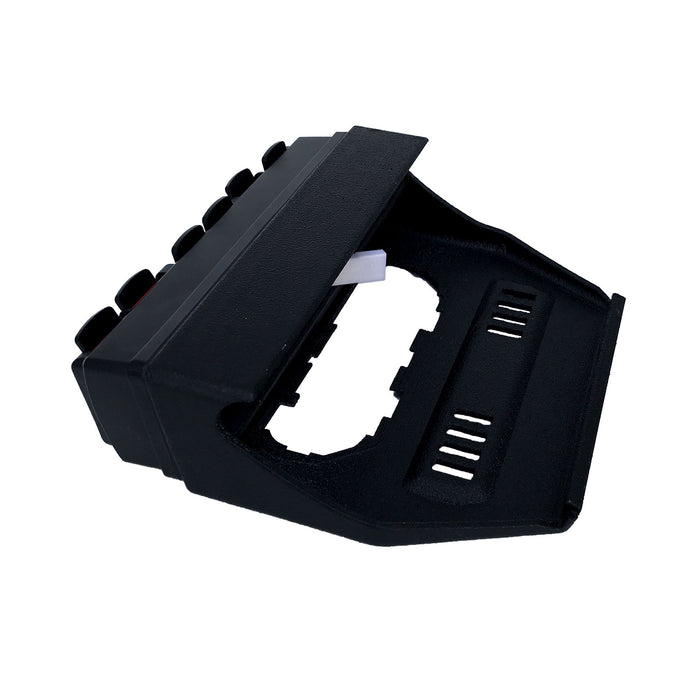

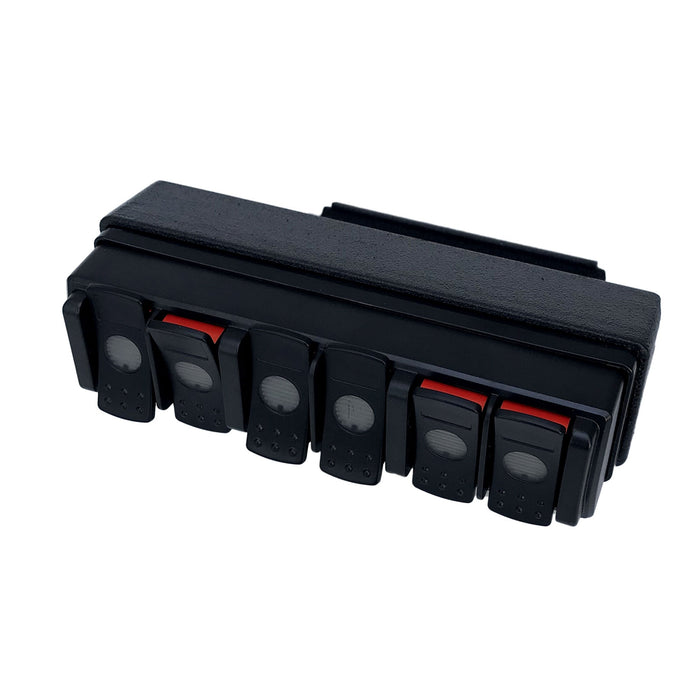

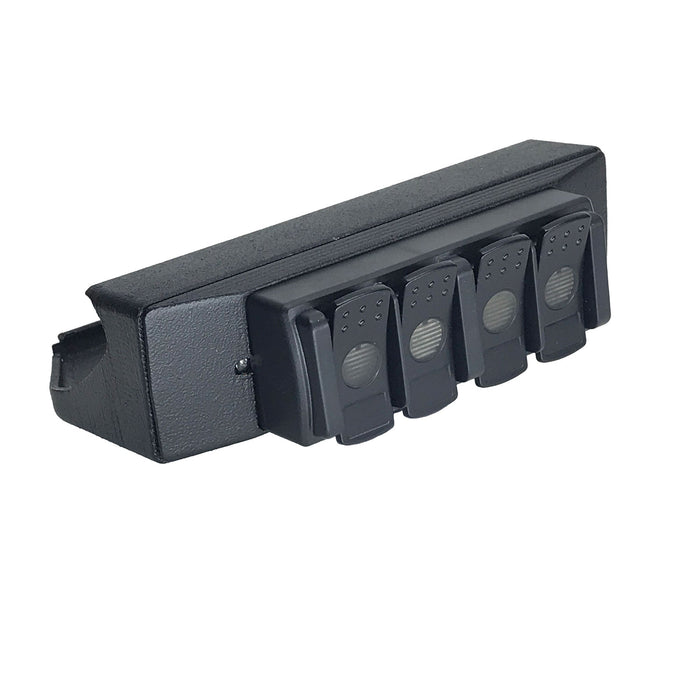

TRIGGER 6 SHOOTER Jeep JL Overhead RF Remote Mount

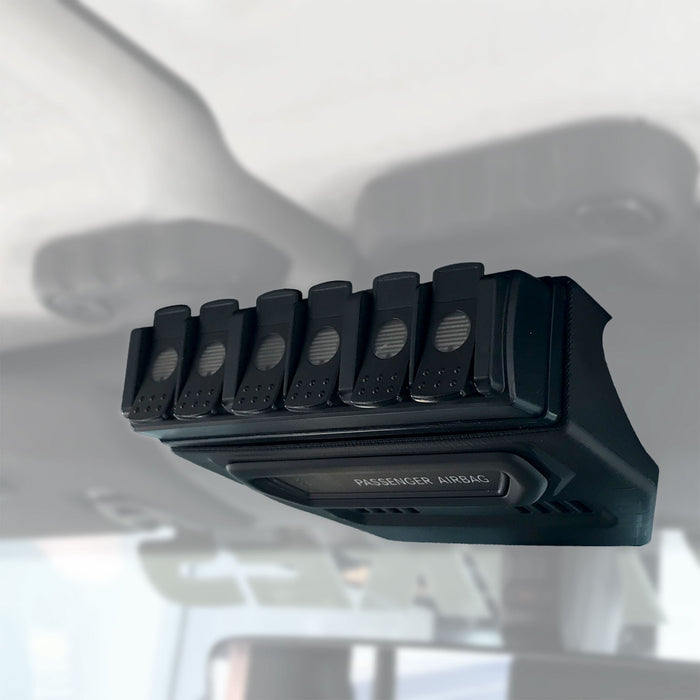

The TRIGGER JL overhead mounting system is designed for quick and easy "No Tools" installation above the front windshield of a 2018+ Jeep Wrangler.  In fact, it allows the TRIGGER 6 SHOOTER RF remote assembly to be quickly and easily mounted in one of most easily accessed areas of the Jeep interior.  Furthermore, it requires no drilling or screws and is easily removable without causing any damage to the vehicle. The plastic body includes a steel sub-structure that incorporates a clip system for attachment to the vehicle. Includes hardware for mounting your RF remote base. Once mounted, the bracket allows the remote a few degrees of up and down angle adjustment for improved switch accessibility.

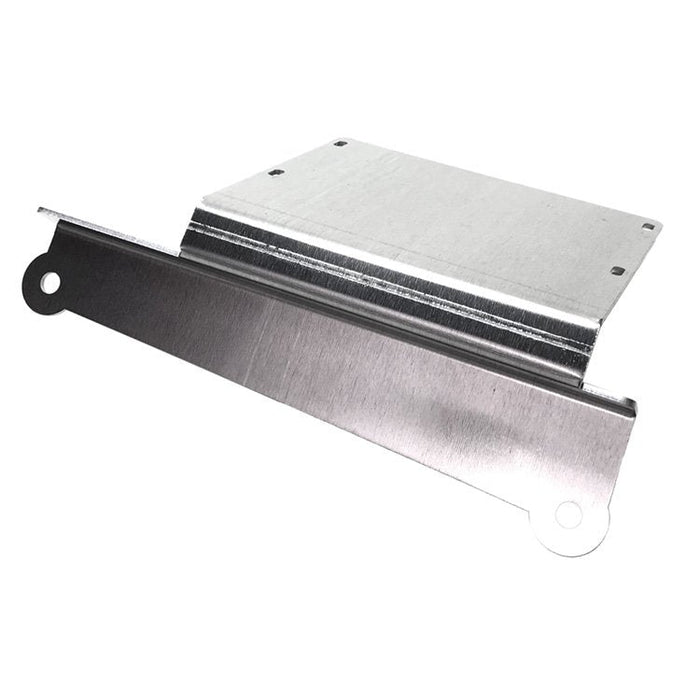

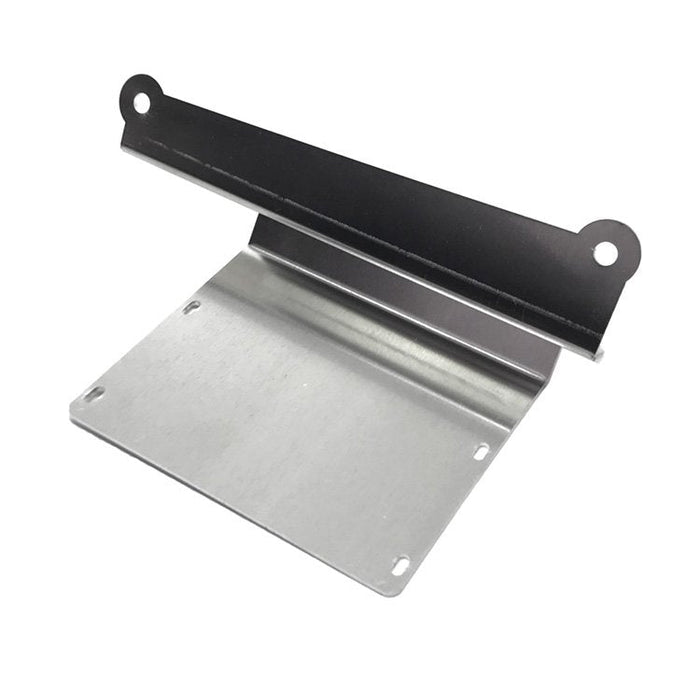

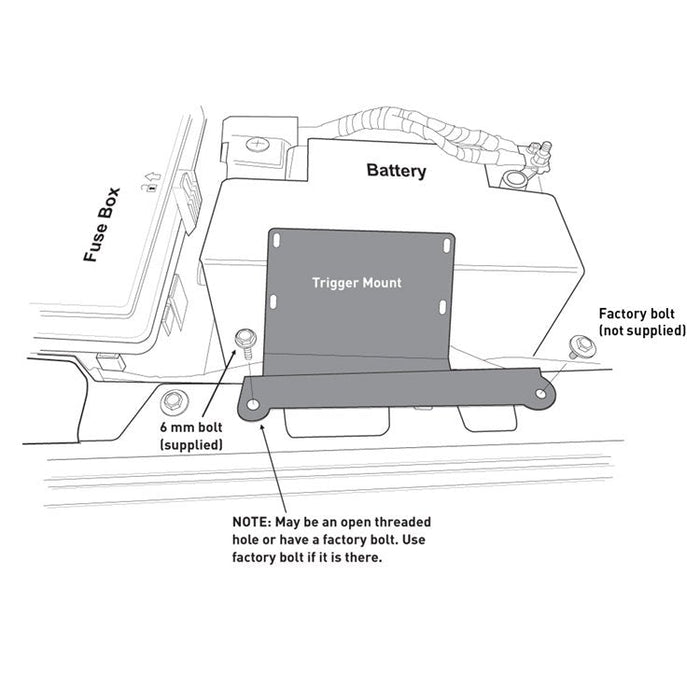

TRIGGER Jeep JL Underhood Controller Bracket

The TRIGGER JL underhood mounting system is designed for quick and easy installation in the space between the battery and inner wheel-well sheet metal of a 2018+ Jeep Wrangler. In fact, mount the TRIGGER controller module in an otherwise unused location under the hood, adjacent to the battery. Furthermore, it requires no drilling and is easily removable without causing any damage to the vehicle. Laser cut aluminum sheet metal for long lasting strength and durability. Designed only for use with the TRIGGER Accessory Control System (not included).

Please note: Due to Federal regulations surrounding lithium battery cells, any TRIGGER Controller products shipping by air (FedEx 2nd Day or FedEx Overnight services) will have their batteries removed prior to shipment. For replacement cells please purchase CR2025 for the 4 Plus controller, CR2032 for the 6 Shooter controller...these are readily available at most brick and mortar and online shops.

View the TRIGGER 6 SHOOTER  Quick Start Guide

View the TRIGGER 6 SHOOTER Jeep JL Overhead RF Remote Mount Install Guide

View the TRIGGER Jeep JL Underhood Controller Bracket Install Guide

View How to Wire the RF Remote to 12V Power
