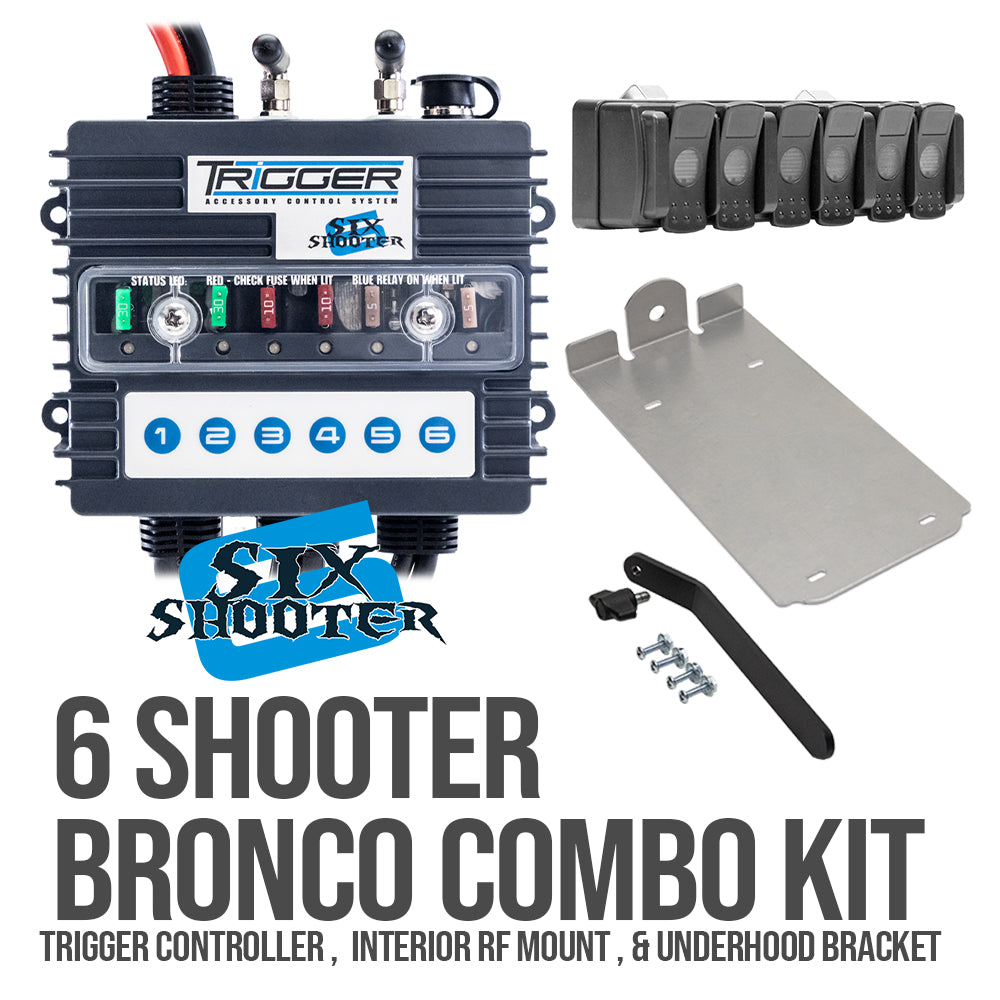

TRIGGER 6 SHOOTER Controller Ford Bronco 2021+ Combo Kit

Part Number: 3001BRO

The TRIGGER 6 SHOOTER Ford Bronco 2021+ Combo Kit pairs our critically acclaimed TRIGGER 6 SHOOTER Wireless Controller with two essential installation accessories: Our Wheel-Well Controller Mounting Bracket and the Universal Flat Mount!

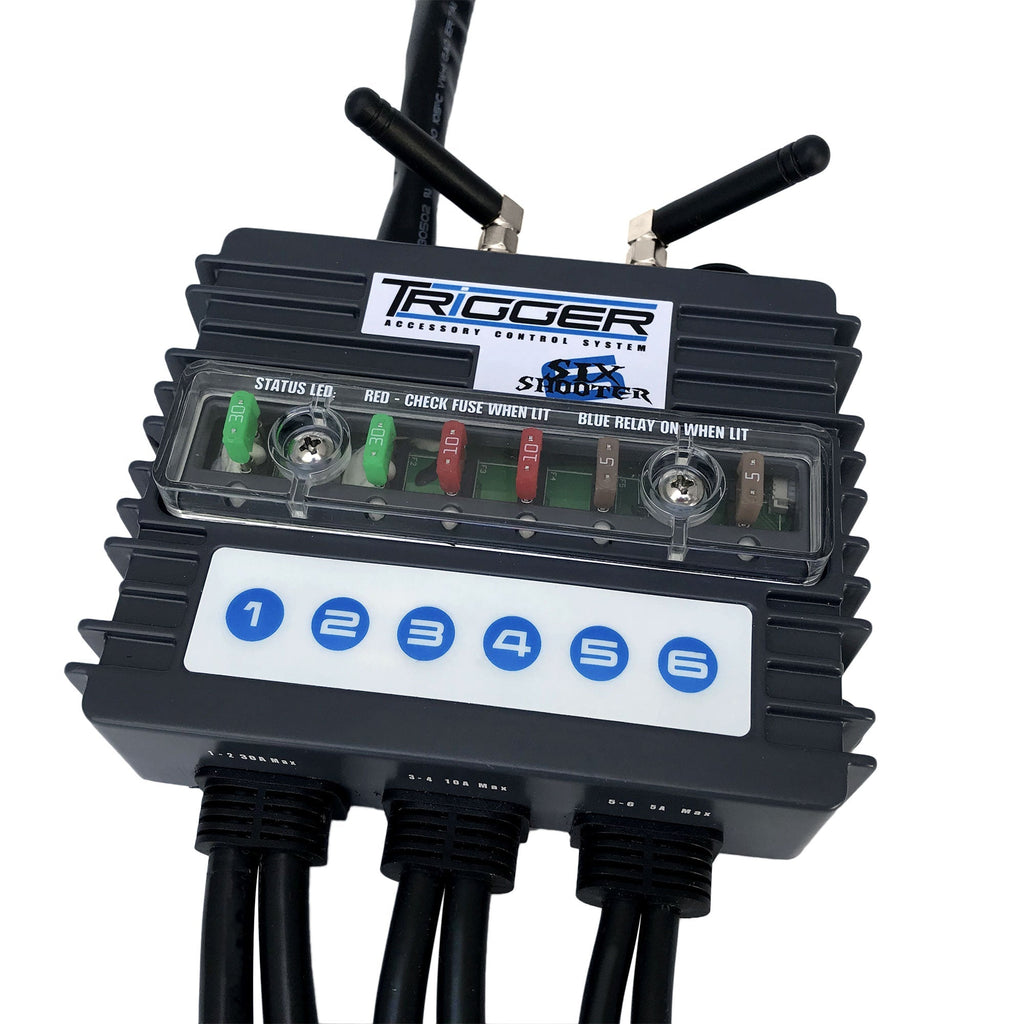

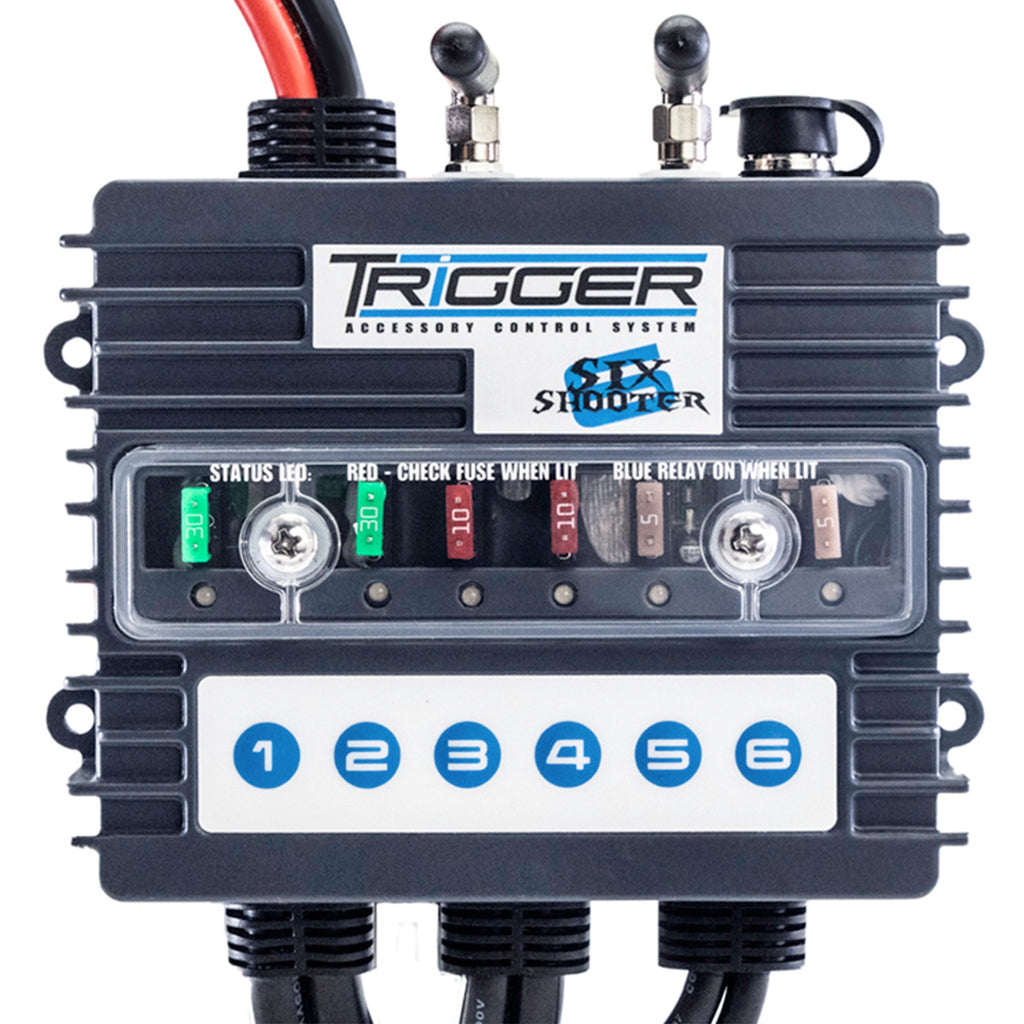

The TRIGGER 6 SHOOTER Wireless Accessory Controller

Save installation time for your electronic accessories! Eliminate the need to run wires under the dash or through the firewall of a vehicle when wiring accessories. Add functionality such as an RF remote control for activating installed accessories from outside the vehicle. In addition, fused circuits with LED indicators notify you of circuit status or blown fuses.

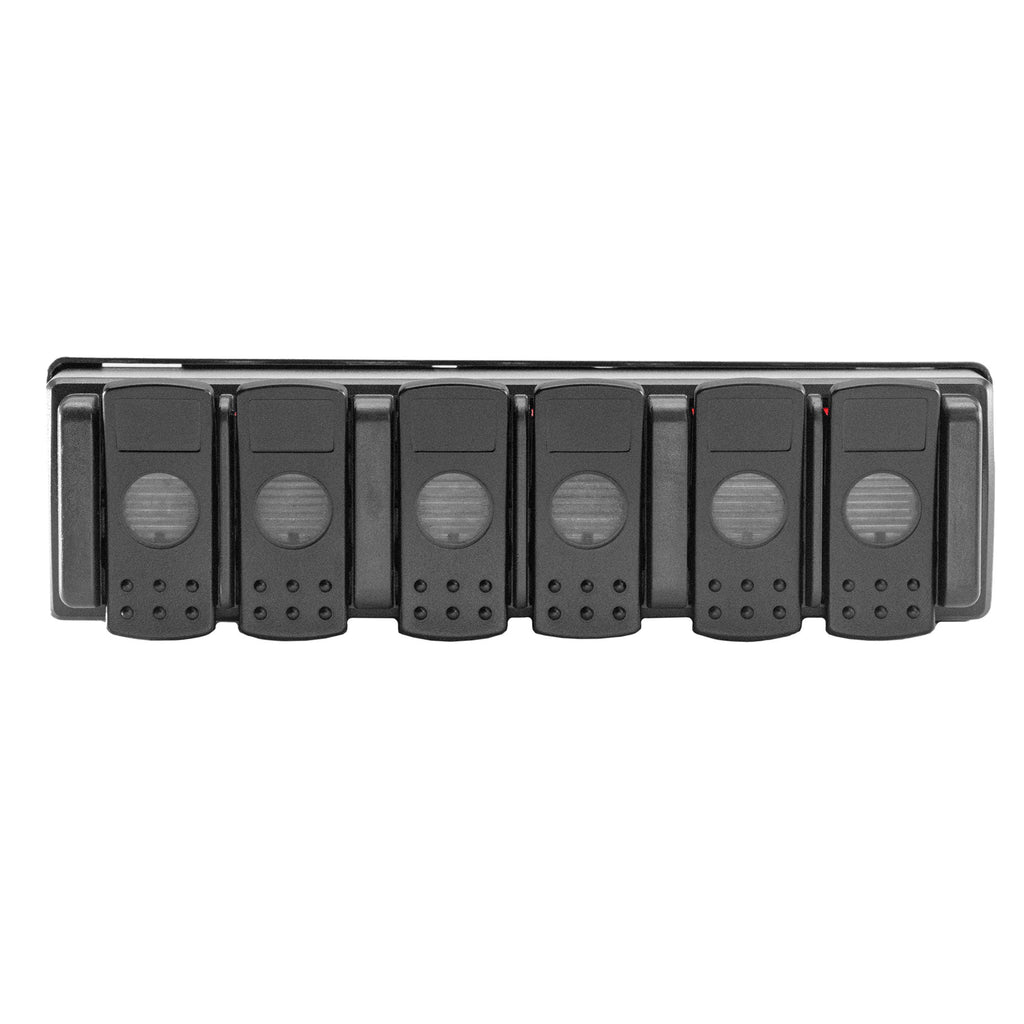

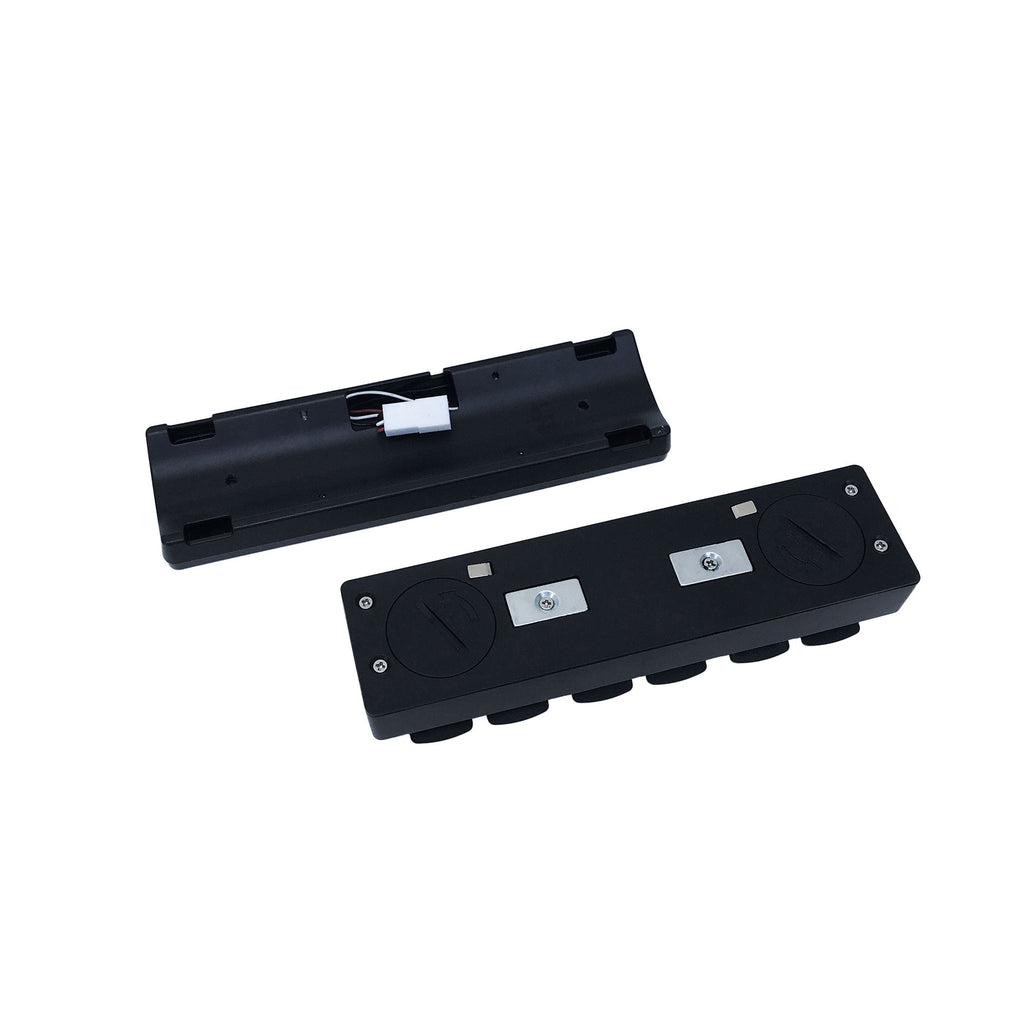

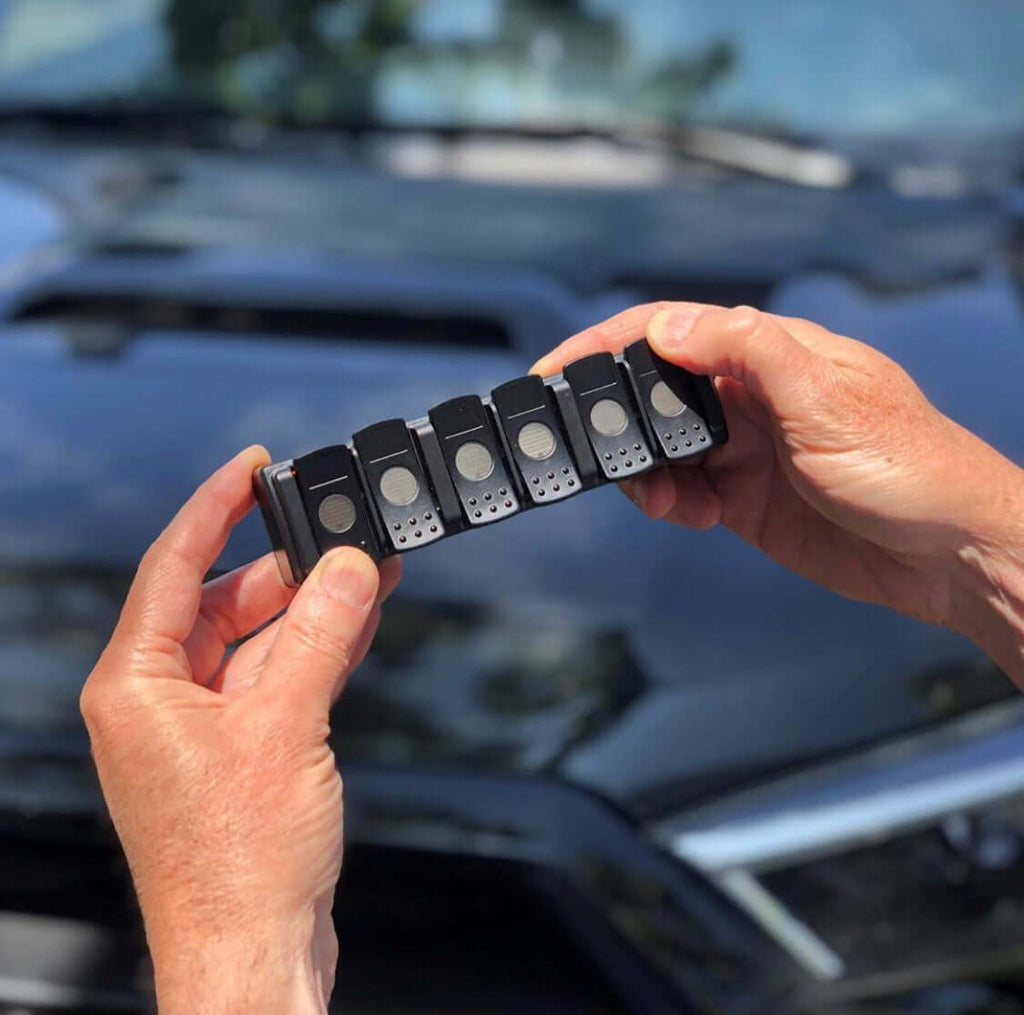

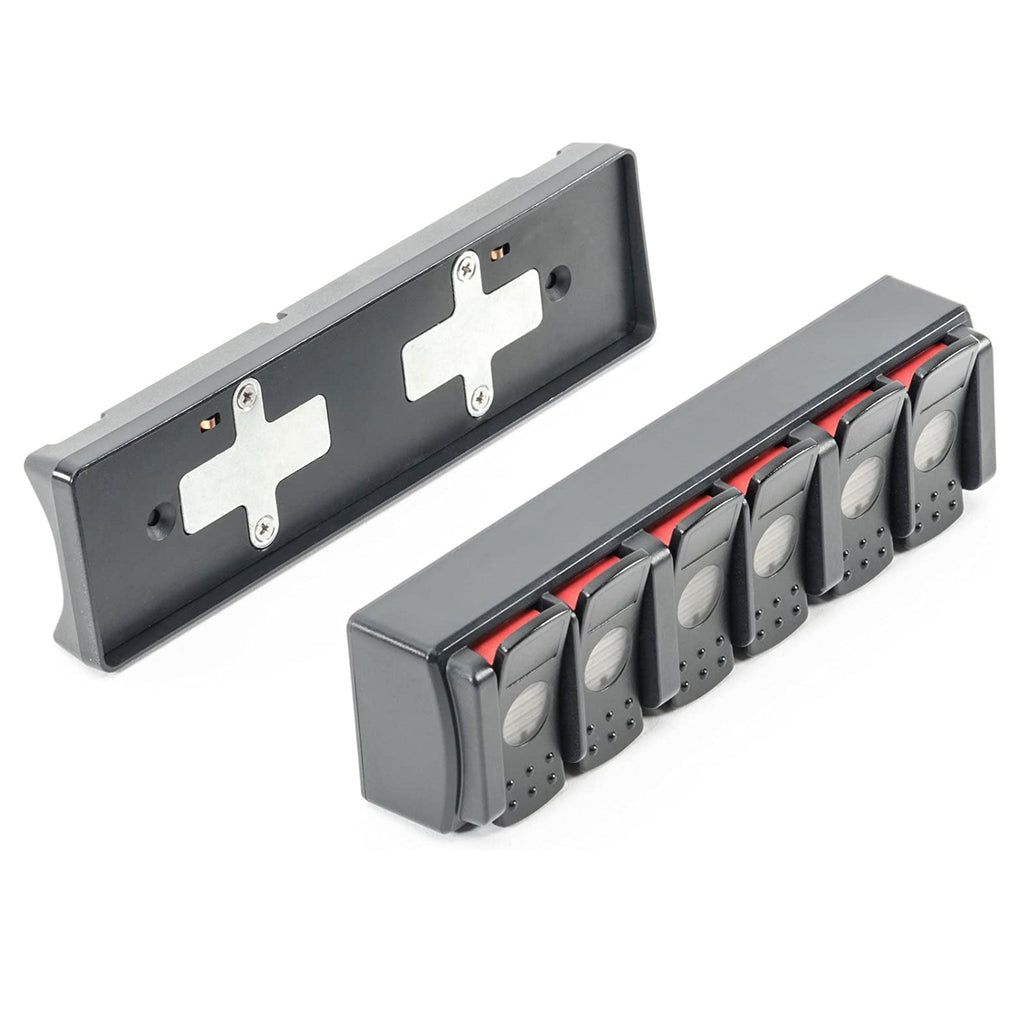

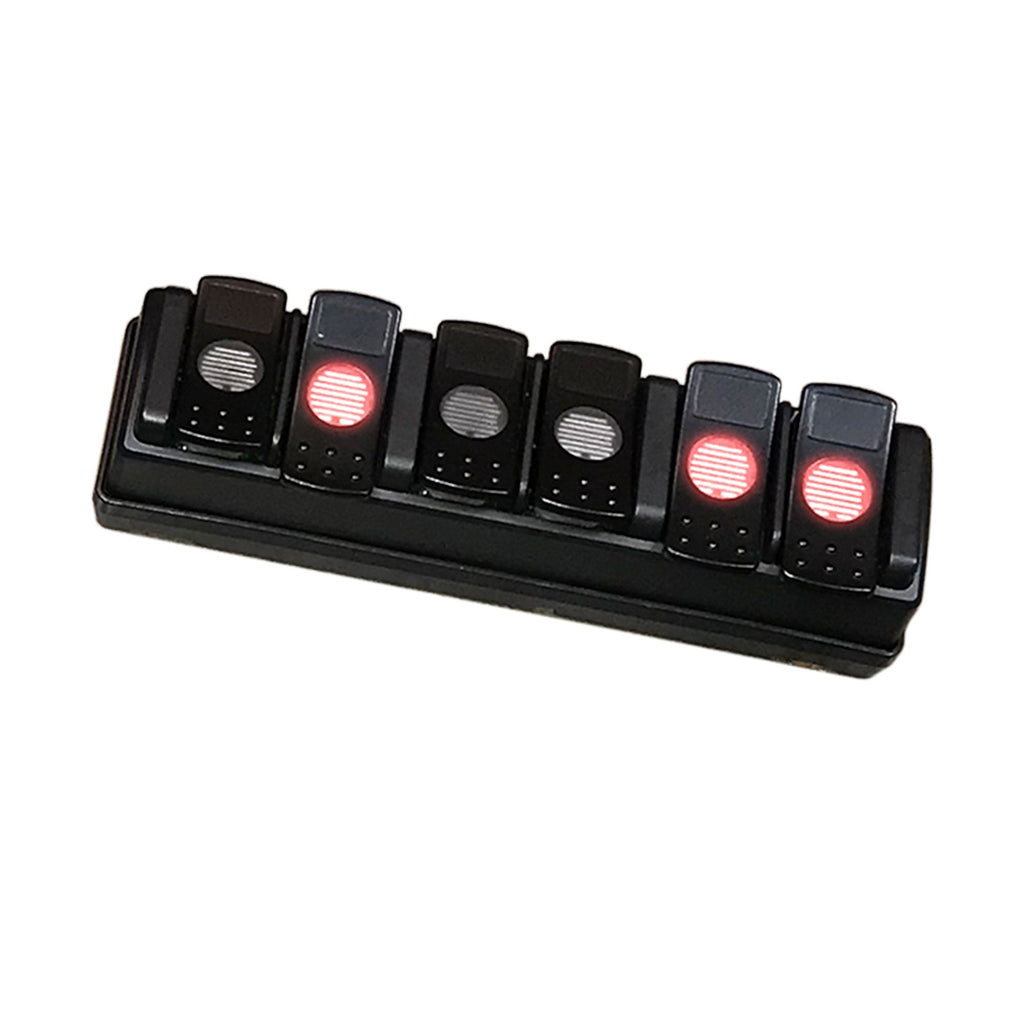

The included battery-powered RF remote utilizes a universal mounting system that will accommodate round and flat surfaces. Its buttons are backlit and programmable for security or use with additional remotes. Several TRIGGER control boxes and remotes can be used together to control up to 24 accessories. When mounted to a UTV roll bar, the buttons on the remote are more easily accessible than dash switches. There is no straining against seat belts to reach the dash, just a quick reach up to flip a switch.

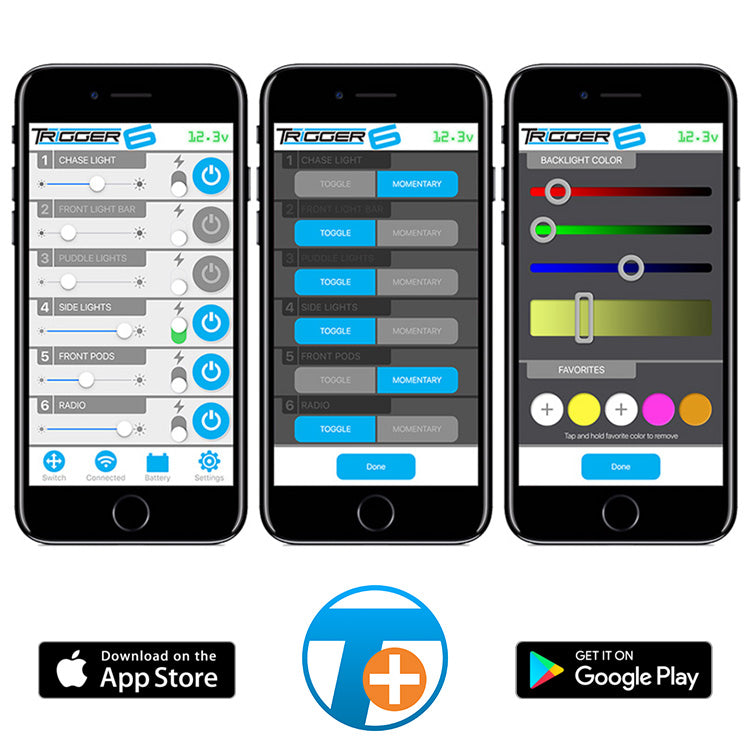

The Bluetooth App will control on/off and dimming functions as well as flashing when used with LED or conventional lighting. It is simple to set up and allows for user customization. Use the app to “TRIGGER” lights from outside the vehicle whenever you might need to activate an accessory on demand.

A few notable features:

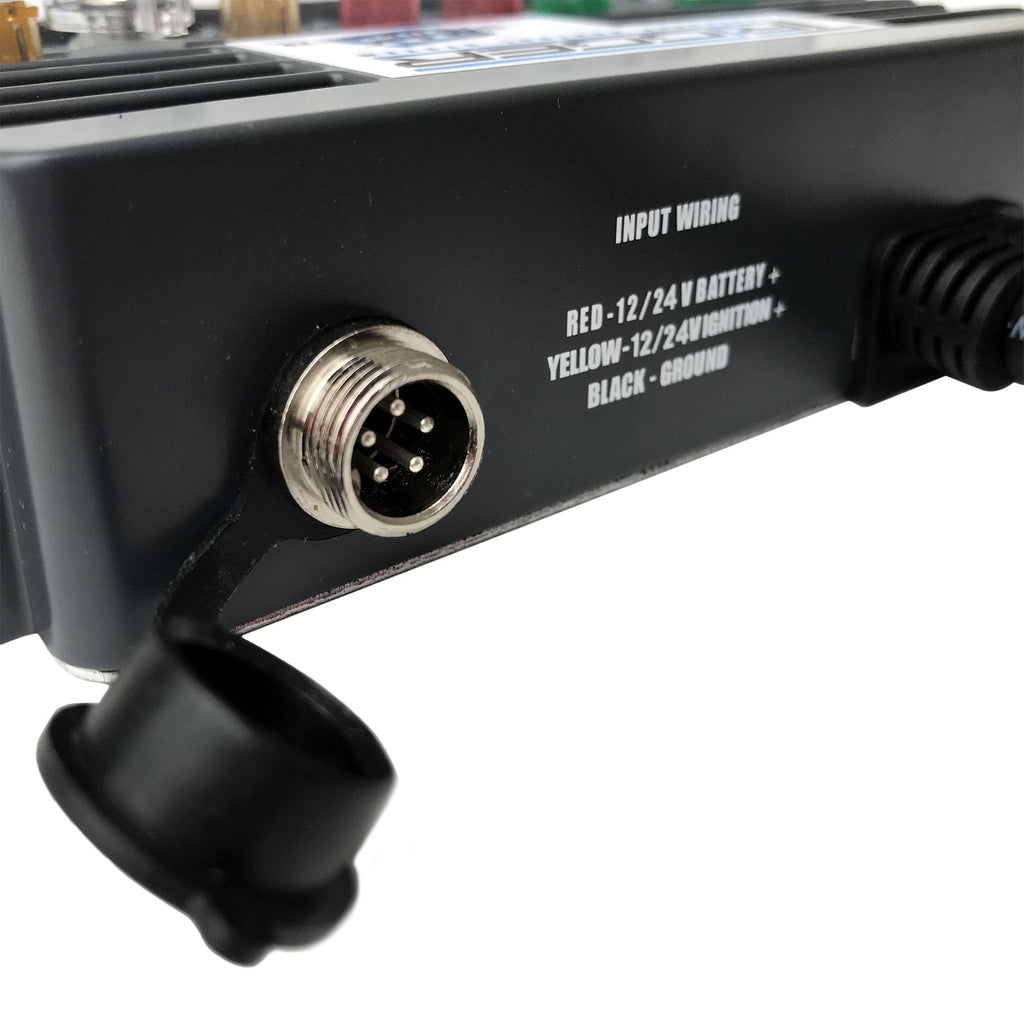

• Accepts 12-24 Volt input
• Two 30 amp fused circuits w/12-24 Volt output
• Two 10 amp fused circuits w/12-24 Volt output
• Two 5 amp fused circuits w/12-24 Volt output

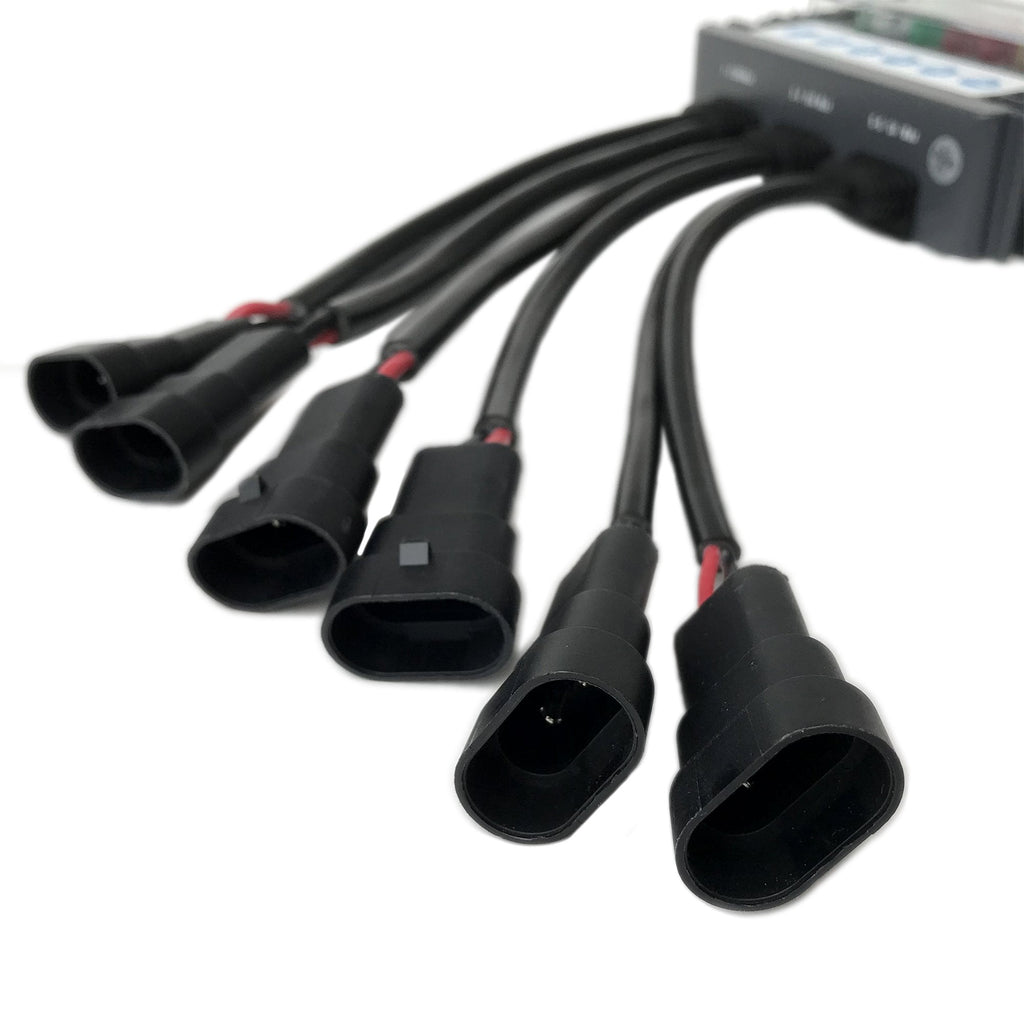

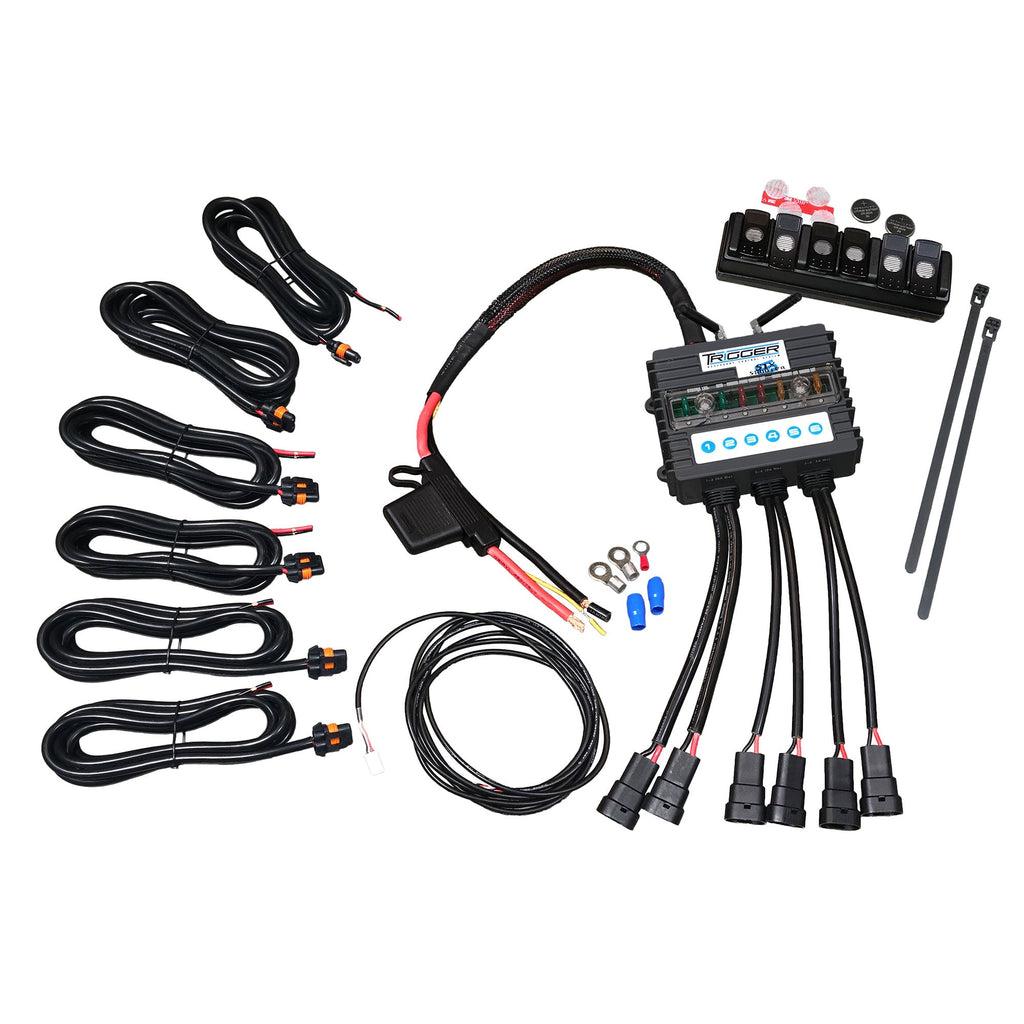

• Includes 6 wire harnesses with waterproof connectors
• Wireless back-lit RF remote rocker switch module
• Backlit switches when optionally connected to 12 Volt power via an 8′ long, thin 28 gauge harness
• You can control it from your mobile device with our free TRIGGER ACS PLUS App for iOS/Android!
• Comes with switch labels too!
• Free 3-year warranty that covers manufacturing defects

NOW FEATURED IN ‘THE SHOP’ MAGAZINE! CLICK TO CHECK OUT THE ARTICLE!

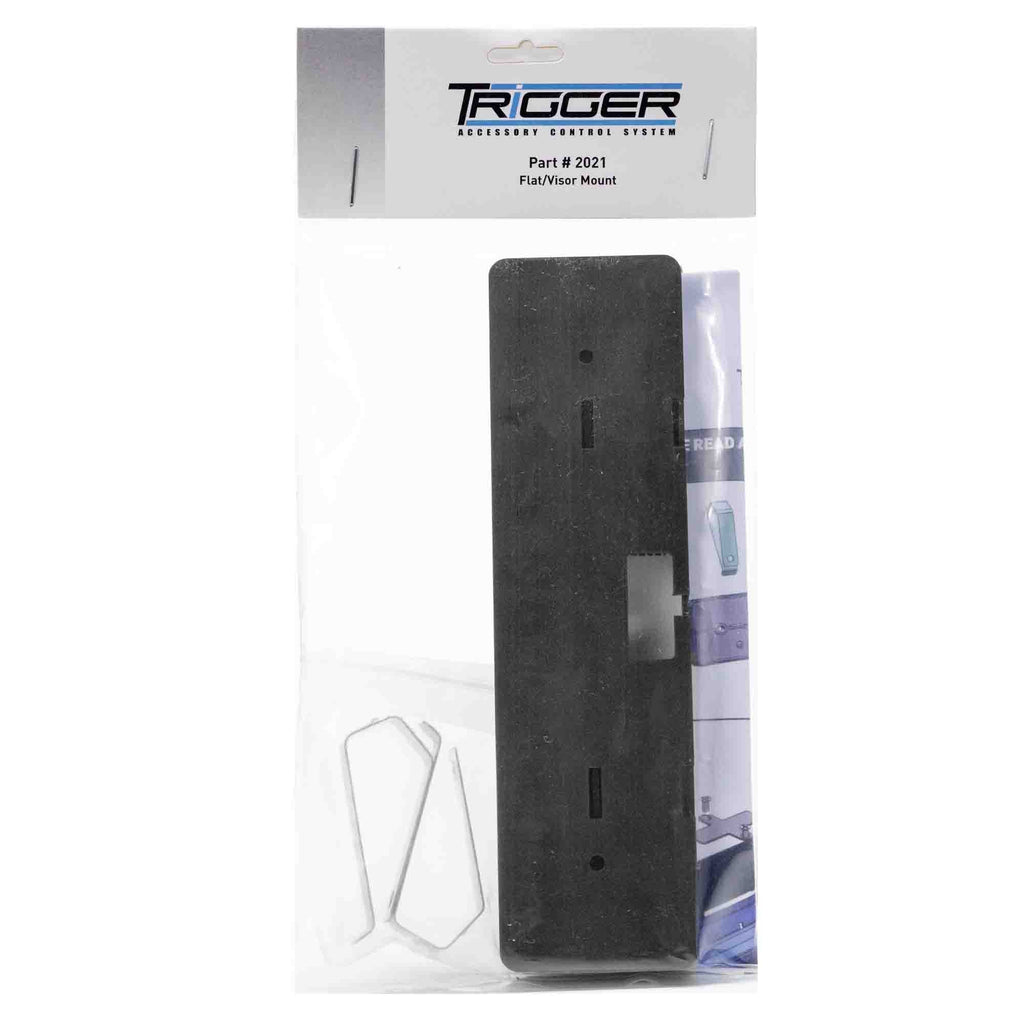

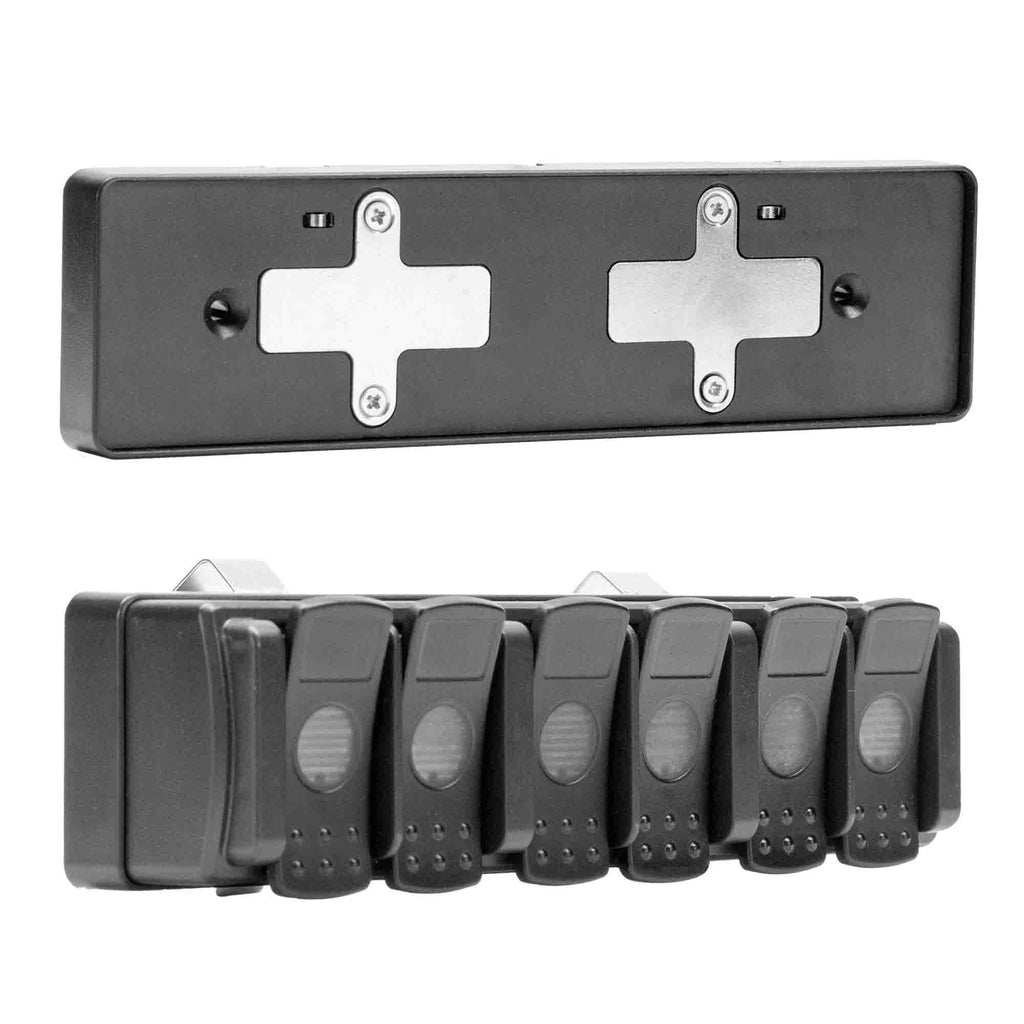

TRIGGER 6 SHOOTER Universal Visor/Flat Mount

Use the TRIGGER 6 SHOOTER Universal Visor/Flat Mount to expand the connectivity of your TRIGGER System!

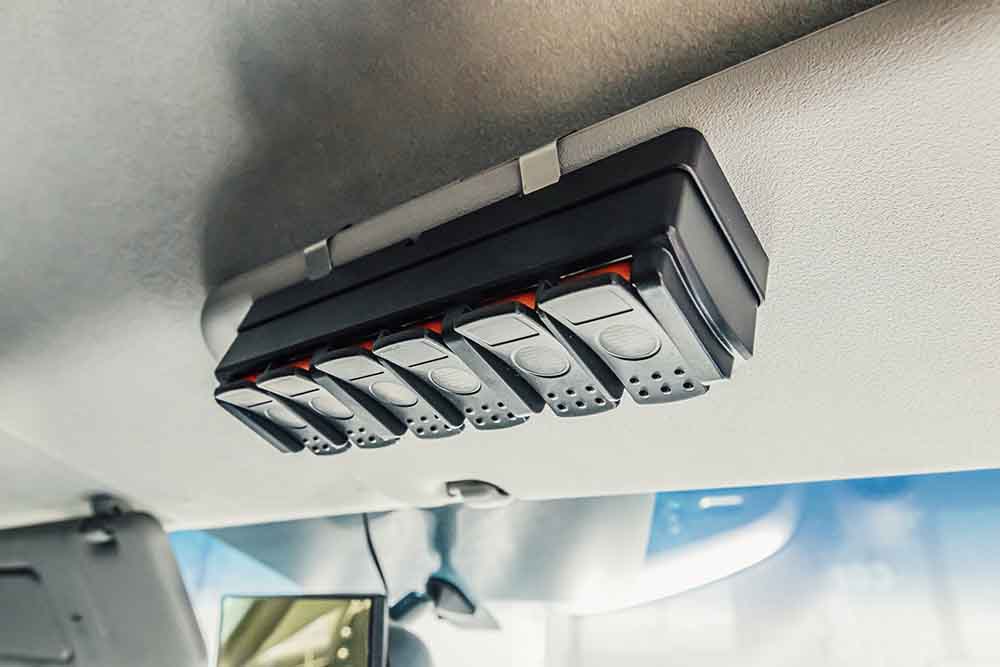

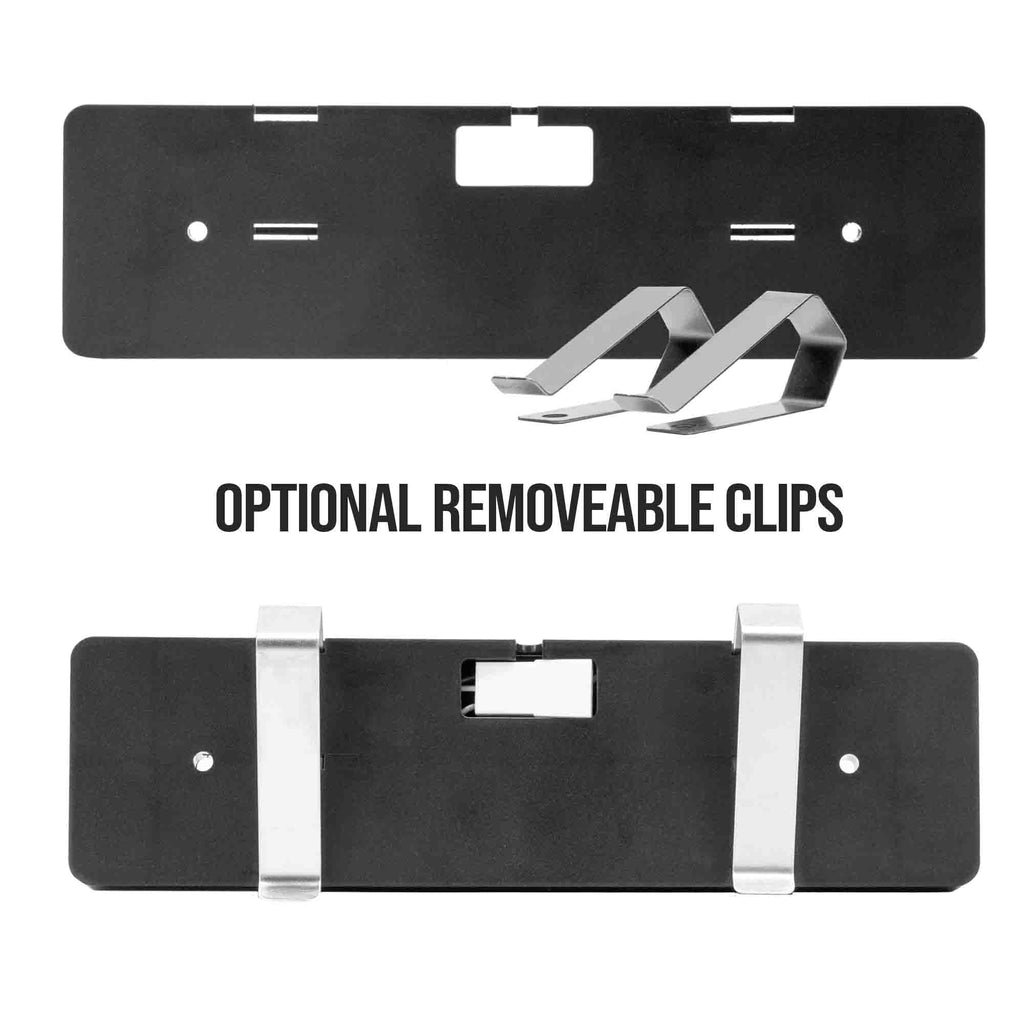

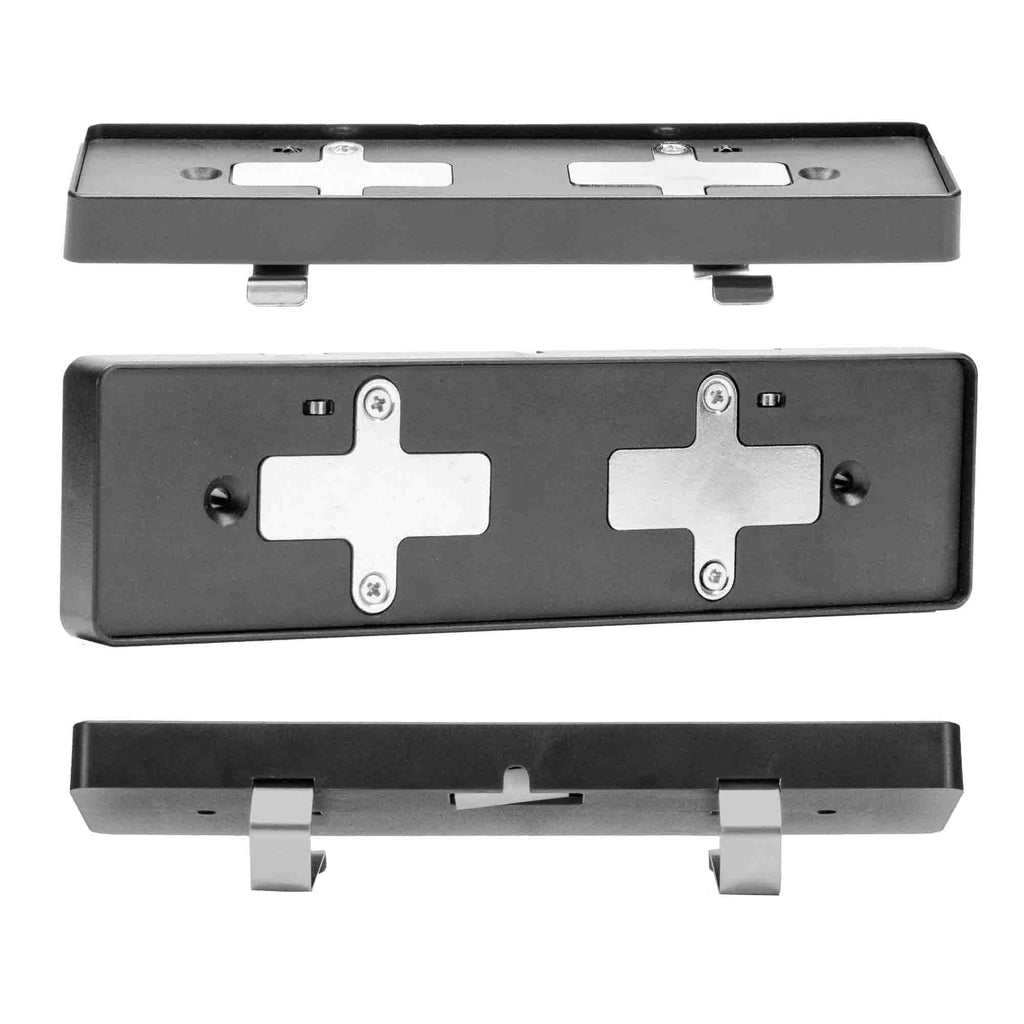

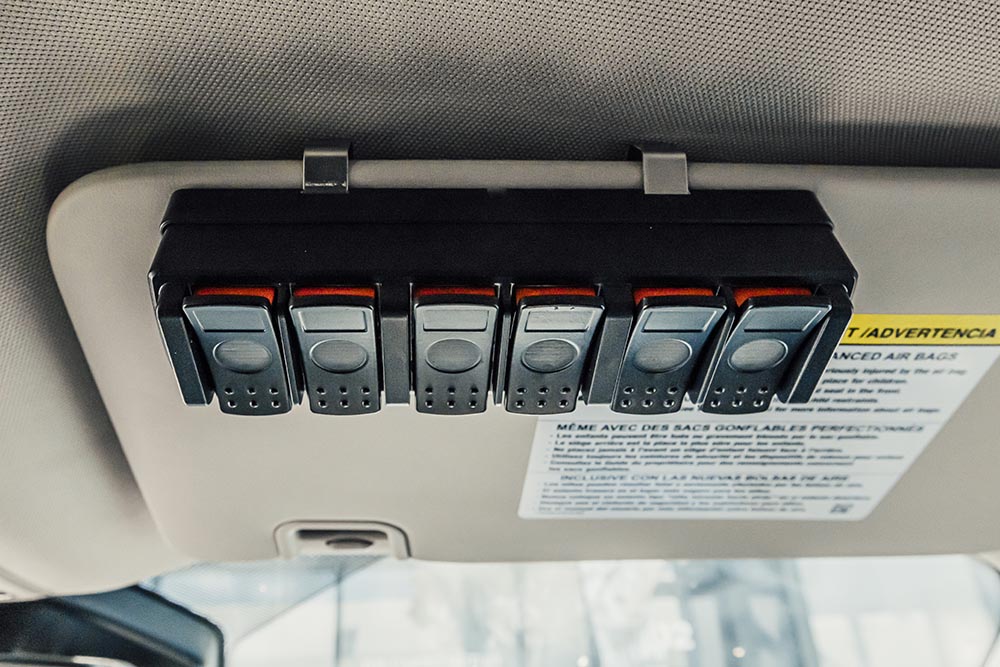

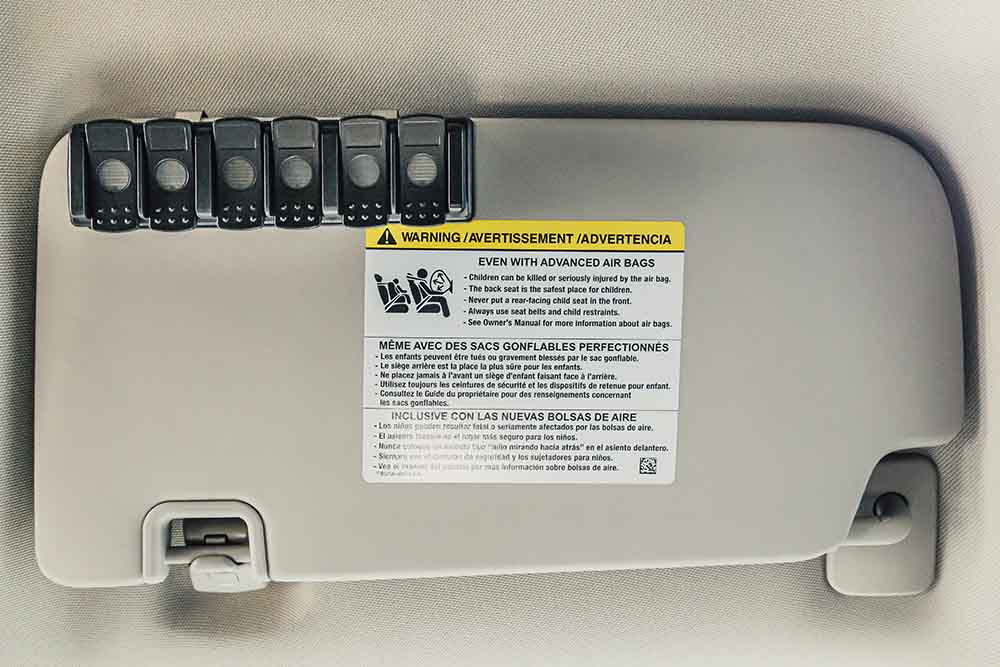

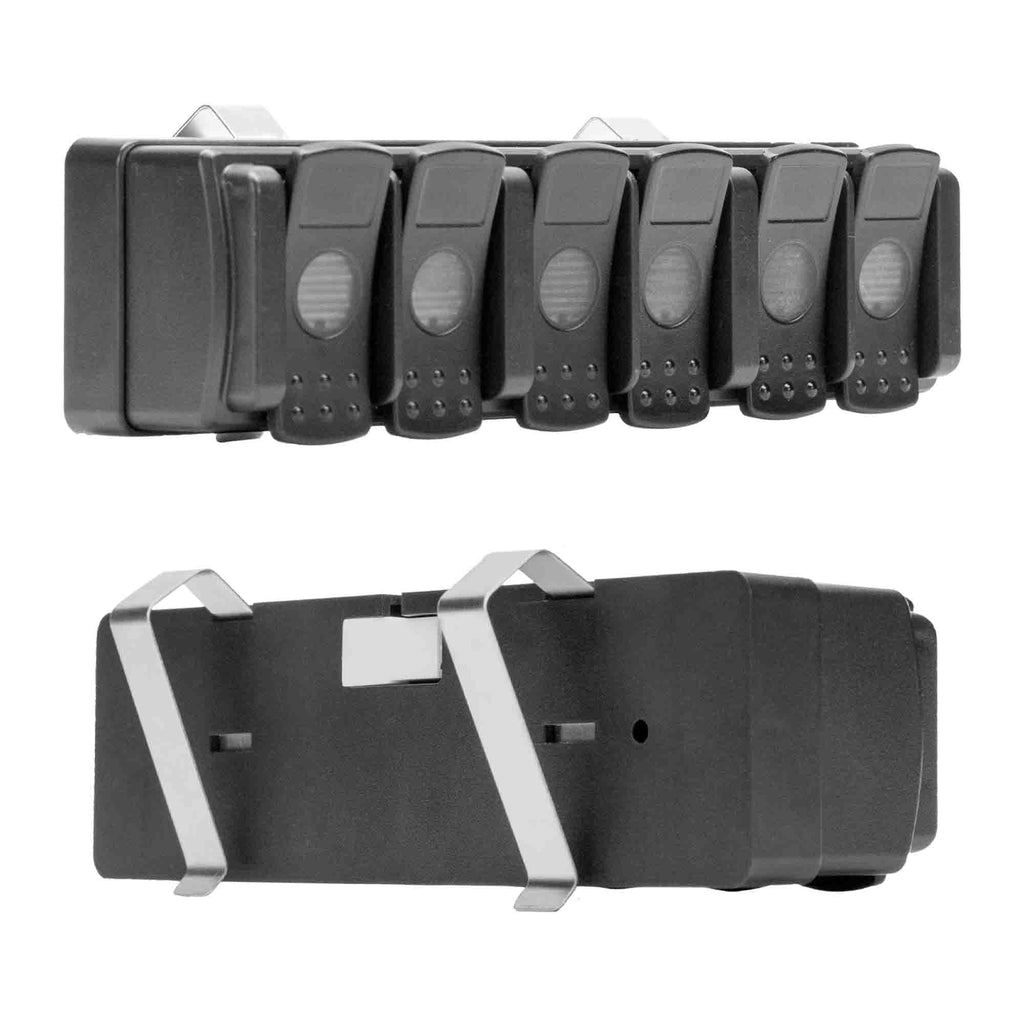

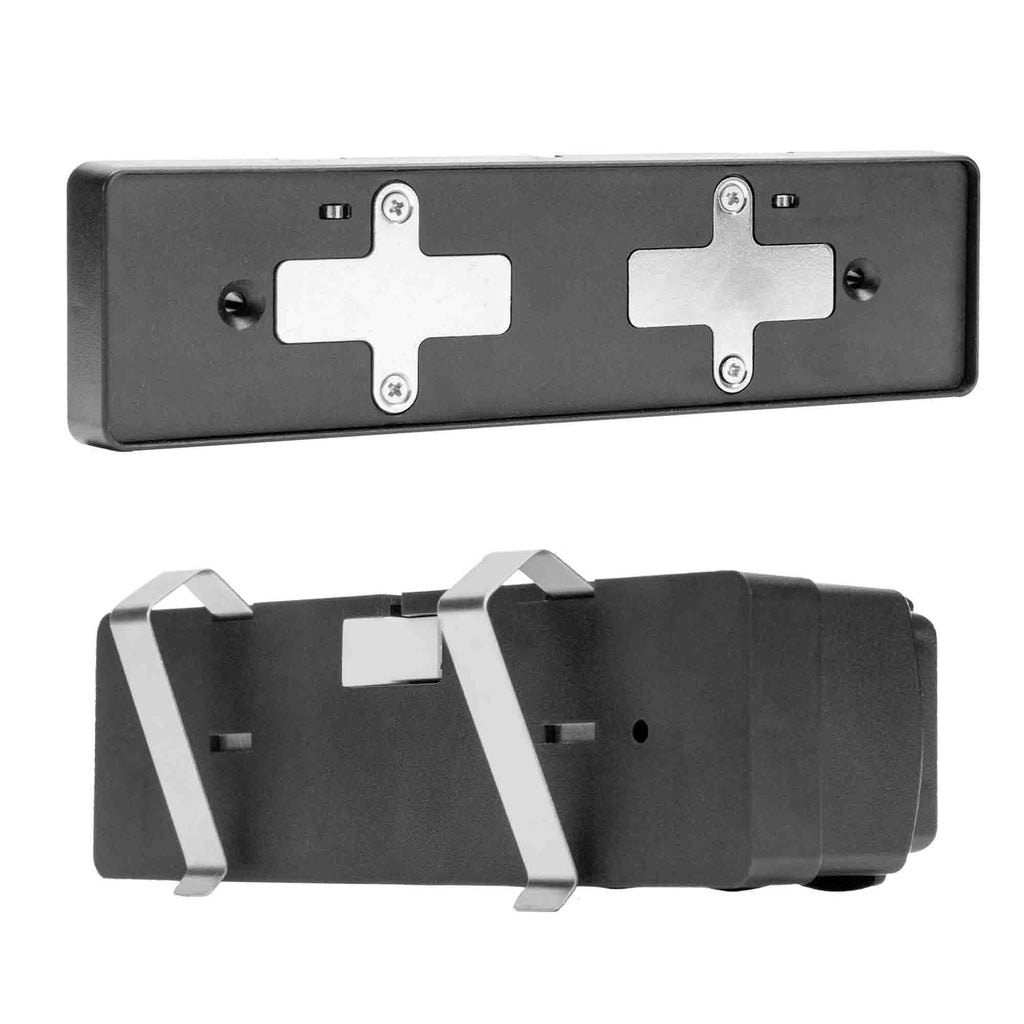

The TRIGGER Universal Visor/Flat mounting system is designed for quick and easy installation. In fact, it allows the TRIGGER 6 SHOOTER RF remote assembly to be quickly and easily mounted in one of the most easily accessed areas of your interior.  Furthermore, it is easily removable without causing any damage to the vehicle. The plastic body includes a steel sub-structure that incorporates a clip system for attachment to the vehicle. Includes hardware for mounting your RF remote base. Once mounted, the bracket allows the remote to move up and down angle adjustment for improved switch accessibility.

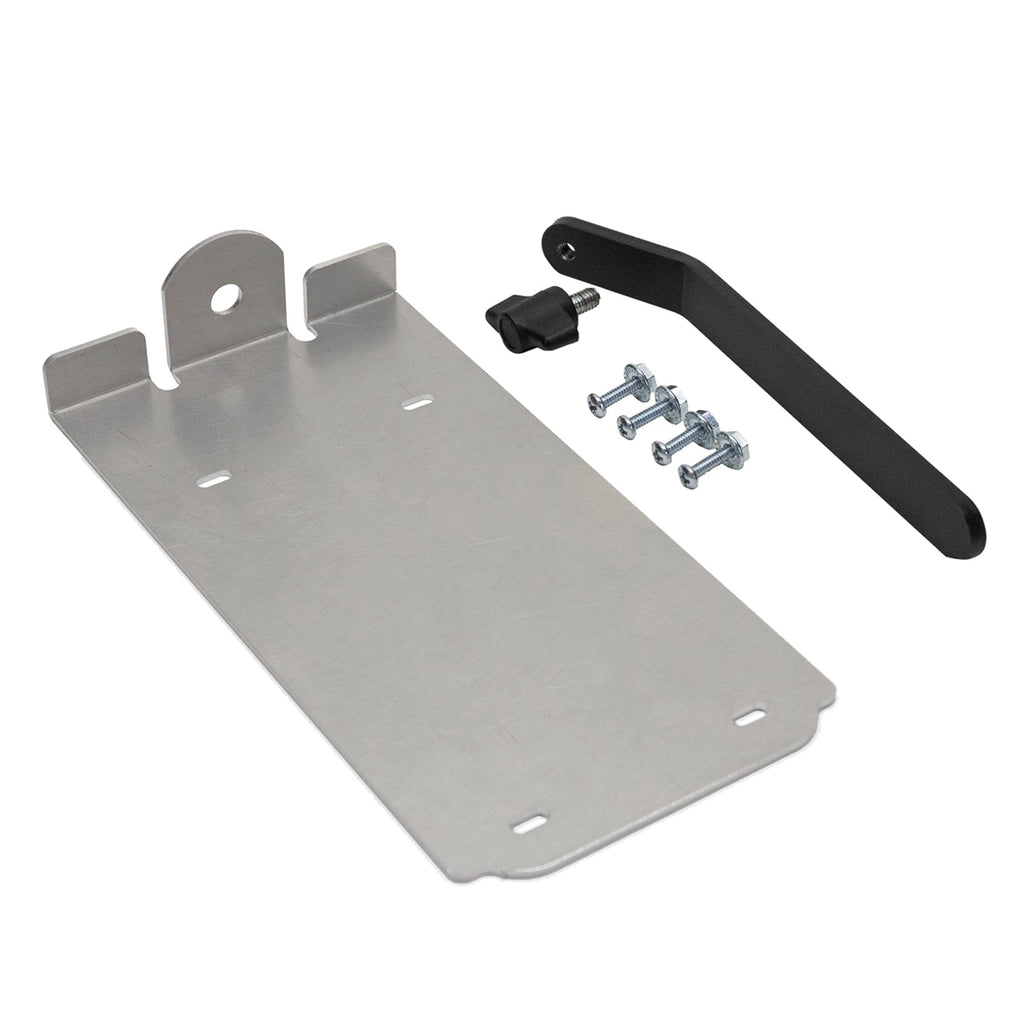

TRIGGER Ford Bronco 2021+ Underhood Controller Bracket

Use the TRIGGER Ford Bronco Underhood Controller Bracket to expand your installation options with the TRIGGER Wireless Accessory Control System!

• Fits Ford Broncos years 2021+

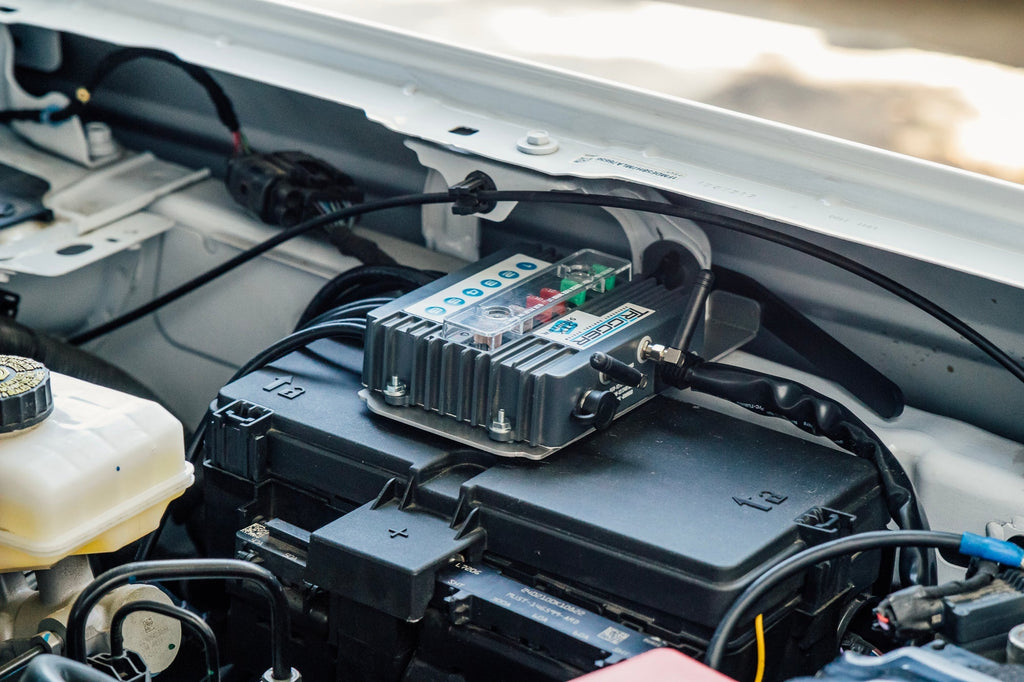

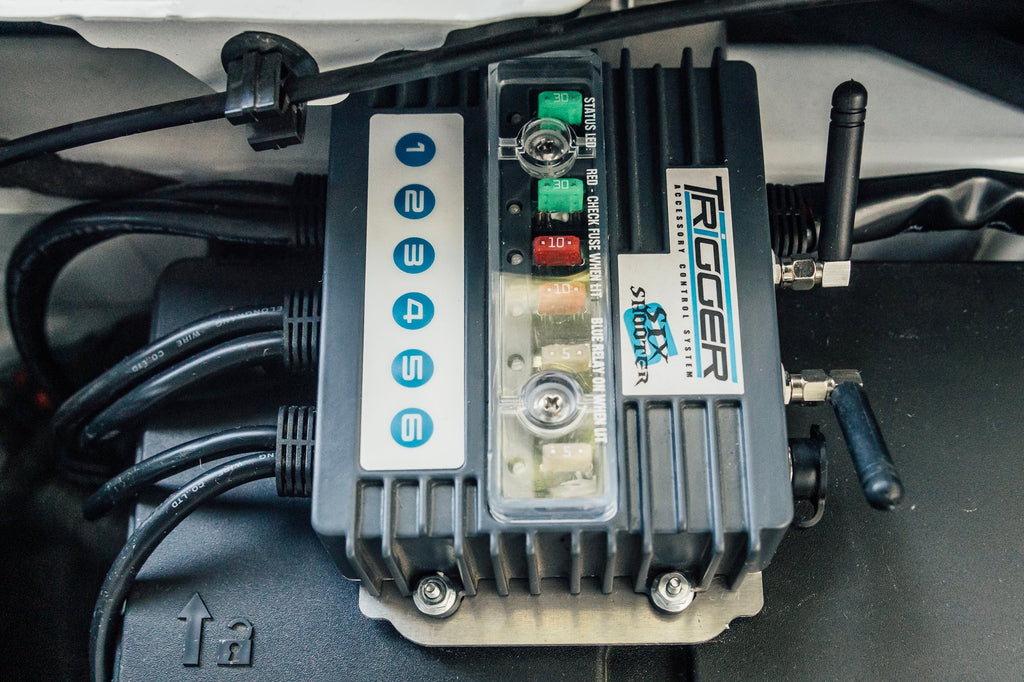

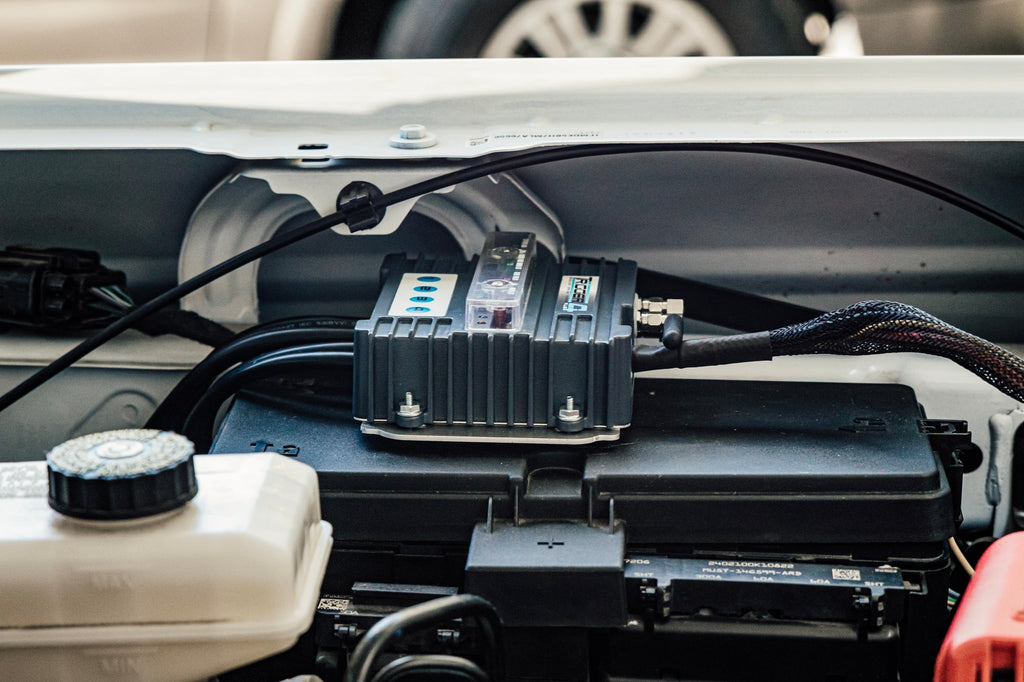

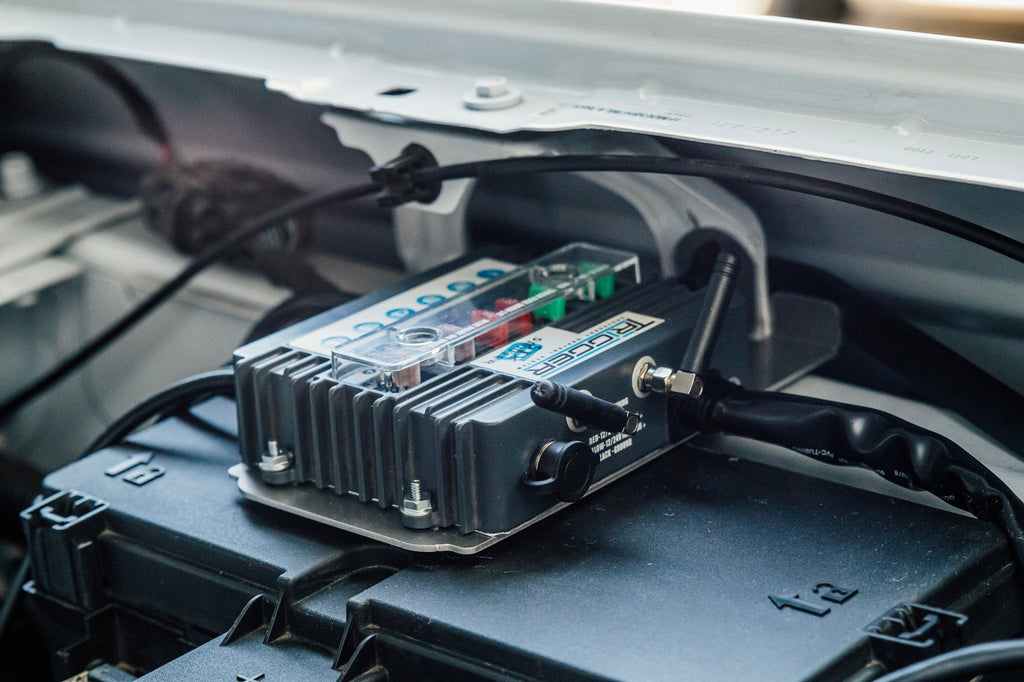

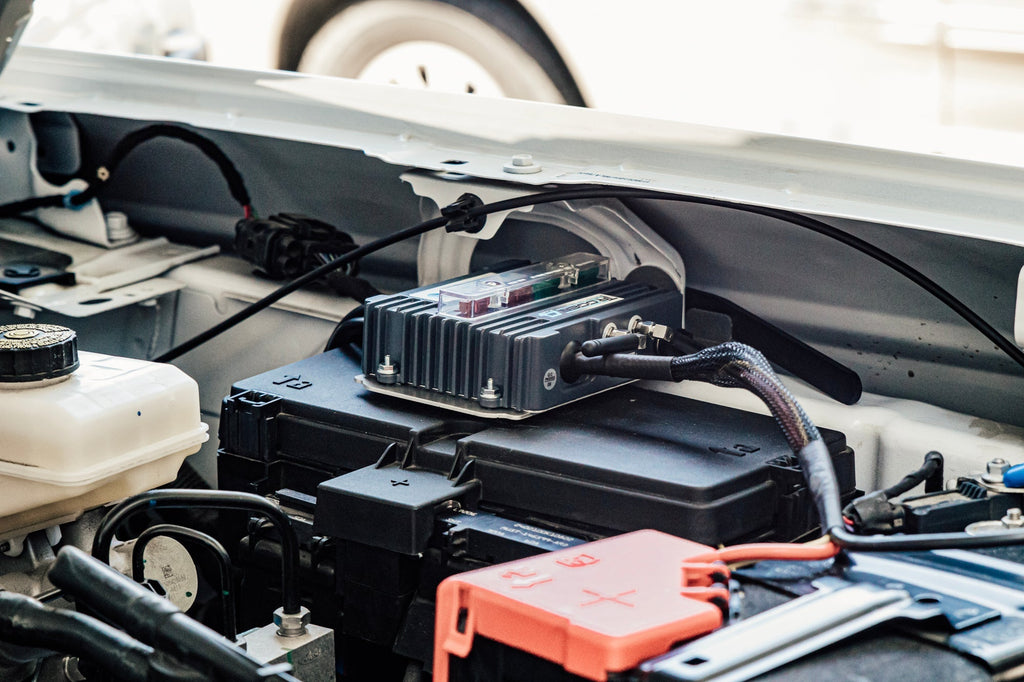

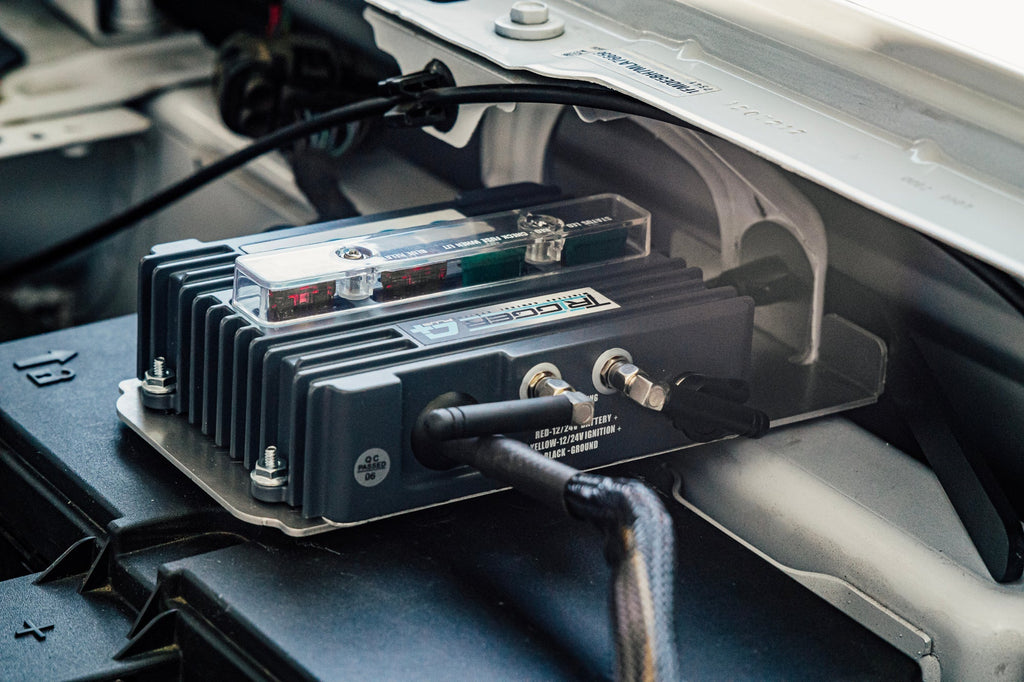

The TRIGGER Bronco underhood mounting system is designed for quick and easy installation. Mount the TRIGGER controller module in an otherwise unused location under the hood, adjacent to the fuse box and battery. It requires no drilling and is easily removable without causing any damage to the vehicle. Laser-cut aluminum sheet metal for long-lasting strength and durability.  Designed only for use with the TRIGGER Wireless Accessory Control System.

View TRIGGER 6 SHOOTER Quick Start Guide

View TRIGGER 6 SHOOTER Universal Visor/Flat Mount Assembly Guide

View TRIGGER Ford Bronco 2021+ Underhood Controller Bracket Install Guide

View RF Remote Mounting Guide

View How to Wire the RF Remote to 12V Power
