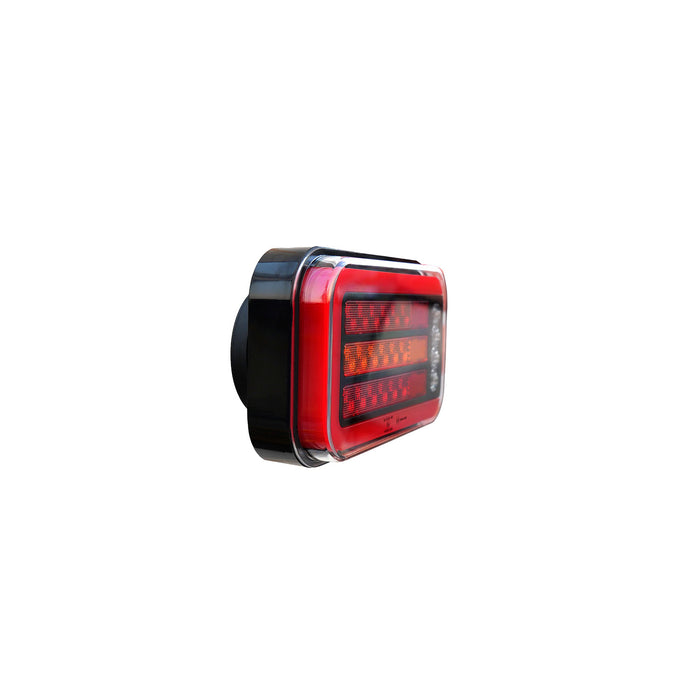

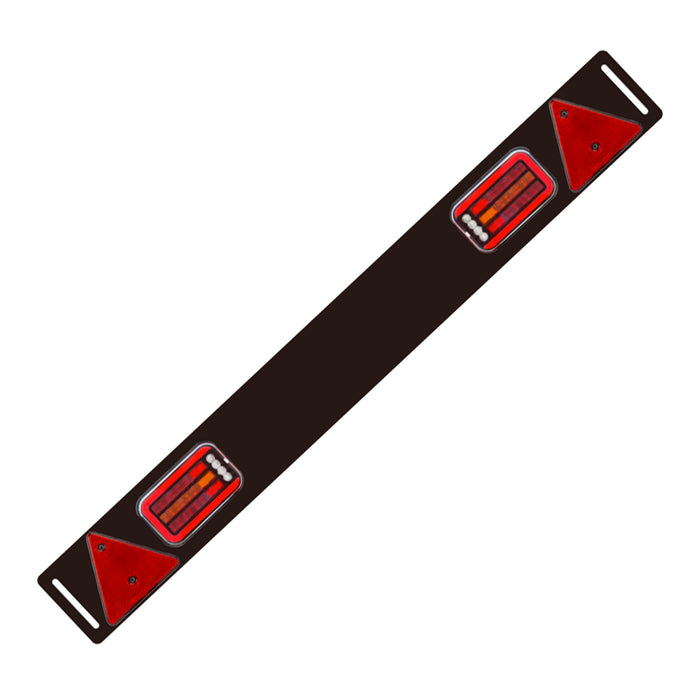

Full-width wireless trailer lighting board available in 1200mm or 1400mm. 3mm aluminum board with integrated tail, brake, turn signal, fog light, license plate, DI, and reflector functions. Wireless 2.4GHz - no trailer wiring needed. IP68/IP69K rated.
Part Number: ORA-T9
IP68 / IP69K 12-24V 3 Year Warranty Wireless 2.4GHz Trailer & Tail Lights
Product Features
- Available in 1200mm or 1400mm board width.

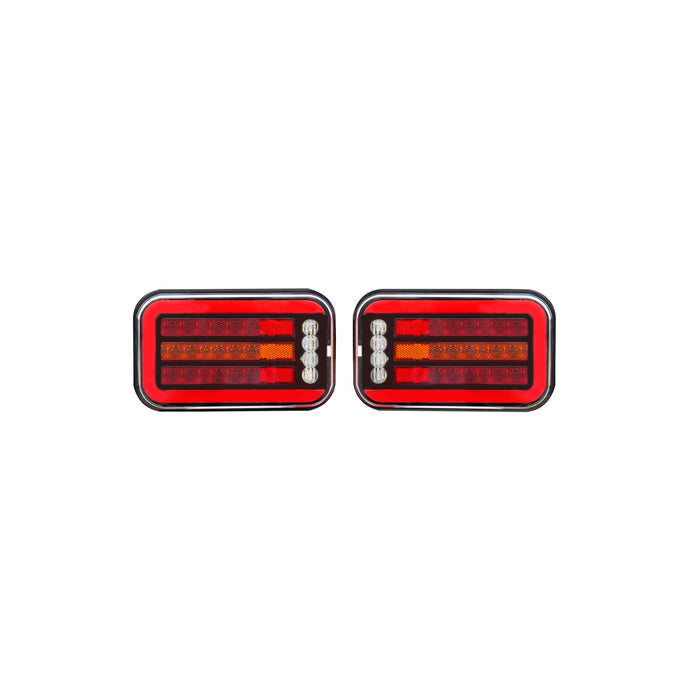

- Functions: Tail light, License plate light, Brake, Fog Light, Turn Signal (DI), Reflector.
- 5000mAh x2 battery capacity.
- Charge time: 6 hours. Standby: 2 hours.
- Wireless 2.4GHz - 30 meters / 98ft signal strength.
- Canbus compatible (with or without Canbus function).
- Custom logo space on board.

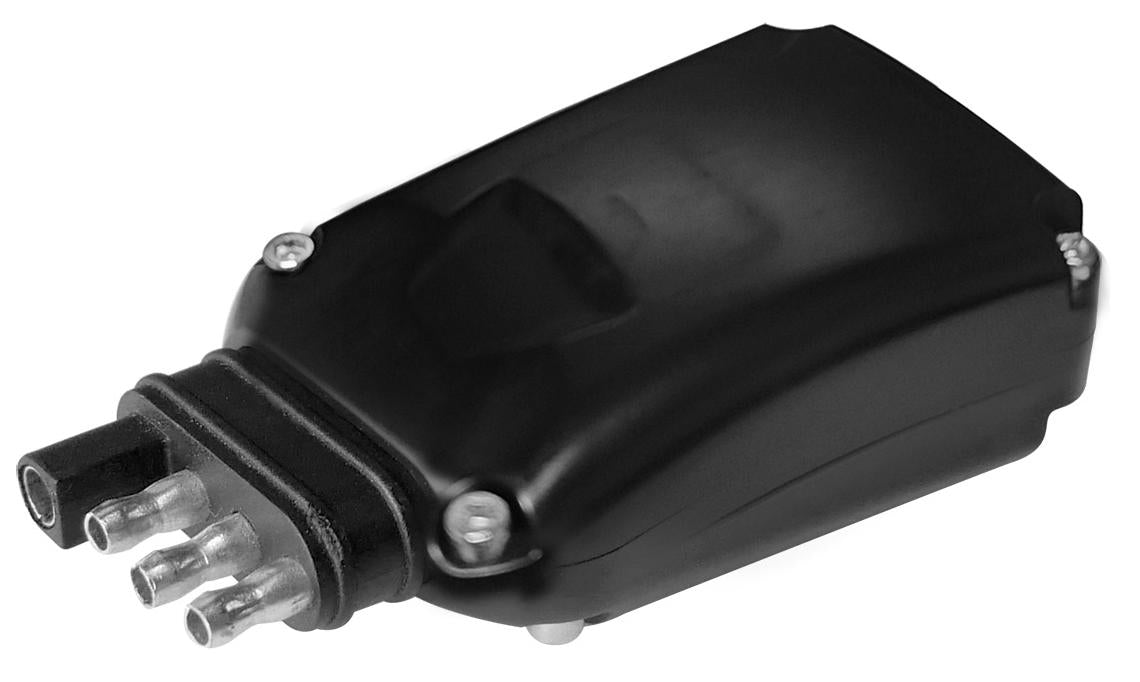

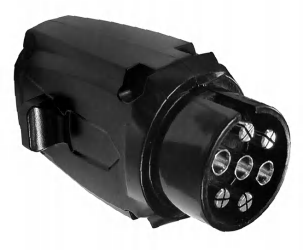

- Compatible transmitters: 7 PIN EU, 6 Blade, 7 PIN USA, 4 PIN.

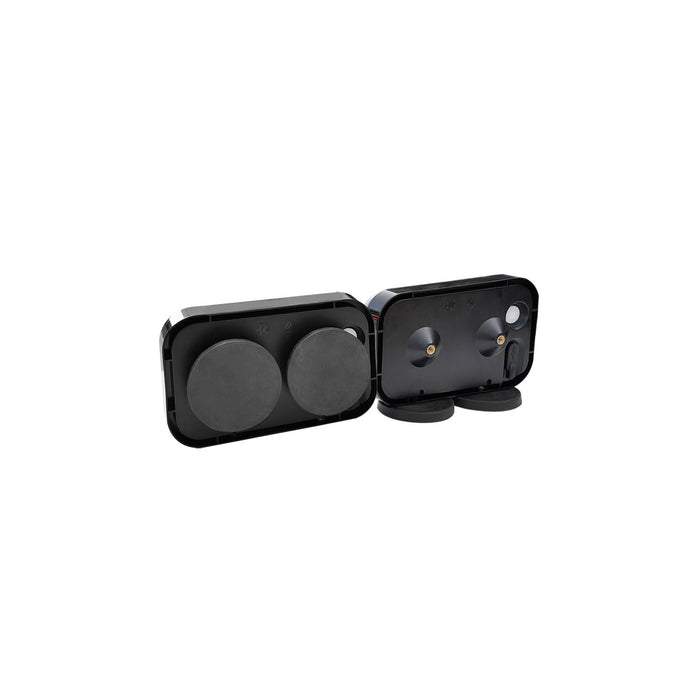

- Mounting: Screws or springs.
Working Hours by Function
| Function | Working Hours |
|---|---|

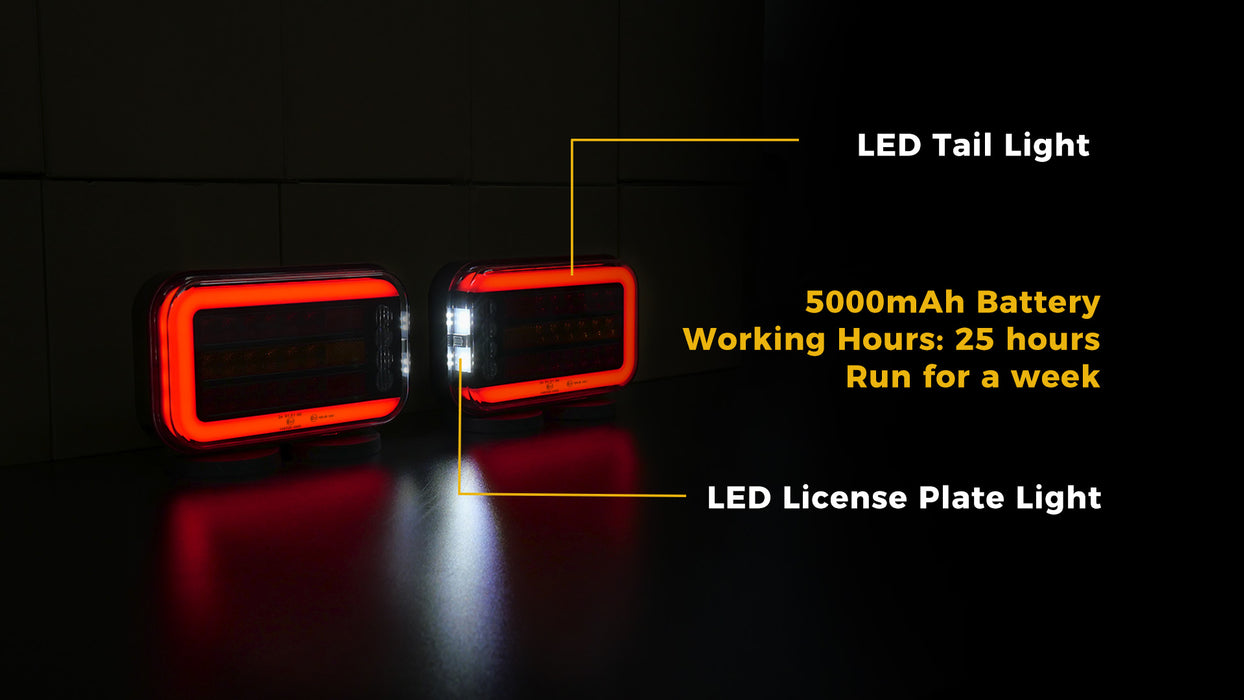

| Tail Light + License Plate Light | 25 hours |

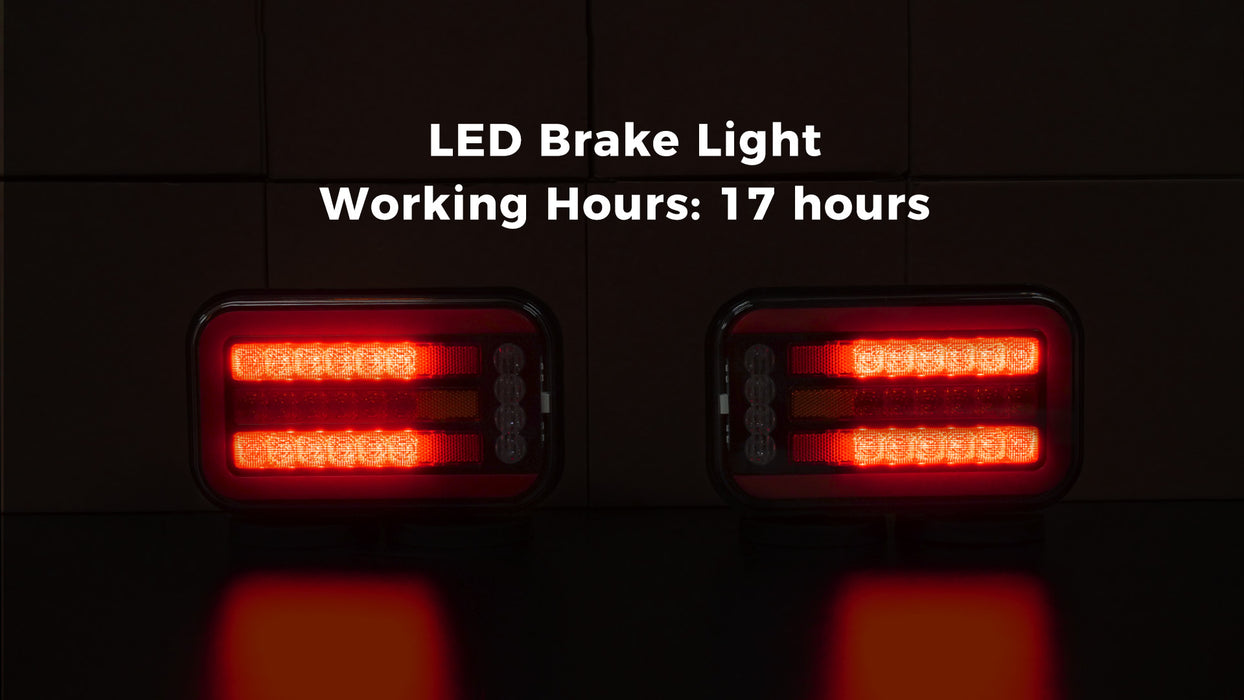

| Brake Light | 17 hours |

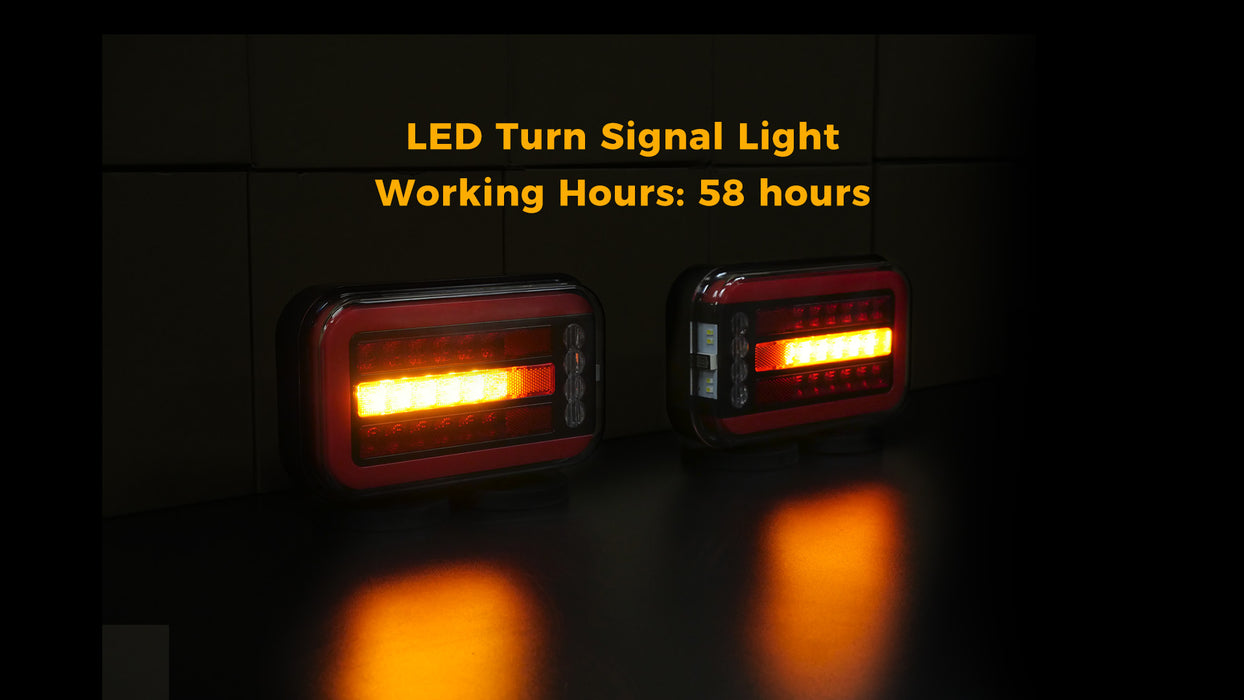

| Turn Signal | 58 hours |
| Fog Light | 10 hours |

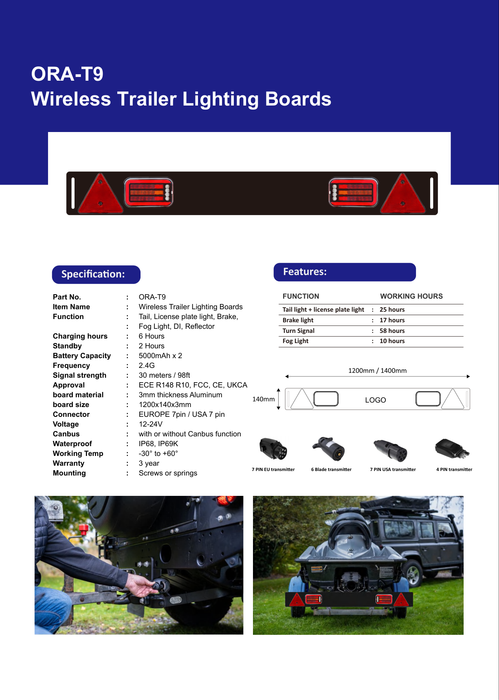

Specifications
Part NumberORA-T9
Board Size1200mm or 1400mm x 140mm x 3mm
Board Material3mm Thickness Aluminum
Battery Capacity5000mAh x 2
Charging Hours6 Hours
Standby2 Hours
Frequency2.4G
Signal Strength30 meters / 98ft
ConnectorEUROPE 7 Pin / USA 7 Pin
Voltage12-24V
CanbusWith or without Canbus function

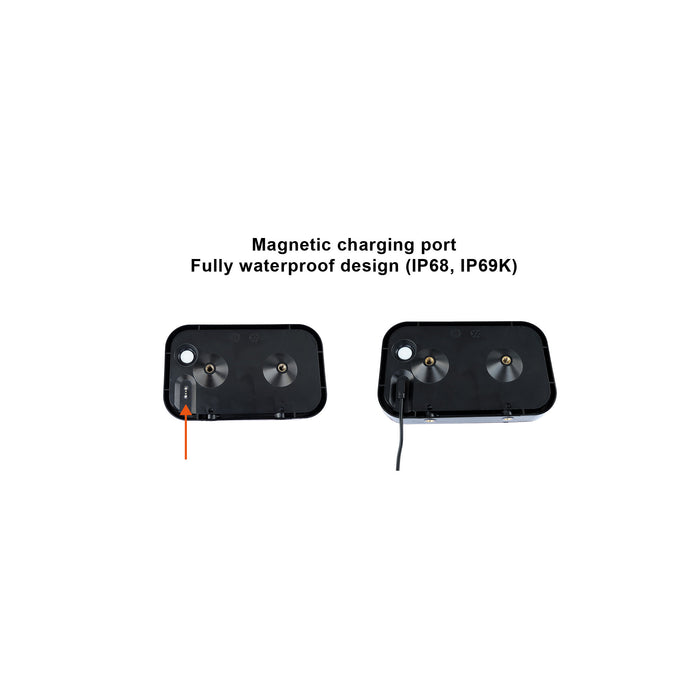

Waterproof RatingIP68, IP69K
Working Temp-30°C to +60°C
MountingScrews or Springs
Warranty3 Years
Approvals & Compliance
- ECE R148, ECE R10
- FCC, CE, UKCA
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
