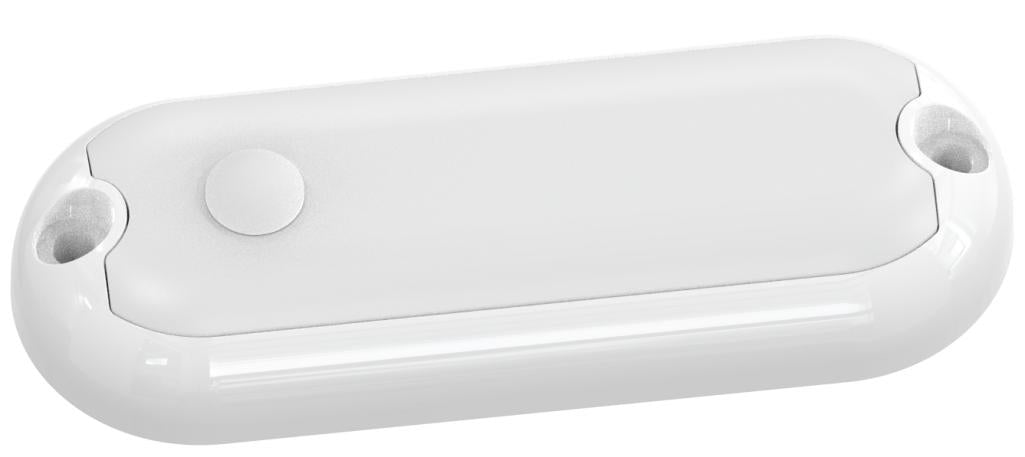

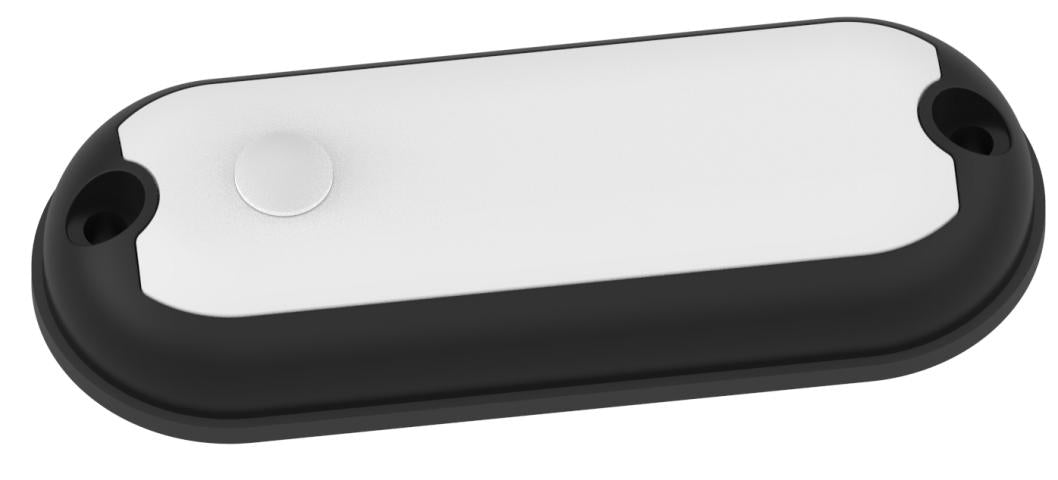

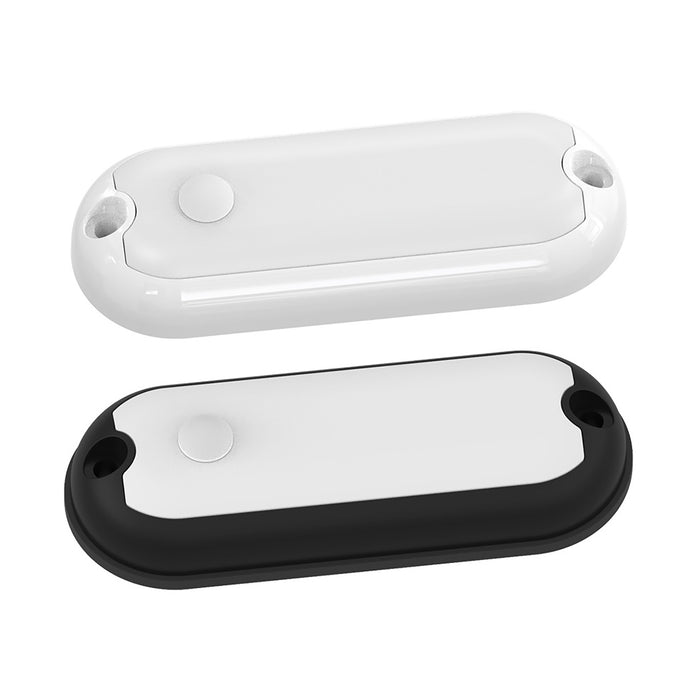

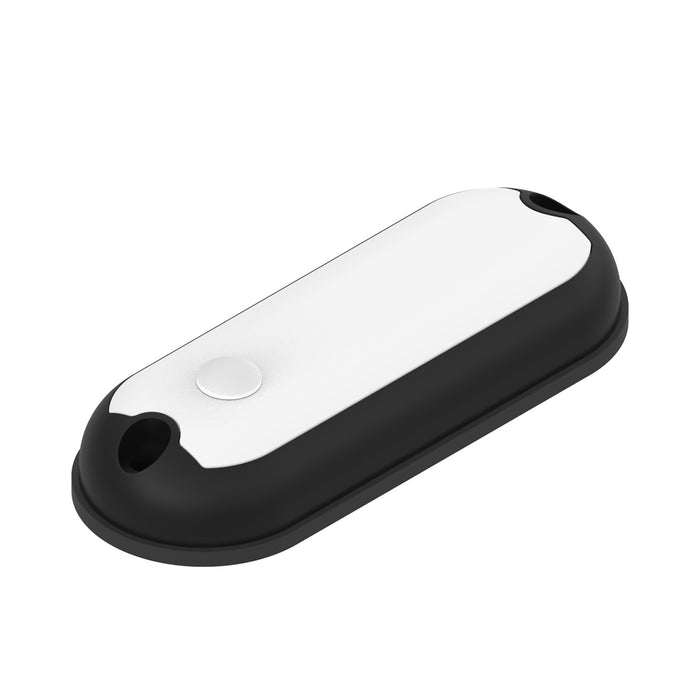

Compact aluminium zone/courtesy light with mechanical on/off switch and silicone gasket seal. 9W, 500LM. IP66 rated for interior truck bed, undercarriage, or utility body lighting.
Part Number: ORA-H5
9W 500 LM IP66 12-24V Mechanical Switch 5 Year Warranty Zone / Area Lights
Product Features
- Mechanical on/off switch for direct control without wiring to a switch panel.
- Silicone gasket seal for IP66 waterproof protection.
- 18pcs 0.5W LEDs - 500LM output.
- White lens/housing - compact form factor for tight spaces.
- Screw mount with 250mm two-wire cable.
- ECE R10, UKCA, CE approved.

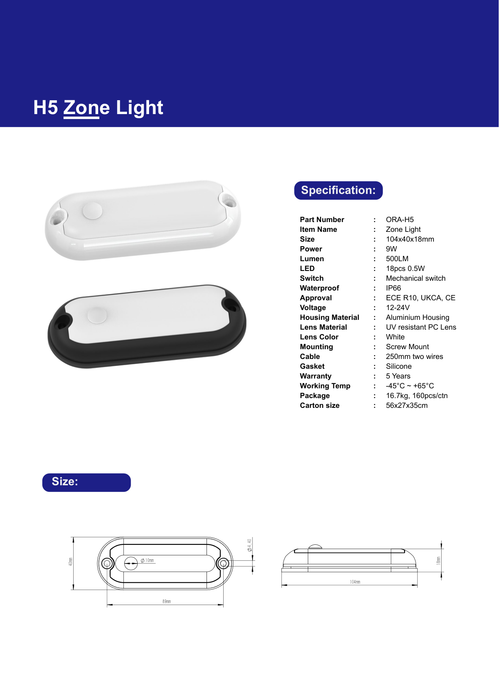

Specifications
Part NumberORA-H5
Item NameZone Light
Size / Dimensions104 x 40 x 18 mm
Power / Wattage9W
Lumen Output500 LM
LED Count / Type18pcs 0.5W
SwitchMechanical Switch
Waterproof RatingIP66
Voltage Range12-24V
Housing MaterialAluminium Housing
Lens MaterialUV Resistant PC Lens
Lens / Housing ColorWhite
MountingScrew Mount
Cable250mm, Two Wires
GasketSilicone
Working Temp-45°C to +65°C
Warranty5 Years
Package Qty160 pcs/ctn
Package Weight16.7 kg
Carton Size56 x 27 x 35 cm
Approvals & Compliance
- ECE R10
- UKCA, CE
Warranty, Shipping & Returns
Backed by ORACLE Lighting quality standards. Review current warranty, shipping, and return policies before purchase.
