ORACLE Lighting 4 SMD Hideaway Omni-Directional Surface Mount Strobe

  • $74.95

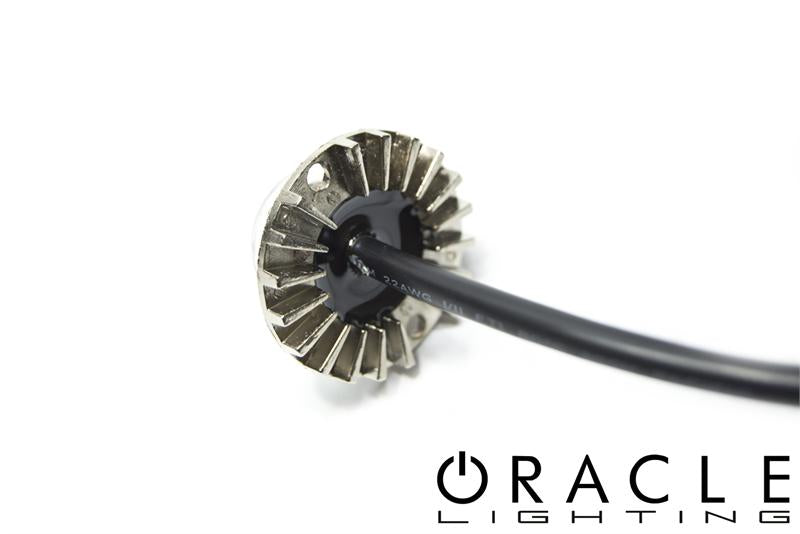

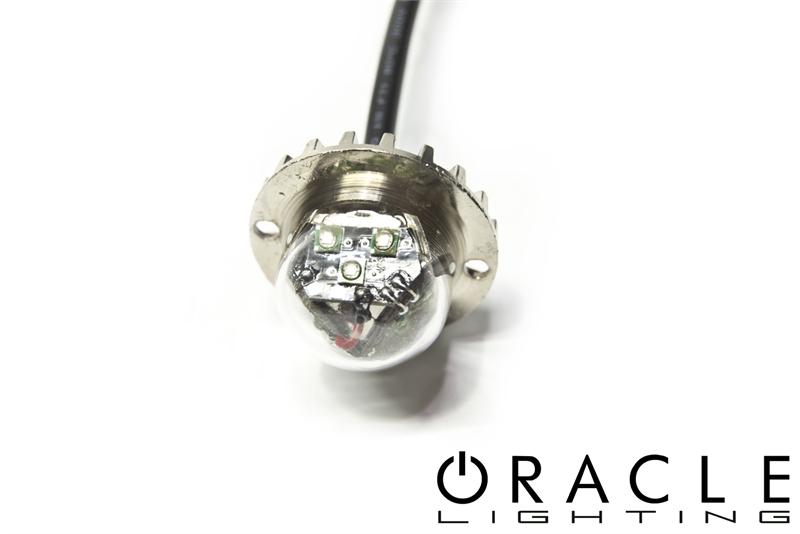

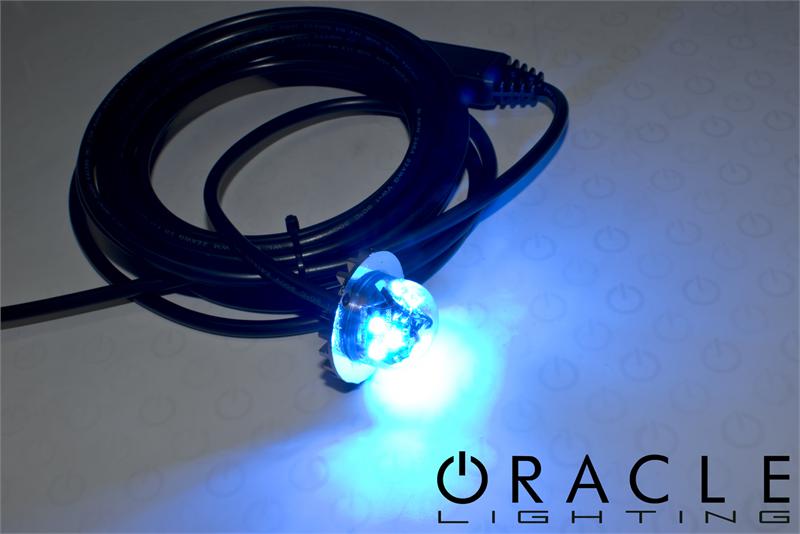

 Only 7/8" in height, the ORACLE SMD Omni-Directional Emergency Strobe is perfect for most applications where size and intensity are important. This sleek self-contained LED requires only a one inch hole in any style head light, cornering light or tail light assembly. Can also be mounted on the outside of your vehicle as well.

3507-002 Blue
3507-003 Red

Product Features:
- 10 flash patterns, includes a synchronized feature for alternating and synced flashing of multiple LED Lights.
- Includes power, pattern and synchronization wires.
- 4 LED Version and 9 LED Version available.
- 10-16VDC Operation.
- IP65 Rating.
- Omni-directional LED Light mounts in any position.
- Available in White, Blue, and Red.
- Meets SAE J1113-41 Class 5.
- No need for separate lamp drivers, flashers, ballast or power supplies to install.

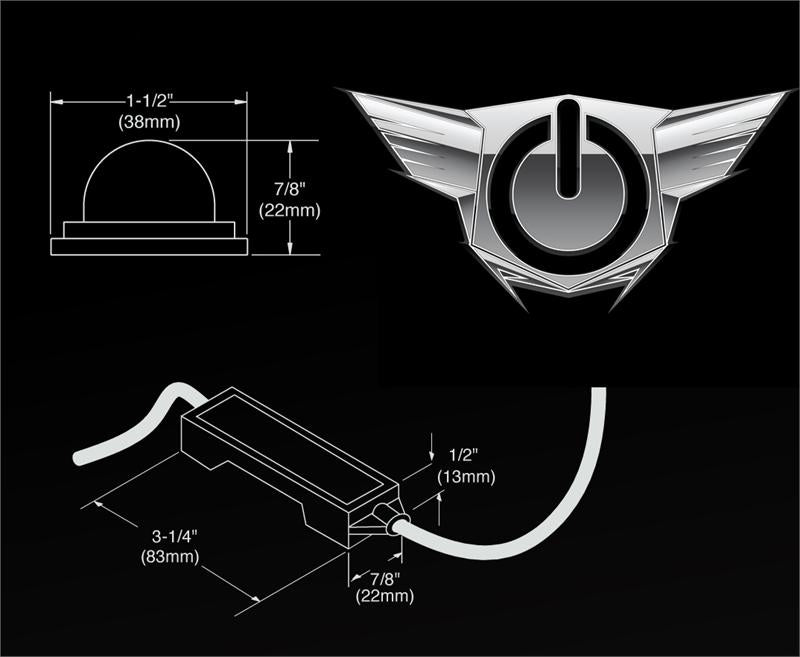

- LED Dimensions:1 1/2" W X 7/8" H
- Driver Dimensions:4 3/4" L X 15/16" W X 7/16" H
- Overall length: 160" or 13.3 ft.

Wiring Explanation:
- Red Wire - Power
- Black Wire - Constant Ground
- White Wire - Sync Wire used to sync other SMD Emergency Strobes
- Yellow Wire- Used to select different modes, simple switch is needed

Mode Explanation:
- Steady On
- Mode Cycle
- 2 Round Burst
- 3 Round Burst
- 4 Round Burst
- Fast Flash Steady
- Fast Flash Burst
- Fast Flash Burst + 12 SOS Flashes
- Fast Flash Burst + 6 SOS Flashes

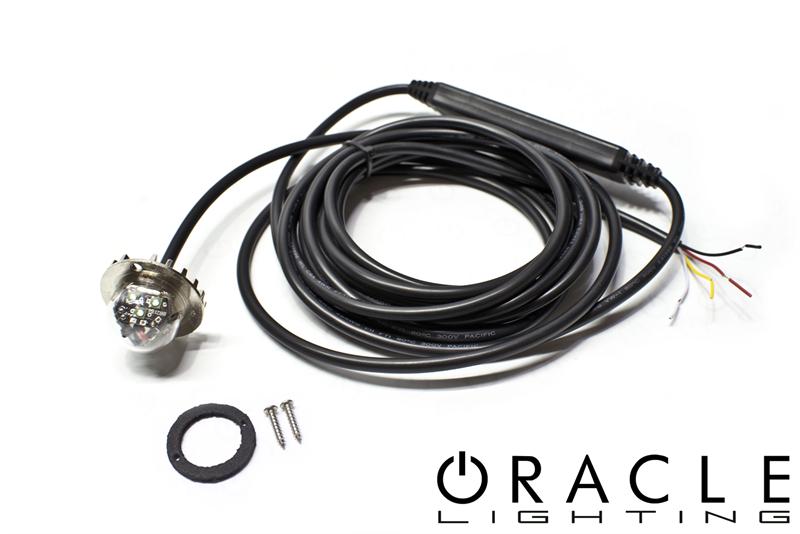

Package includes:
1 x LED Light with driver
2 x Screws
1 x Gasket
